Bad Bunny vinyl made with Hueforge

Product Description

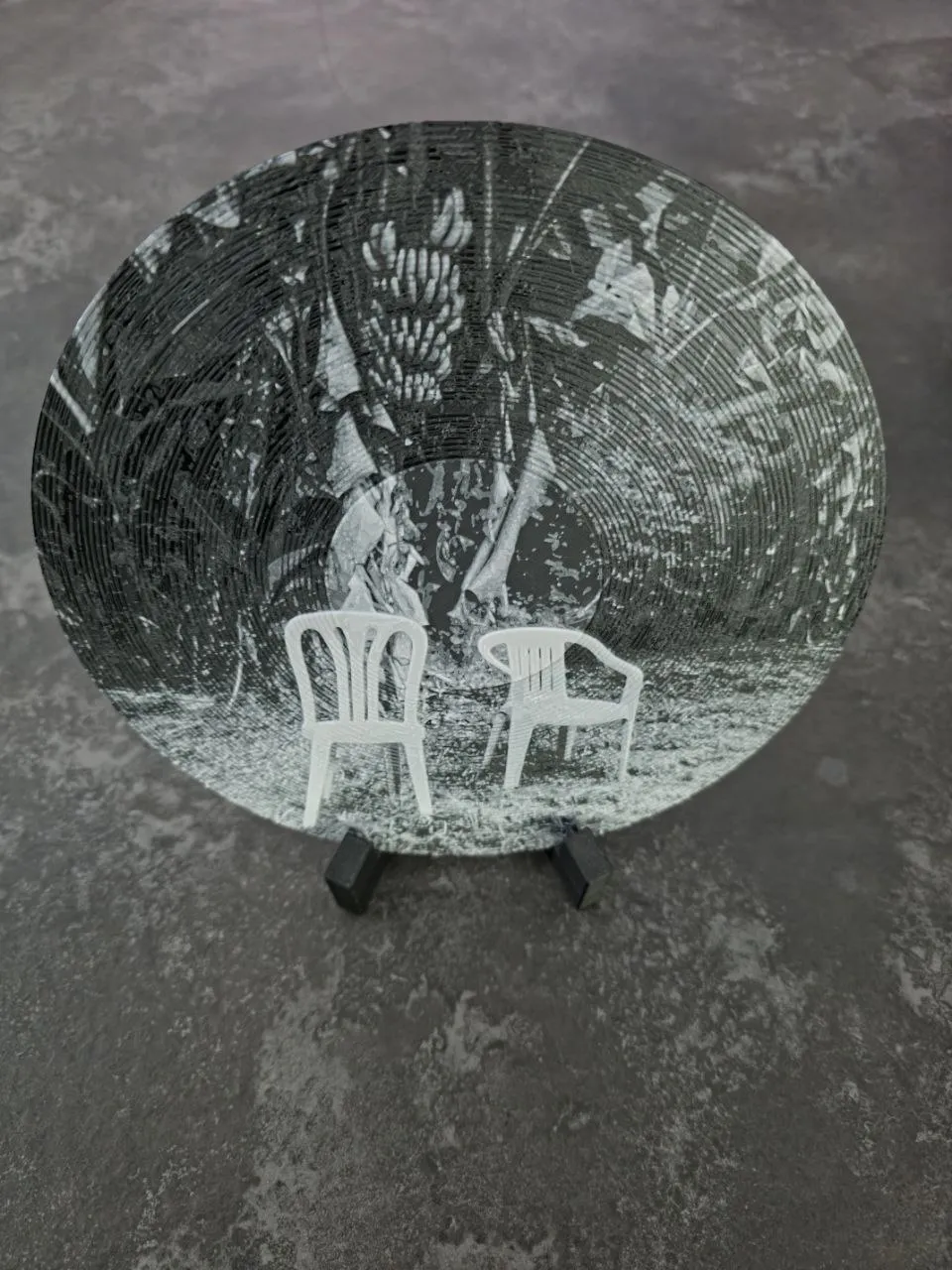

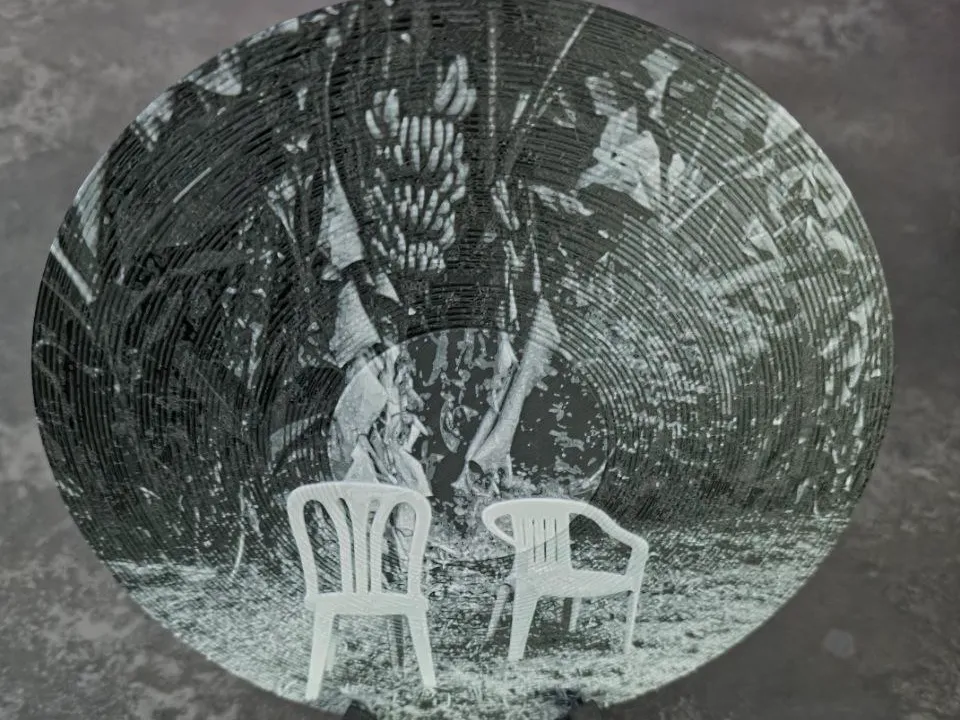

This is a decorative vinyl record (approximately 20 cm in diameter) featuring the album cover.
It is strictly an ornamental item, non-playable, and contains no audio content.

Printing Details

The model was created using Hueforge (personal license) and takes advantage of filament translucency (Transmission Distance – TD) to create grayscale shading through the overlap of lower black layers and upper white layers.

Only three colors are required for optimal results:

• Black
• Gray
• White

Using a white filament with suitable TD is crucial.

⚠️ Opaque white filaments are not suitable for this type of print.

• Recommended: Bambu Jade White
• Compatible: Any white (or colored) filament with TD between 5 and 6
• I used a PLA+ white filament from another brand with similar opacity.

Printing Instructions

• No AMS required
  The included profile has automatic filament swaps at layers 9 and 12.
  If you don’t have an AMS, simply insert manual pauses to change filaments:
  • Black → up to layer 9
  • Gray → from layer 9 to 12
  • White → from layer 12 to the end

If slicing manually:

Make sure to use the following settings for optimal Hueforge results:

• Infill: 100%
• Layer height: 0.08 mm
• First layer height: 0.16 mm

Helpful Tip

Be sure to clean the build plate thoroughly before printing to ensure proper first-layer adhesion.

Filaments Used:
    PLA+ Sunlu Black Transmission Distance: 0.6
    PLA+ Sunlu Grey Transmission Distance: 2
    PLA+ Sunlu White Transmission Distance: 5


Legal Notice

All rights to the album artwork belong to the artist.
This project was created using a personal Hueforge license and is intended for non-commercial use only.
