Samsonite luggage hinge replacement part for 29-inch shell case
IP Report
Print Profile(1)
0.16mm layer, 2 walls, 80% infill
Designer
1.3 h
1 plate
Open in Bambu Studio
Boost
2
2
0
0
0
0
Released
Description
Content has been automatically translated.

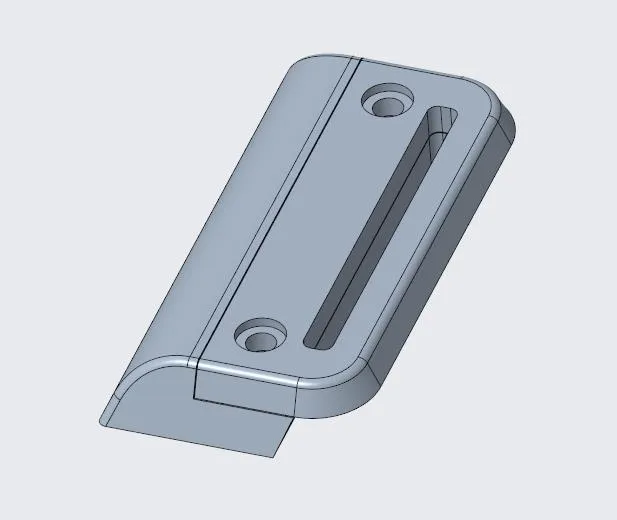

3 M3*4 copper pillars need to be embedded in the main body (not the ears).

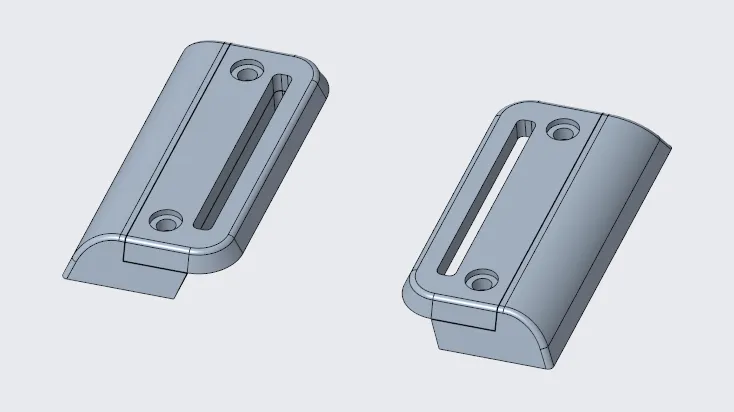

2 M3*6 screws for fastening the ears to the main body (left and right).
The middle screw is M3*14.

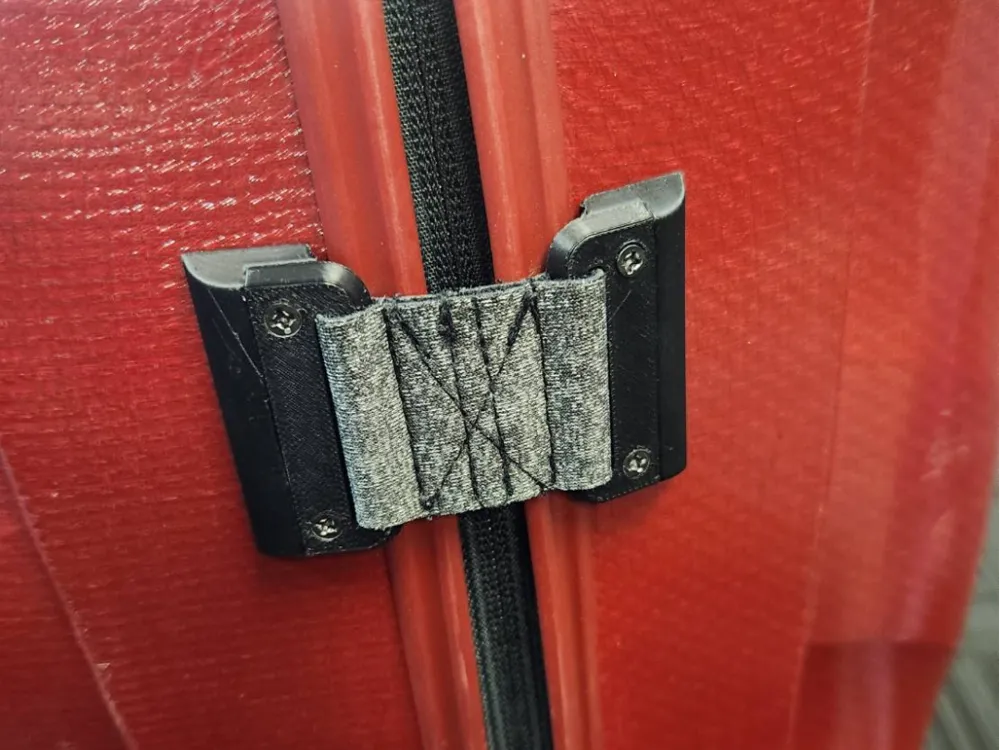

Fabric (nylon) is 90mm long and 36mm wide. The nylon fabric and ear pieces are secured by sewing through them.
