Sun Visor Lateral Extender for VAG (MQB Evo & MEB)
Print Profile(5)
Description

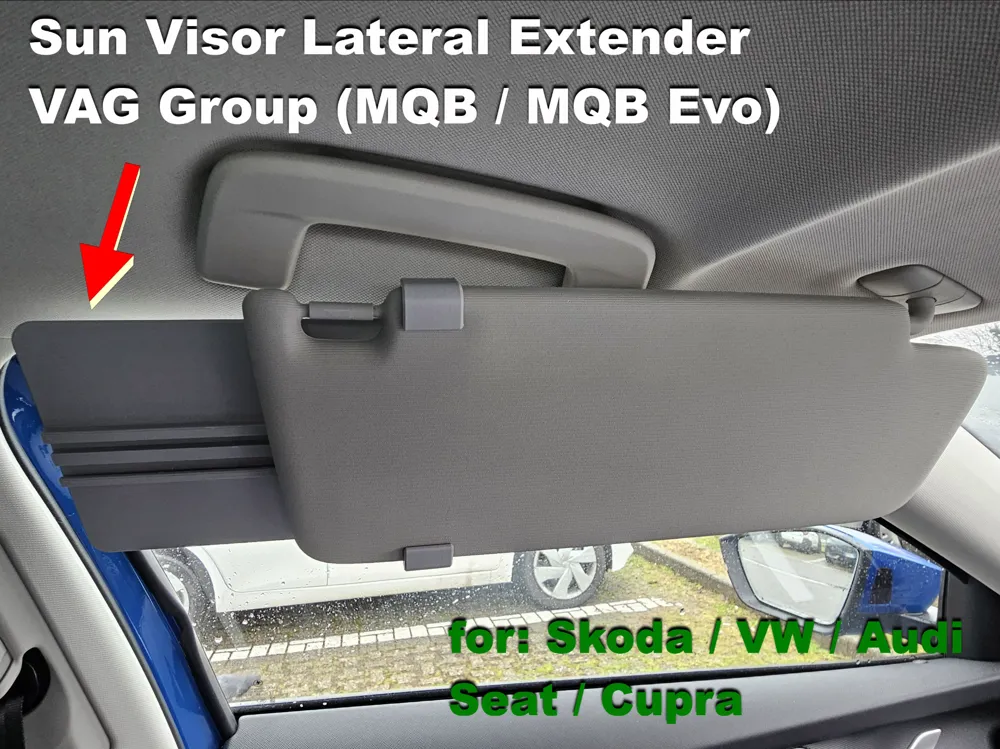

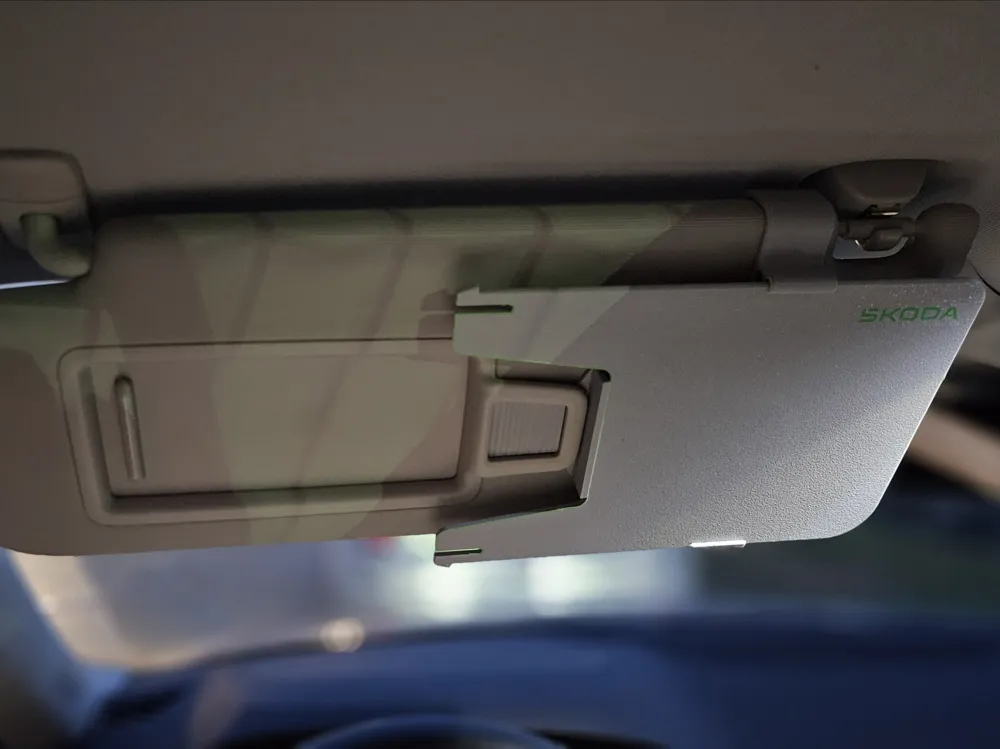

Extendable Sun Visor – VAG Group (MQB, MQB Evo & MEB)

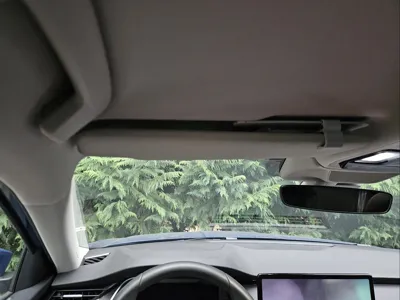

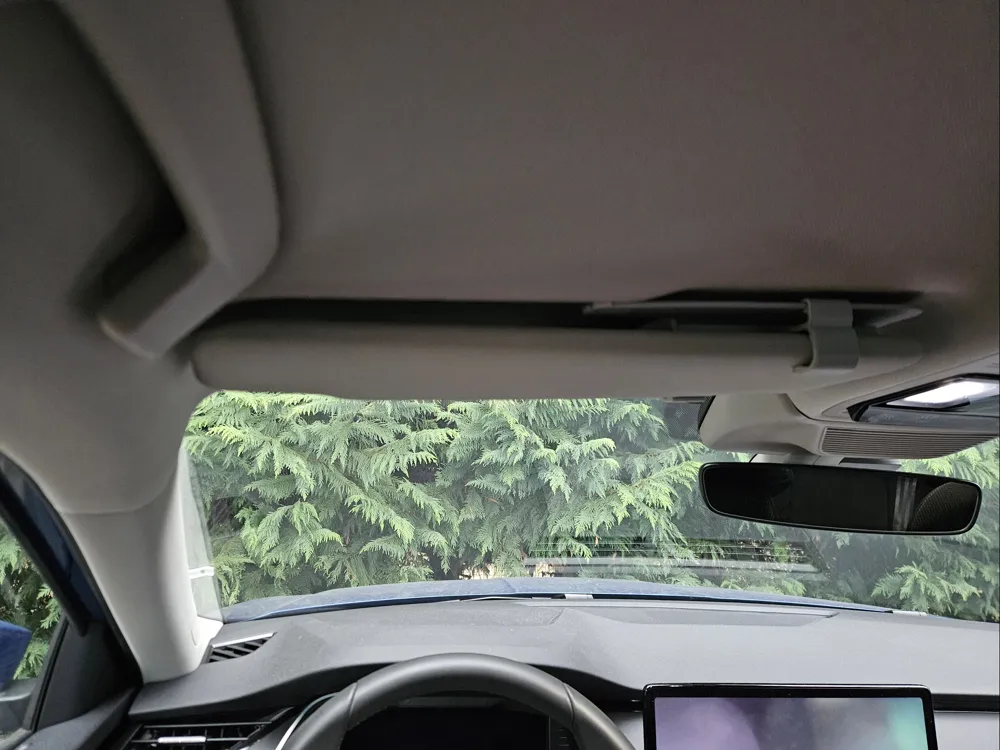

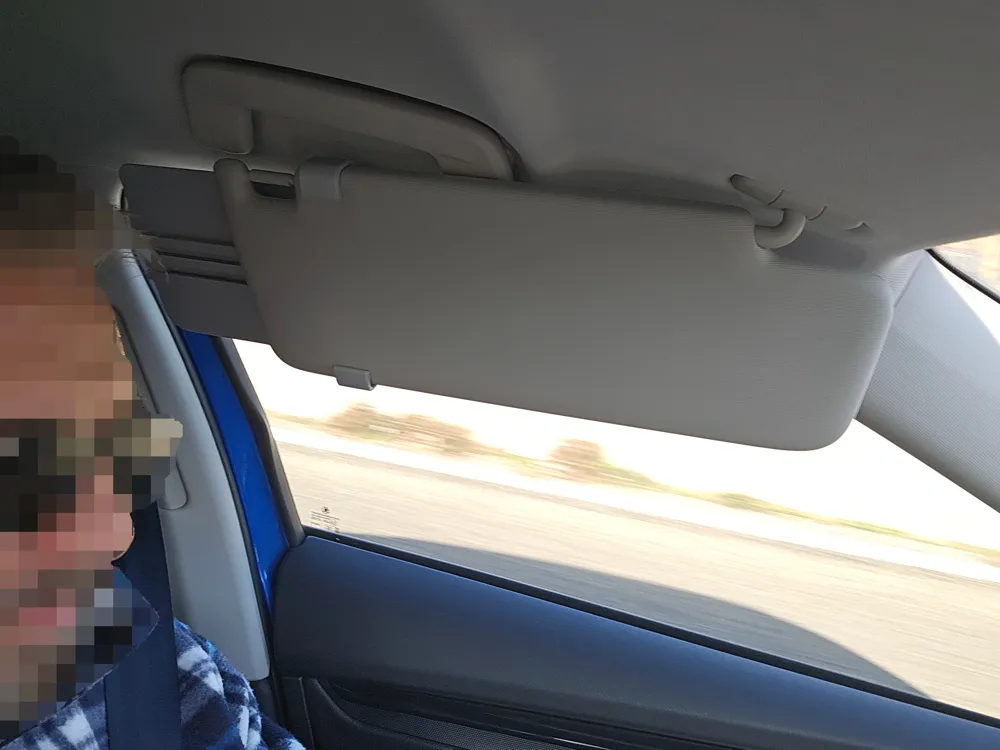

This accessory was created to solve the problem of sunlight filtering laterally between the sun visor and the pillar. It was designed with AutoCAD, seeking the best compromise between reduced thickness and functionality, to allow the original visor to close perfectly "flush" against the car's headliner
🛠 Design Features

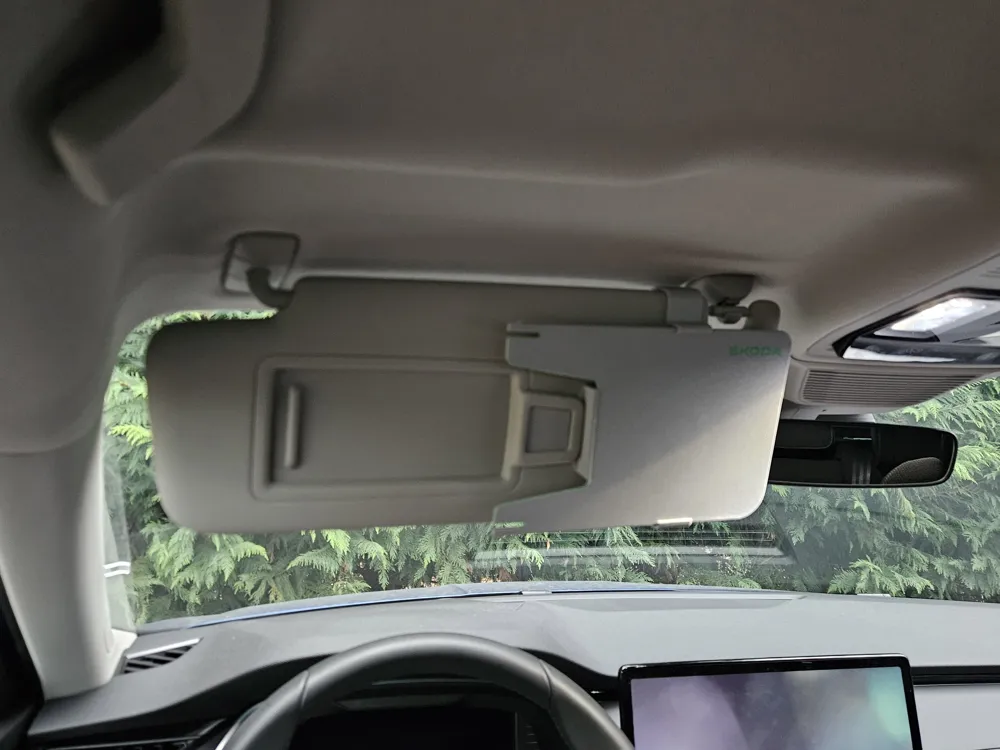

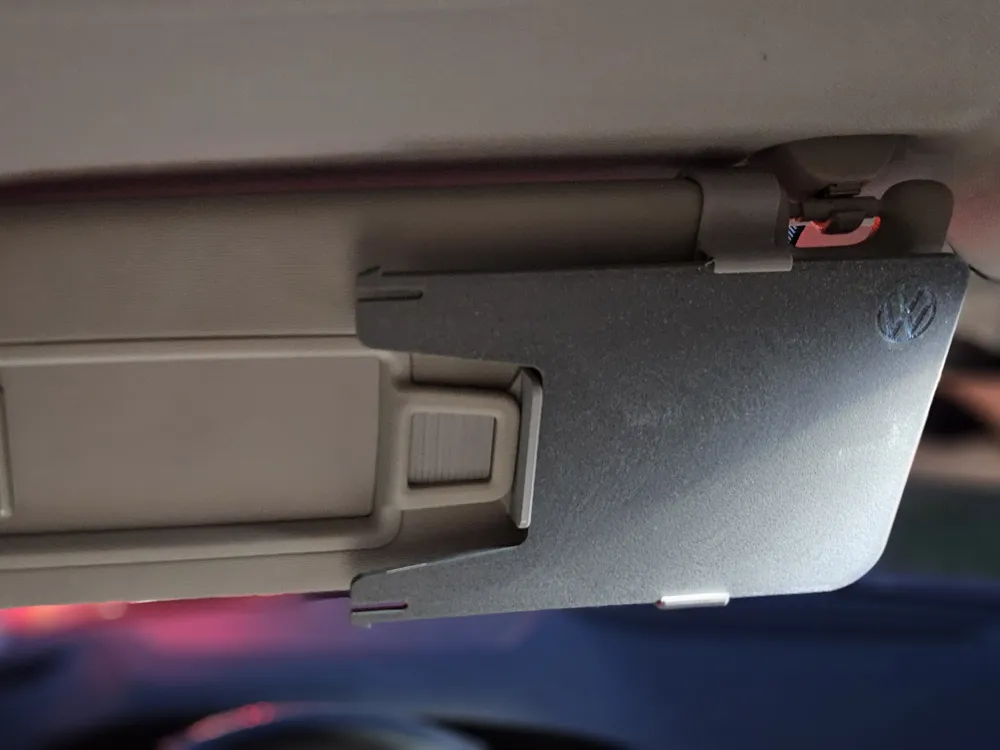

- Discrete Integration: The slim profile avoids bothersome bulk once closed

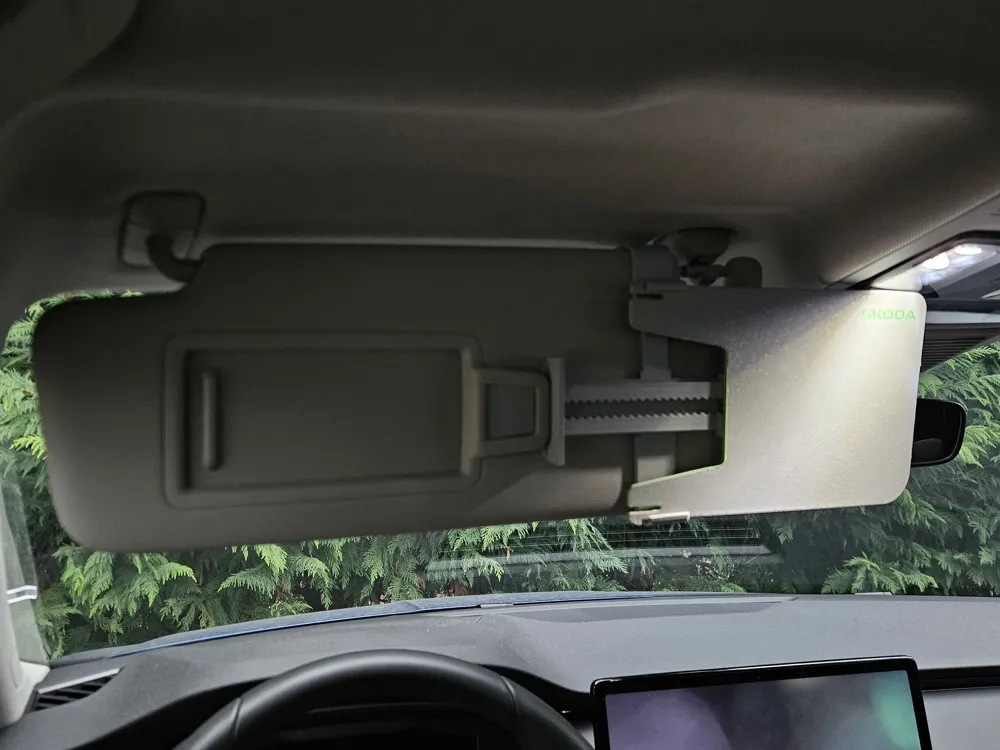

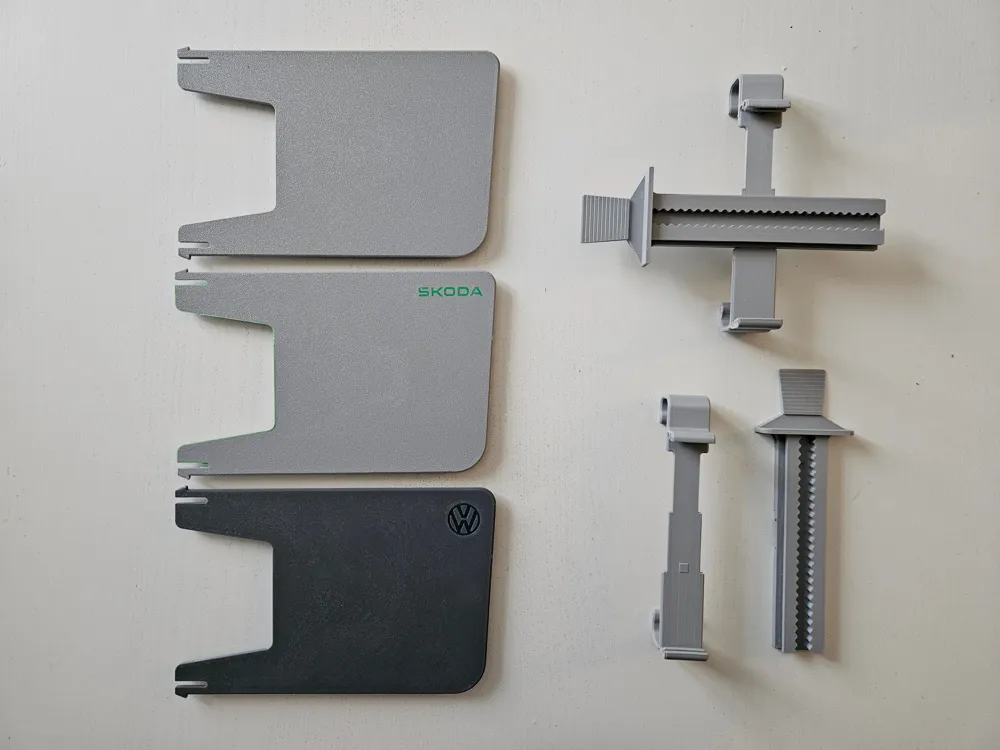

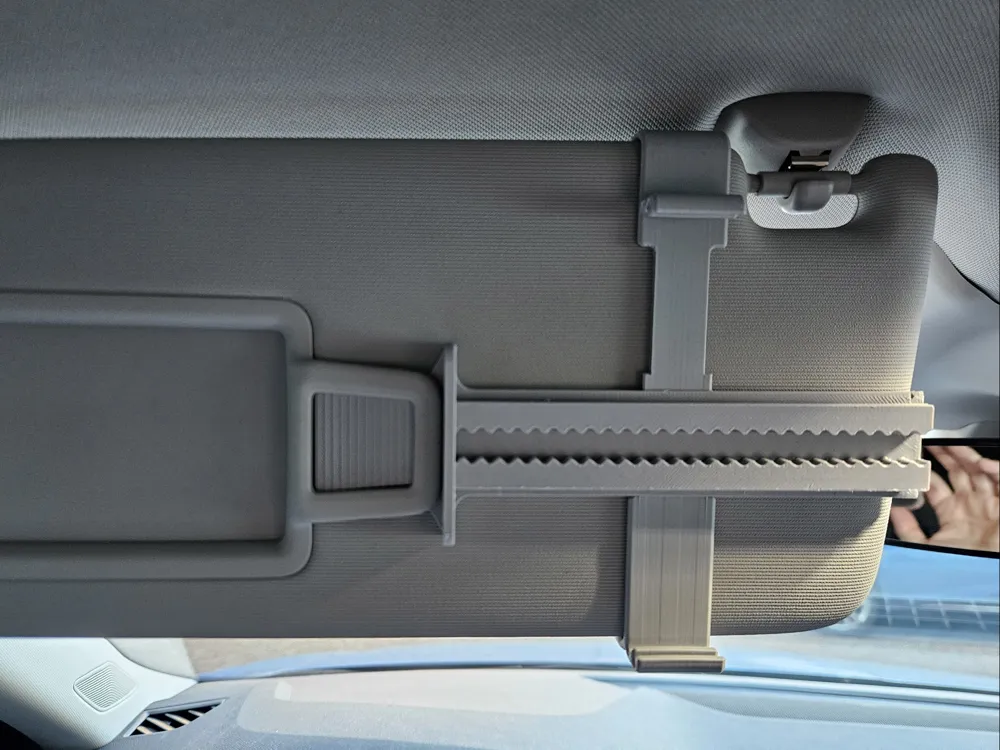

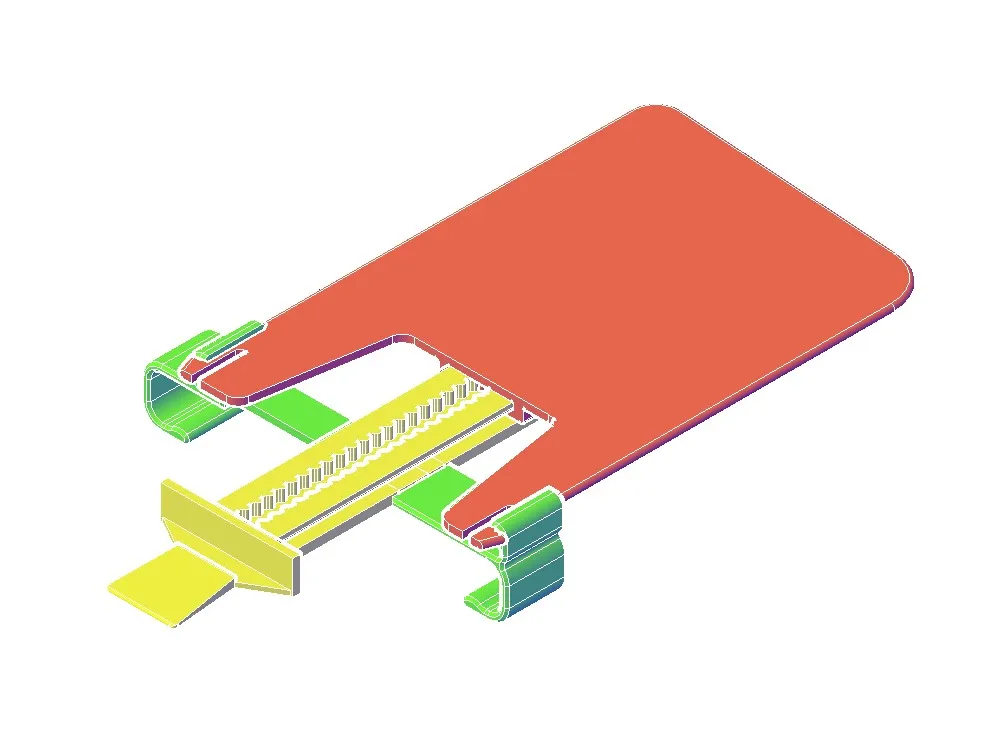

- Click-Feedback: During sliding, a series of small mechanical clicks stabilizes the extension in the desired position, preventing movement due to vibrations
- Recommended Materials: To withstand summer temperatures in the cabin, it is necessary to print in PETG, ASA, or ABS. PLA is not suitable for this use
- Optimized for AMS: some print profiles (the branded ones) are set to use PLA as an interface material for supports (50% density, "Snug" style), ensuring a perfect sliding surface and very easy support removal
🚗 Technical Compatibility (VAG Solution)
The design is based on the dimensions of the vanity mirror frame, which has remained standard across much of the Volkswagen Group range
MQB / MQB Evo Family
- Reference code: 857 551
- Tested on: Skoda Octavia 4
- Compatibility: VW Golf 7/8, Jetta MK7, T-Cross, Passat B8, Seat Leon, Cupra Formentor and models that share codes 5G0 857 551, 5H0 857 551, NX0 857 551, 8Y0 857 551
MEB Family - Electric (MEB Edition Profile)
- Reference code: 11A 857 551 C (special thanks to blueberry63)
- Tested on: Skoda Enyaq
- Compatibility: Specifically developed for the visor dimensions of Skoda Enyaq, VW ID.3, ID.4, ID.5 and Audi Q4 e-tron
💡 Development Notes
The project is continuously evolving. Thanks to user feedback and testing, the MEB Edition variant was recently implemented, addressing size differences found on electric SUV models compared to the standard platform
If this accessory has been useful to you, a Like or a Boost is much appreciated: they help me continue developing technical solutions for the VAG community 🚀🔧
