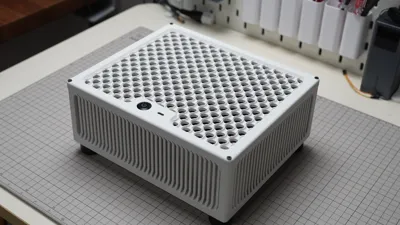

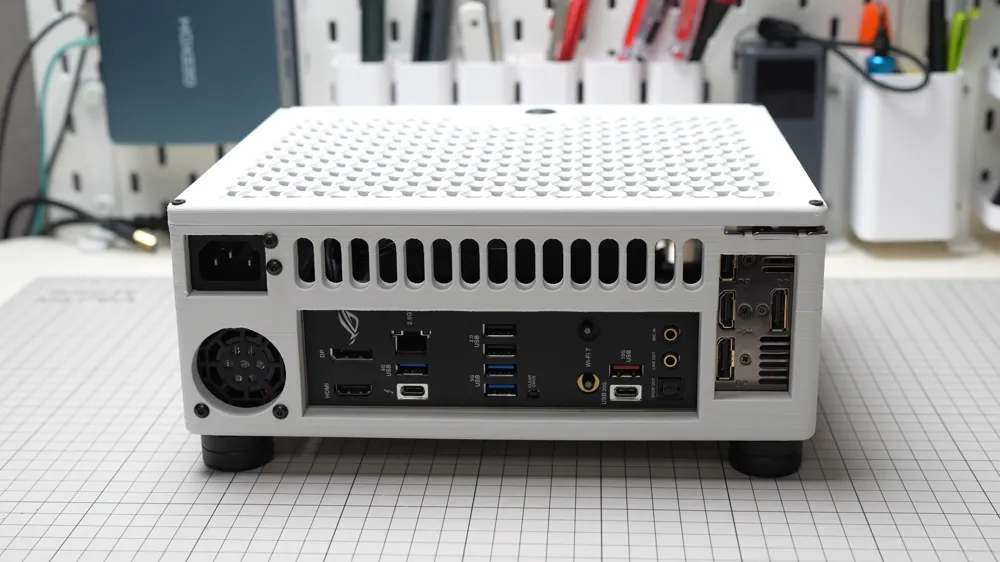

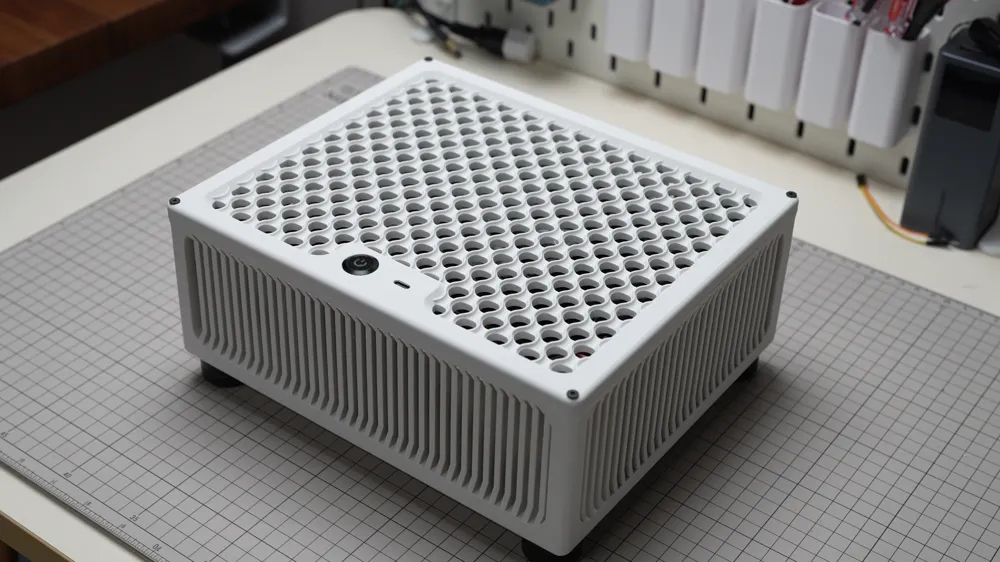

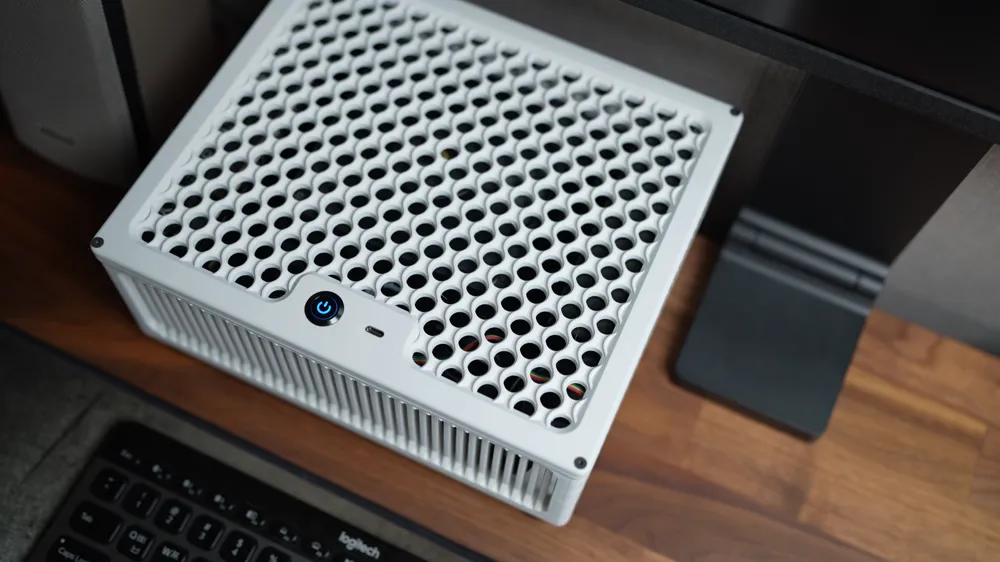

SFF case with ITX mainboard, LP graphic card, Flex power supply.

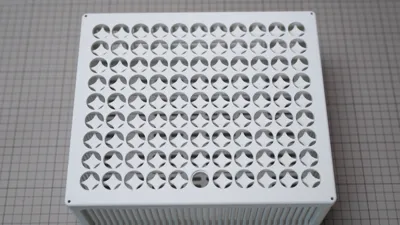

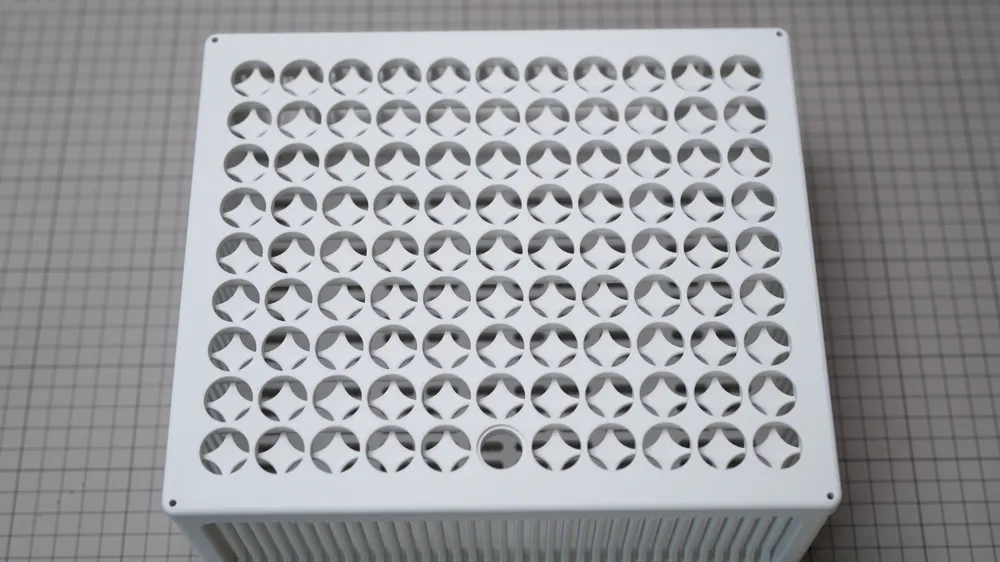

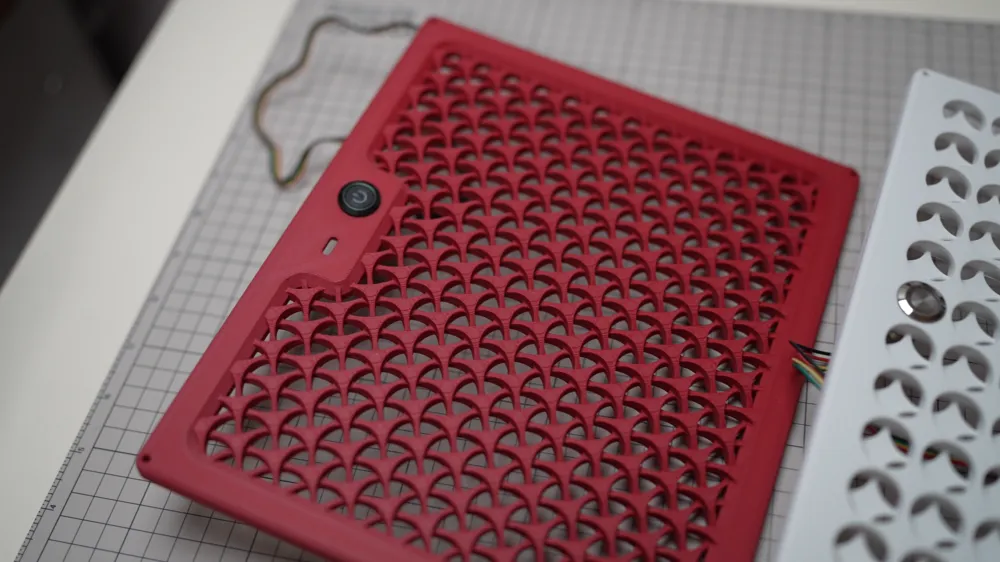

The case is made of two parts. No support is required.

Please check the description in the video for the details.

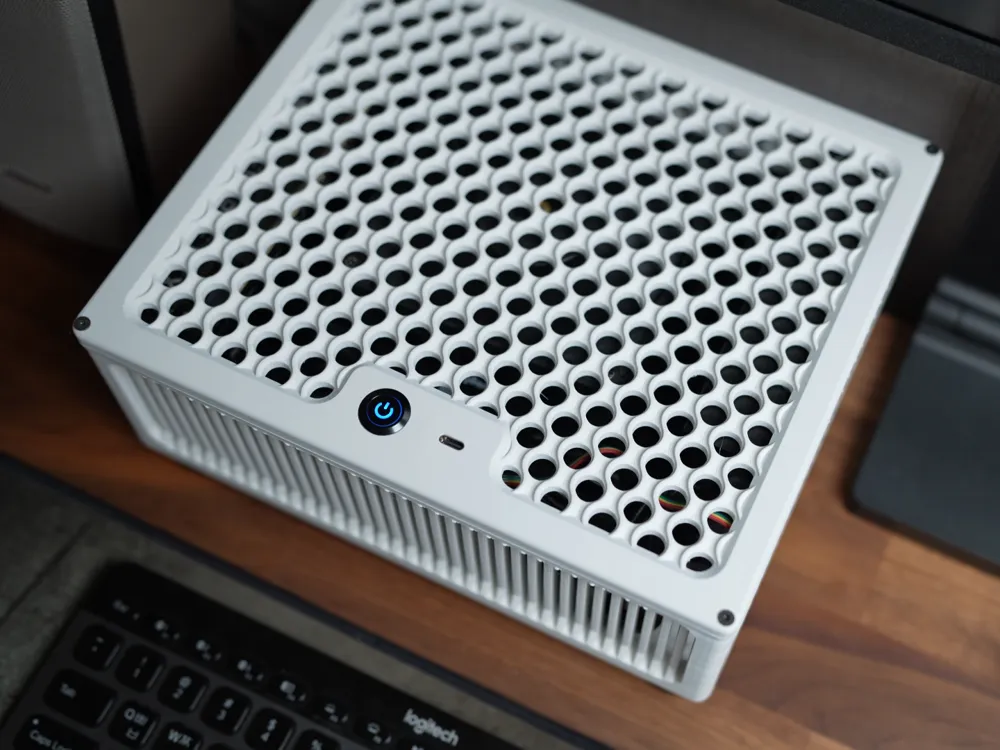

Power button : 16mm, Momentary

https://s.click.aliexpress.com/e/_c2JDyBzl

https://s.click.aliexpress.com/e/_c3QnaBIf

https://s.click.aliexpress.com/e/_c4eoIoWx

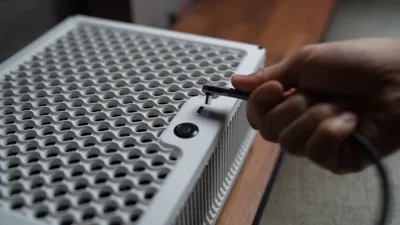

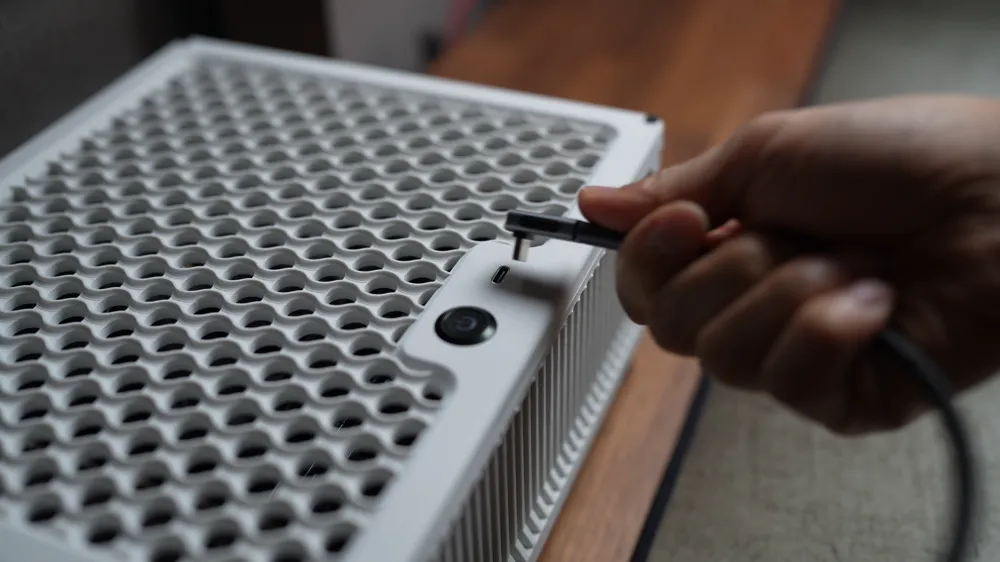

USB C port :

https://s.click.aliexpress.com/e/_c4kR0diP

UNC screws for PSU mount : 6-32, 1/2 length

https://s.click.aliexpress.com/e/_c4C5ZNIn

M3 screws for Top cover : M3, 14mm length

https://s.click.aliexpress.com/e/_c3LW2M9t

Boost Me (for free)

If you boost me, I will make better models and share them.

Comment & Rating (15)

@MysticVoyager

Boosted

came out great! I used Bambu PETG-HF only issue I had was the gpu clearance was too tight in front so I had to put a little « shim » thanks for sharing this amazing design!

(Edited)

@IHed

did you use a asus 5060 lp? i also have it and im wondering if itll cause a problem

@MysticVoyager

Boosted

Replying to @IHed :

no mine is a gigabyte, not sure if an asus 5060 would fit @reeal what is the max gpu length that fits?

@user_3309732292

very nice

@user_752296391

Boosted

I have successfully created it with gratitude. I hope an ATX version will be released too

Show original

@Ninjai123

I’m not sure if anyone else has run into this, but I’ve tried printing it twice with different filament settings and got the same result. It seems like the ventilation sticks are a bit too thin—once they get taller, they don’t adhere very well, and the nozzle starts to wiggle them during printing. Maybe increasing the width of those sticks to match the front one could help improve stability?

@user_802916961

Print Profile

0.2mm layer, 2 walls, 10% infill

@aeowngkim

Boosted

You're amazing.. Please continue to create many more works

Show original

@IHed

could you release the step files for this case? i want to edit it to be able to support a gan 250w psu and make it a bit smaller

@einzigwahre

Thank you for the work Unfortunately, LP graphics cards are rare Could you build the same version but taller for a normal GPU Or a version with a riser Thank you very much

Show original

@eche

this looks incredible. I can't wait to build it, but it doesn't seem to print on P1S. Is there a way to make it compatible? Thanks!!

@user_3962688107

humble request... no gpu version and taller for bigger cooler for APU system (specifically amd prism cooler, 93mm) idea for the vertical pattern which seems to cause issues to print. maybe in the back (inside) have a diagonal pattern to make it more stable... :) Good Job!
