VW T6 Rear Pullout - cable chain adapter
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
7 h
2 plates
Open in Bambu Studio
Boost
3
6
0
0
1
0
Released
Description

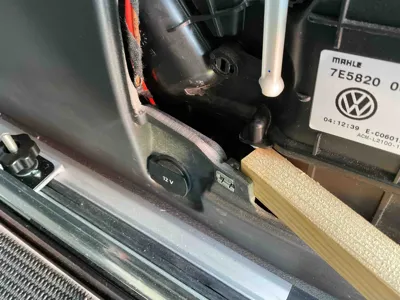

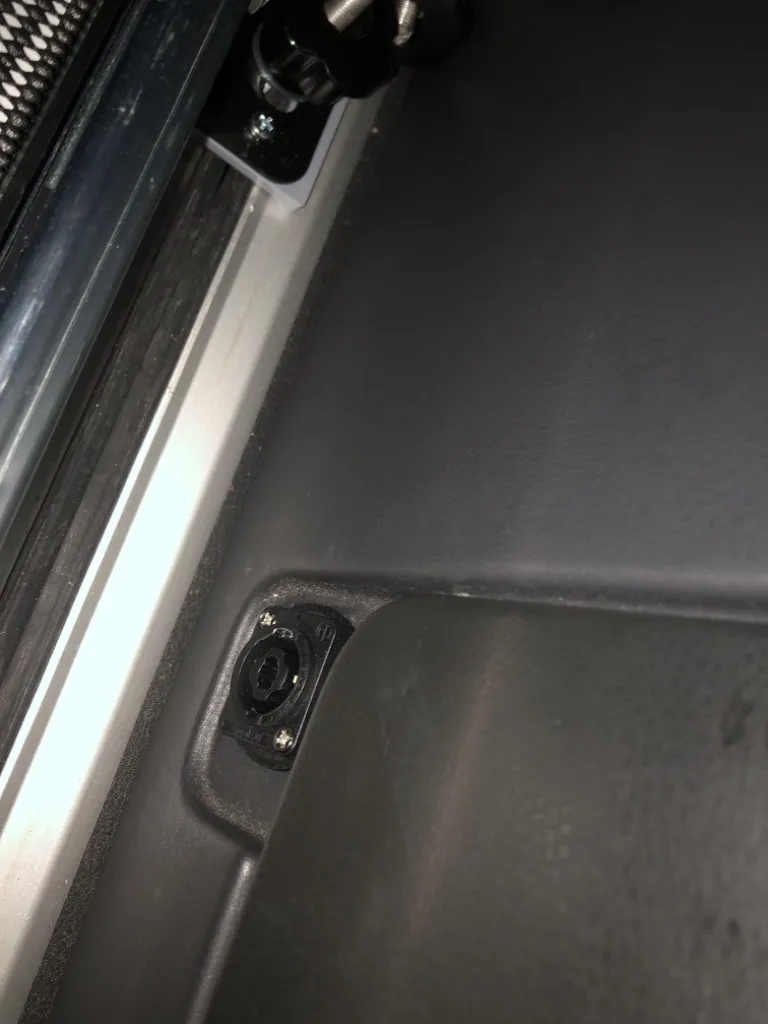

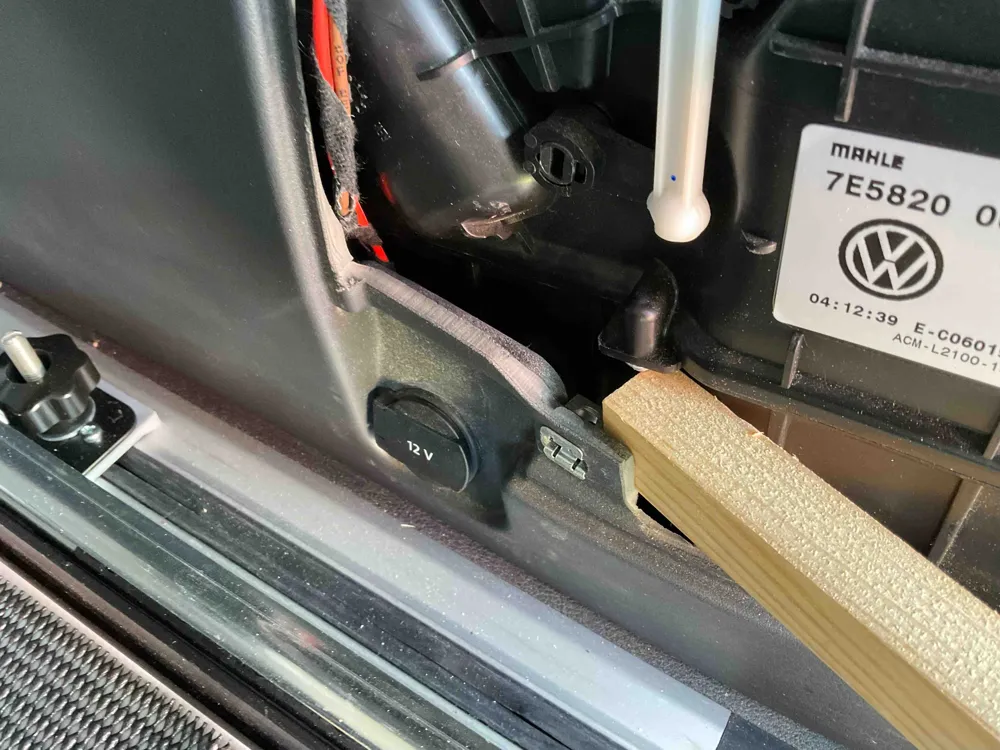

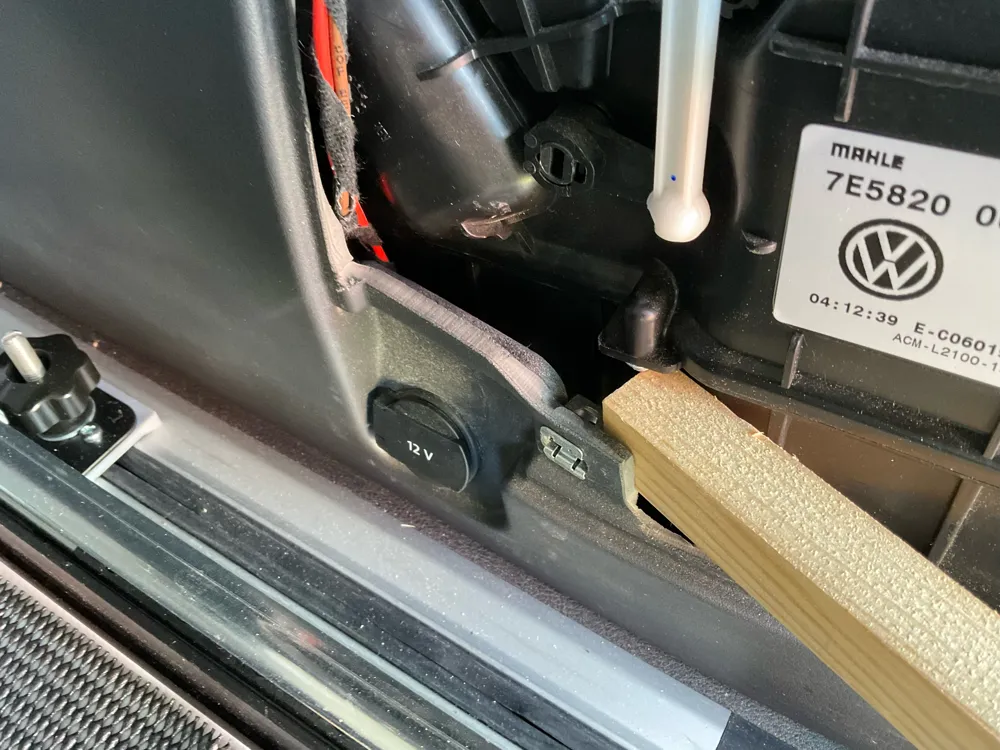

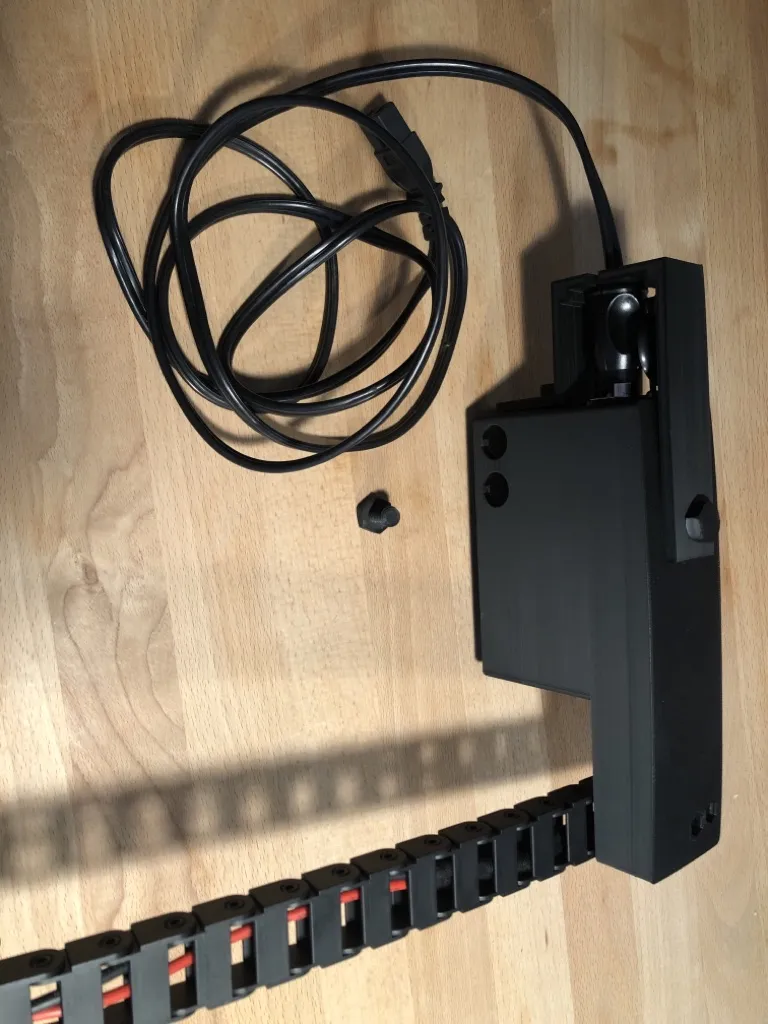

Get dedicated 12V car plug on rear pullout on a VW T6

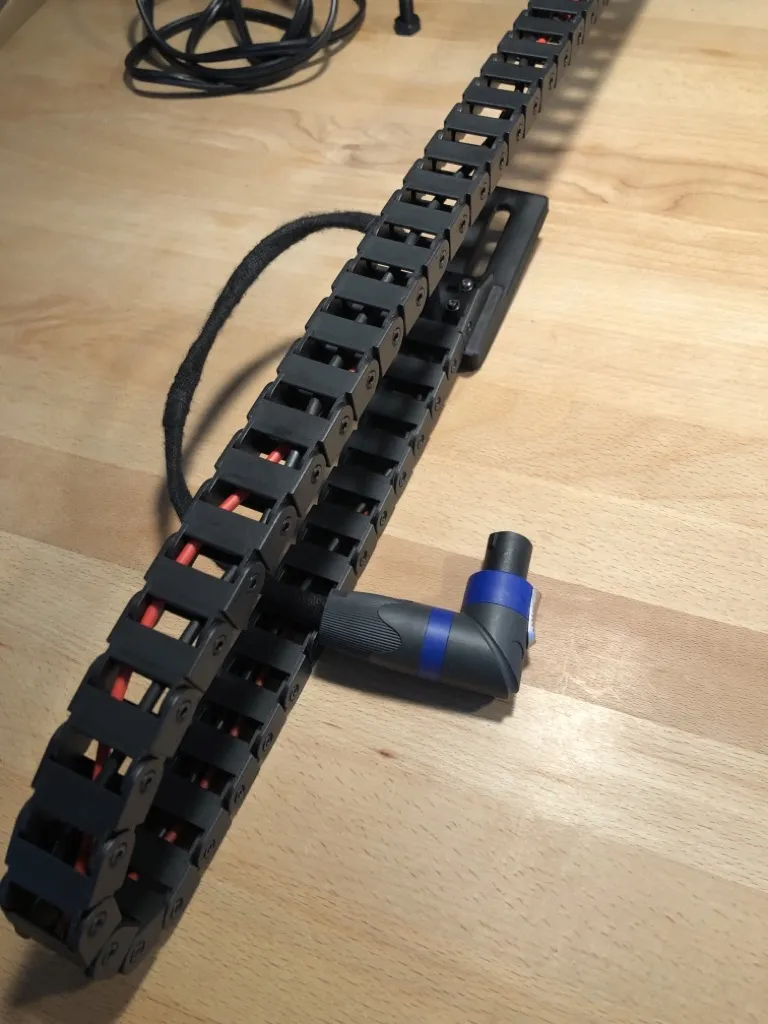

Complementing rear pullout of bus-boxx with cable chain plus Neutrik connector.
This 3mf file resembles in one file all stl files from https://github.com/SteffMUC/vw_t6_rearpullout
Assembly instructions
- Print all plates of the 3mf file

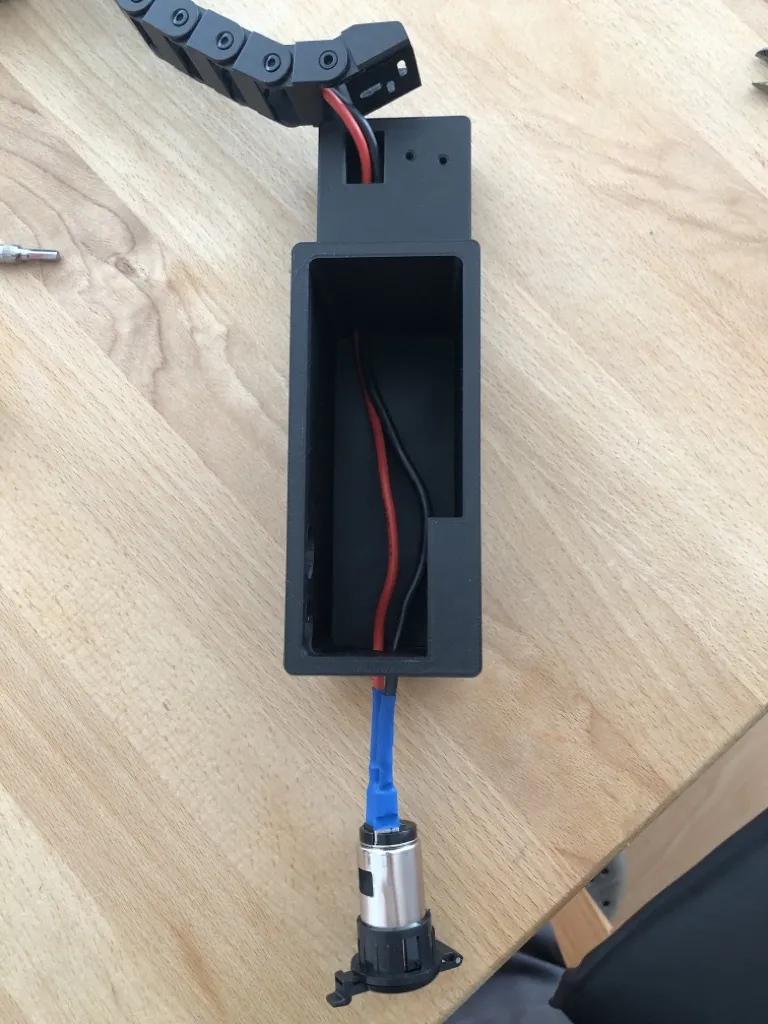

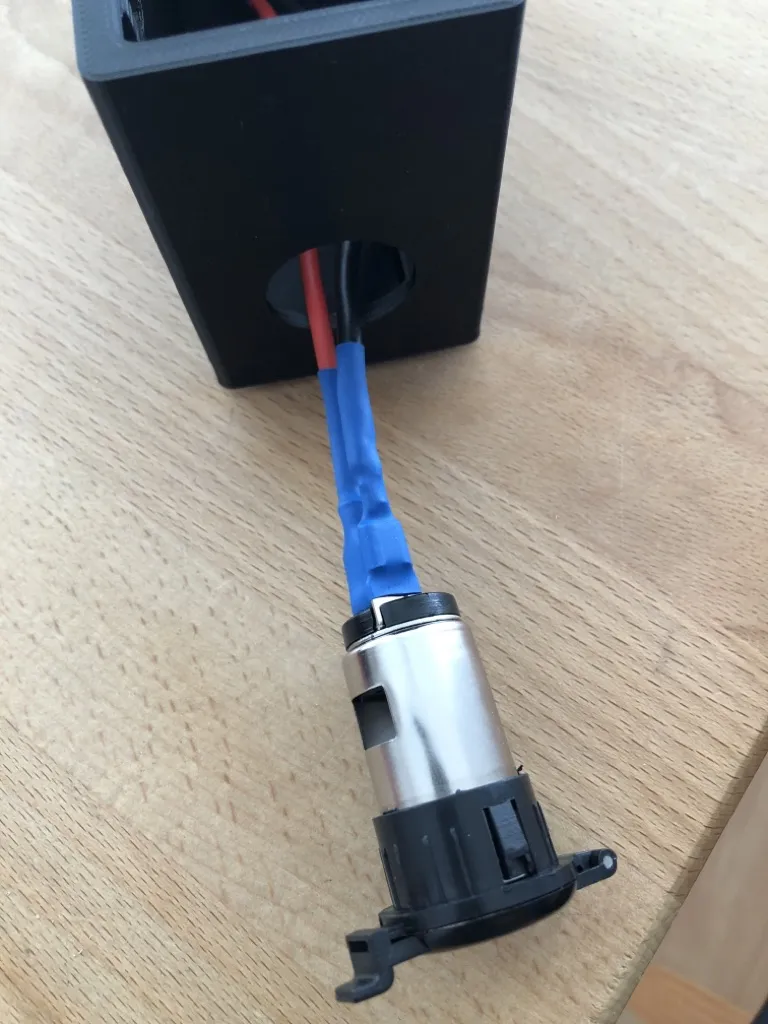

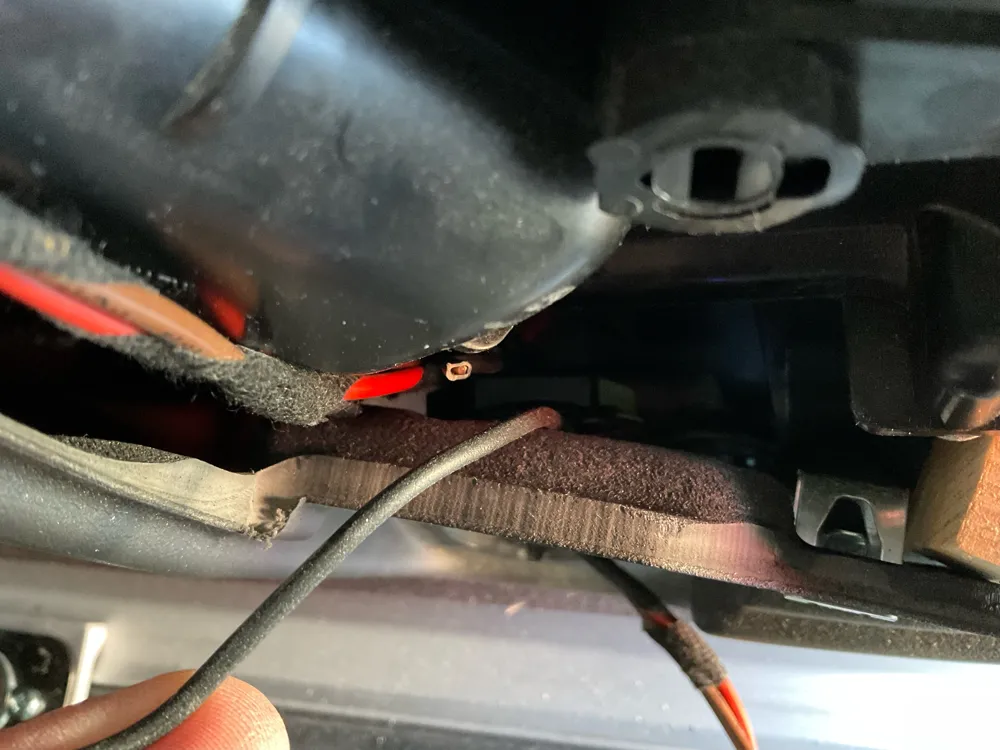

- For 12V cables 2.5mm2 cables have been used. For the Neutrik plug cable terminators (Wire End Ferrule Pliers) have been used. All relevant parts have been protected with Heat Shrink Tubes. For the cables 1+ and 1- have been used respectively.

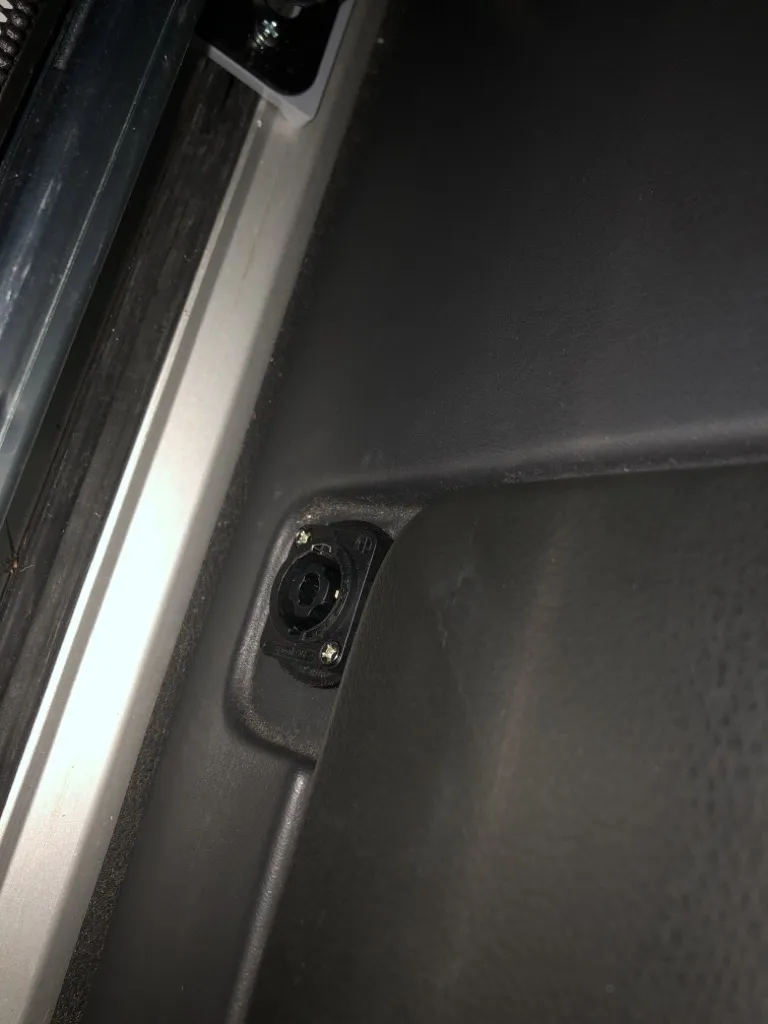

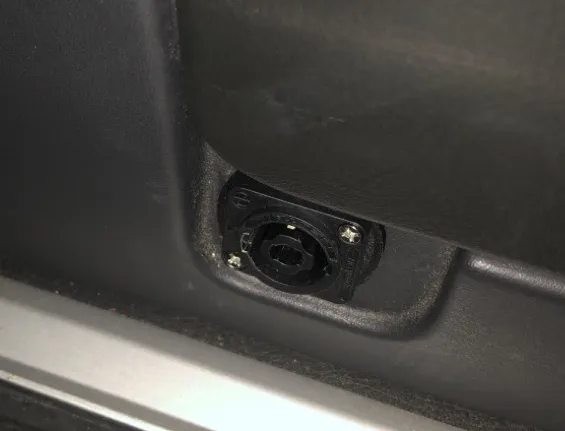

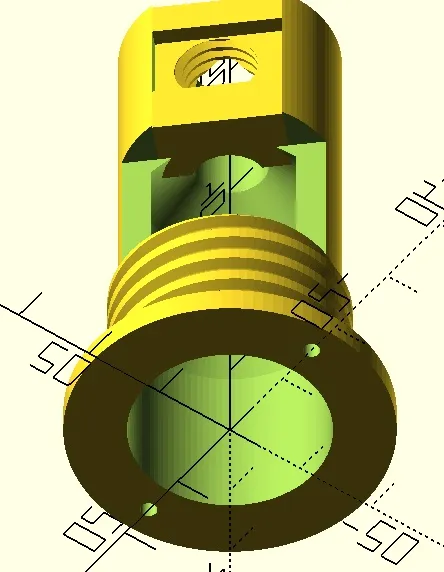

- For the Neutrik Jack the parts Nut for Neutrik Adapter and Screw for Neutrik Adapter have to be mounted to the Neutrik Adapter

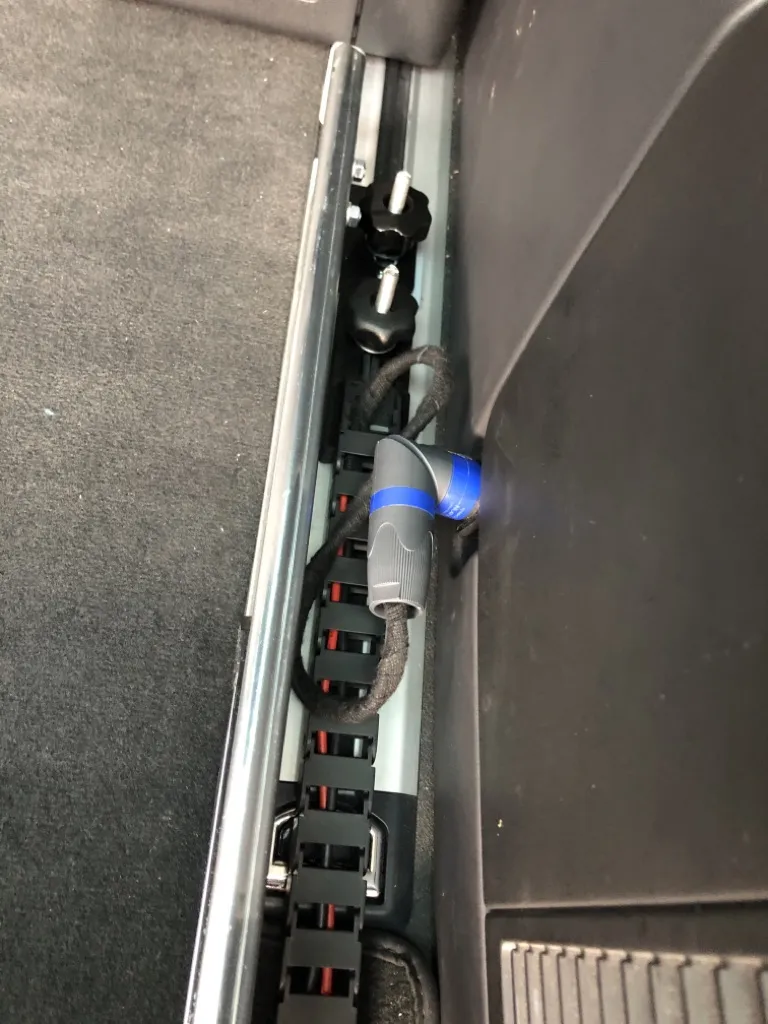

- The Cable Chain has been mounted to the Adapter Multirail with two M3 screws (taken from the set Stainless Steel Screw Kit, protected by Screw Lock

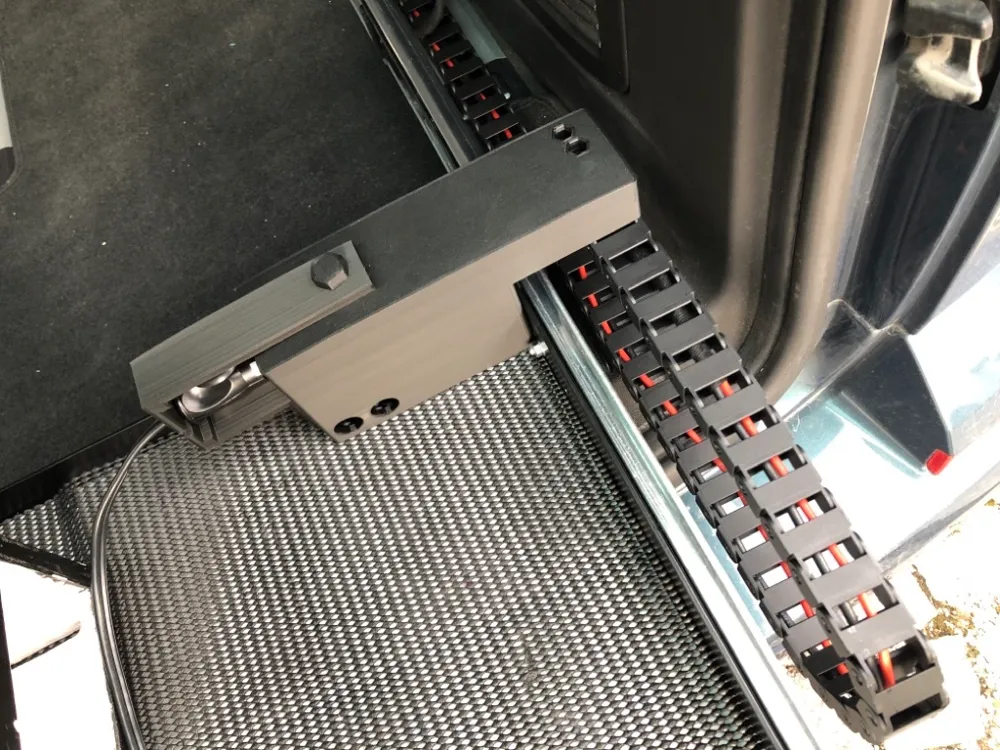

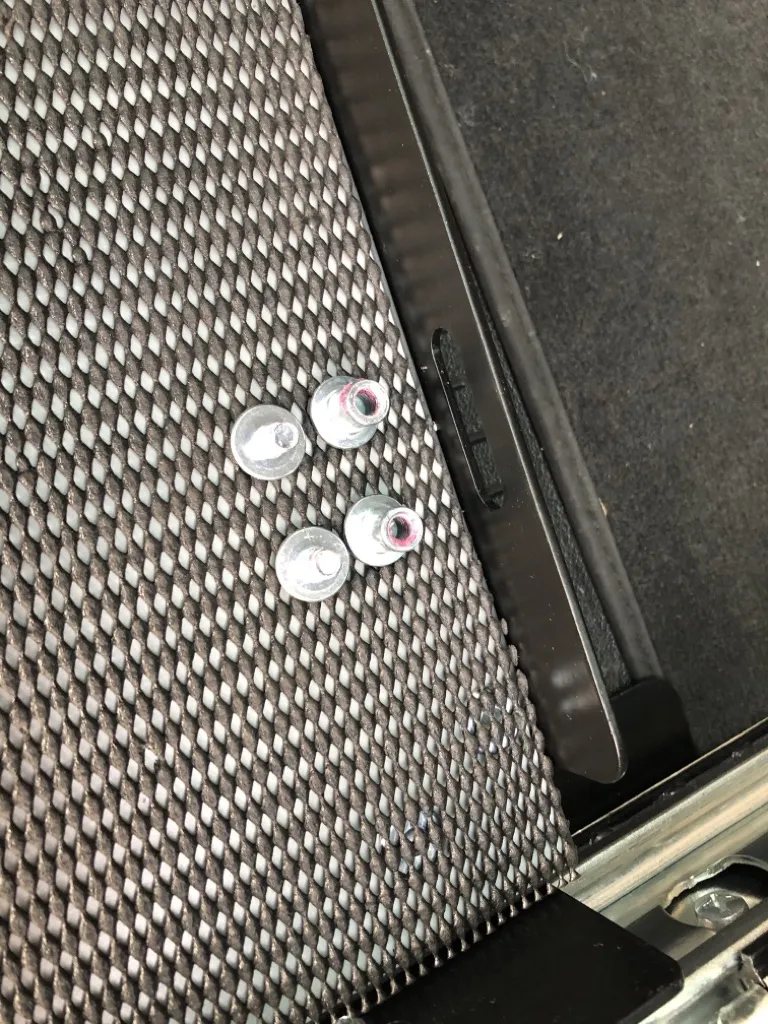

- The other end of the Cable Chain has been mounted to the Rear pullout platform

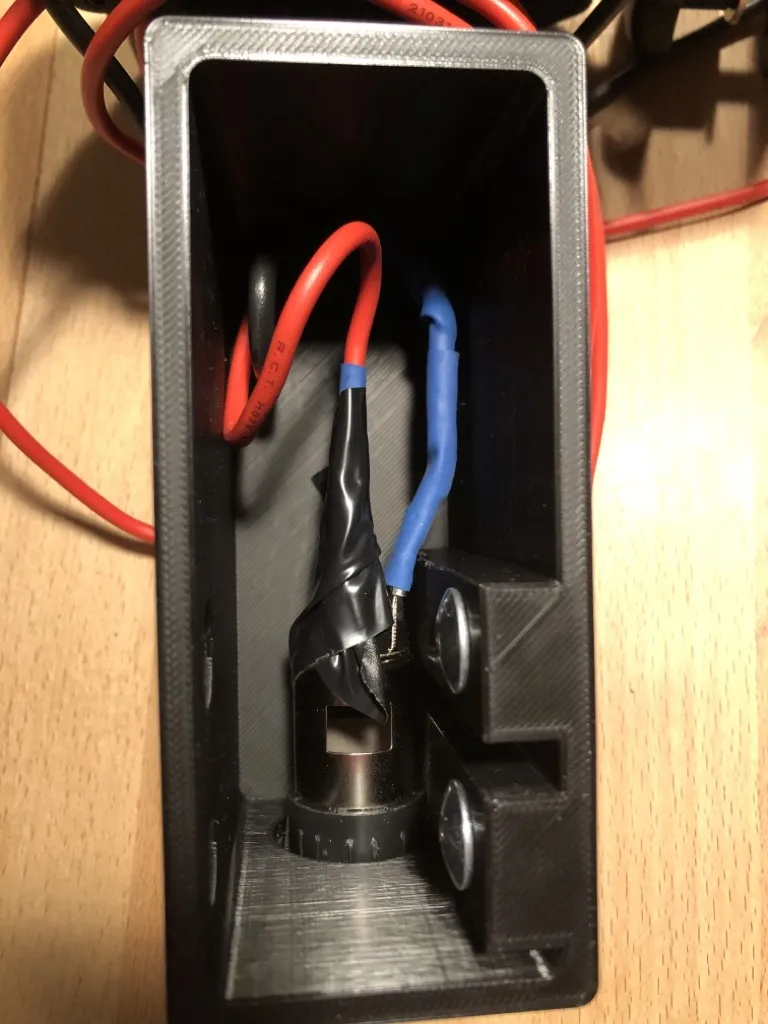

- If necessary the 12V plug itself can be protected against sliding out by Screws for safety holder plus Safety holder
