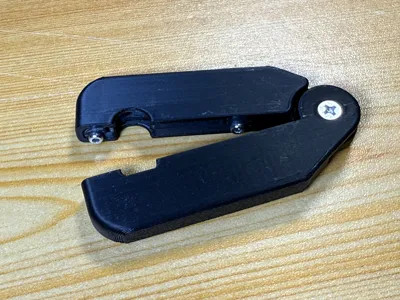

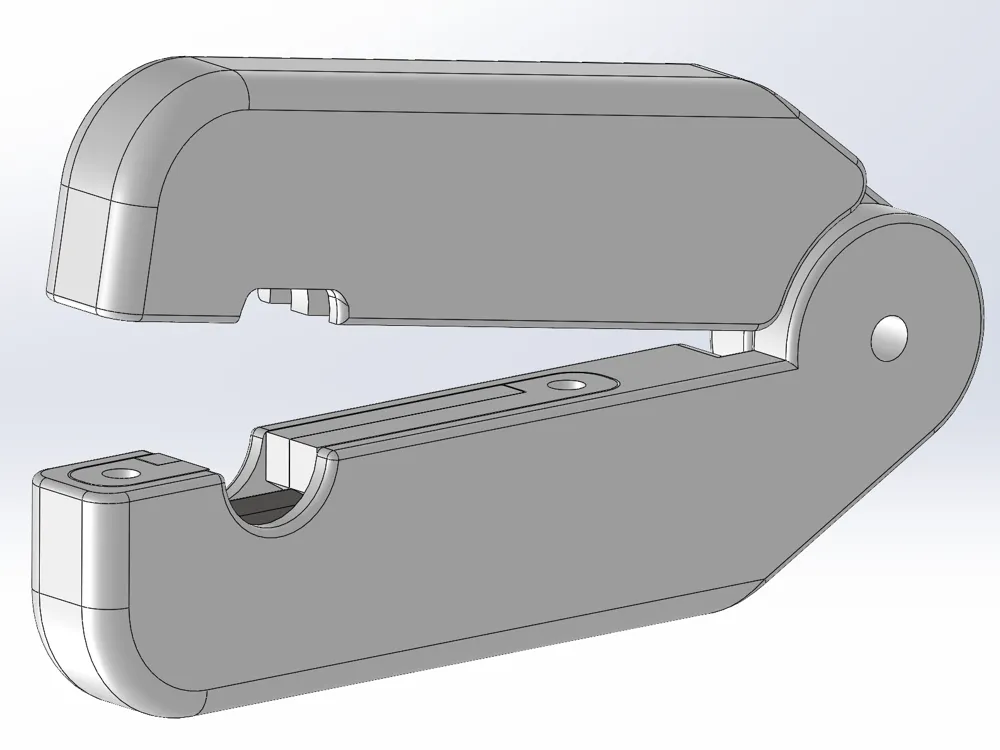

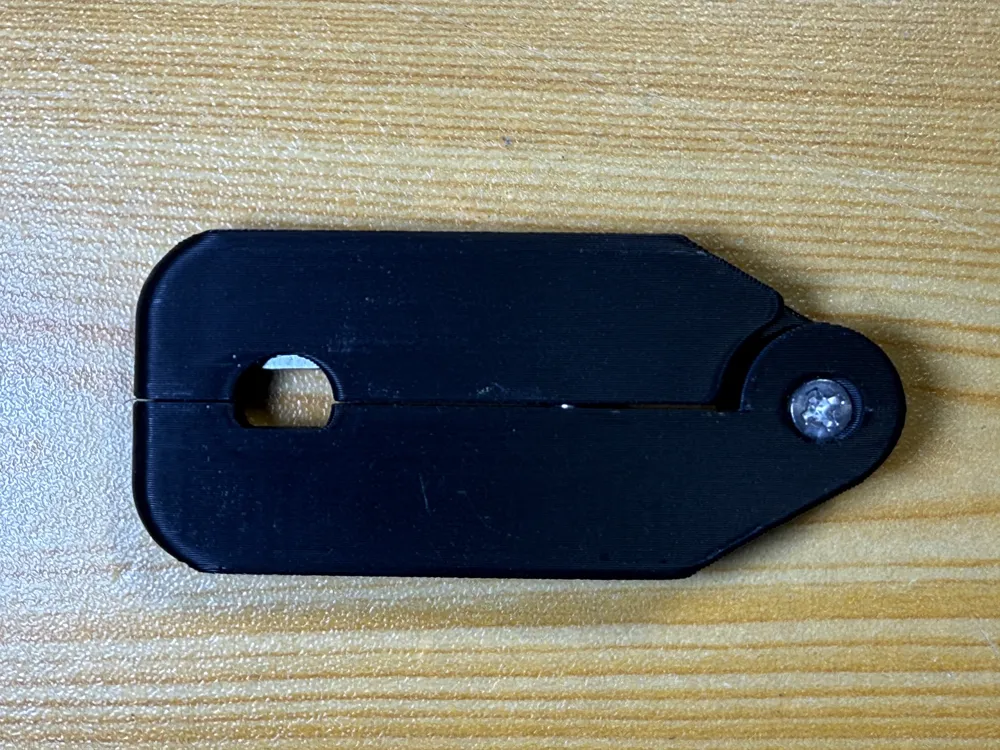

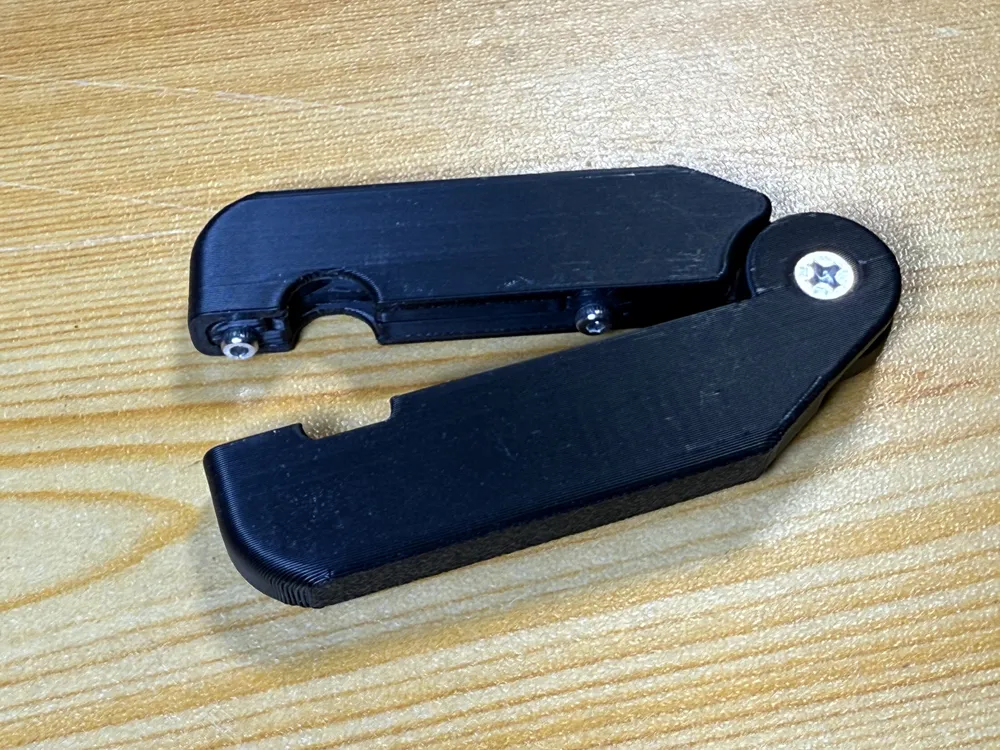

Shielded cable ring cutter for 7-8mm shielded cable (usually 6-core 0.3 sq mm)
Print Profile(1)
Description
Requires a regular-sized 30-degree blade, one grid width.
Screws: M2*4 countersunk 2 pieces, M3*8 countersunk 1 piece, M2*8 cap head 2 pieces;
Installation: Secure the blade in the blade holder with M2*4 countersunk screws, then place it into the slot and secure with M2*8 cap head screws, and use an M3*8 countersunk screw for the hinge;
The purpose of using cap head screws is that they can sink into the preset position for locking and positioning;
Overall, it's quite useful for 4-6 core 0.3 sq mm shielded cables, greatly increasing stripping efficiency.
