Maxence - LED Name Lamp

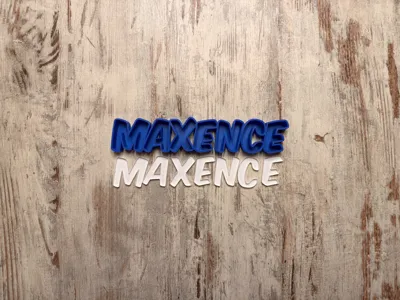

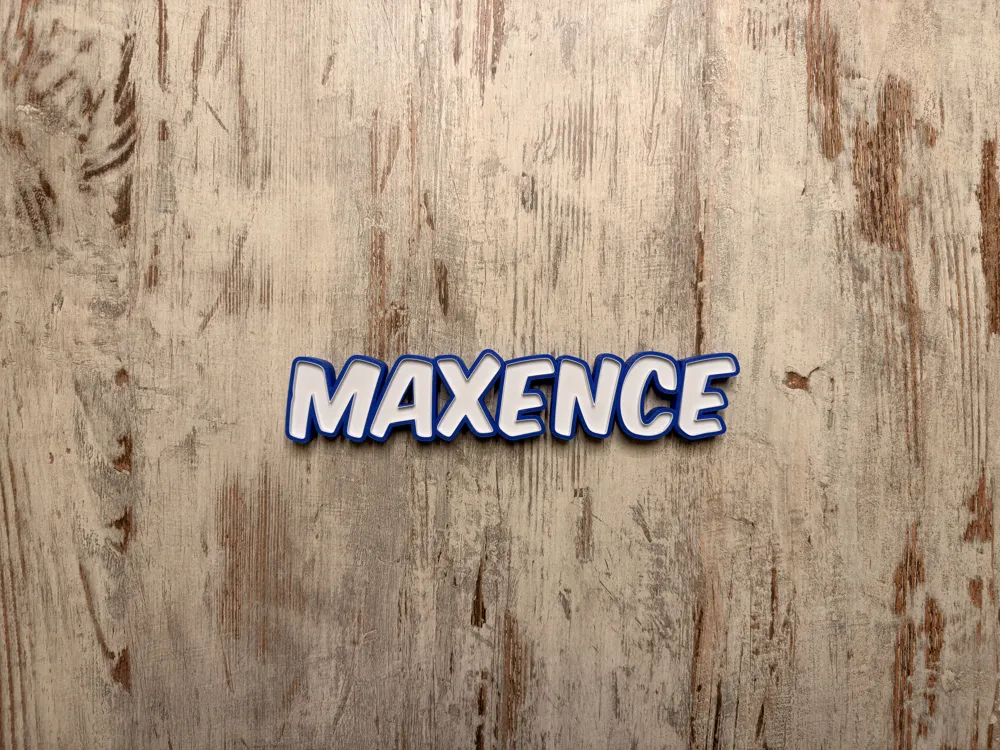

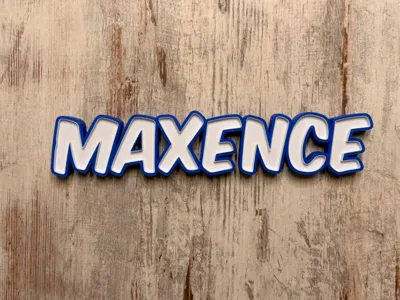

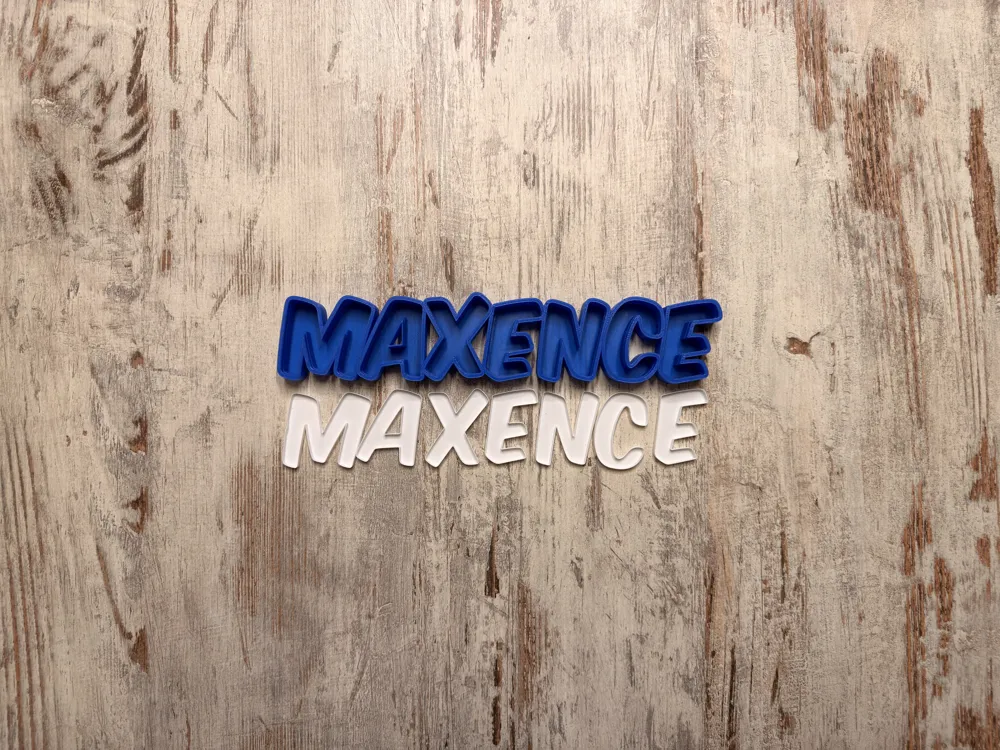

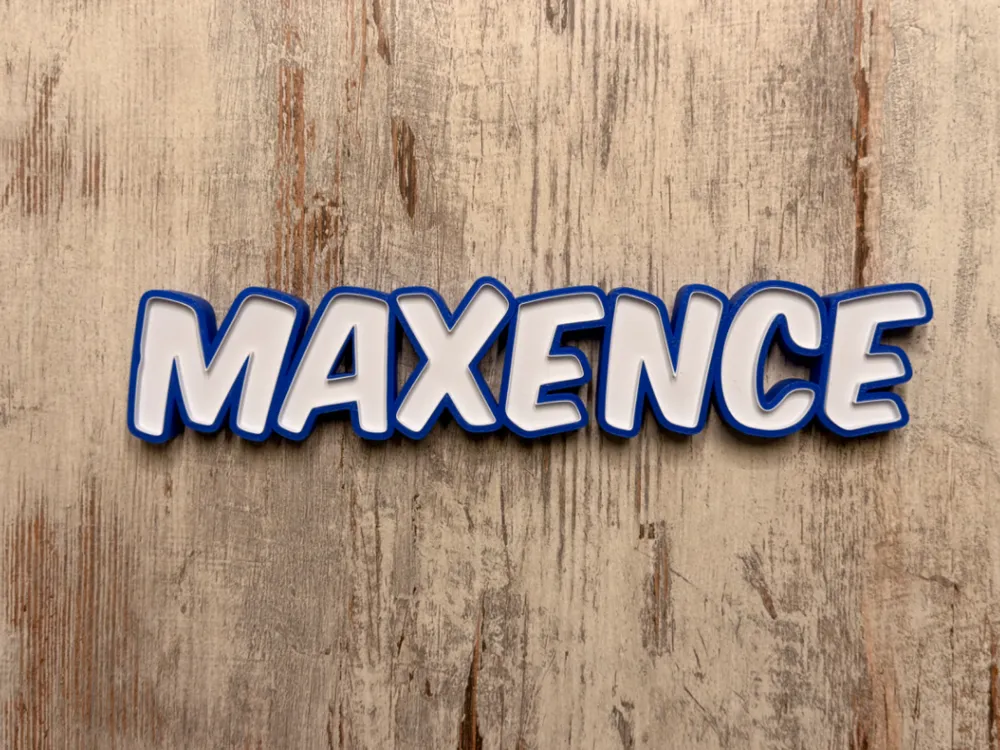

"MAXENCE" as a printable LED name lamp


The name is approximately 63cm wide and 13cm high

ATTENTION:
The finished name is included as an STL file. The letters are all pre-arranged. If the print area is large enough, you can drag several letters together onto one plate and print them continuously. Please do not forget to "merge the letters". Be careful not to let the letters slip, otherwise the pass-throughs will no longer fit and the geometry of the entire name will be altered.


Print settings: 0.2mm with 8% infill is sufficient.
For the bodies, I would use "seamless" support for the LED pass-throughs.

Please do not scale down too much. Otherwise, the covers might not fit anymore.
ATTENTION: If scaled too small, the pass-throughs of the letters for the LEDs will also become smaller. (Perform a test print beforehand) - And do not forget to scale the covers as well.



I recommend NOT scaling the X and Y axes smaller than 80-90%. (Pay attention to the size of the LED pass-throughs)

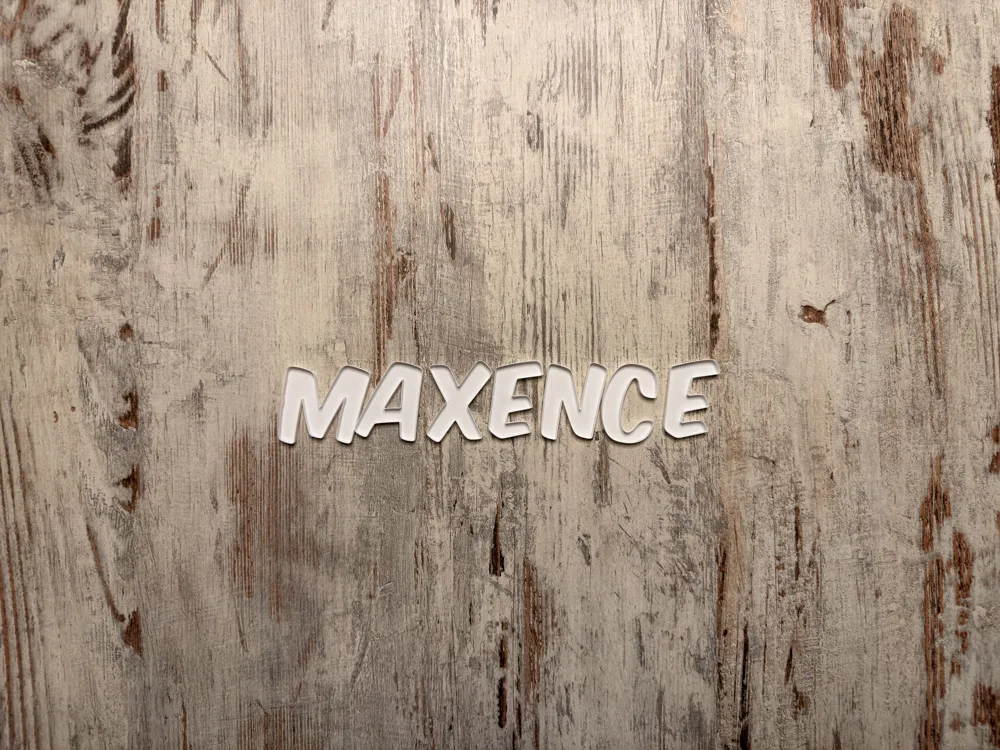

The covers can also be printed mirrored on the X-axis. This way, the covers finish flush at the front. The disadvantage, however, is that the covers are not quite as easy to remove. I recommend printing a mirrored cover as a test beforehand.

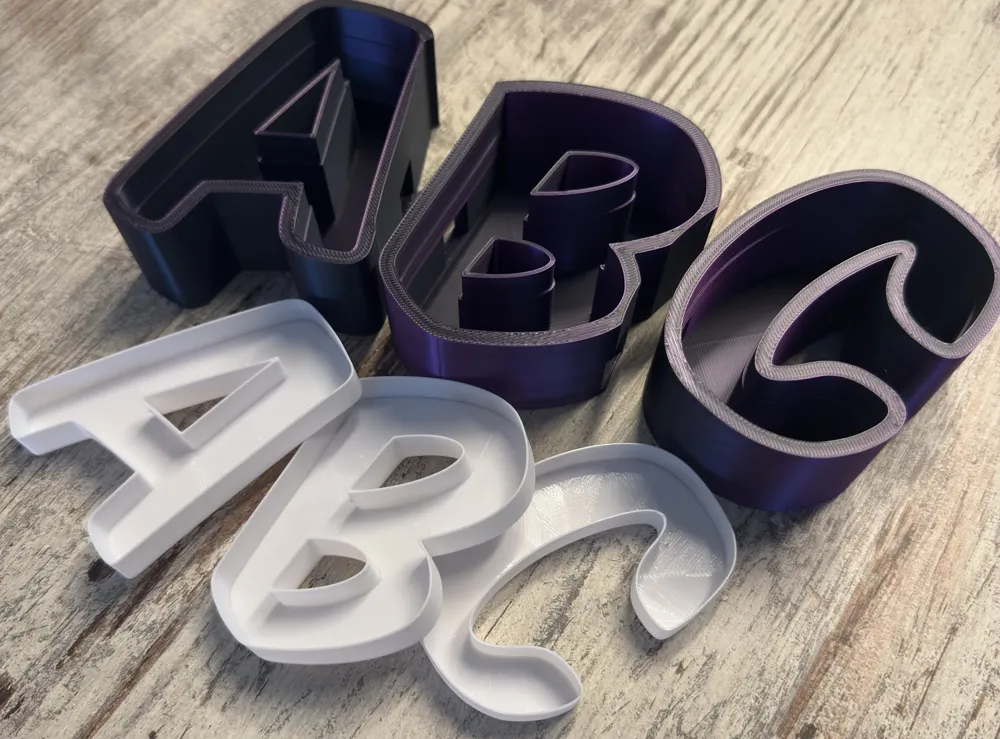

The letter pairs must be glued together. Please ensure that the LED pass-throughs are flush with each other. A special adhesive for PLA/PETG is best suited for this.

For LEDs, I recommend inexpensive 1-5m RGB LED strips for 8-15€ or, even better, COB-LEDs. Higher-quality RGBIC LEDs also allow for individually controllable letters, depending on your skill.

For this name length, it is better to use 5m.

If you have any questions, I am happy to help.


I am happy to create further individual LED names upon request and a small donation.
