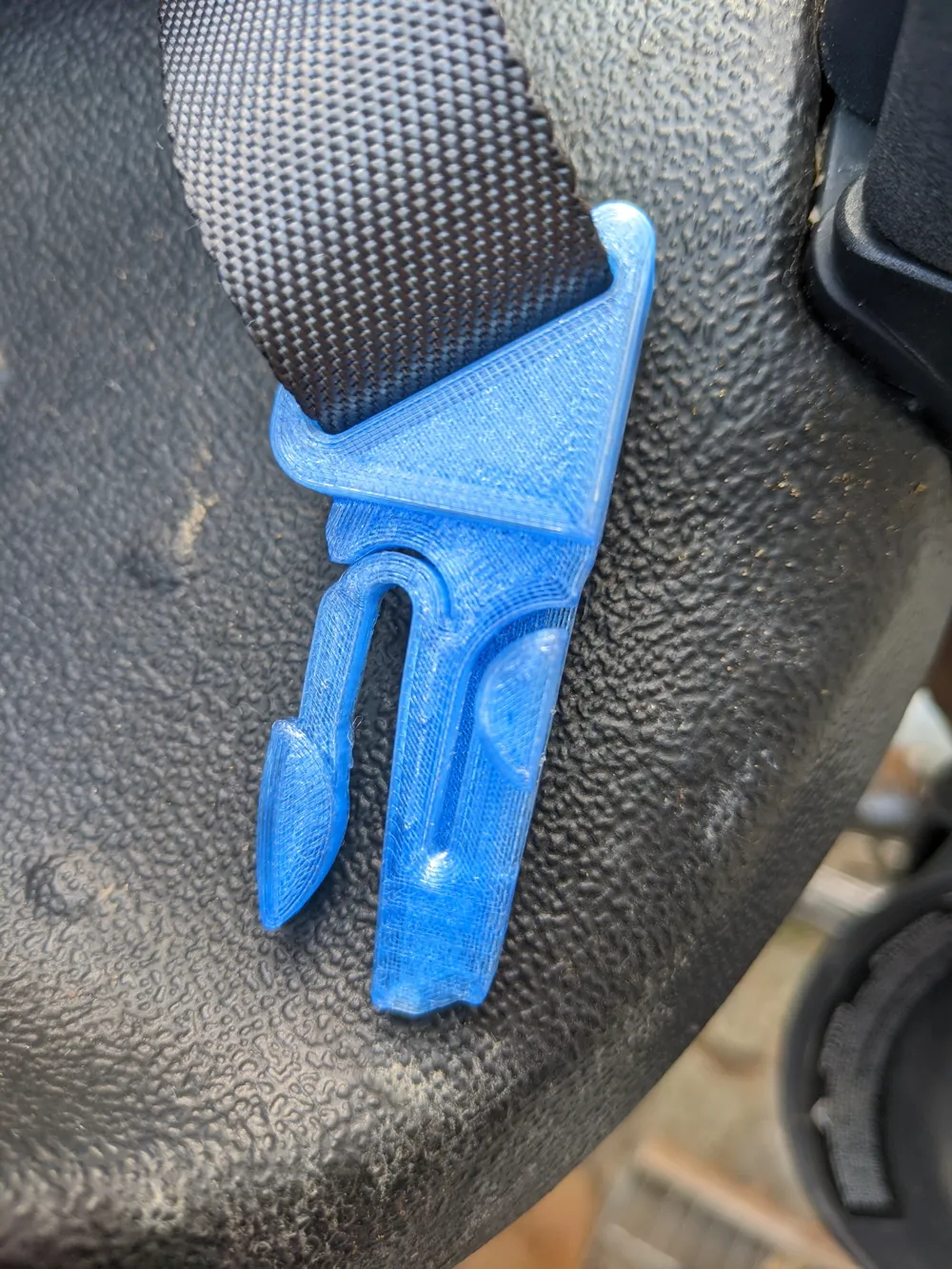

After one half of the buckle of our Thule Yepp Mini broke apart, we quickly realized that replacements are no longer available for purchase. Also I was suprised that I could not find any 3D models online. So I tried my luck at making my own.

I built this in Onshape, which I haven't been using for a long time. Turned out to be the right tool for the job, but my lack of experience with it definitely shows in the end result. So it would be great if anybody wants to go over the file and smooth out the odd bits (the model is called Yepp Buckle in Onshape).

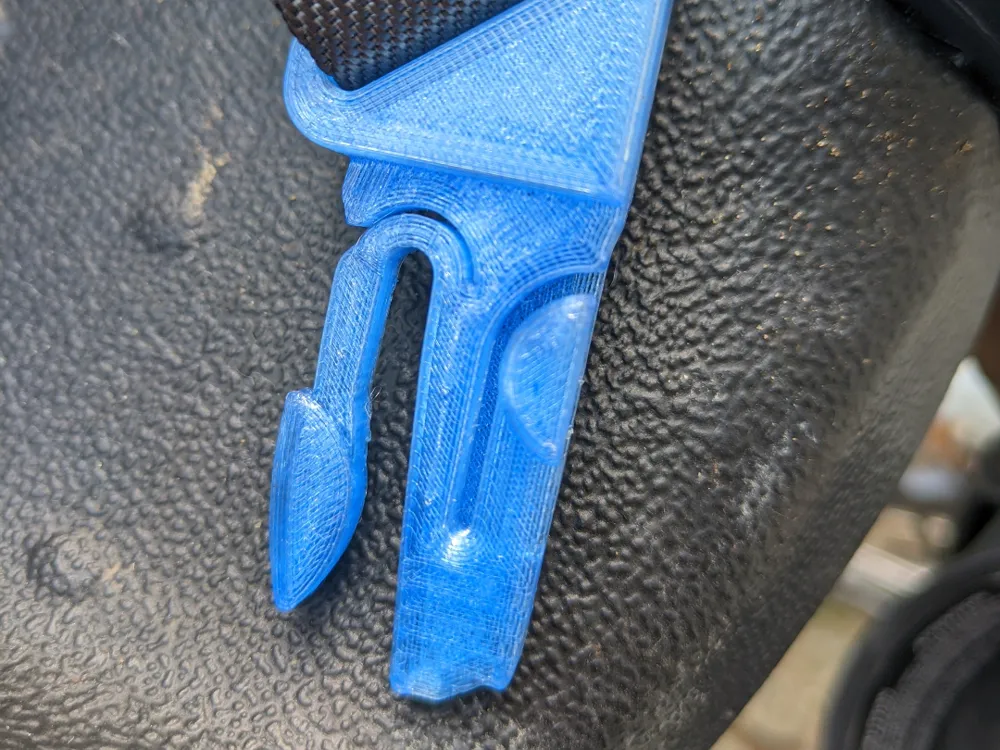

My model uses a different spring mechanism for the snappy part, since the original design created a weak point in the 3D print.

Printed in Bambu PETG translucent, with the 0.2mm strenght presets and slim tree supports.

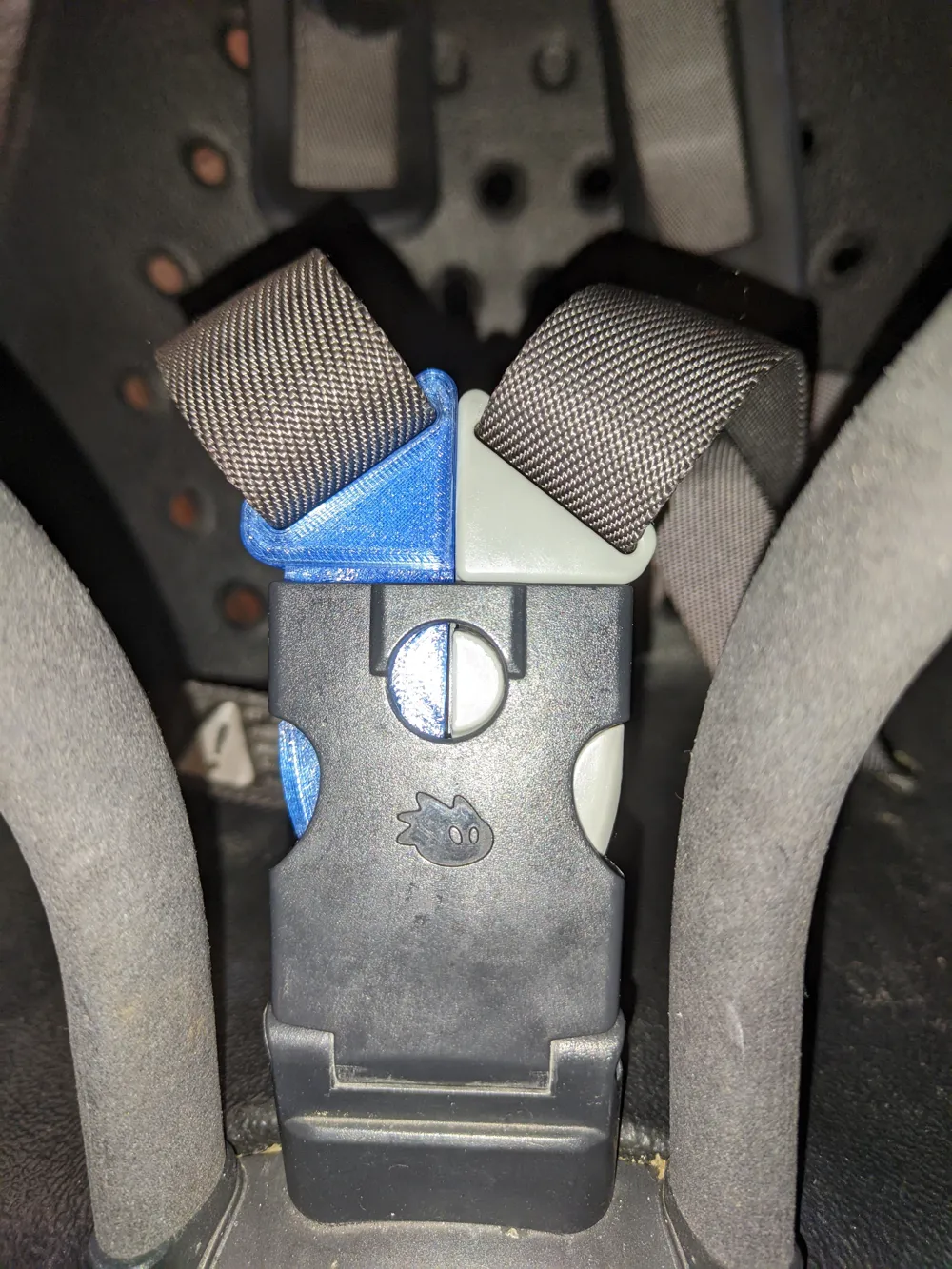

I have been using it for about 2 weeks, and so far it works really well.

Hope this helps keeping a couple of child seats from being thrown out :)

Comment & Rating (9)

@user_1561283312

you’re such a boss! I broke that part this morning and it was replaced this afternoon thanks to your model. Thanks!

@user_1561283312

Print Profile

0.2mm layer, 6 walls, 25% infill

@lskallel

Can you design one to the other side to?

The designer has replied

@user_3767533852

You can just mirror this one im Bambu Studio :)

@user_1931741469

Can I mirror this in the app?

@swd98_designs

hey @user_3767533852 how is it now did it break since you first printed it? i printed mine with 5 walls but i am concerned with the potential that it fails.

(Edited)

The designer has replied

@user_3767533852

The side arm of the buckle broke off, just like on the original. However, it never lead to a complete failure of the whole thing. I think the broken part could be designed better so it lasts longer, but I haven't gotten around to it yet.
