Customizable Finger Joints Template for Router

IP Report

Print Profile(0)


Add the first print profile to earn points

Boost
5
39
0
0
26
0
Released

Description

Content has been automatically translated.
Show original

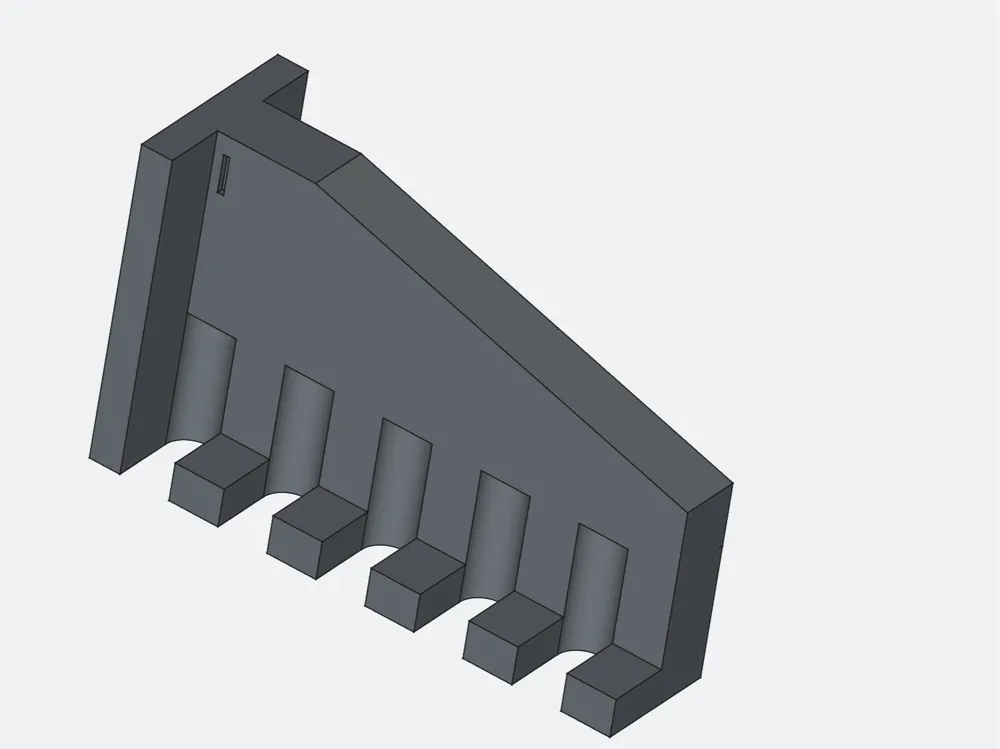

I created this model of an adjustable template for finger joints in FreeCAD from scratch. Nevertheless, I would like to mention that the basic shape is based on the model by Hacklberger Josef (https://www.printables.com/model/1122015-fingerzinken-schablone-15mm). The main optimizations compared to his model are:

1. Recesses/hollows in the template so that the finger joints can be created 100% with the flush cutter without need for reworking.

2. My model is fully customizable via parameters, i.e., you can define “your” template yourself: width of the joints, number of joints, dimensions of the side stop, height of the hollows for the cutter, etc. I have documented all parameters in the PDF file.


Documentation (1)

Other Files (1)
Customizable_Finger_Joints_Template.pdf
