Description
Upgrade your wifi but keep the antenna hidden.

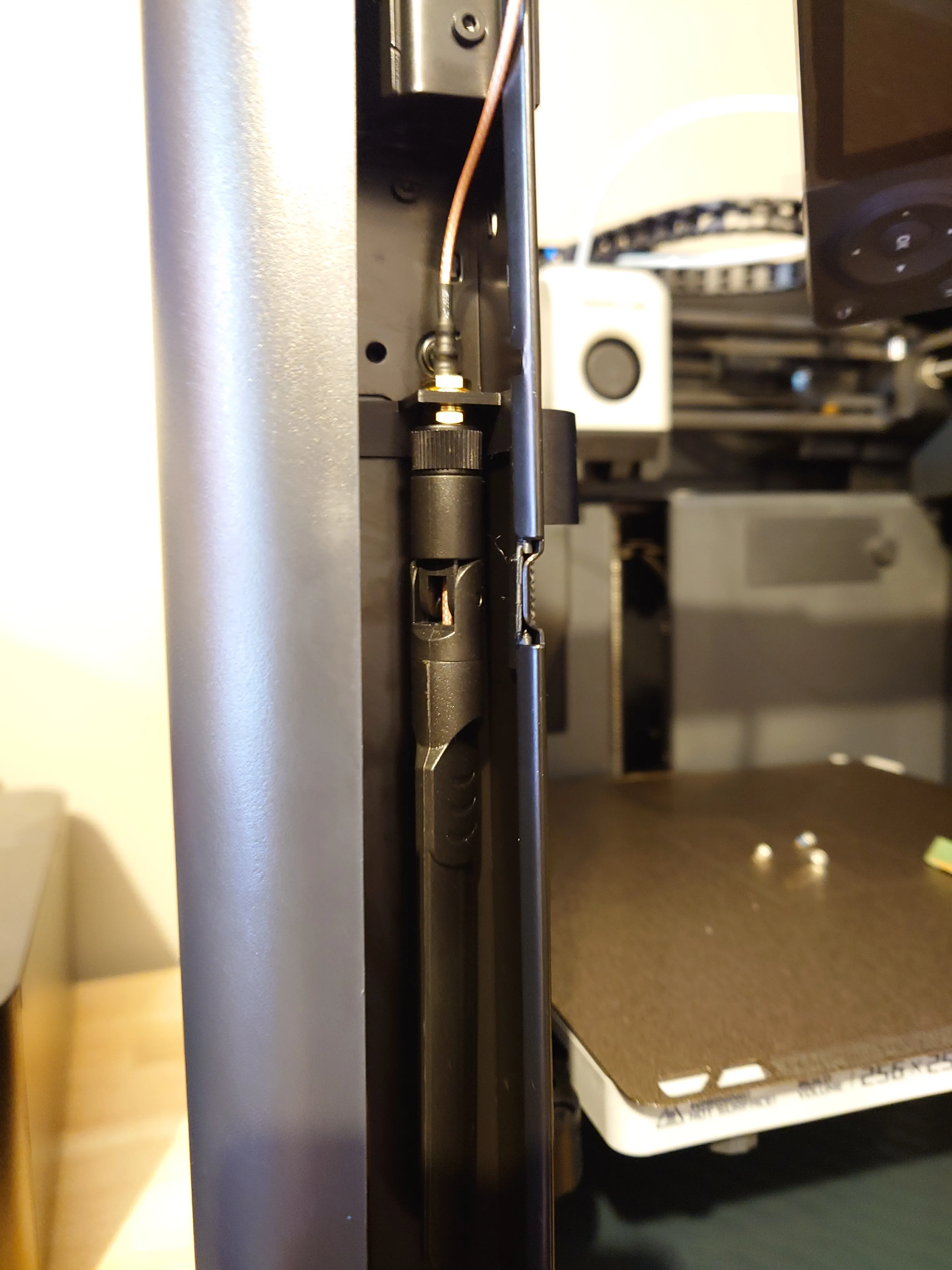

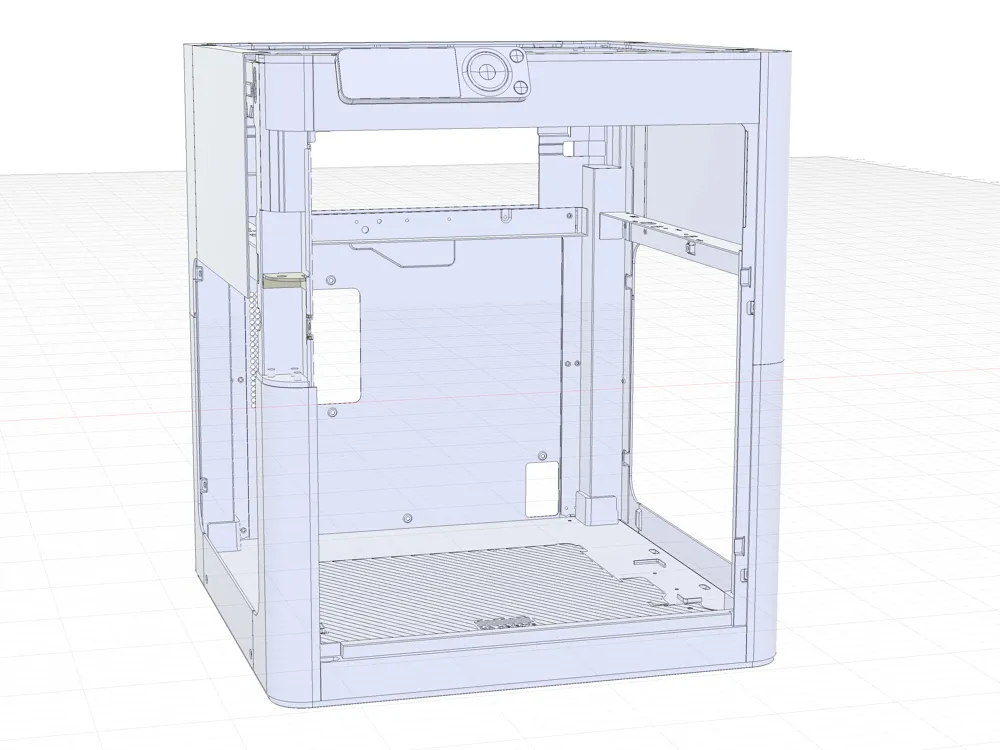

This bracket is designed to go front left, in the space between the metal frame and plastic cover.
It can lock in by itself but works better when the side panels are on keep it secure.
V1 the antenna is too close to the metal frame to be of major benefit, V2 fixes that bring out the antenna closer to the plastic cover.

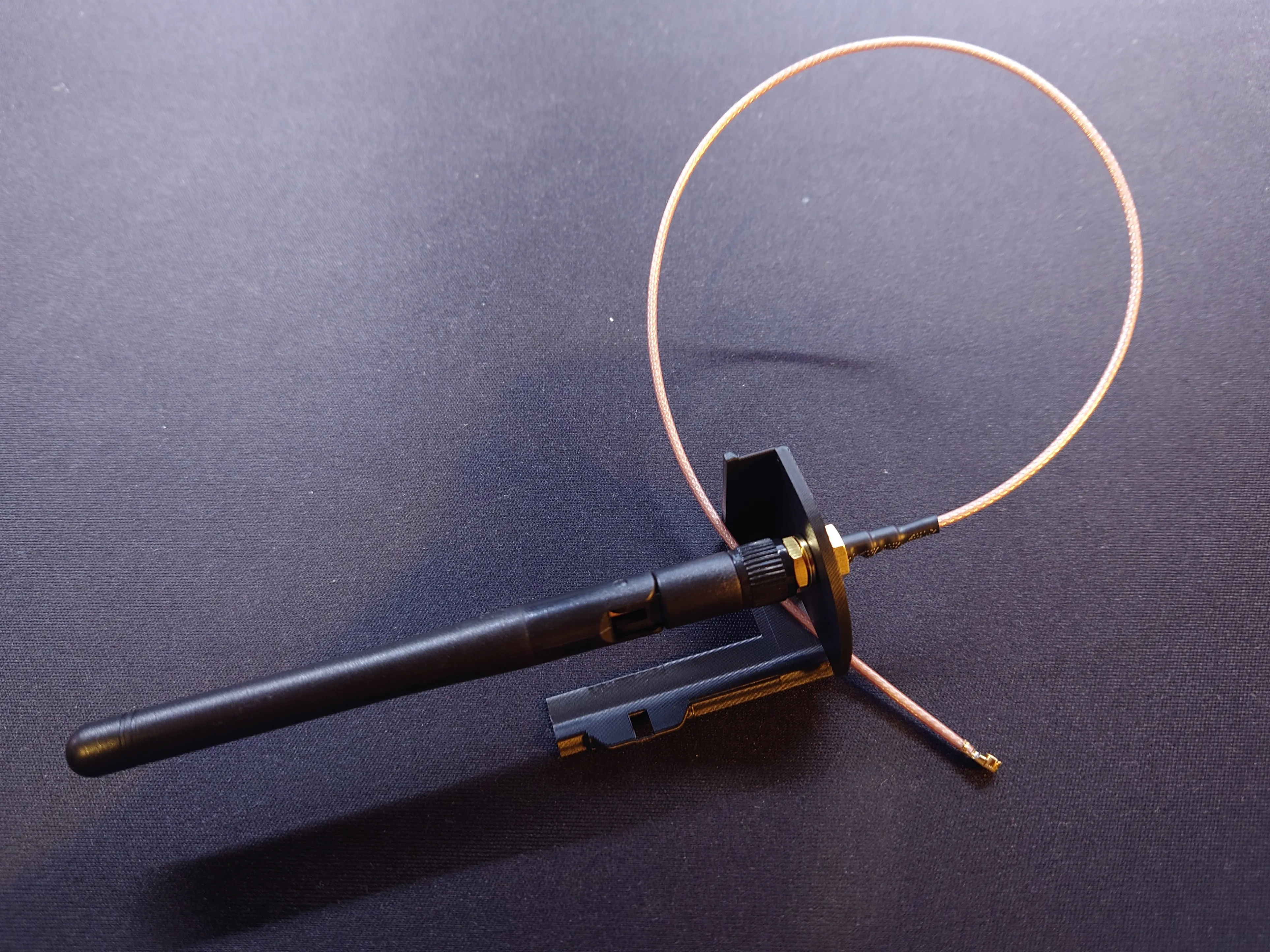

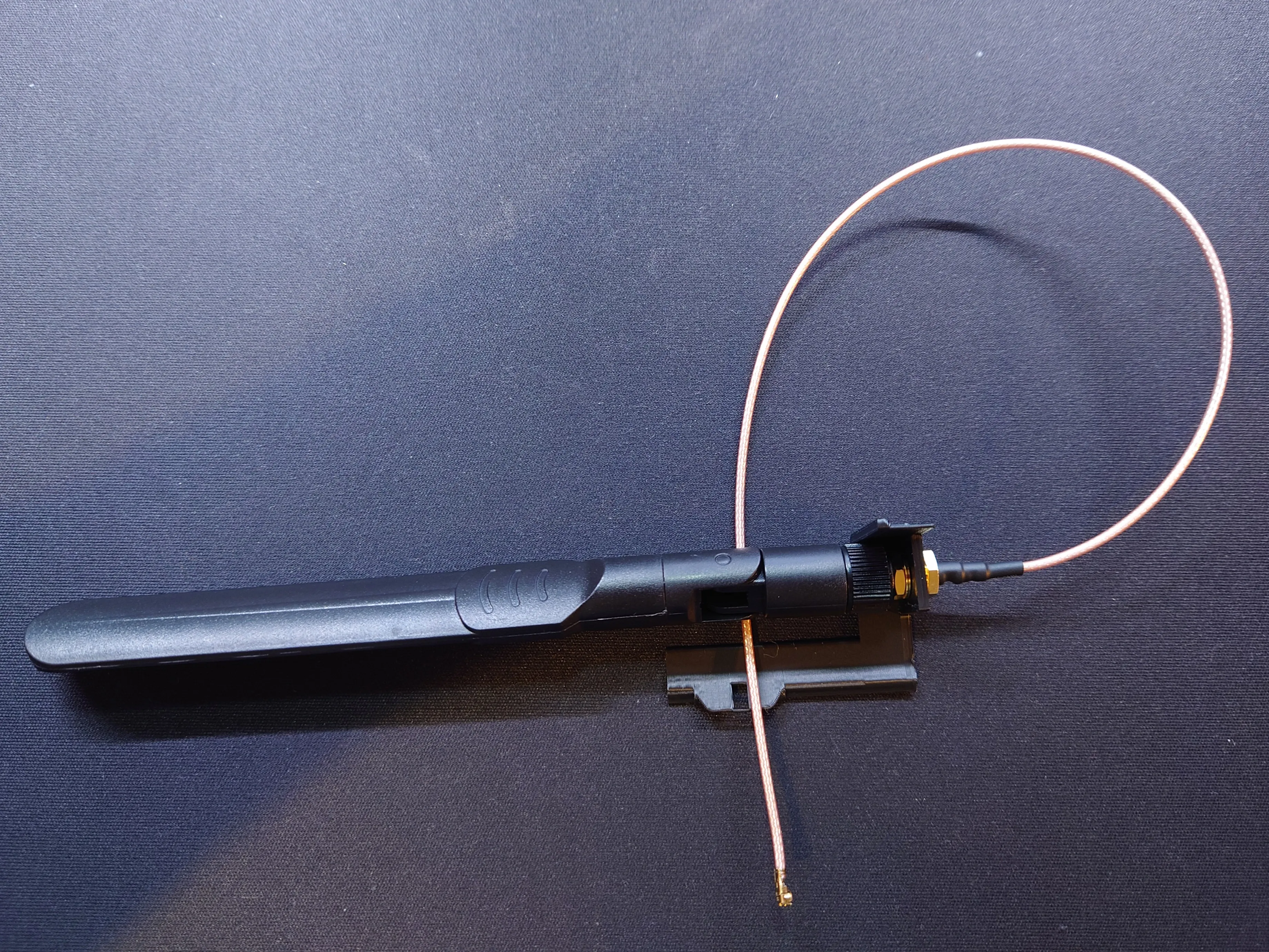

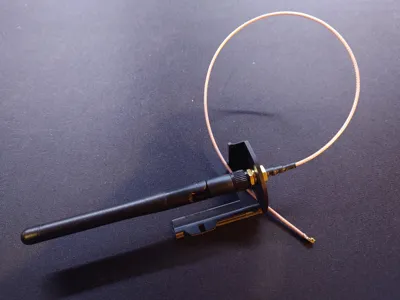

**Antenna pigtail (cable) is a IPX MHF1 to SMA pigtail, I used a 12in/30cm cable, fed it up and in through a small hole on the front top left in behind the tape then over to the antenna plug on the PCB

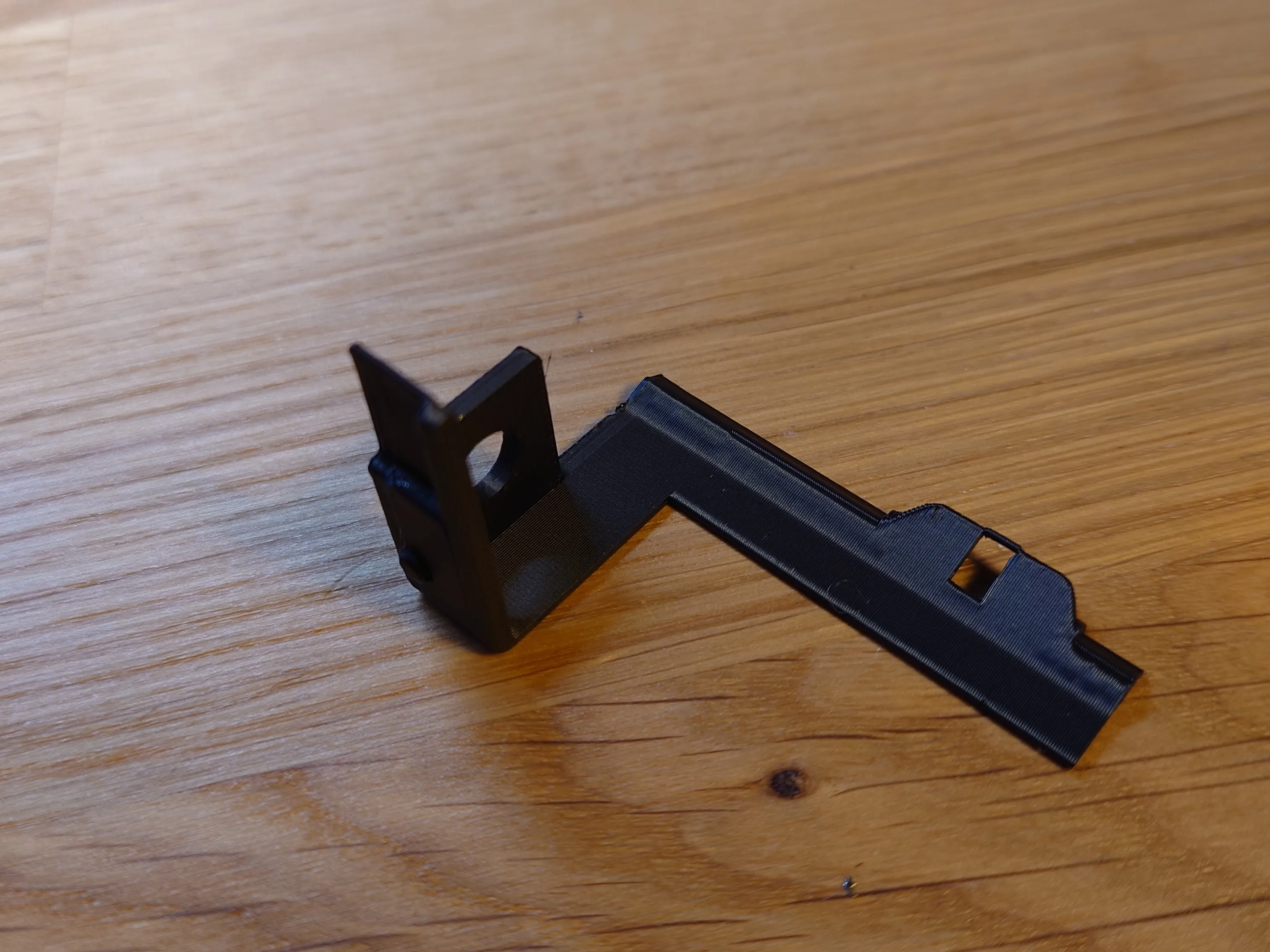

V1:

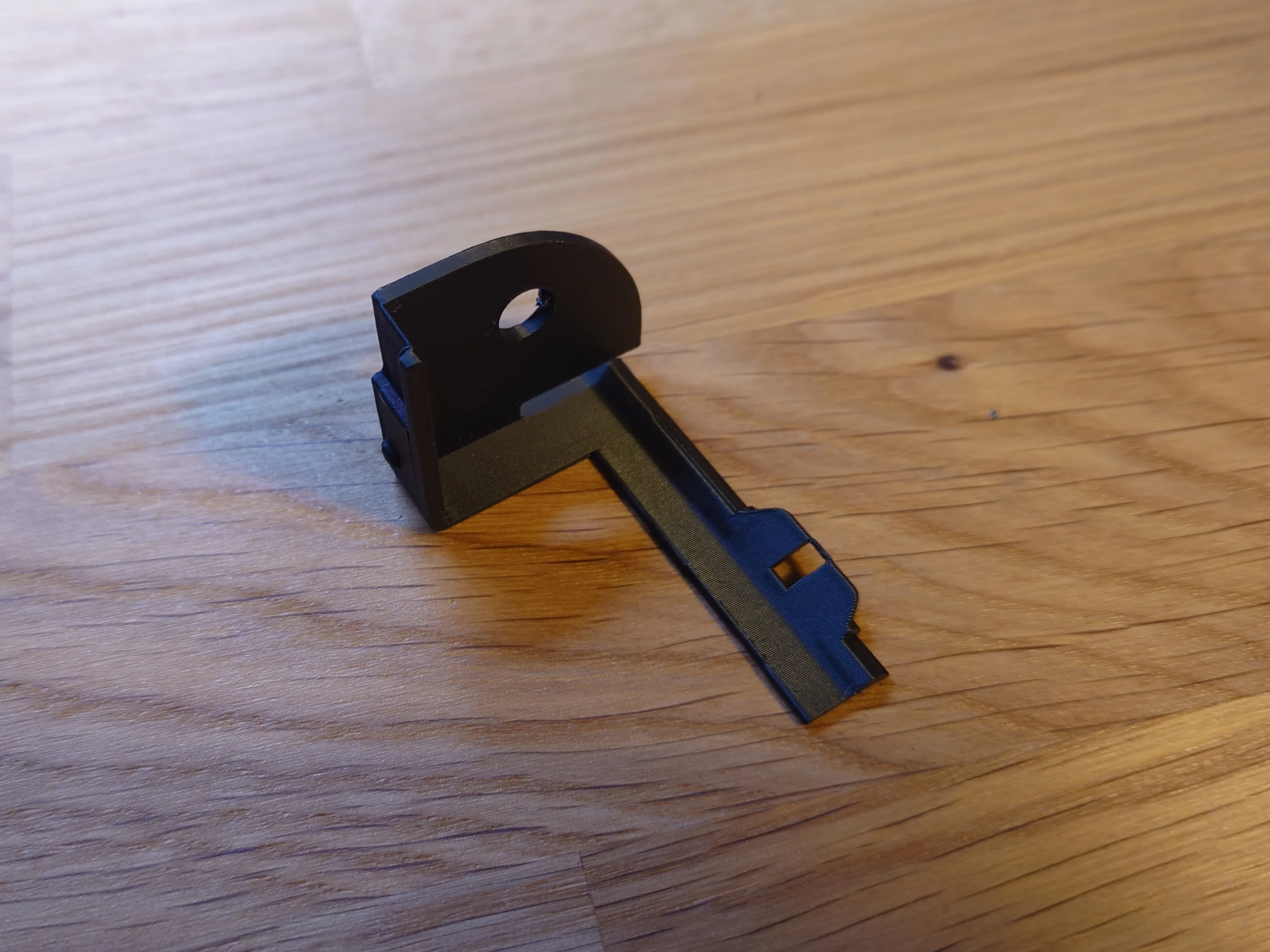

V2
