JKBMS 3.2 Display Mount
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
1.4 h
1 plate
Open in Bambu Studio
Boost
15
21
0
2
29
18
Released
Description

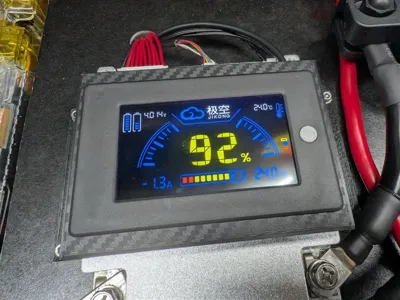

JK BMS 3.2" Screen Mount

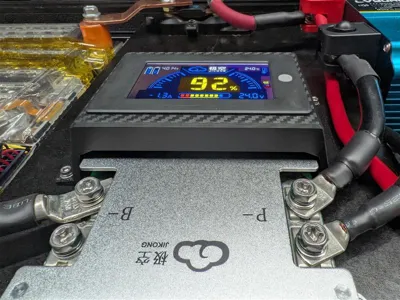

Fits over the top of the BMS to save space.
Might not fit on larger JKBMS's, mine is a 200A (B2A8S20P-HC)
My BMS does not get hot enough to cause issues with PLA, but you could print in PTEG to help with possible deformation in higher temp environments.
The 3.2 screen fits very snuggly, as the built in clips are not super great. You may need to clean up the edges to get your screen to snap in.
Holes in corners are M3 sized.
