Cover for Aqara Motion Sensor P1 - Gen.2
Print Profile(2)
Description
Boost Me (for free)
If you like the model, please leave a Boost here.
Design
The hood is designed for the Aqara motion sensor P1 (2nd generation – height under the measuring field 15mm) and only fits this device
Purpose

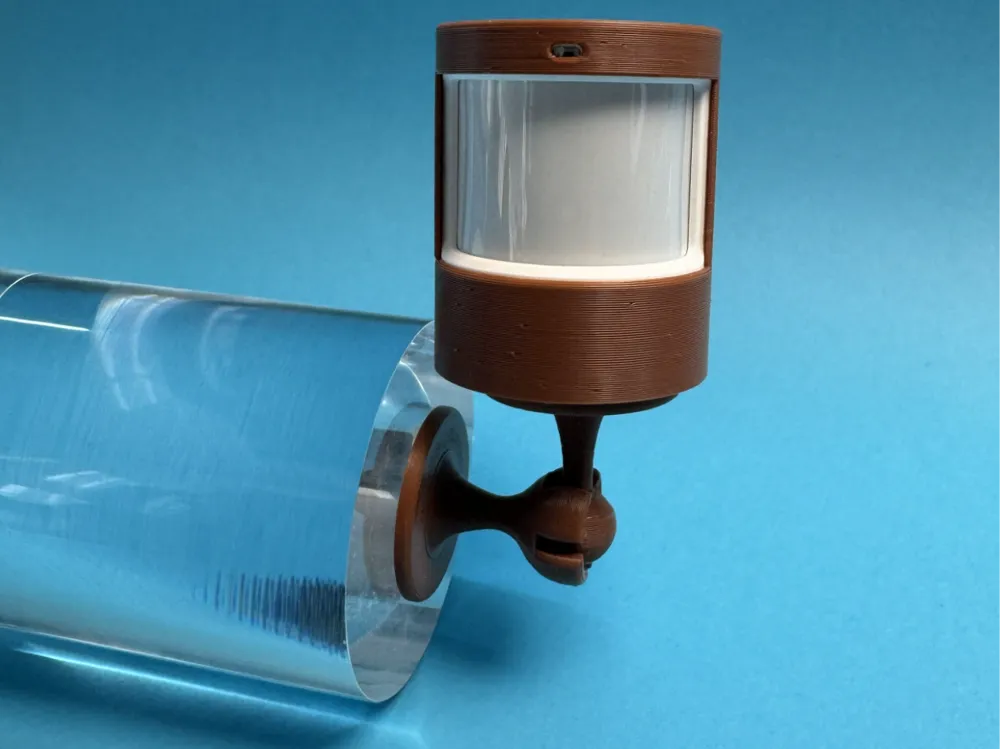

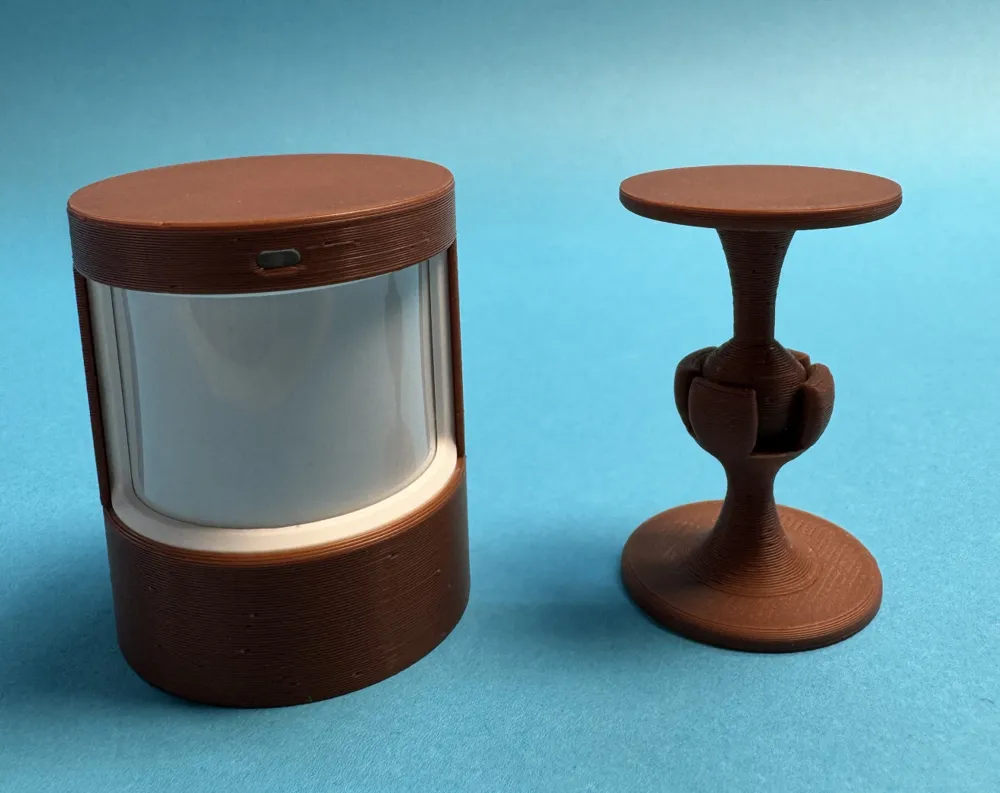

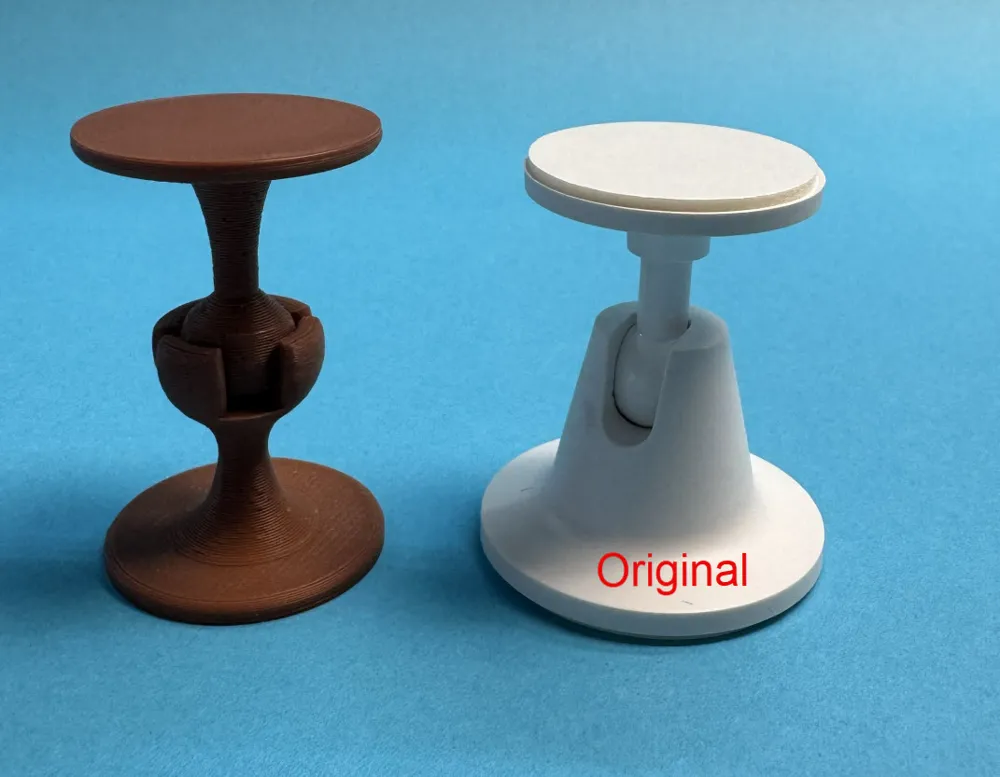

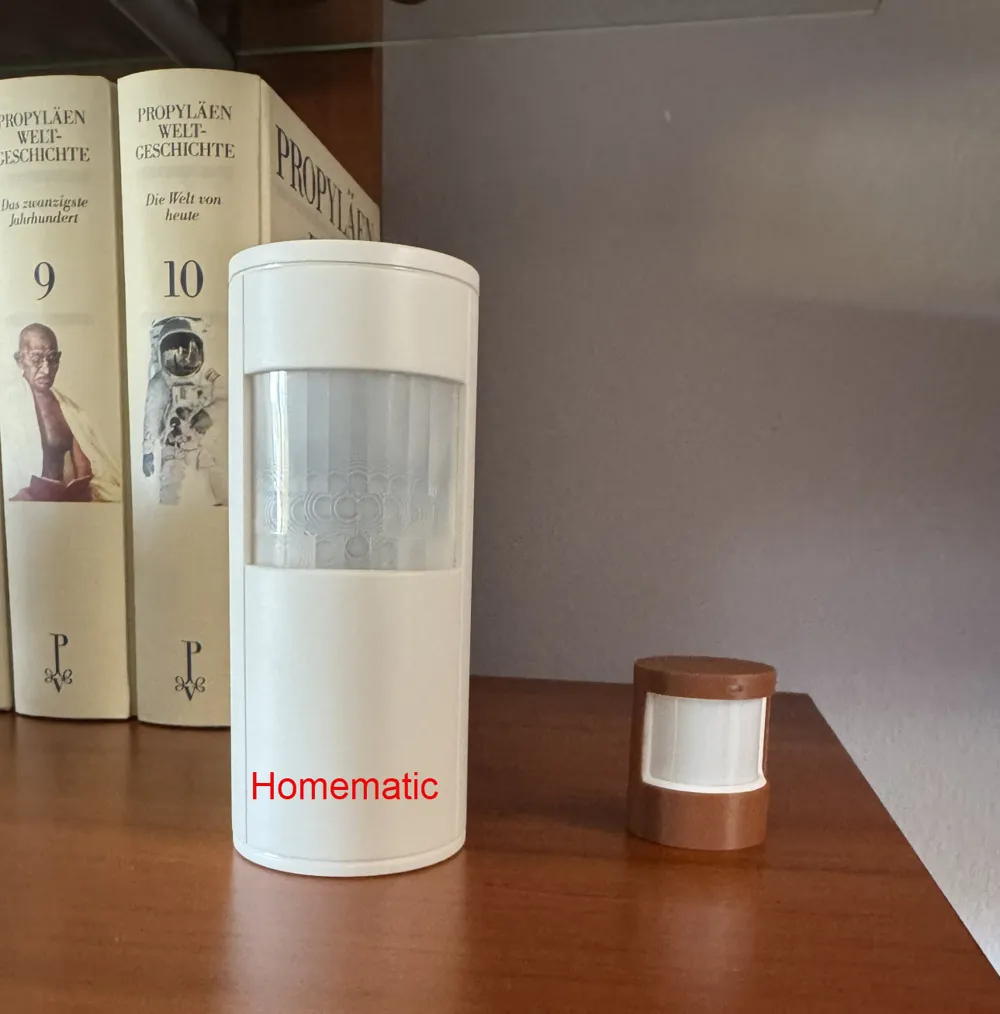

This hood serves to adapt the color of the motion detector and its attachment to local conditions. The mount roughly corresponds to the dimensions of the original mount. 26 mm plate diameter and approx 40 mm height. This always ensures access to the battery compartment, just like with the original mount. The hood and mount increase the WAF by 100%, as the motion detectors are less conspicuous. (See picture with the old Homematic variant on our shelf
Printing
I used PLA Basic from BambuLab for printing. PLA from other manufacturers should also work without problems. For other materials such as PETG, please note that the shrinkage factor can be different, and thus the dimensions may no longer be accurate.

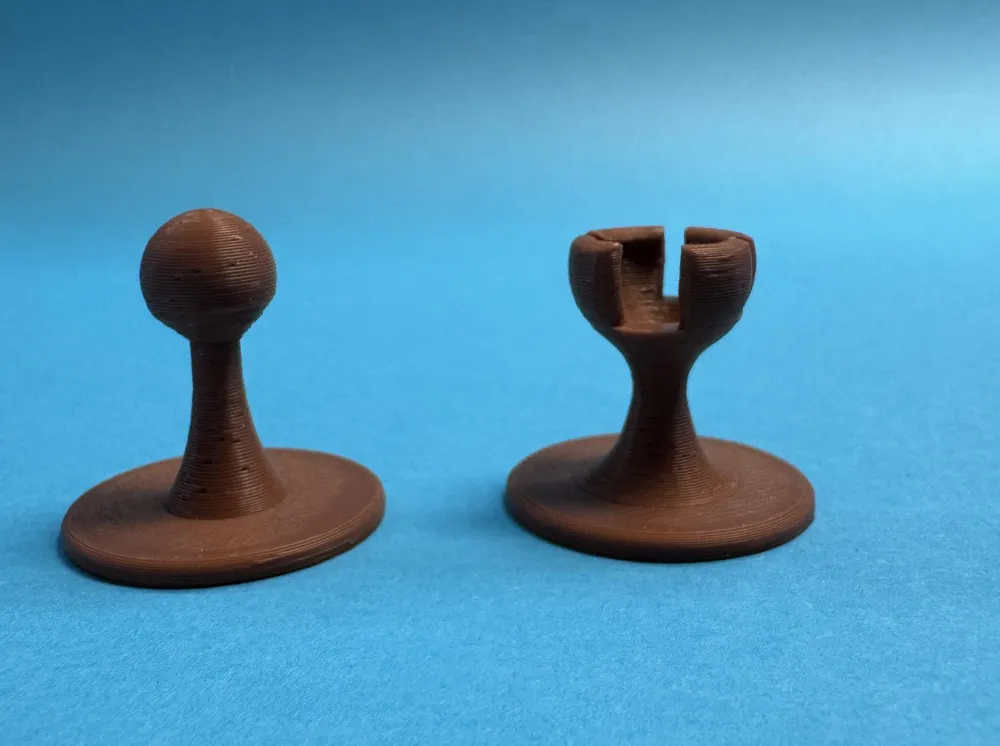

For the parts of the holder, I chose the print by object option, as the curves of the ball and socket turned out better this way.
For the hood, an overhang structure is necessary, but it can be removed very well even without support material
Assembly
Either simply place it on a shelf or attach it with 25mm adhesive pads to a suitable surface
Links
Adhesive pads 25mm *: https://amzn.to/4neU2sC
Adhesive pads various diameters - easy to remove*: https://amzn.to/4hjjsnL
Like this 3D model?
☕ Show your appreciation by buying me a coffee!
👍 Share my creation and leave a comment below with any feedback or suggestions!
Note
All links with "*" are Amazon affiliate links. You are supporting my work at no extra cost to you.
All devices were purchased and paid for by myself.
