Description

Center console Latch broke on a 2022 Honda Civic Si, and to replace it with a factory part you must buy the entire lid assembly, which is well over $200.
I printed this out of ASA to withstand the New Mexico summer heat and to retain strength.  If you use the attached print profile, it was done on a Bambu X1C and oriented to withstand the vertical forces from the latch use and the spring pressure.  Additionally, it is positioned so that the support residue is hidden from view and you wont feel any roughness after it is installed.

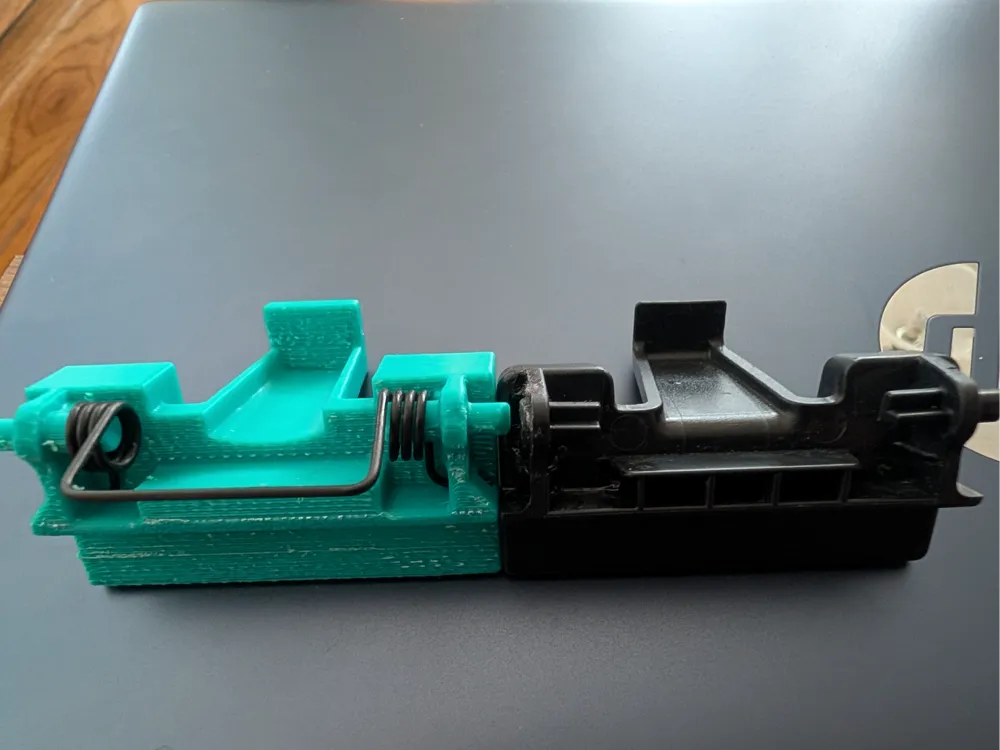

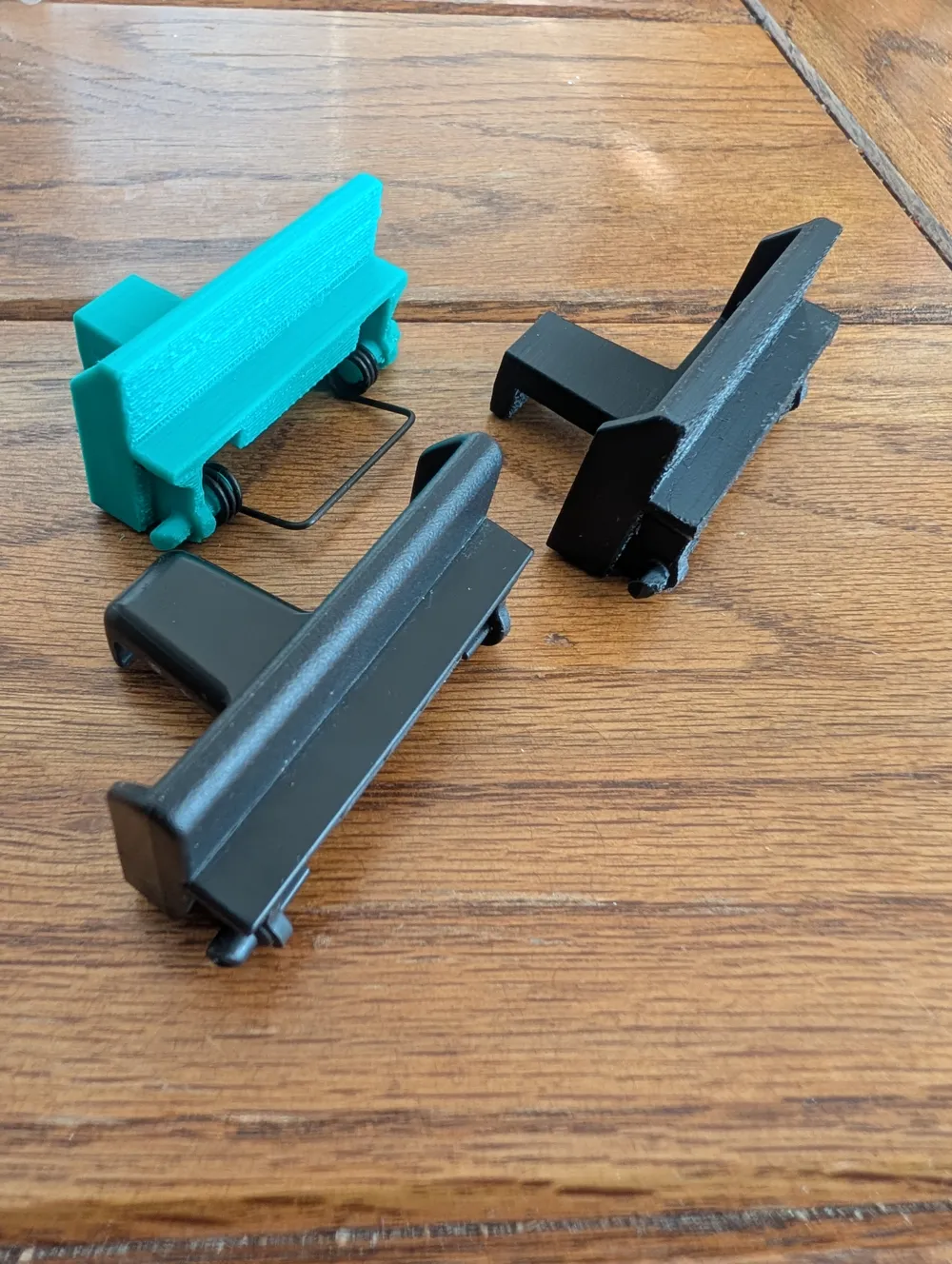

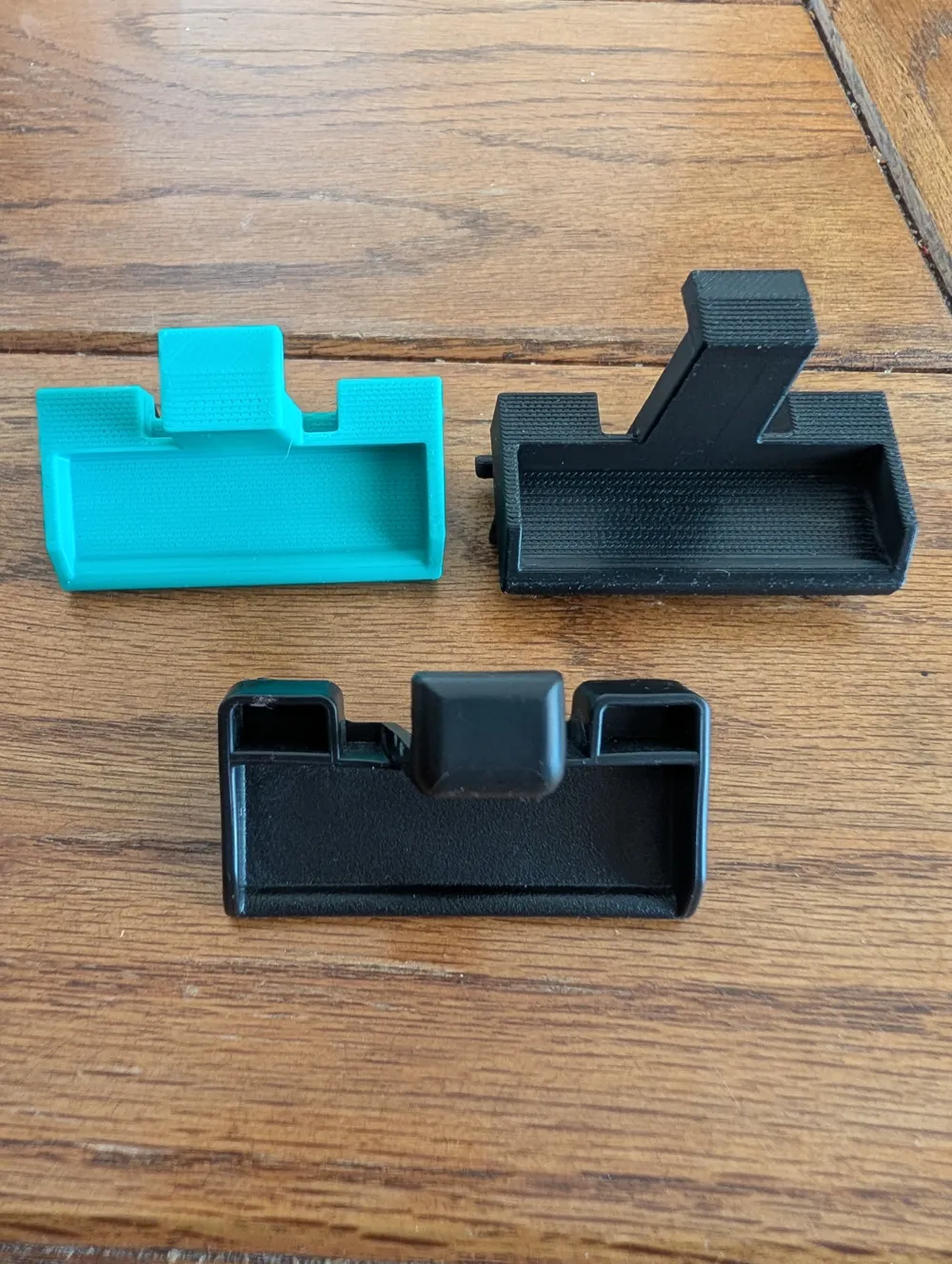

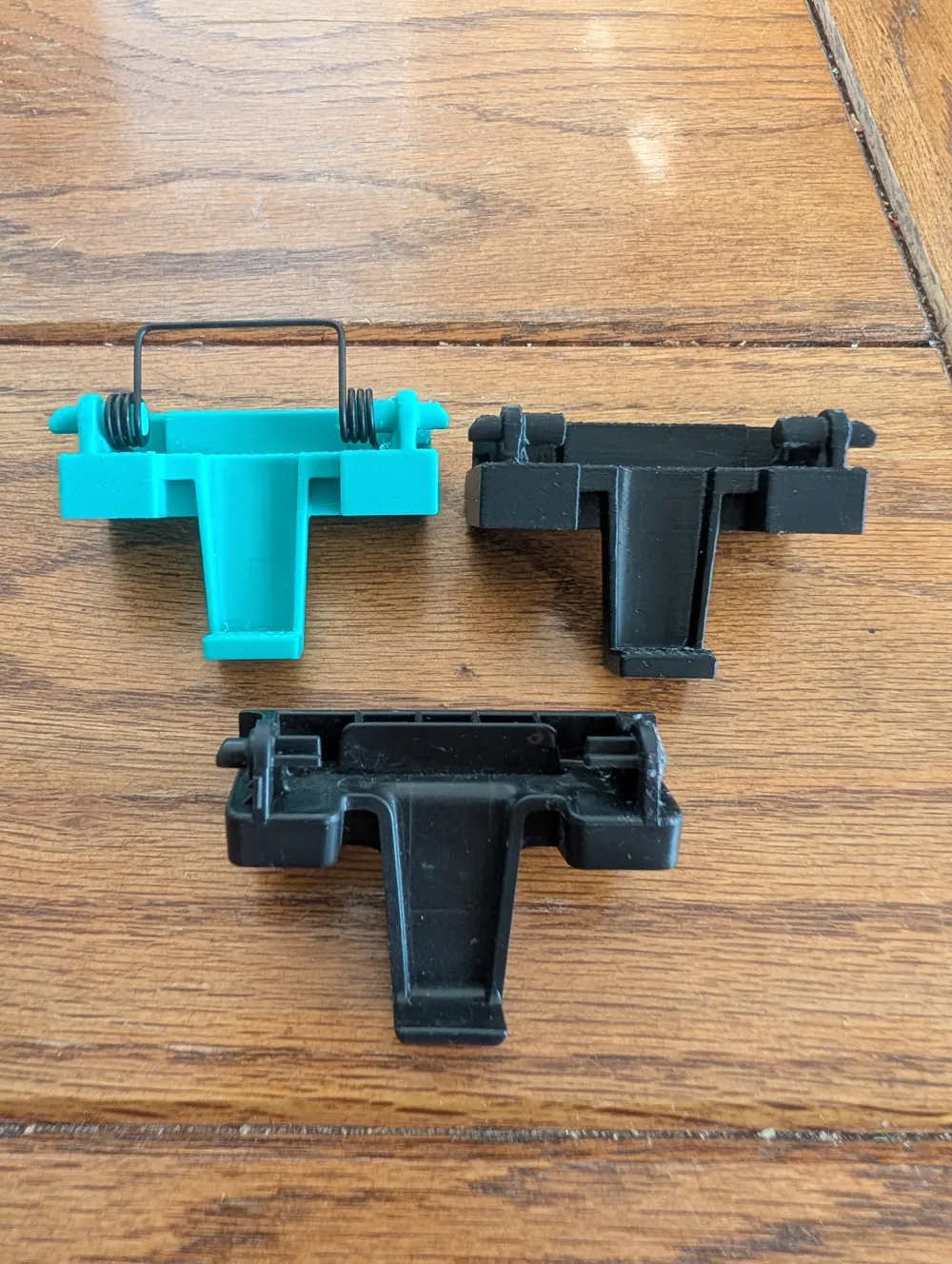

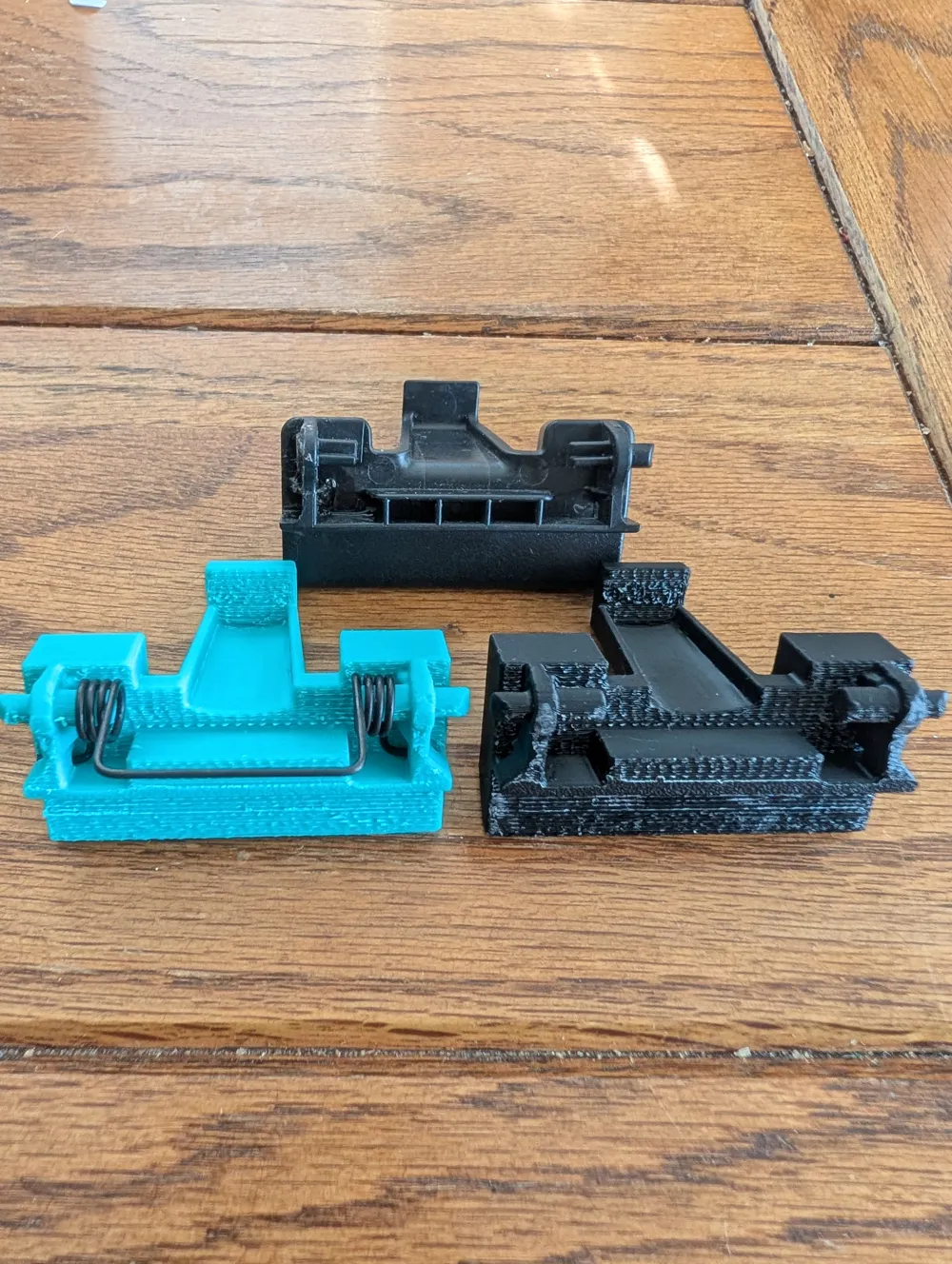

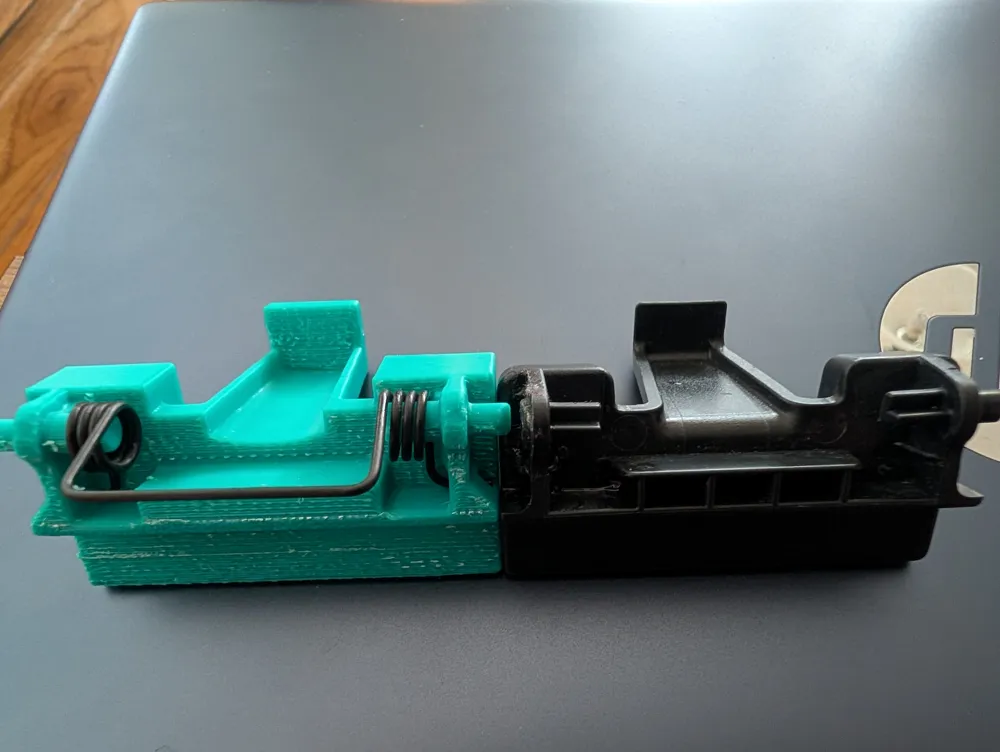

The photos have the original part as well as a black and green part I printed (both ASA).
Note: you will need to use the latch spring from the original latch.
I hope this helps you save some $ and time too!!!
