stick clips for quickdraws
Print Profile(1)
Description
EN / FR
đ Discover the 3D Printed Stick Clip! đ§âď¸

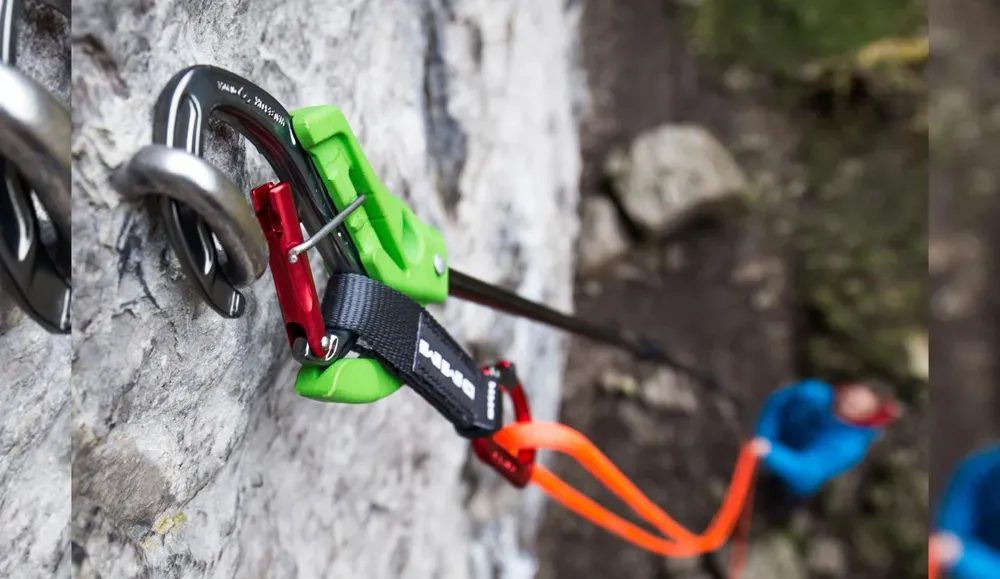

⨠Versatility: This stick clip allows you to clip the first quickdraw on routes where the bolt is particularly high or dangerous to reach, ensuring extra safety for the climber.

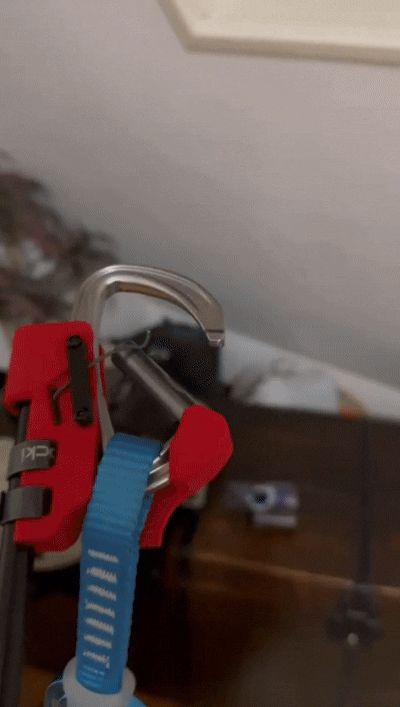

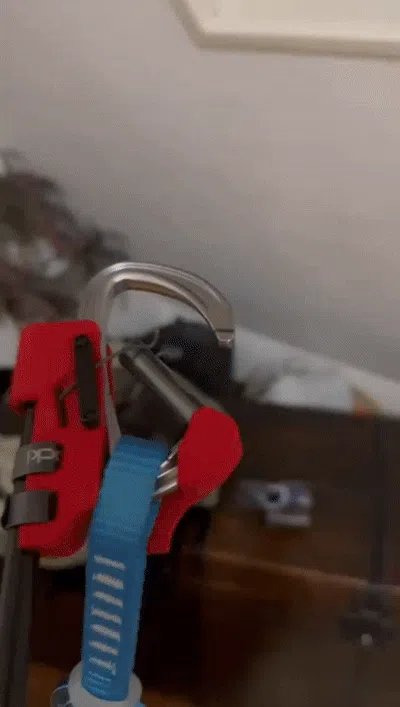

đ Additional Features: The stick clip can also be used to secure the rope into an already placed quickdraw or to unclip quickdraws that are already on the wall. In addition, a clever hook allows you to retrieve hard-to-reach ropes and quickdraws hanging on the wall.

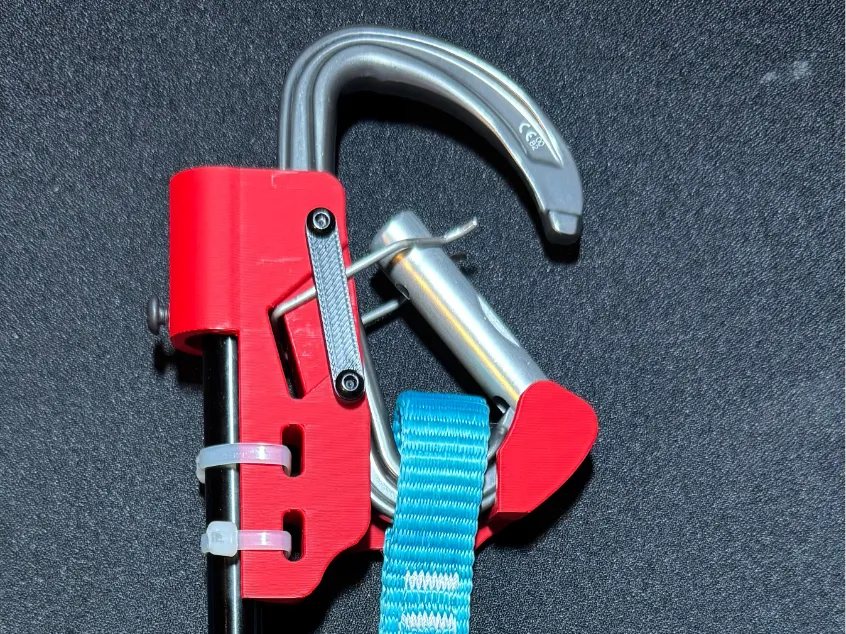

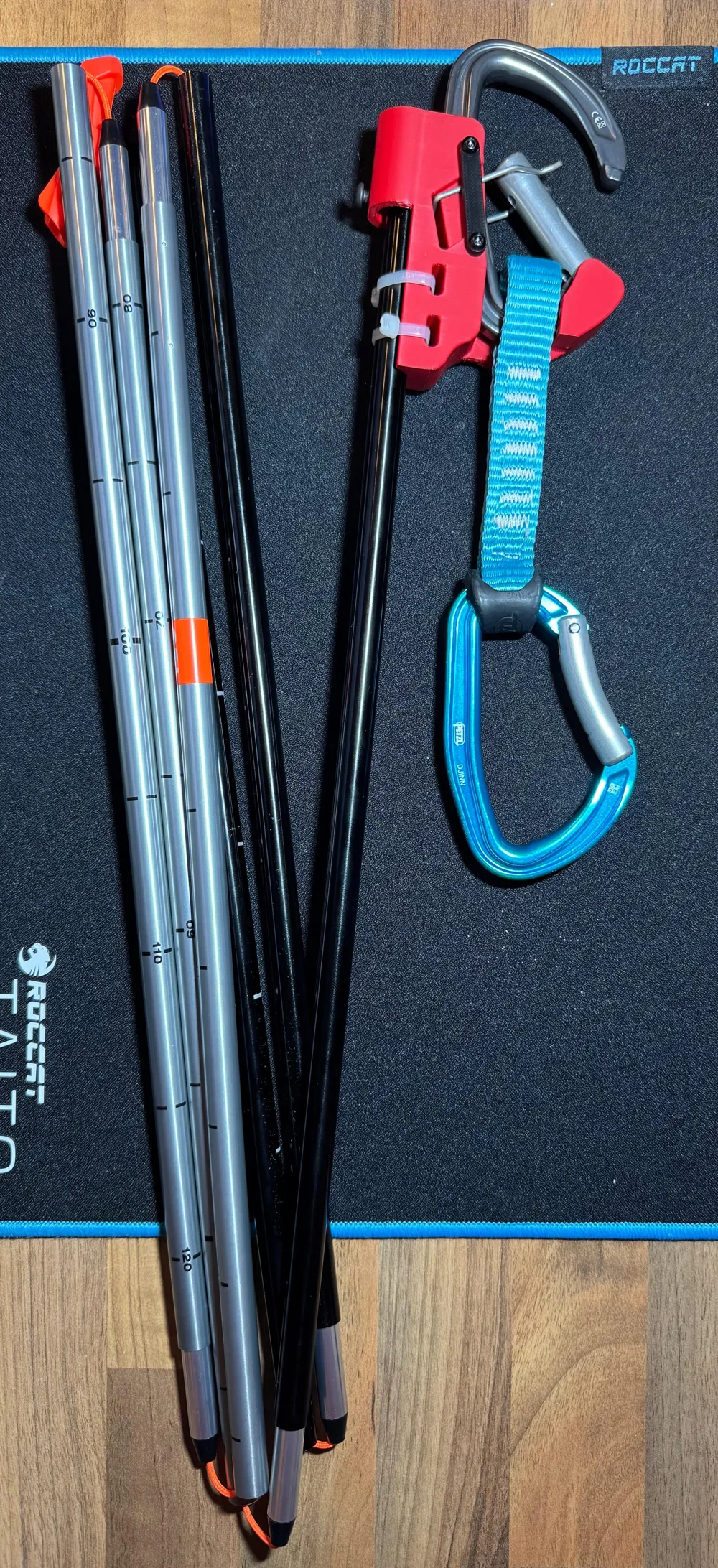

đ§ Smart Design: The module is attached to an avalanche probe using a screw and two zip ties. The diameter of the probe is 15 mm at the tip. The probe is used for its telescopic and lightweight properties, but feel free to get creative :)

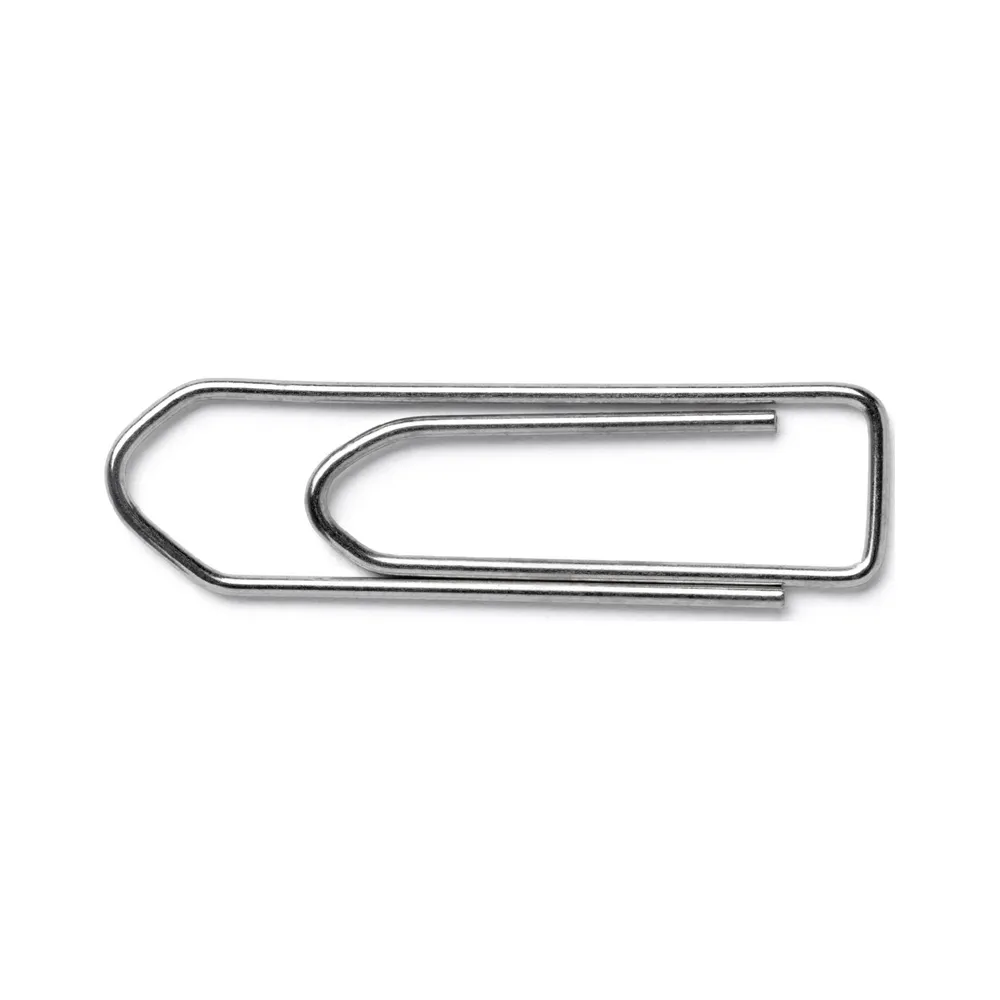

The metal part that keeps the quickdraw open is made from a paper clip, though a 2 mm diameter wire can also be used for a more durable solution.
The two small reinforcement pieces help stiffen the wire that holds the quickdraw open but are not essential if the wire used is rigid enough.
For assembling this stick clip, you will need the following parts:
- Paper clip / 1 pc
- M3 x 8 screw / 4 pcs
- M4 x 6 screw / 1 pc
