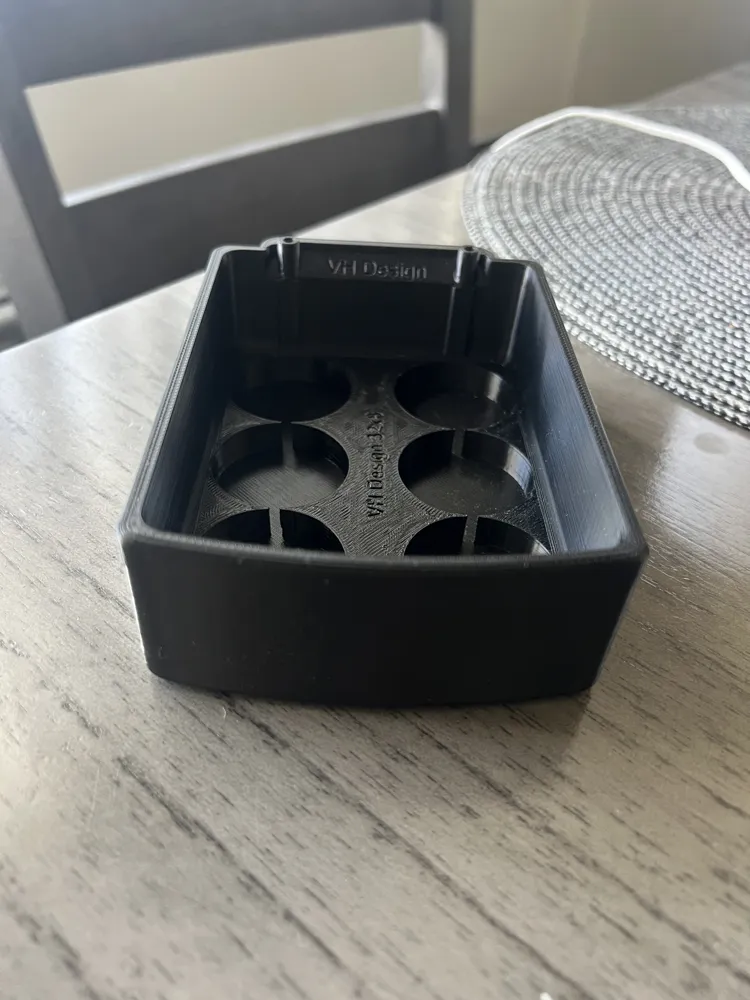

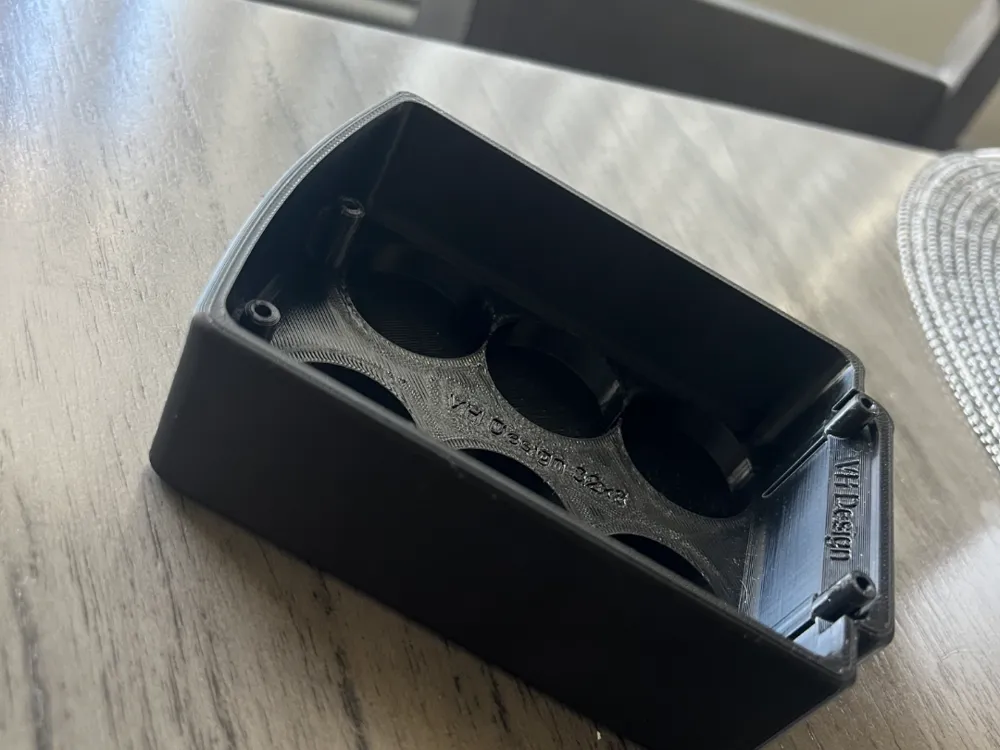

m18 xc5 magnetic battery base. two options either 32x8mm magnet or 36x8mm magnets. I

Boost Me (for free)

boost me so i can keep making more bases

haven't been able to find screws long enough so you guys have to look around

Comment & Rating (43)

@KadeGuyTool564

What kind of magnets do you use? Can you find them on amazon? I can’t find any neodymium magnets 36x8mm, but I can find ferrite ones. I just don’t know if it’ll be strong enough

The designer has replied

@VinceH

yes I buy the magnets in Amazon. what size magnets are available to you?

@KadeGuyTool564

Replying to @VinceH :

https://www.amazon.com/Magnets-Countersunk-Industrial-Strength-Holding/dp/B07YBBCJ5W/ref=mp_s_a_1_19_maf_3?crid=3LES23ZF46O0J&;dib=eyJ2IjoiMSJ9.s27XxuaQdqb_WjiRXOqazWuN-act-7mEwhNT_Qs1Tl2iyAqxoV024kPdezaC168-CUh428YvRvBpwzyumVPHJQmwjJz1rNnsfAflxBwYVJO7ZYltjInCPB_ZBvSqjlbIZeItbR8KEyszrBxyP4bLEY1mZOa8H35zilXbR7fA7ZgjZ_Ik55fx0aKgQ7SJKkm9FBfEK72Ux6XjwuUYDntygg.ozPATv5MsiGLCt8jqWC8NoIVo6qcS9m92P34bnBkOII&dib_tag=se&keywords=neodymium+cup+magnets&qid=1757684344&sprefix=neodymium+cup+magnets%2Caps%2C103&sr=8-19 I found these just now, but I don’t know the size comparison from these to 36x8mm

@VinceH

Replying to @KadeGuyTool564 :

I’ll send you a link of the ones you can use. I can also change the size of the holes if you want to use.

@user_1627829640

Boosted

this doesn’t fit my xc5 battery it’s too big. what did I do wrong?

The designer has replied

@VinceH

really? maybe your accidentally scaled it

@VinceH

this is the battery that I made out for

@user_1627829640

Boosted

maybe I’m not sure. looks like it will fit my xc8

@Mr.quack

has any one found the screw size that works

The designer has replied

@VinceH

I still haven’t.

@ClassicGame1995

Boosted

https://www.mcmaster.com/product/92525A131 these work perfectly able to hold my m18 high torque on a car hoist sideways.

@user_1249313333

does this use the 2” screws for all 4?

The designer has replied

@VinceH

no only for the rear screws

@user_1249313333

Replying to @VinceH :

ok thank you

@nickde258

Boosted

Very cool. Making a few for my friends and myself. Screw size would be appreciated but made it work. TPU98 is an absolute killer combo for this.

The designer has replied

@VinceH

I think someone in the comente found some screws.

@ClassicGame1995

Boosted

For anyone looking for screws. https://www.mcmaster.com/product/92525A131

@Jordayne02

Boosted

Okay thanks alot whenever I get some more boost you'll be getting all of them lol and if you need the dimensions for the high output battery to make it work for it too I can send you those

@user_1249313333

everything fit perfectly great job no issues. just have to find 36x8 magnets

@chrisonboost

Boosted

might be crazy however have you considered making them for the forged batteries

The designer has replied

@VinceH

I might have two of those. I’ll check. I personally wouldn’t use them, the tools are heavy enough. but I’ll see what I can do

@ikeonz

can you make 6.0 as well?

The designer has replied

@VinceH

I don’t think I own a 6.0 battery but I’ll check
