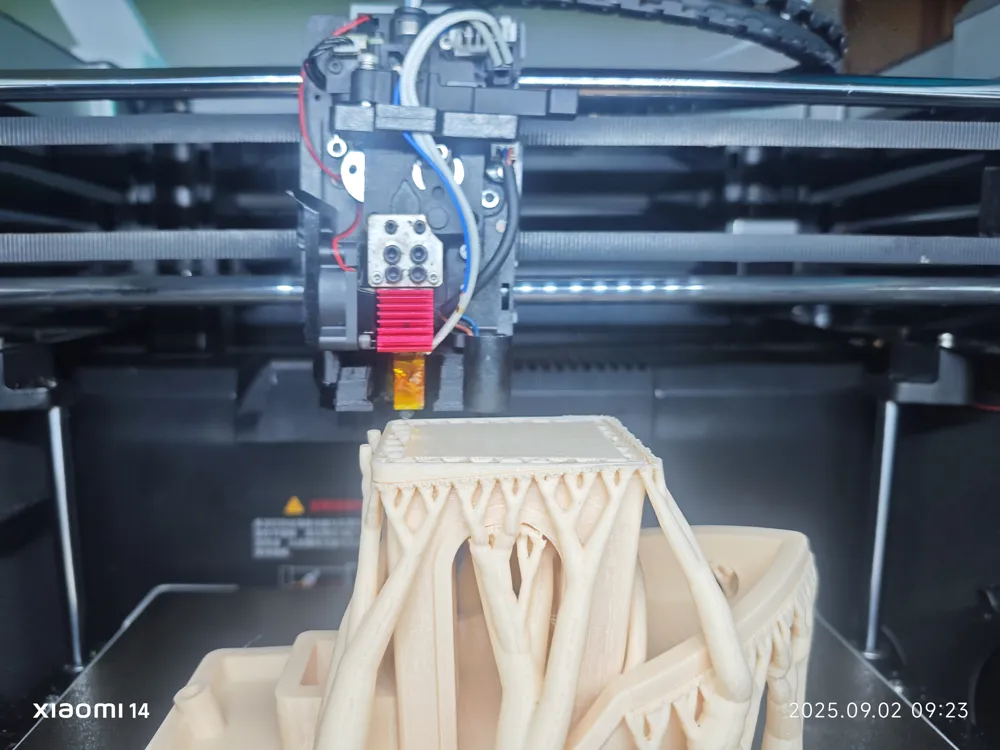

QIDI plus4 modified Bambu Lab hotend
Remixed by
IP Report
Print Profile(2)
0.2mm layer, 4 walls, 40% infill
Designer
29 min
2 plates
0.2mm layer, 4 walls, 40% infill
Designer
49 min
2 plates
Open in Bambu Studio
Boost
10
16
0
0
14
2
Released
Description
Content has been automatically translated.

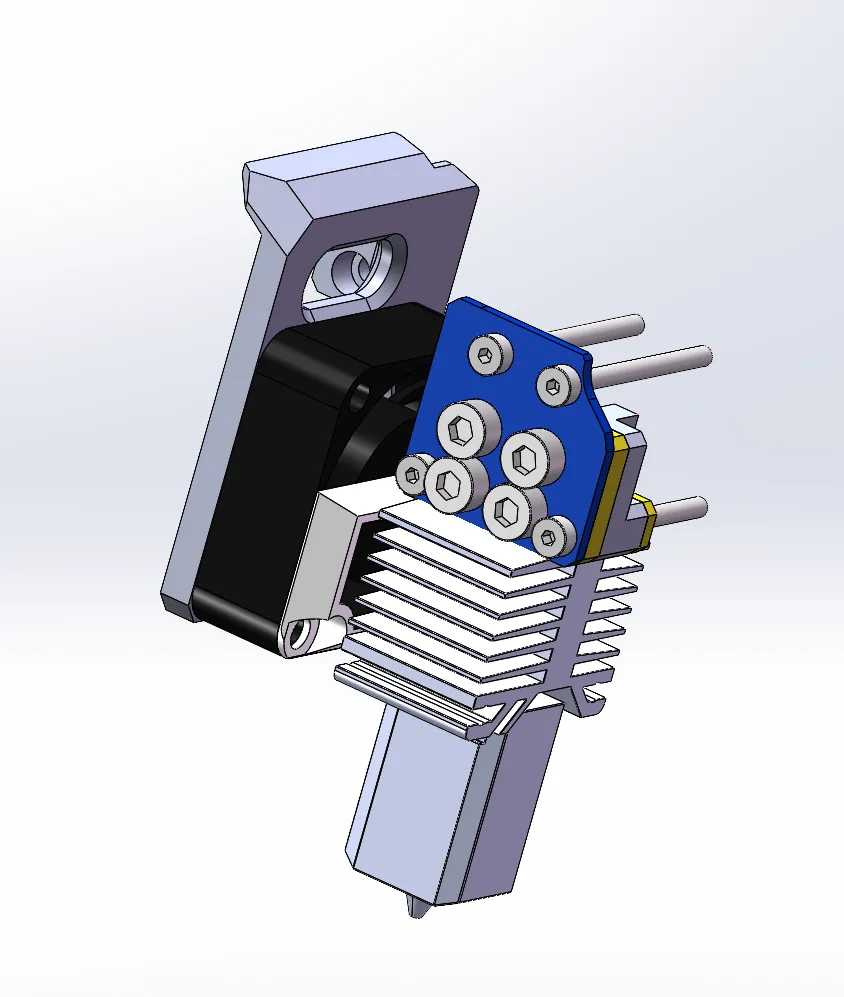

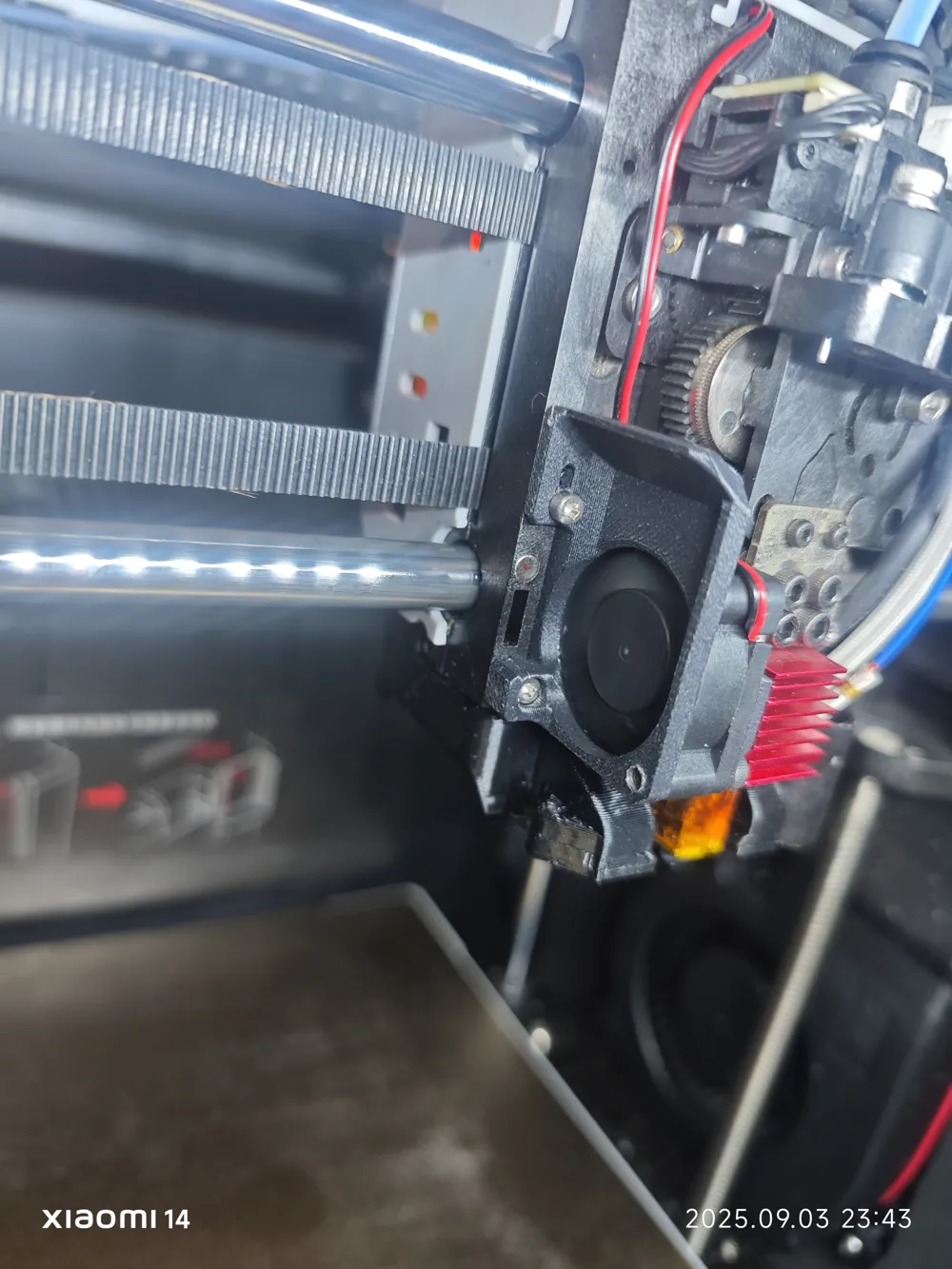

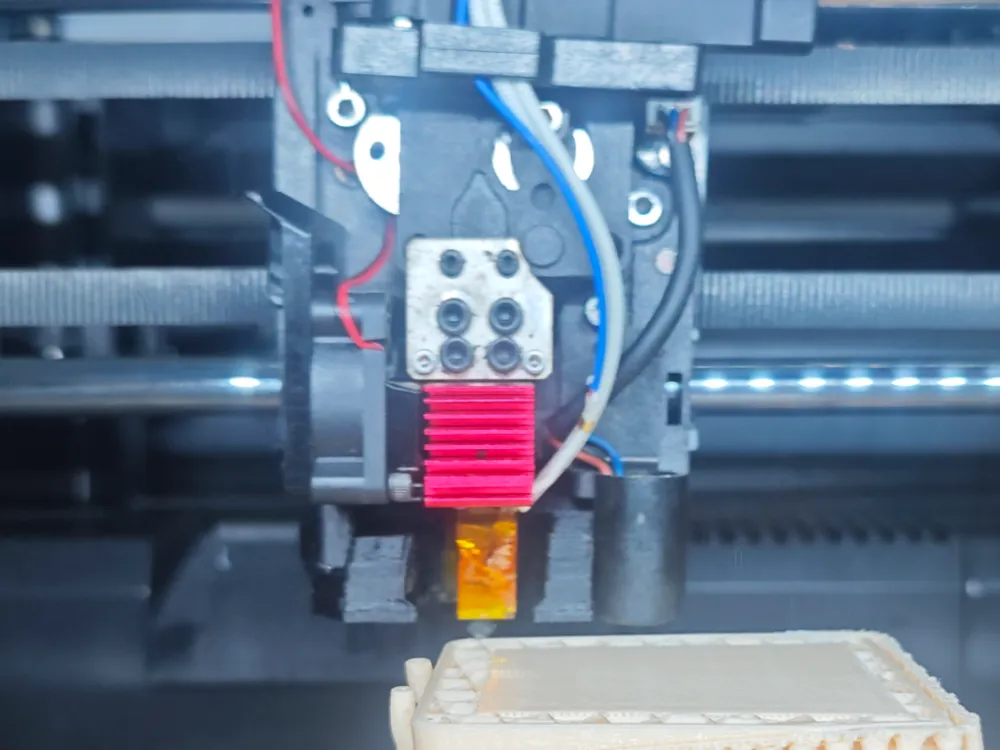

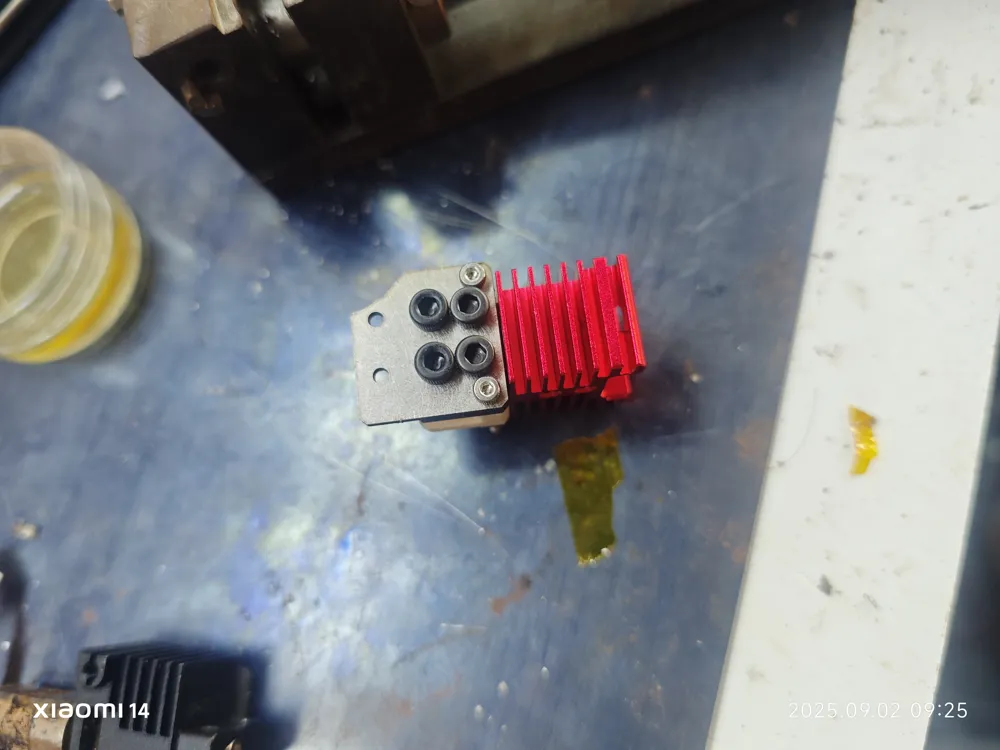

QIDI plus4_tool head_modified tz hotend_sheet metal version

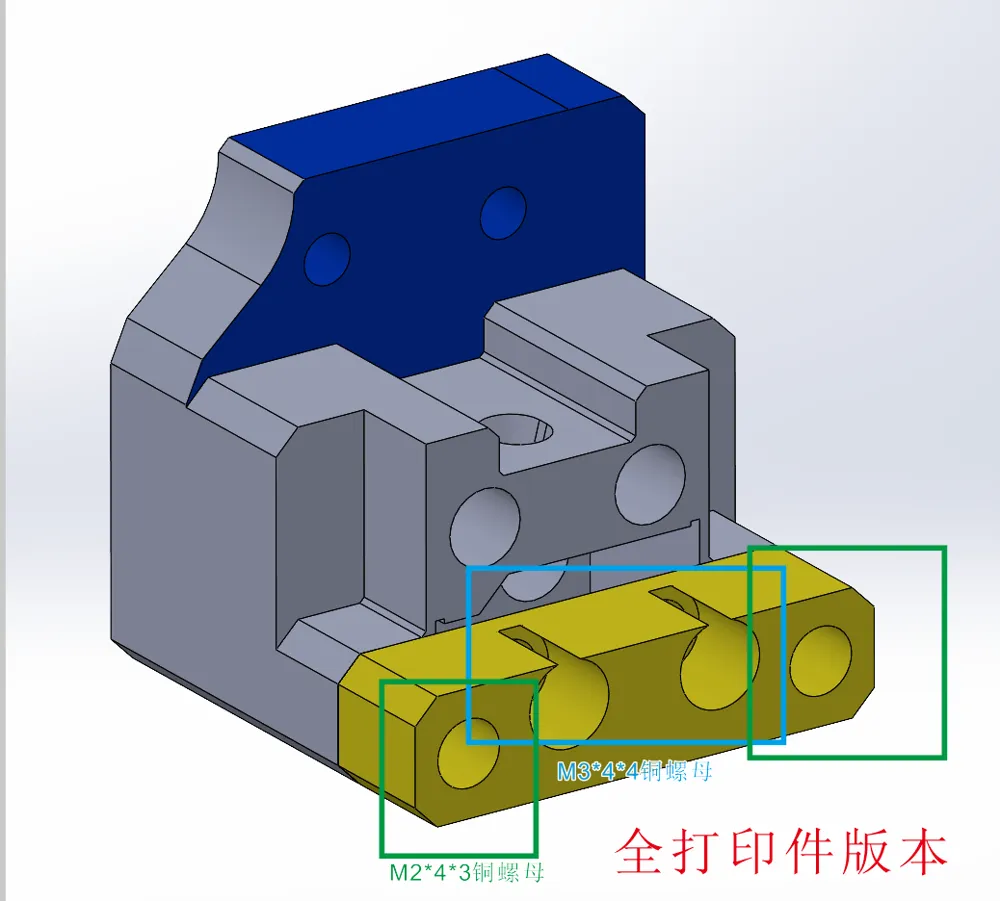

QIDI plus4_tool head_modified tz hotend_fully 3D printed version
The fully 3D printed version is uncertain whether the rigidity is sufficient
For sheet metal, you can check out JLCPCB, or in the future, I might sell sheet metal kits on Xianyu

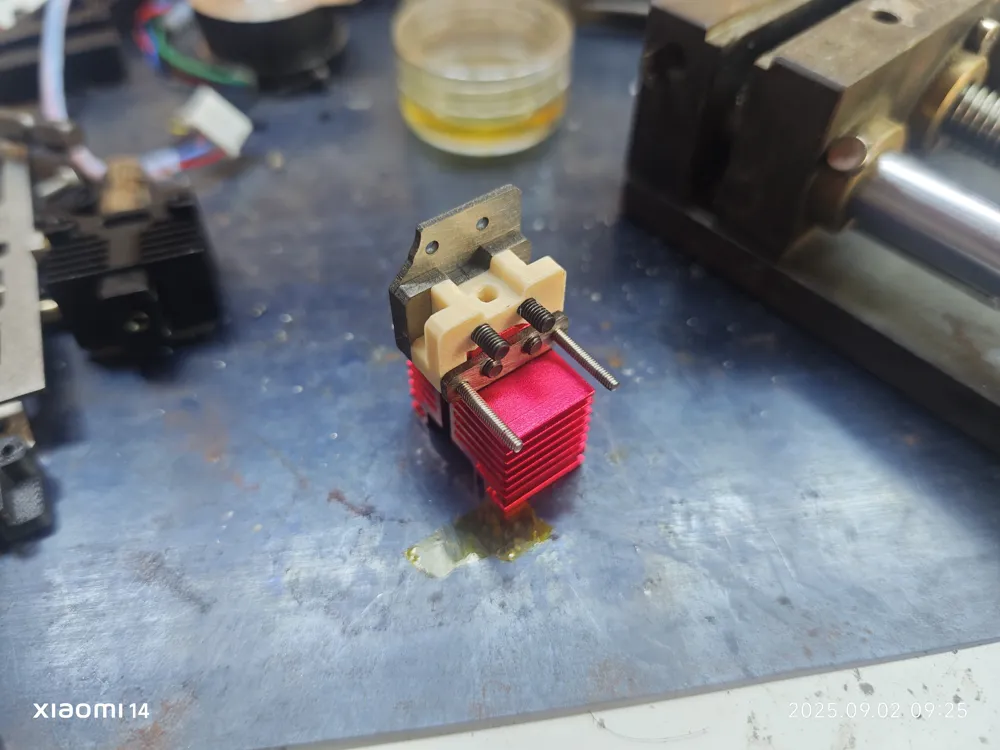

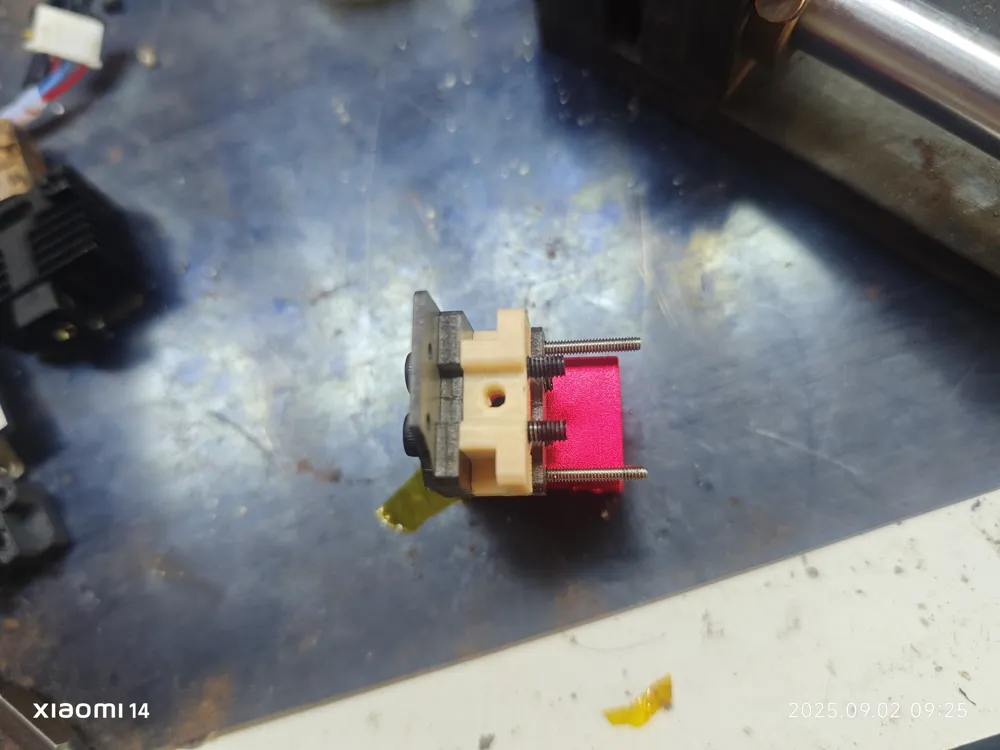

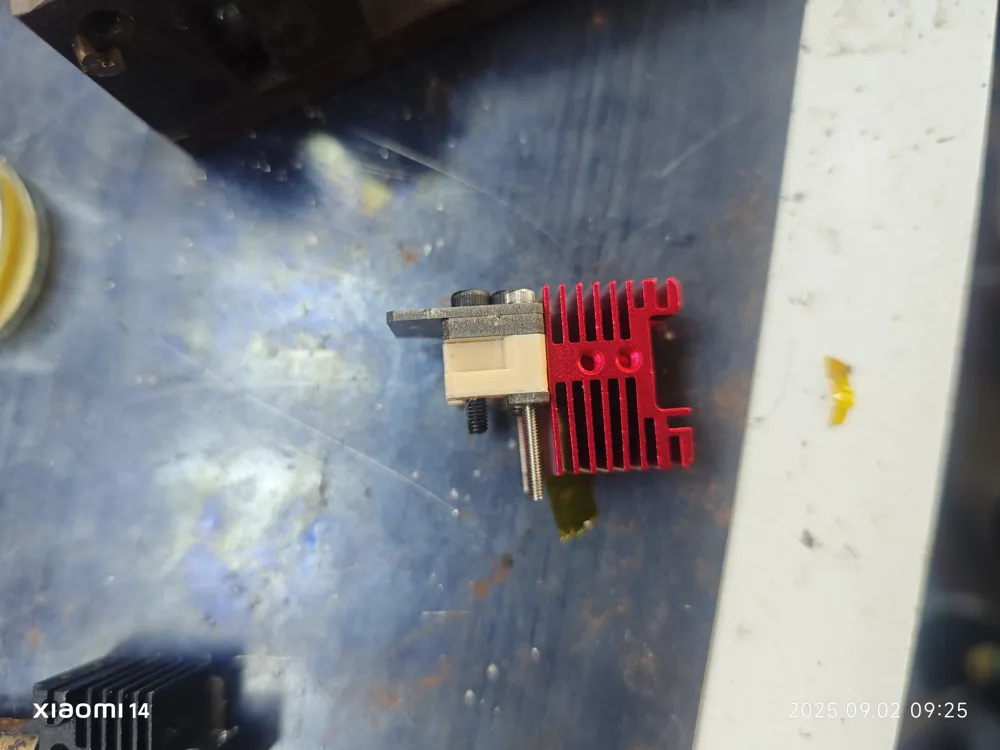

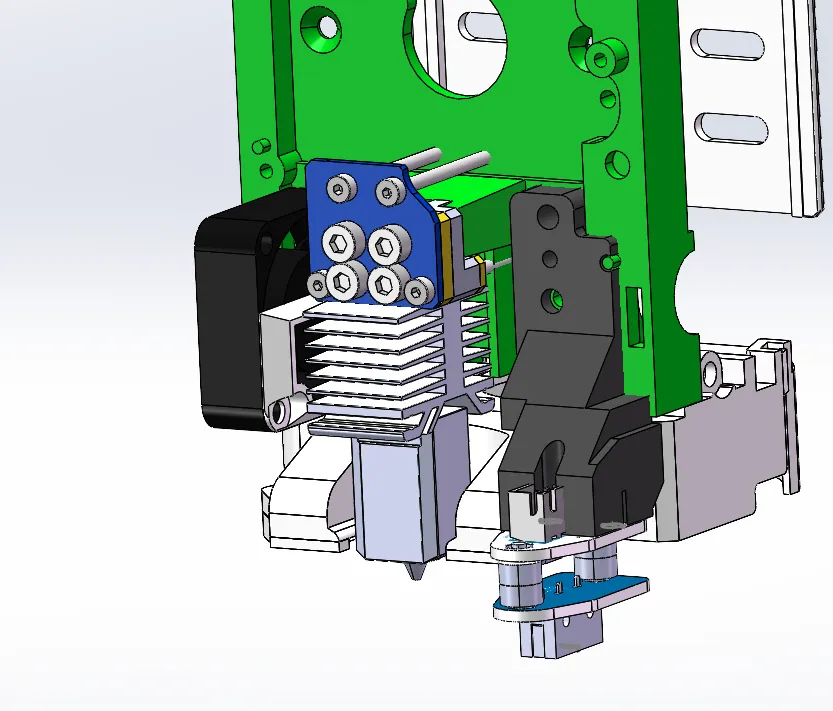

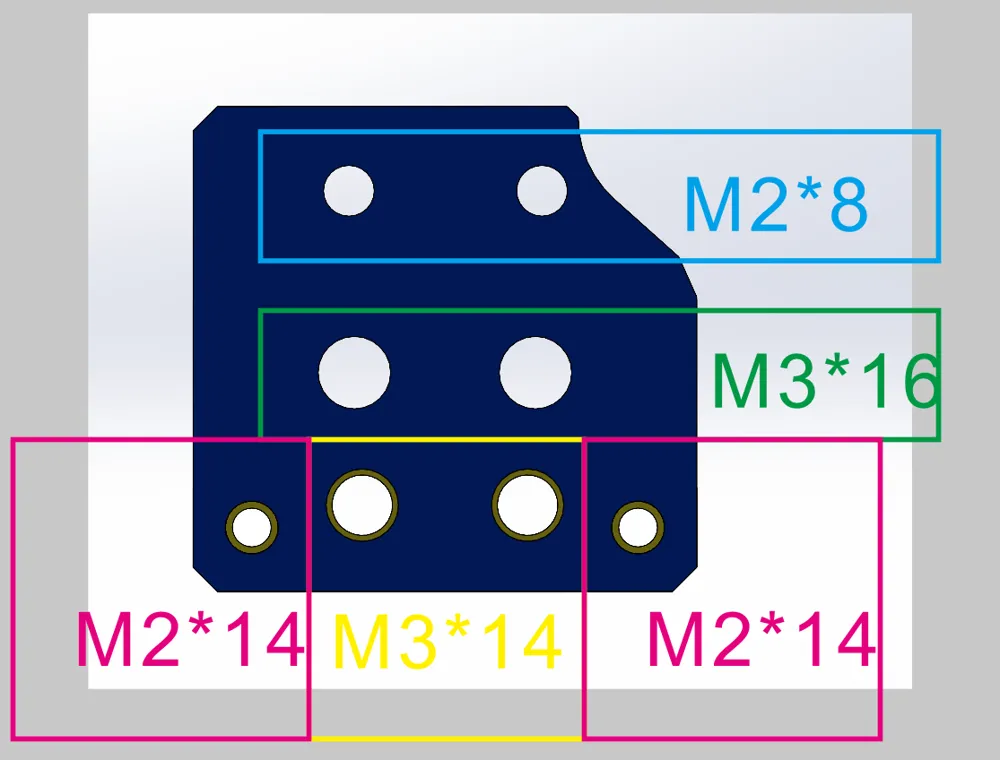

Assembly and screw models refer to the diagram

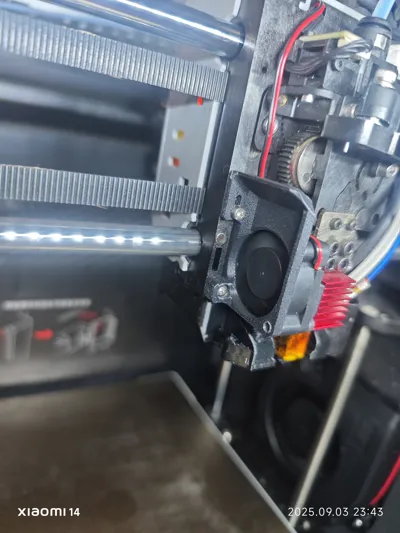

Fan fixing screws are M3*14
Heat break cooling parameters:
Chamber temperature 50, hotend 350, time 18min, heat break infrared thermal imaging temperature 63.3
Chamber temperature 65, hotend 275, time 114min, heat break infrared thermal imaging temperature 69.5
