OpenDTU Fusion Minimalistic Case
Print Profile(1)
Description
Minimalistic PETG case for the OpenDTU Fusion board, designed without HAT support. Features dual antenna cutouts, removable lid, rubber foot mounts
I couldn't find a simple case for my OpenDTU Fusion board without display and HAT support and with external SMA antennas. So i decided to design this one.
Features:

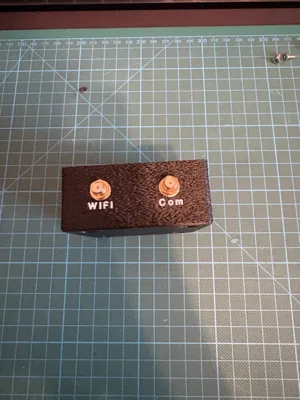

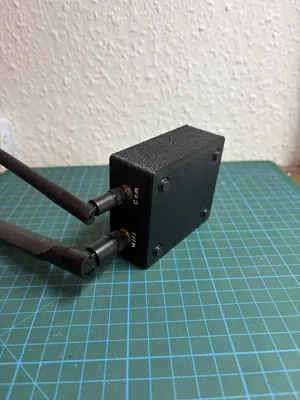

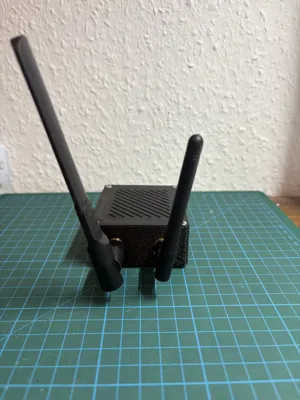

- two cutouts for external SMA antennas

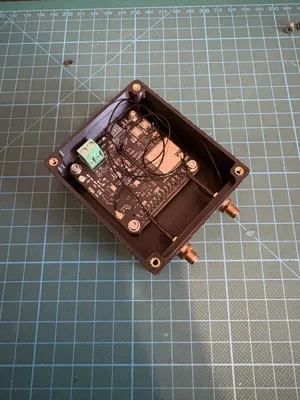

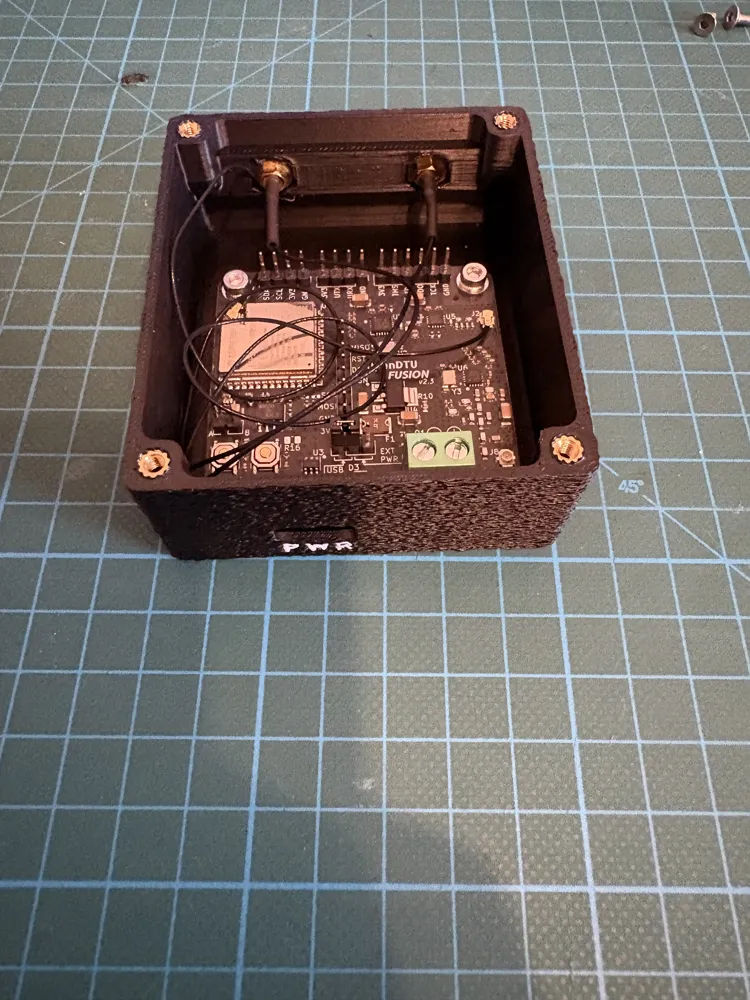

- board fastend with M3x4 socket head cap screws

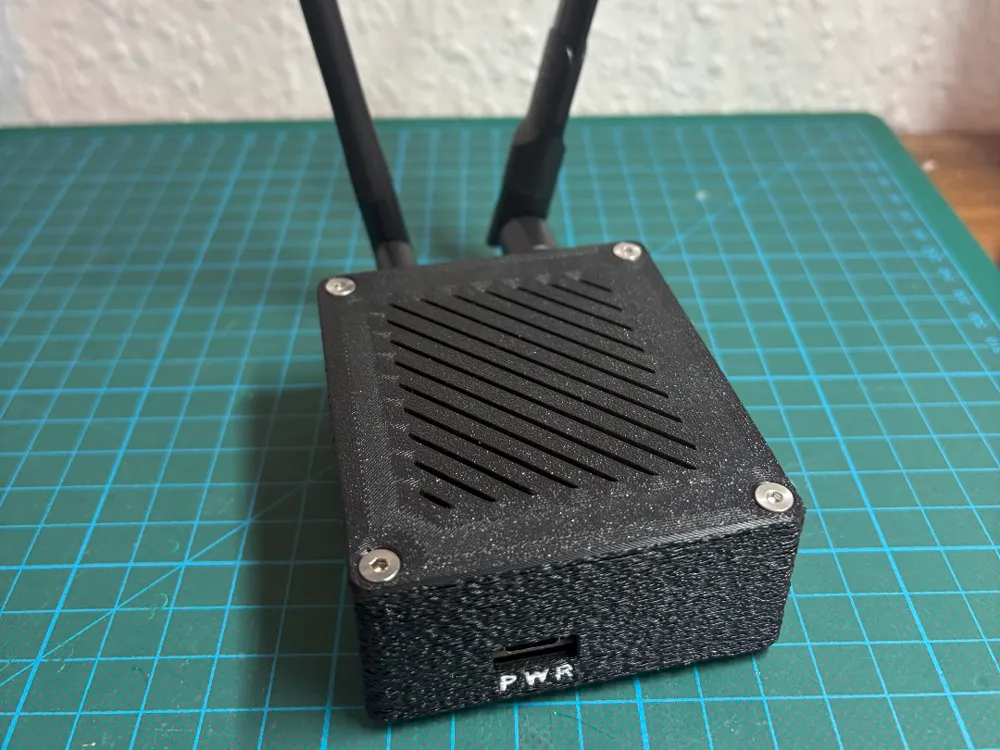

- screwable lid with M3x6 countersunk screws
- mounting holes for 8mm rubber feet (3M Bumpons) - LINK(*)
- designed for M3S heat-set inserts - LINK(*)
- textured outer surface with fuzzy skin painting tool in Bambu Studio
Printing details:
- Printed in Bambu Lab PETG for strength and heat resistance
- If you don't like the text or the fuzzy skin feel free to remove it in the slicer.
Notes:
- Be careful when inserting the heat-set inserts for the board. There is little space between the corner and your soldering iron. I did not had any problems and the only surface touching the walls was the colder upper part of my iron.
