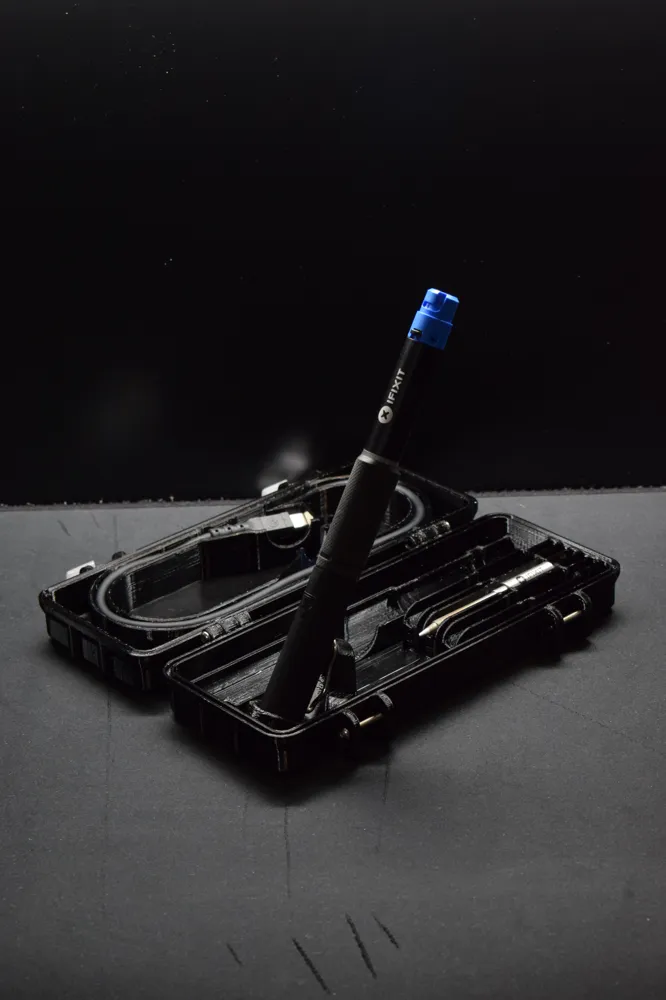

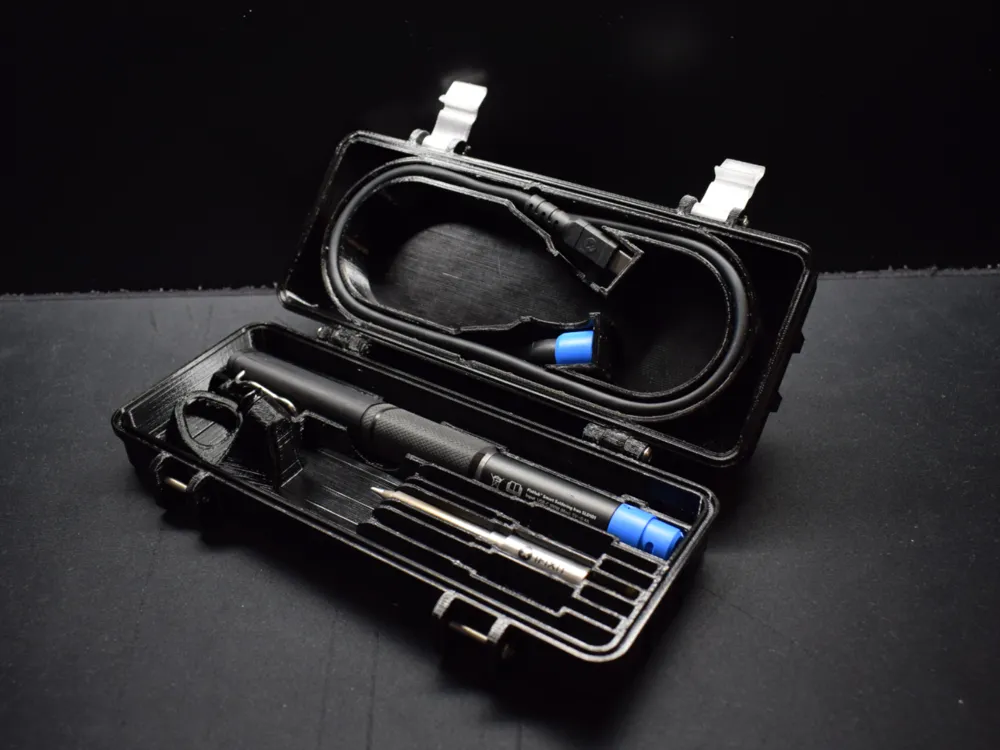

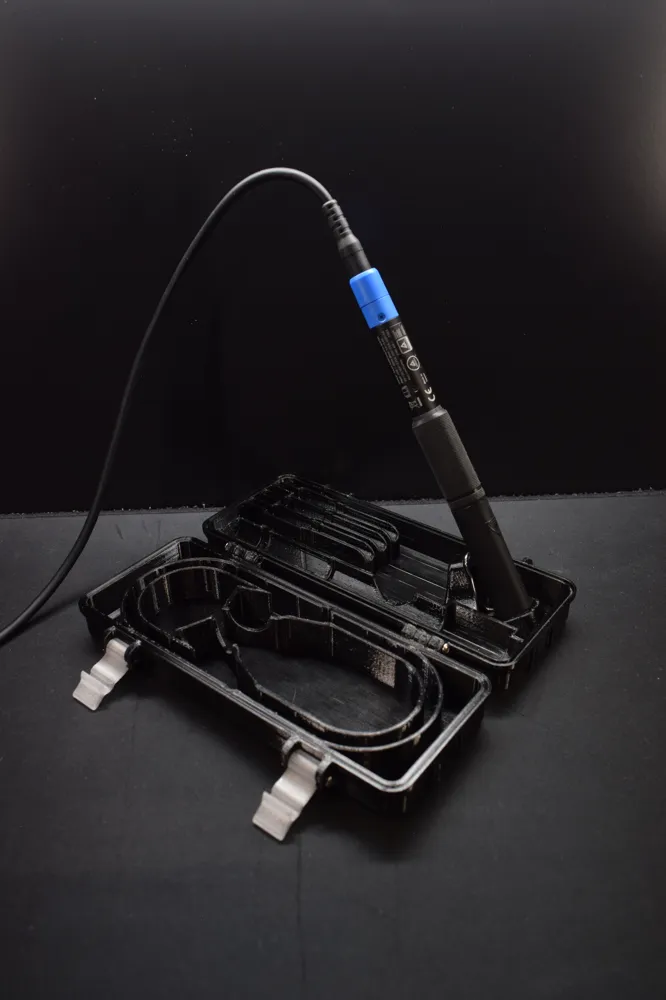

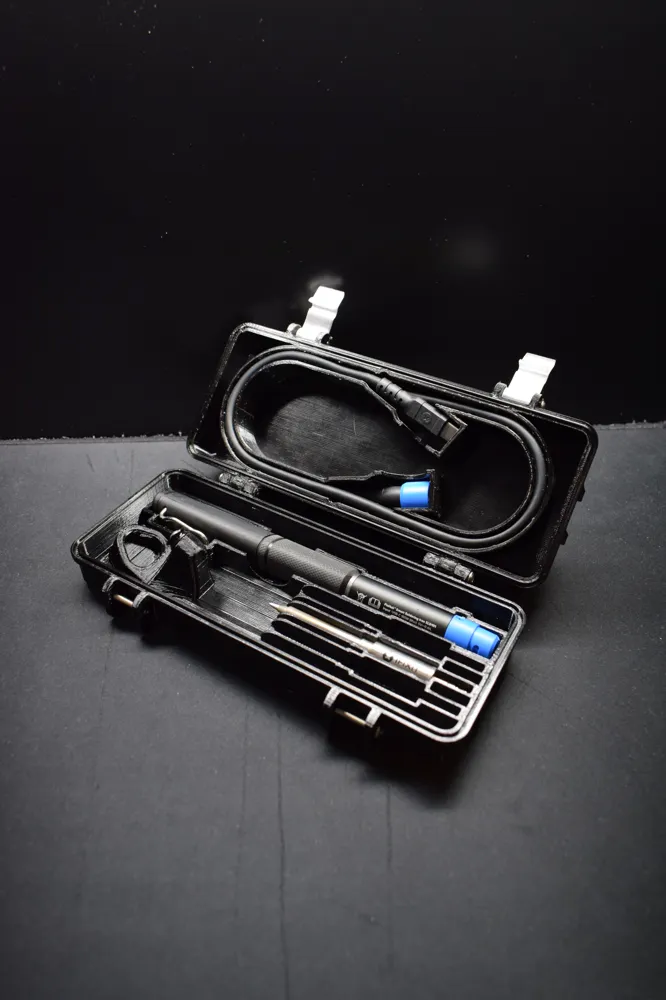

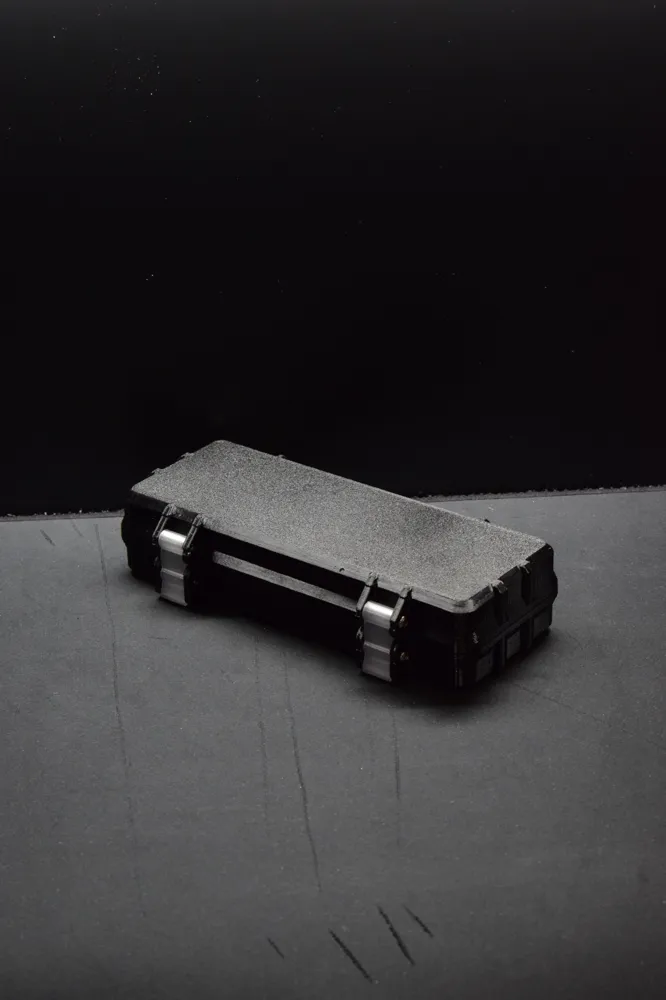

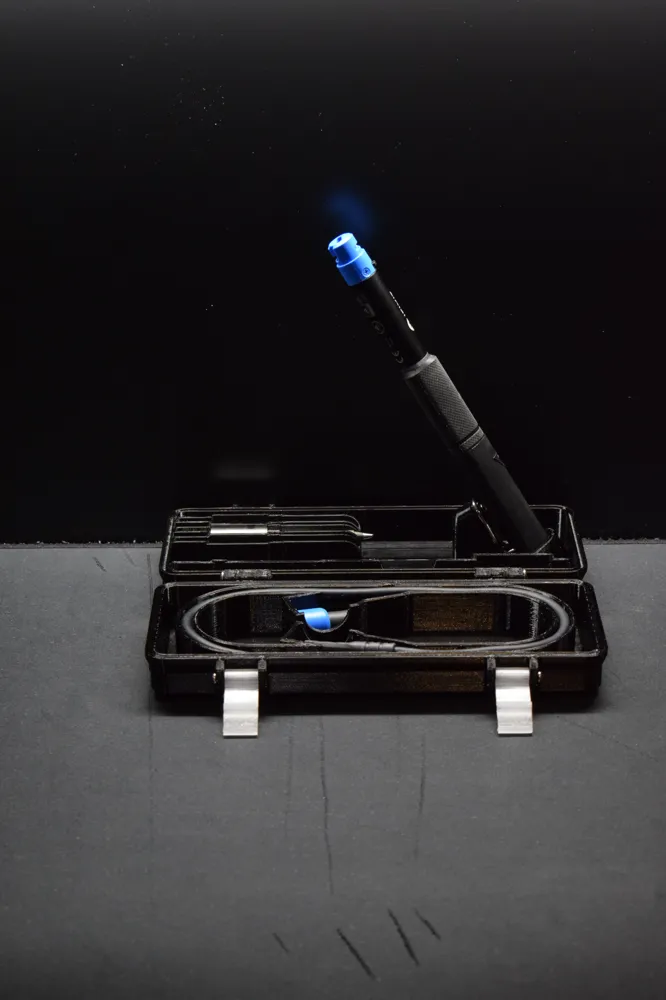

This is a case for the iFixit Fix Hub soldering iron, the included USB-C cable, and 3 extra soldering tips. The case also doubles as a stand which the cap of the soldering iron can clip in and out of.

You will need:

1x Top

1x Bottom

1x Clip

2x Latch

6x M3-20mm Screws

1x M3-8mm Screw

Printing/Assembly:

No supports required, Minimum 10% infill

Latches get attached to Top using 2x M3-20mm screws

Hinges of Top and Bottom are joined using 2x M3-20mm screws

2x M3-20mm screws are attached to Bottom where latches will lock into.

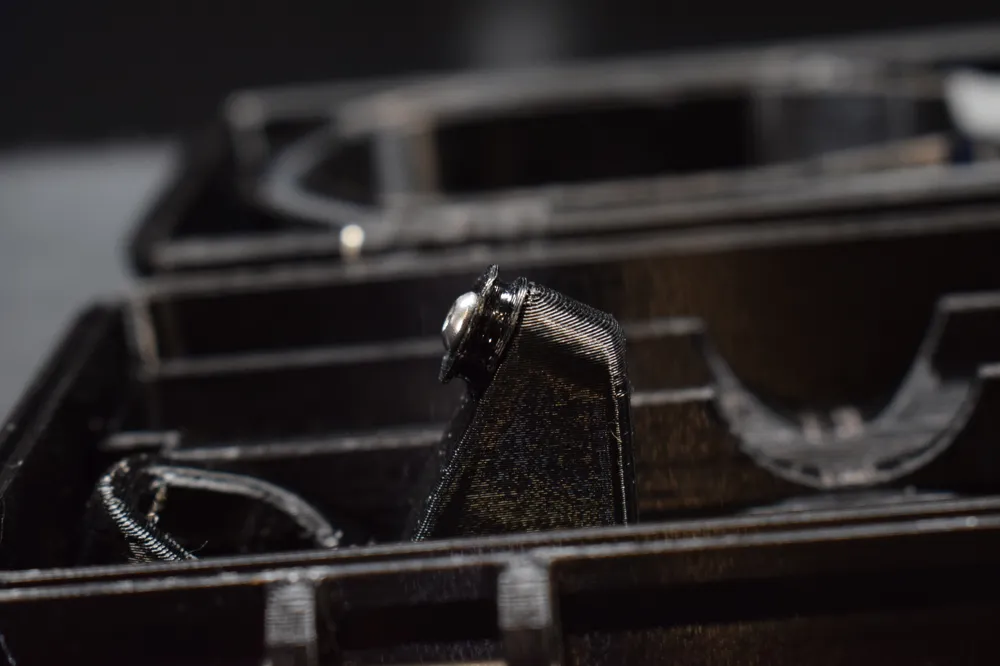

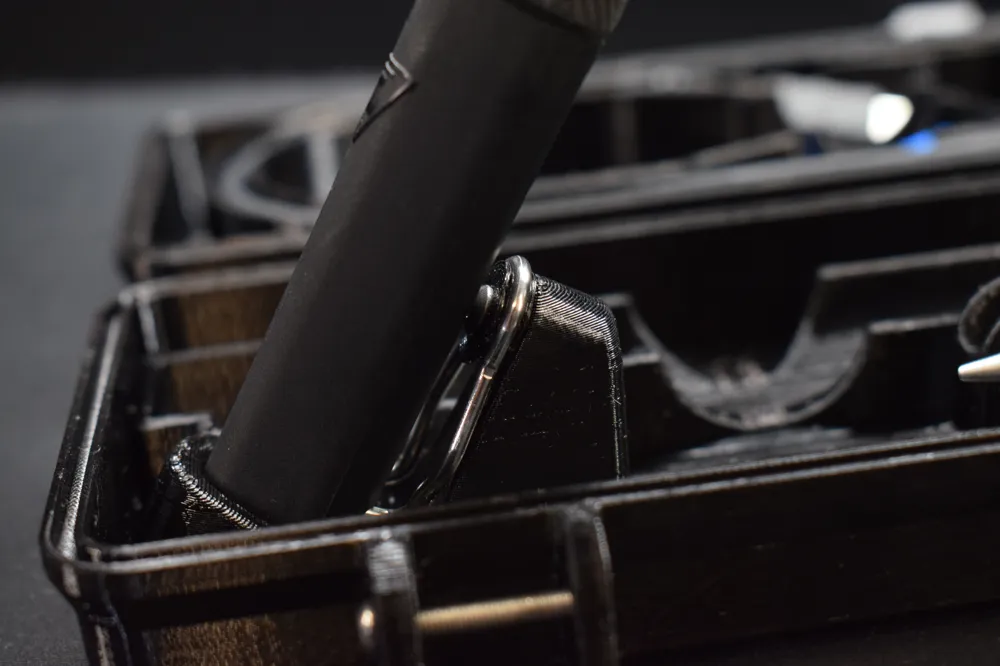

Clip is attached to Bottom using M3-8mm screw (See pictures).
