Pool vacuum venturi nozzle - Hayward TigerShark
Print Profile(3)
Bill of Materials
Description
Hi.

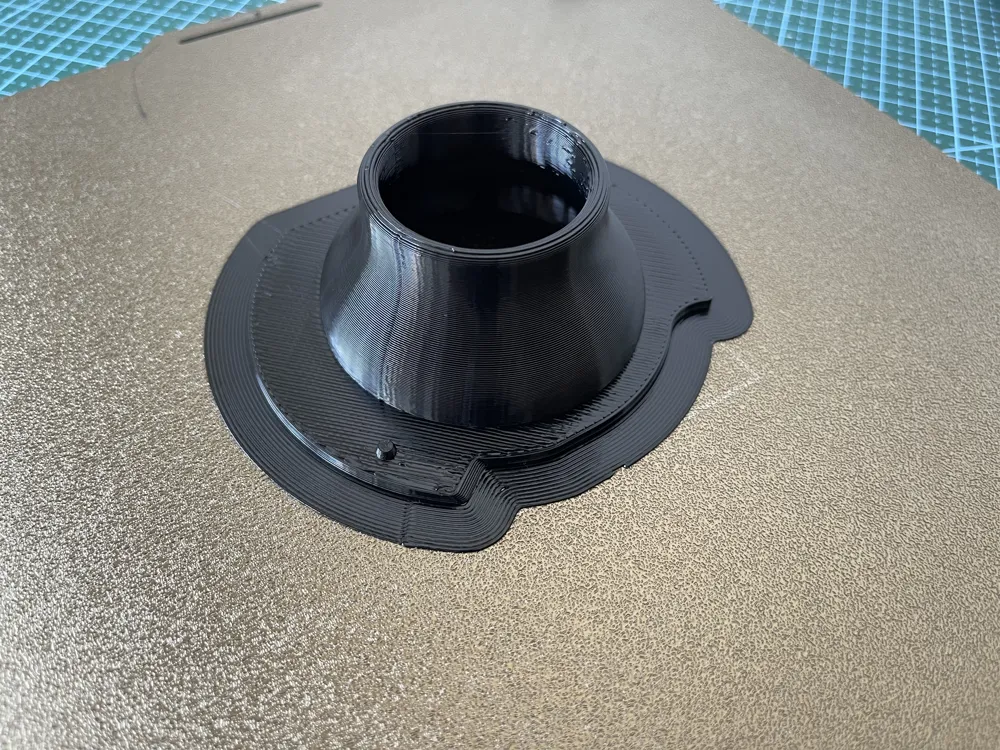

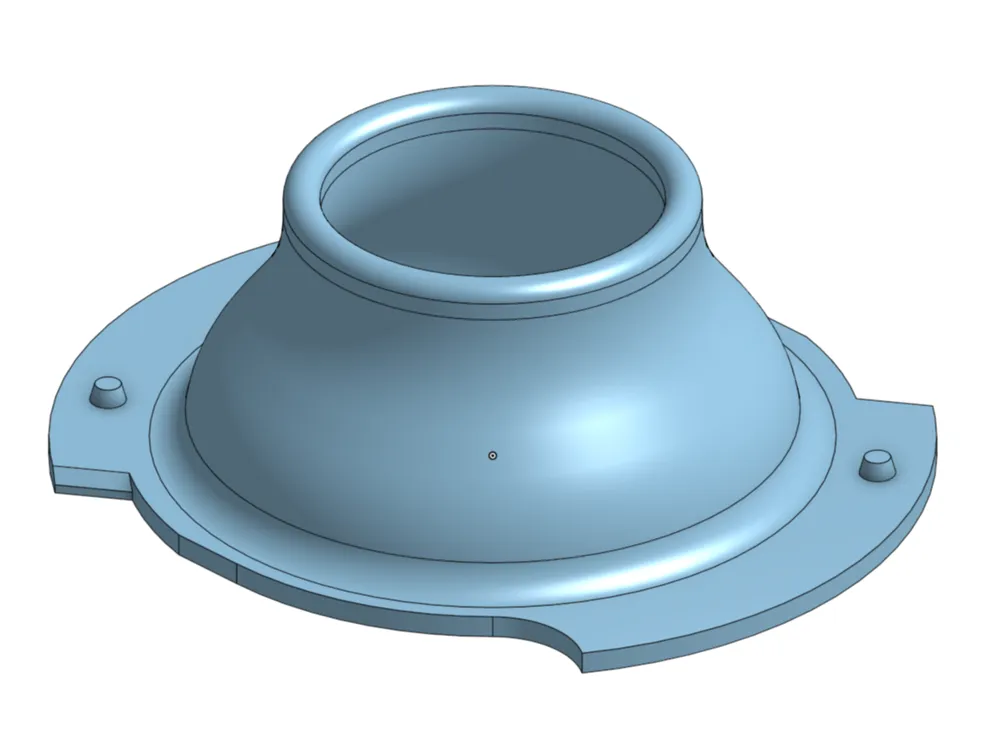

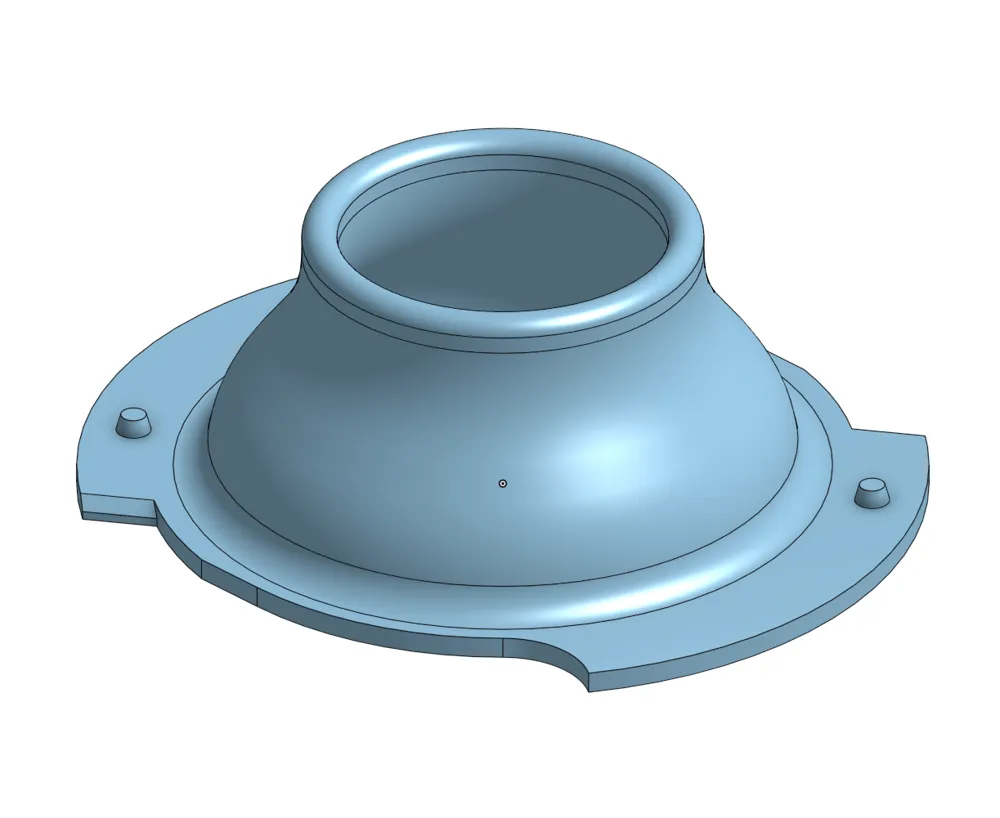

This is just the nozzle for the Hayward TigerShark pool vacuum cleaner.
Print it using PC or ASA for sun exposure temperature and UV durability.
Best option is to print it using a big nozzle like 0.8 mm and PC filament.

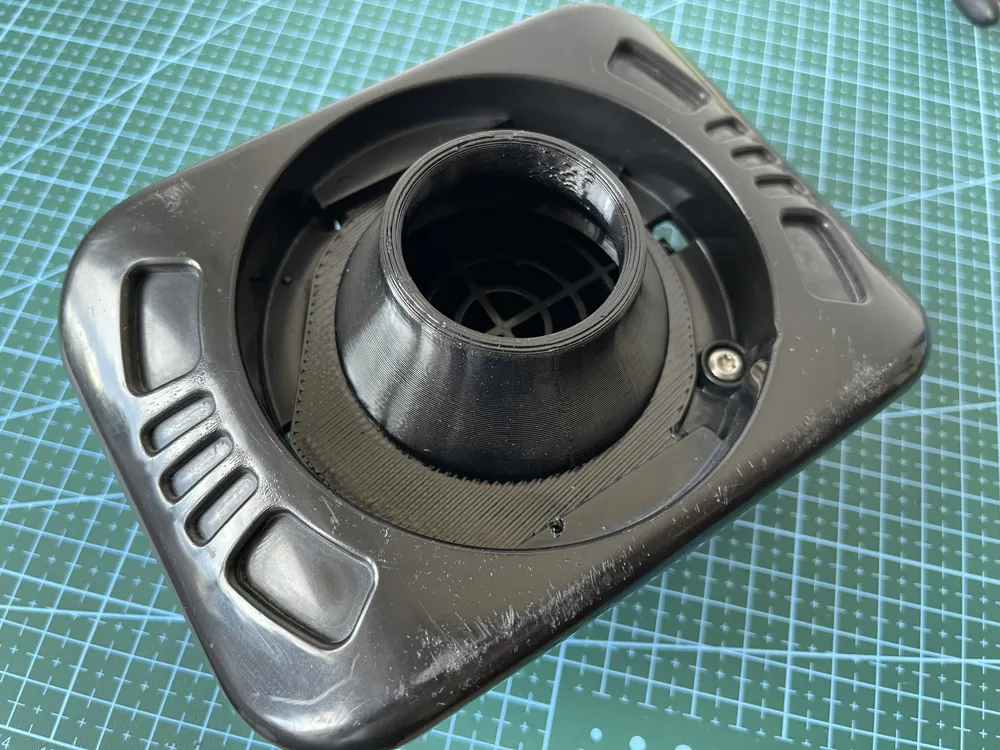

Due to manufacturing tolerances of the base plate, the “knobs” that catch the latch on the inside are a bit taller than they need to be. Use side cutters or a file to shorten them for that perfect click.
If you request it, I can make different nozzle diameters and lengths.
Boost Me (for free)
I hope you liked my model and can make good use of it.
