DJI 04 lite Gimbal Compatible with atomrc White Whale - Free 3D Print Model

Search models, users, collections, and posts

yaojian8230

Hobby & DIY>Other Hobby & DIY

IP Report

Print Profile(1)

All

H2D

X1 Carbon

X1E

A1 mini

P1P

P1S

H2D Pro

0.16mm layer height, 2 perimeters, 15% infill

Designer

1.8 h

1 plate

5.0(3)

Open in Bambu Studio

Boost

Released

Description

Content has been automatically translated.

Show original

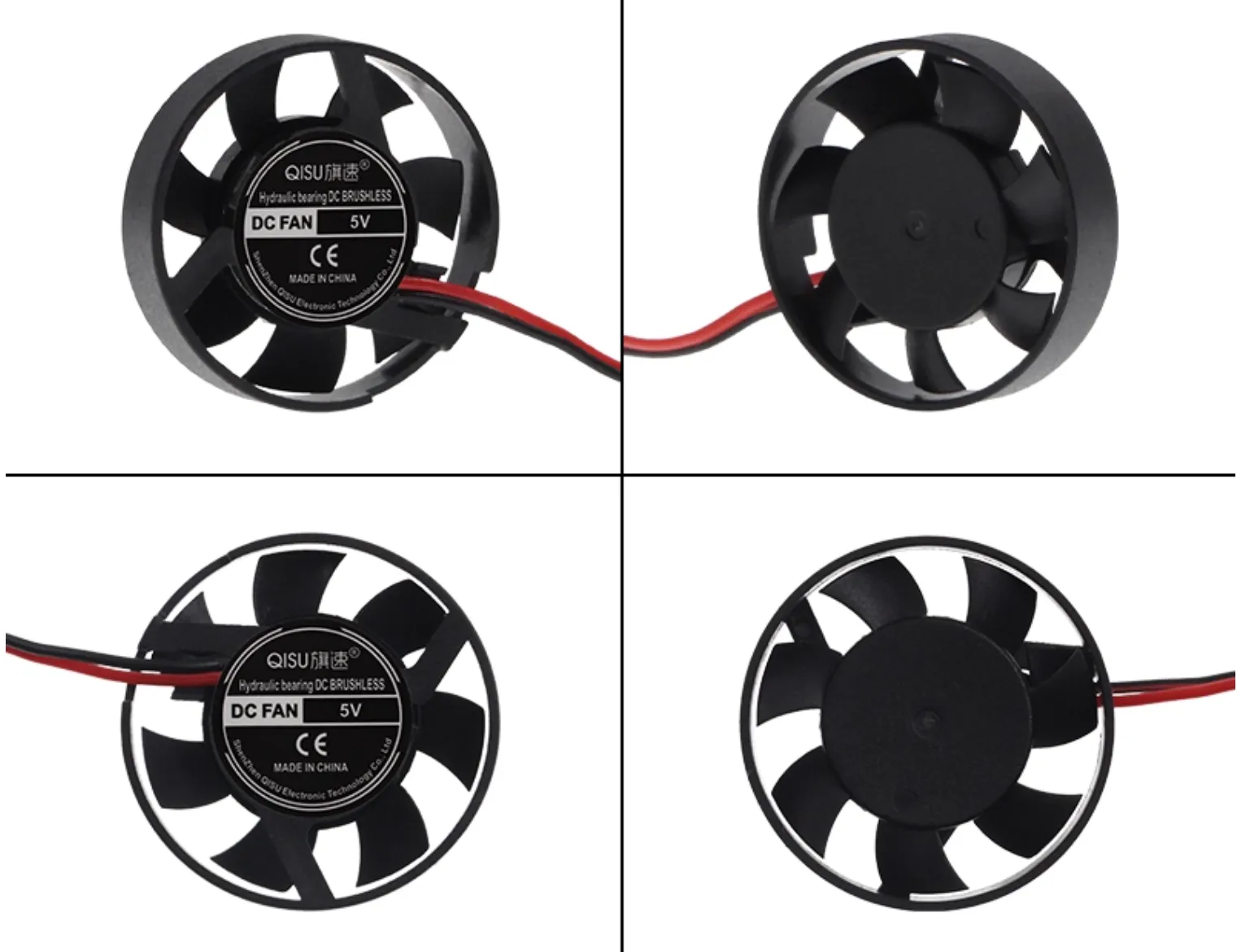

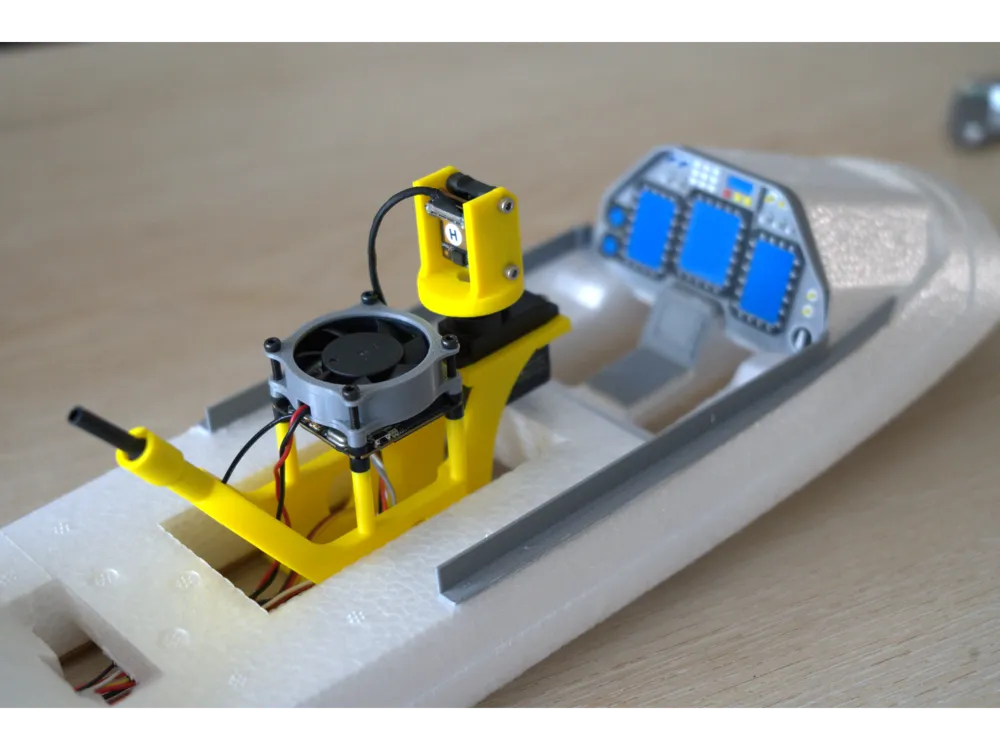

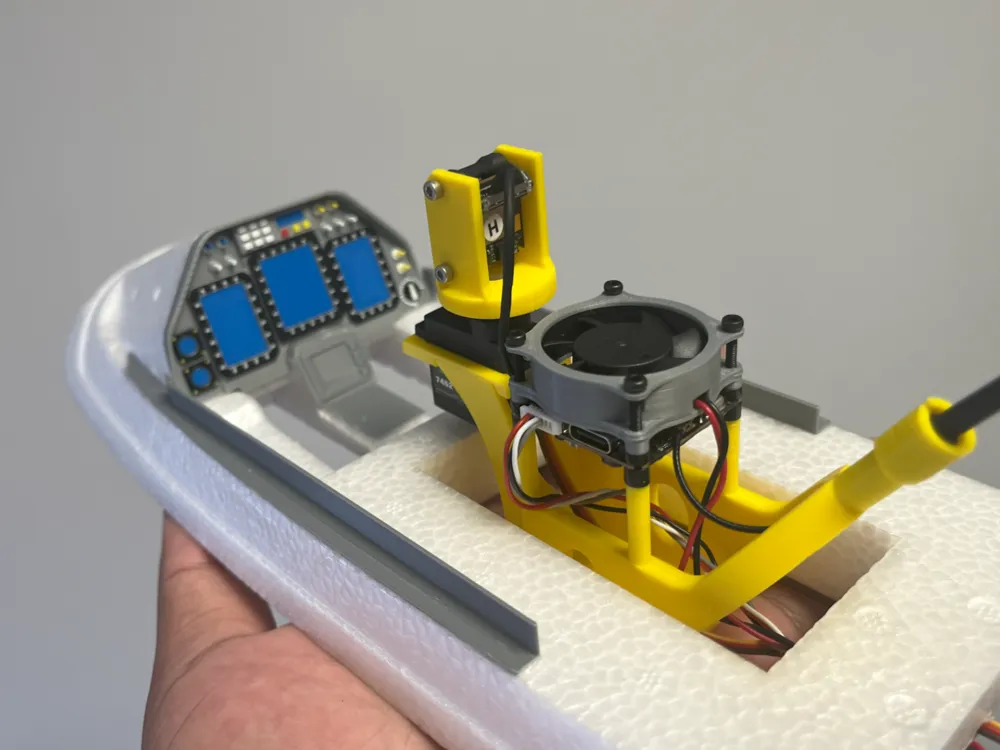

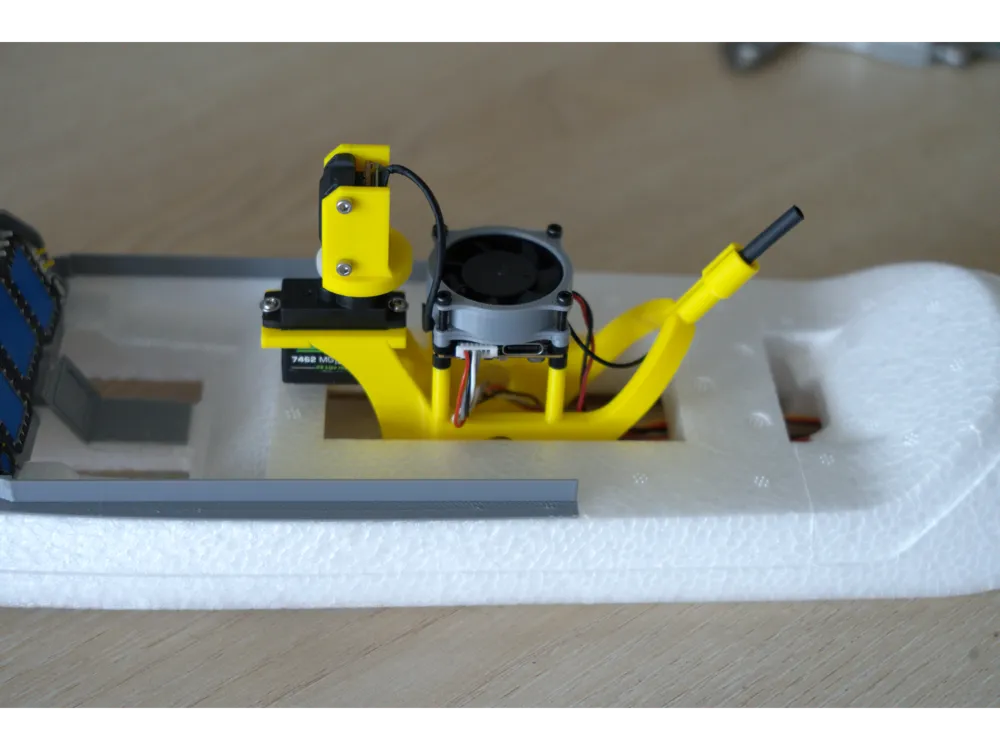

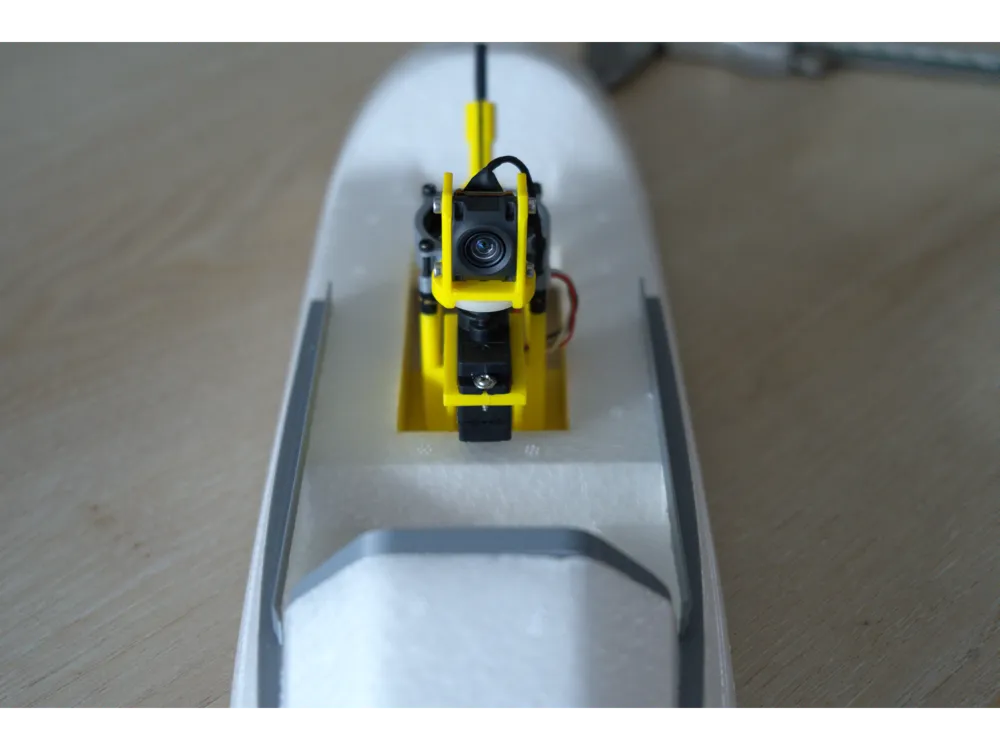

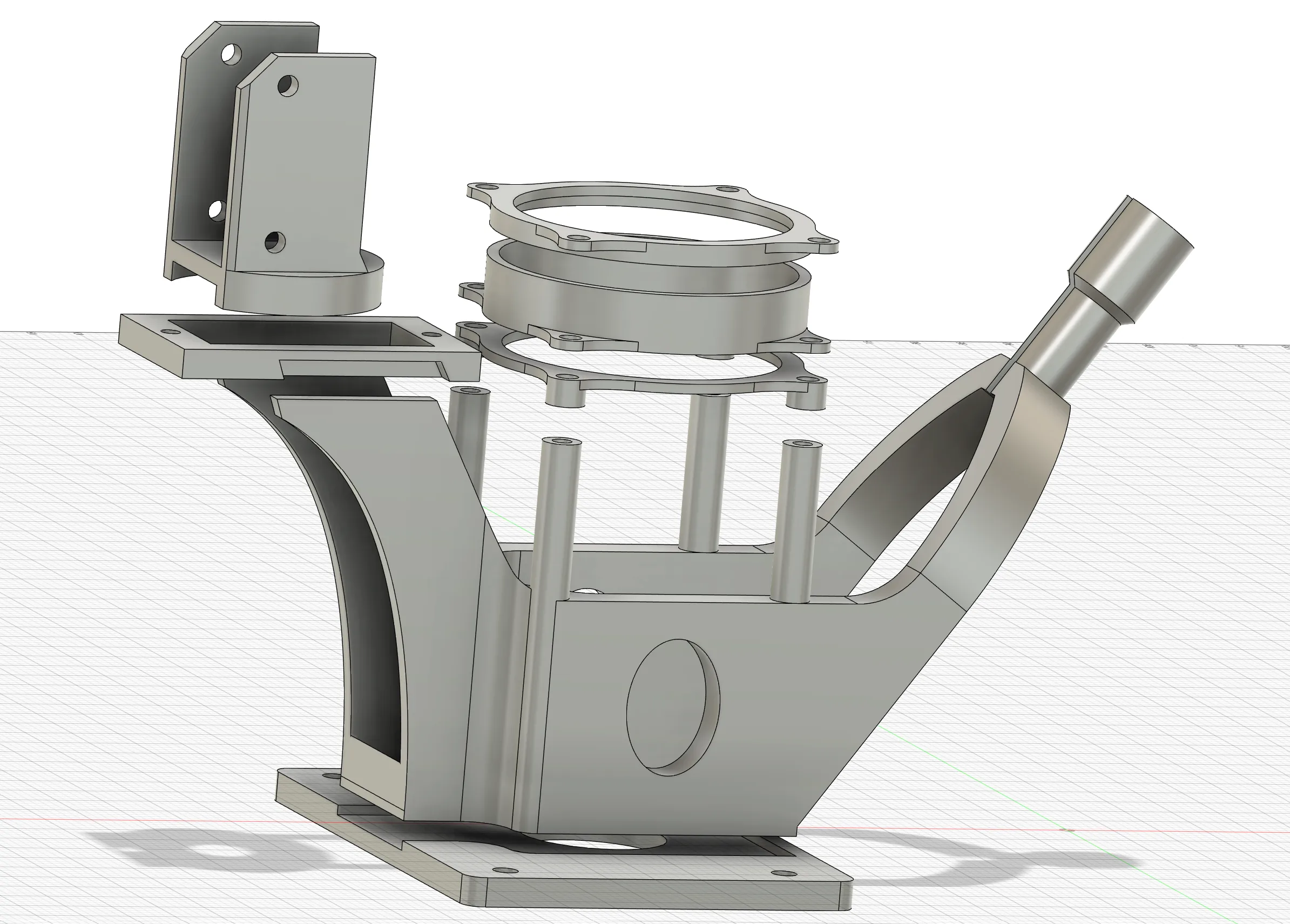

The official atomrc gimbal only supports DJI O3 and O4 pro, so a single-axis gimbal was designed for the O4 youth edition. I personally feel a dual-axis gimbal for this cockpit is unnecessary. The entire gimbal prints without support. The servo connection requires adhesive; otherwise, assembly is via screws.

Four M2*20 cylindrical screws are needed to secure the transmission.
Four M2*4 cylindrical screws are needed to secure the camera.
Four M2*6 cylindrical screws are needed to connect the base.

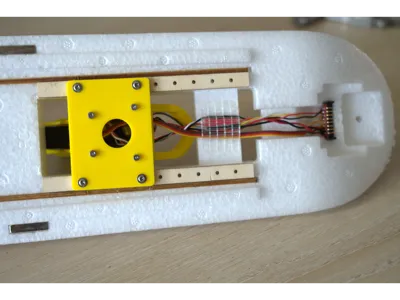

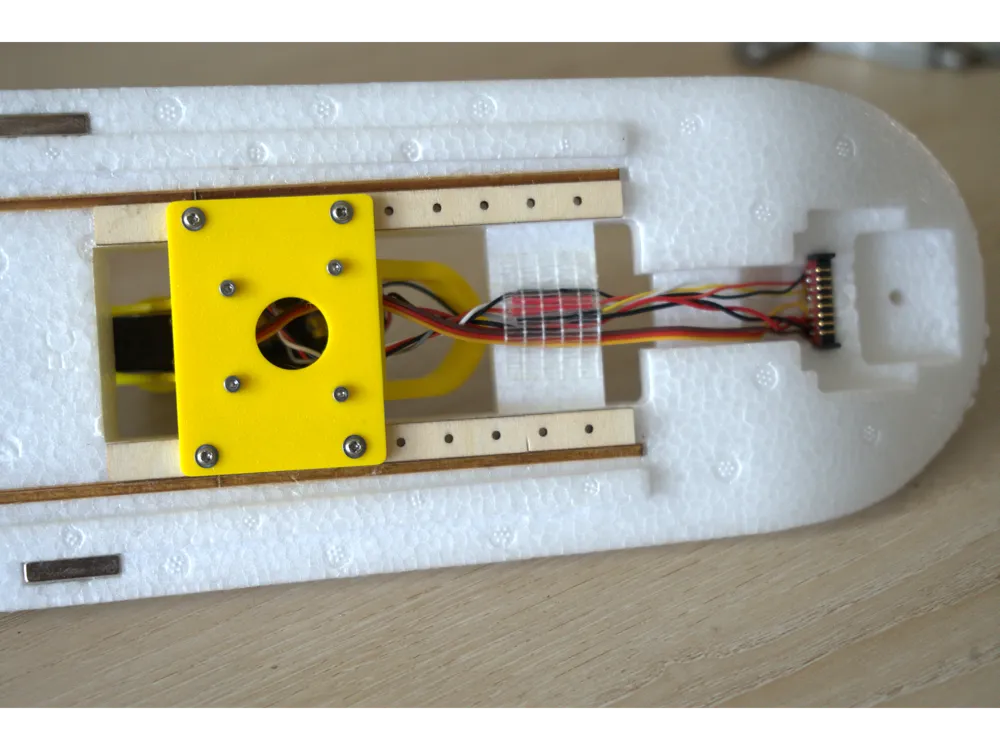

Four M2*8 self-tapping screws with washers are needed to attach the gimbal to the hatch.
