Description

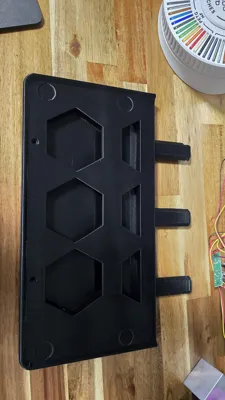

AMS HT Shelf Add-On for H2Dual AMS Riser

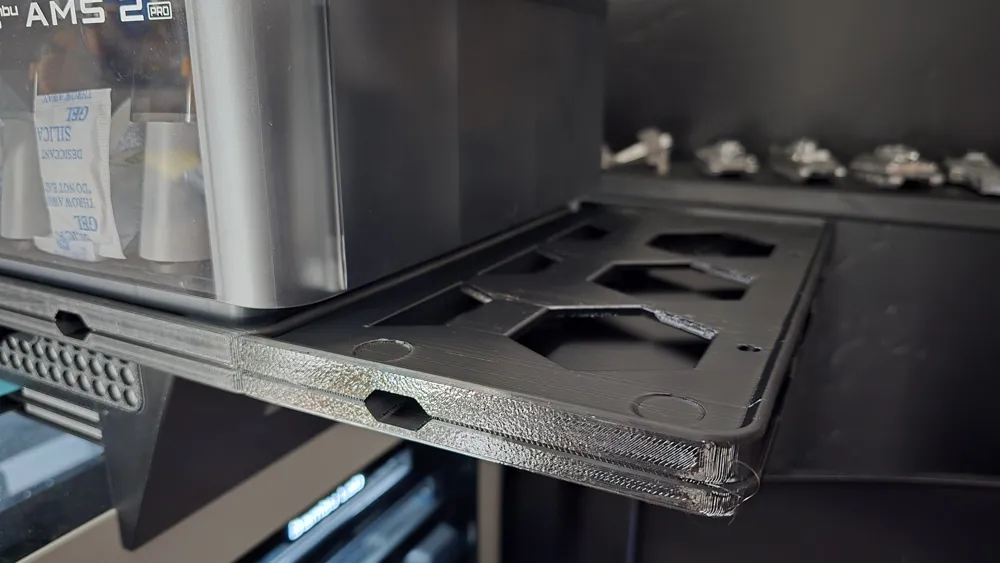

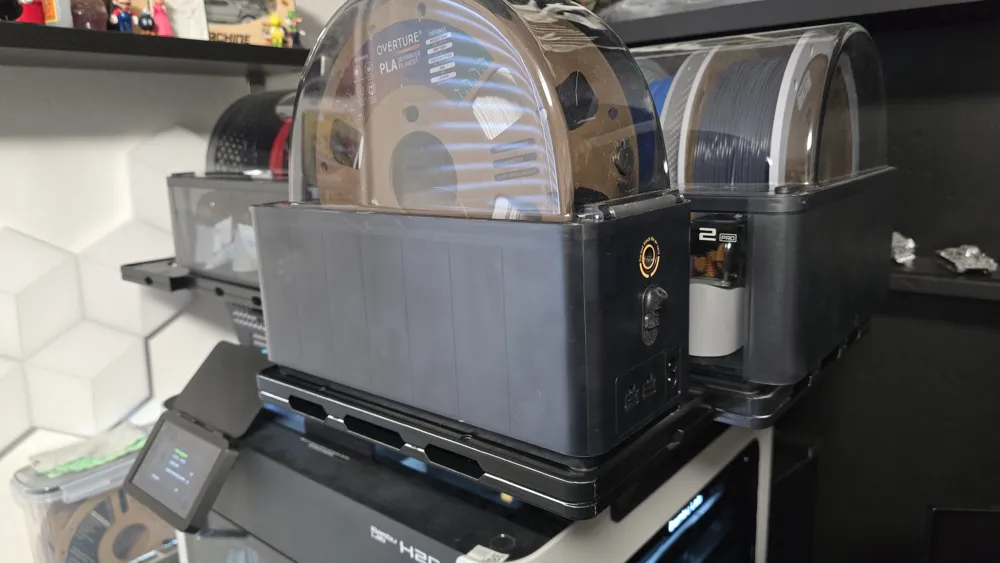

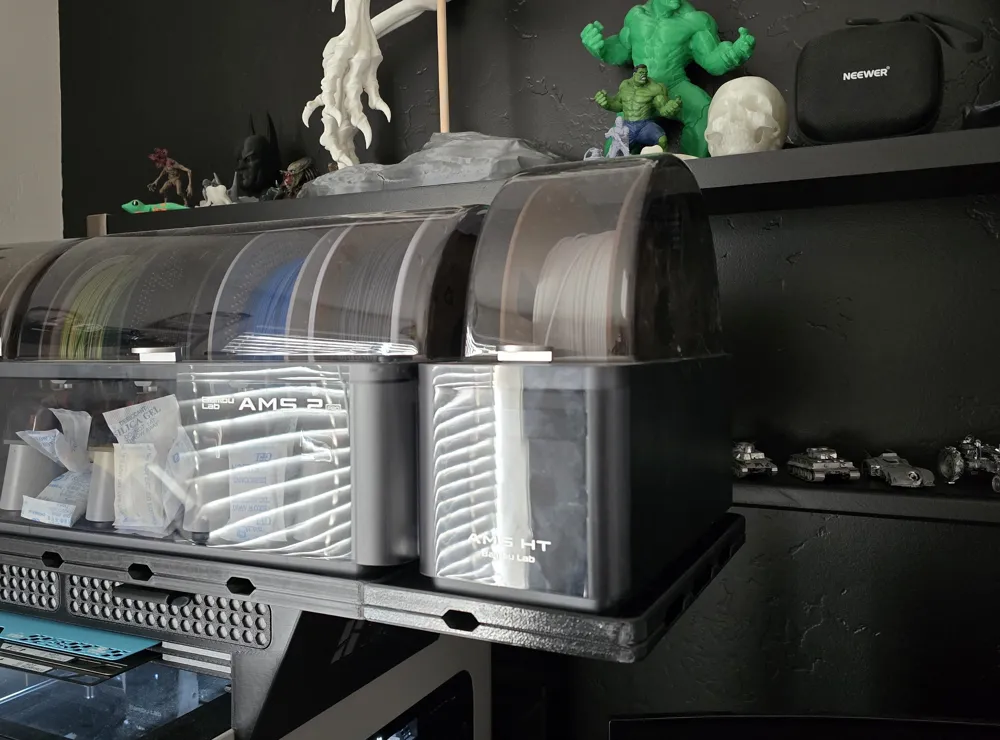

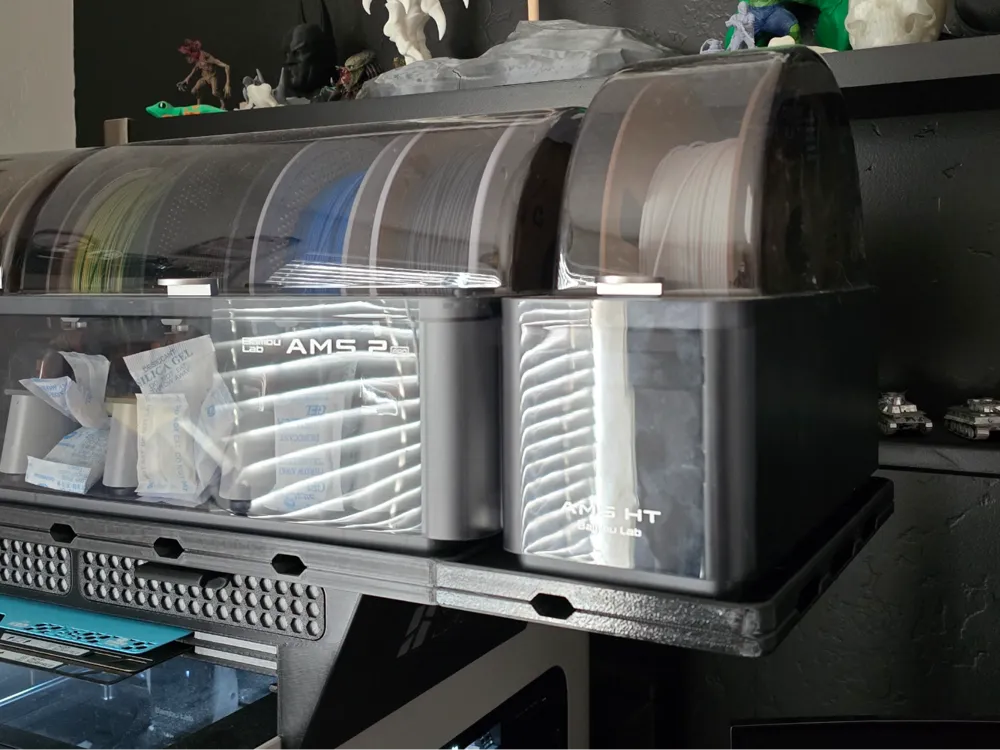

This shelf add-on allows the AMS HT to be mounted on the H2Dual AMS riser. It includes versions for the left, right, rear, or front positions. The rear shelf could also be used with a roller style feeder to feed TPU off of the back of the unit with the glass removed, directly to the nozzle.
This addon shelf is compatible with the following riser:
https://makerworld.com/en/models/1395451-h2s-h2d-dual-ams-2-pro-shelf-h2dual-ams#profileId-1446365
Print Settings:
- Orientation matters – Parts are pre-oriented correctly. Print them on their back edge so that layer lines run along the pegs, not across them.
- Supports needed – Supports are needed for the pegs. The model has been optimzed for use with tree supports.
- Parts Modifier - If you're not using the included print profile, I highly recommend adding a modifier to increase the infill through the base of the pegs where it joins the shelf body. This section experiences the most stress, and reinforcing it with 100% infill will greatly improve rigidity and strength.
Installation:
Secure shelves with a self-tapping screw inlcuded with the printer, a nail, or M3 screw to prevent the shelf from working itself loose.
- For the side shelves, use at least 1 of the holes already present on top of the H2Dual riser.
- For the rear shelf, there is a hole in one of the pegs, accessible after it's inserted.
