horse grazing muzzle - Free 3D Print Model

Search models, users, collections, and posts

catastrophic

Household>Pets

IP Report

Print Profile(3)

All

X1 Carbon

H2D

P1P

P1S

X1E

H2D Pro

H2S

P2S

H2C

X2D

A2L

0.24mm layer, 2 walls, 20% infill

Designer

8.7 h

1 plate

5.0(2)

more restrictive, 0.24mm layer, 2 walls, 10% infill

Designer

9.4 h

1 plate

0.24mm layer, 2 walls, 20% infill

Designer

8.8 h

1 plate

Open in Bambu Studio

Boost

Released

Description

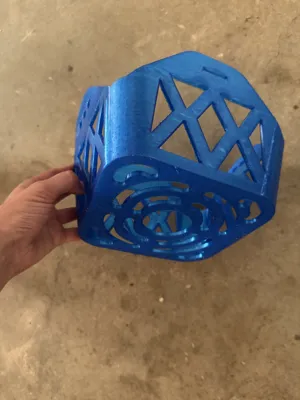

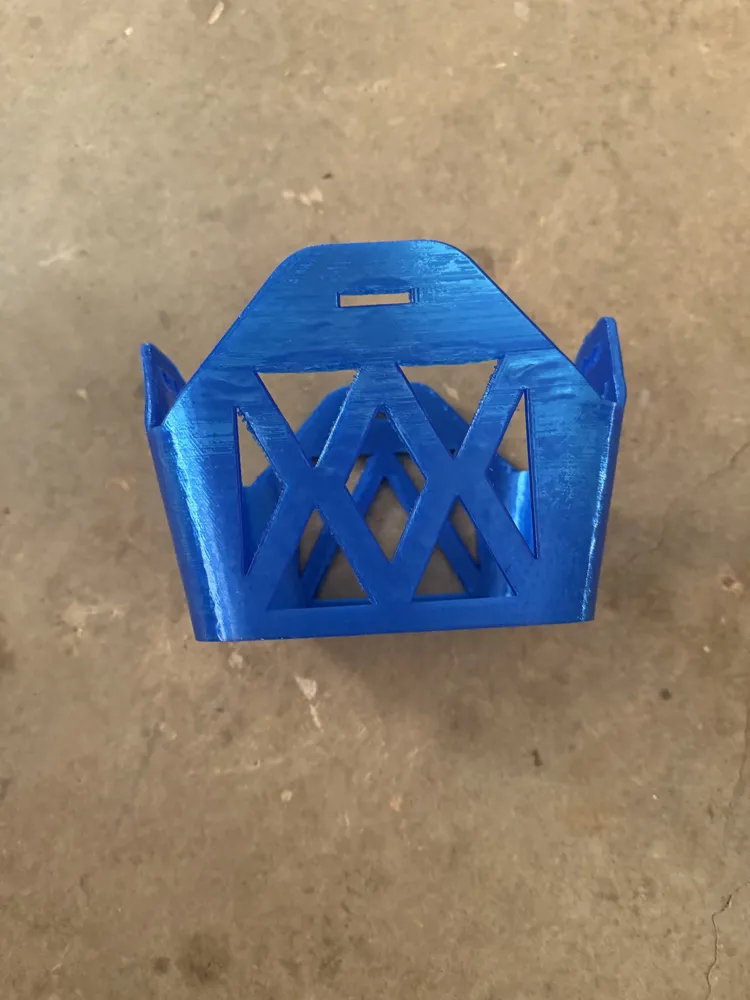

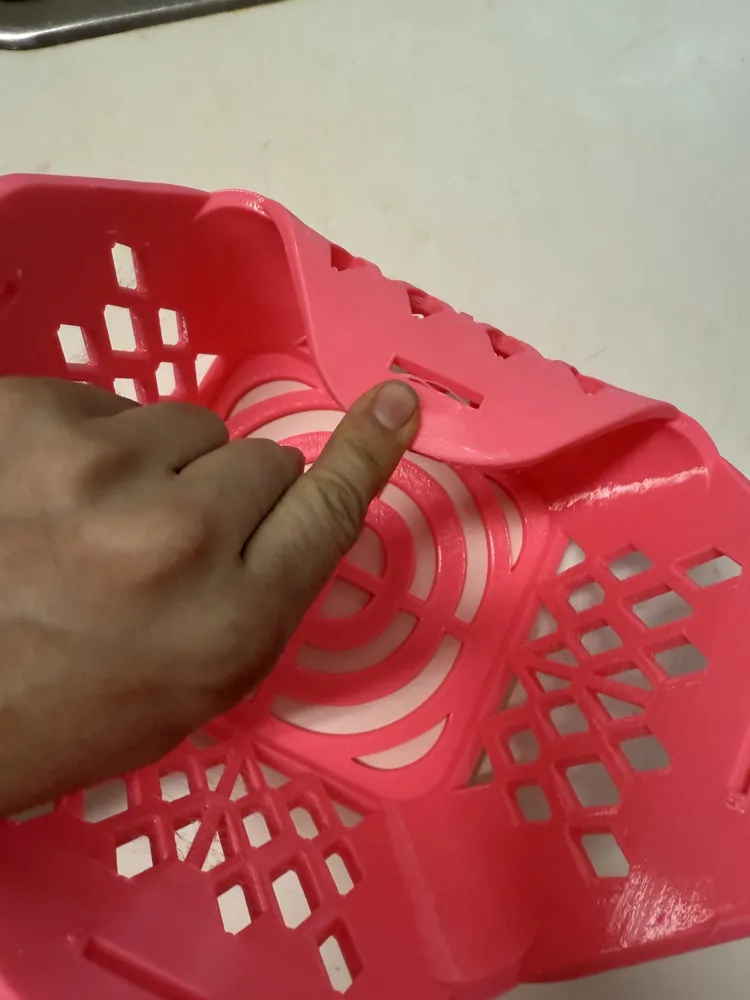

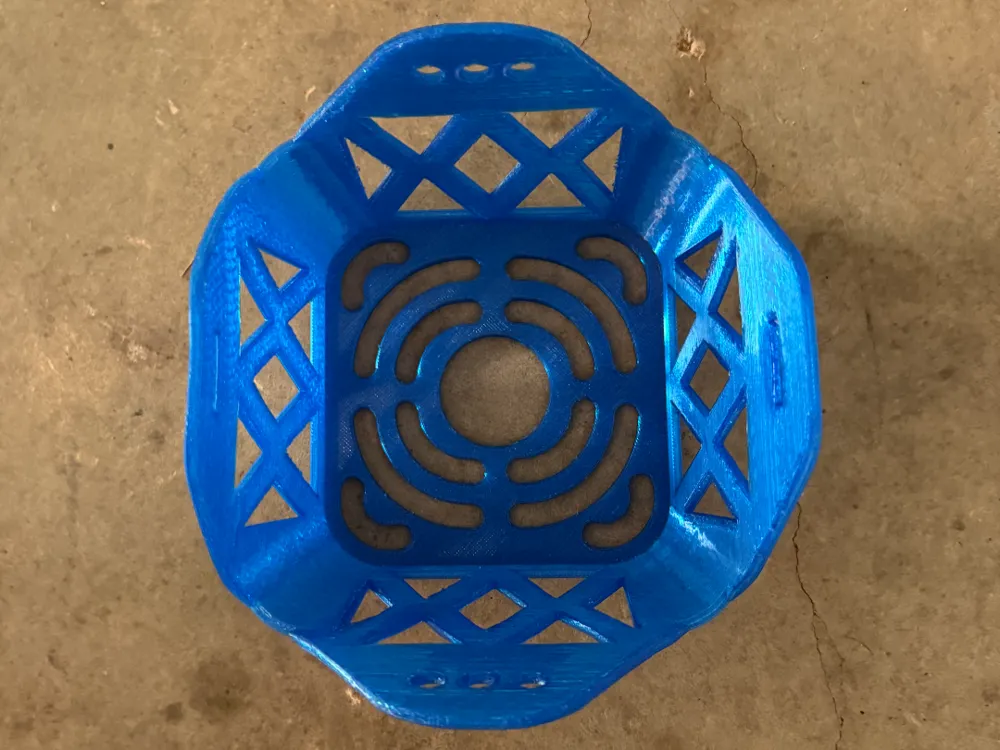

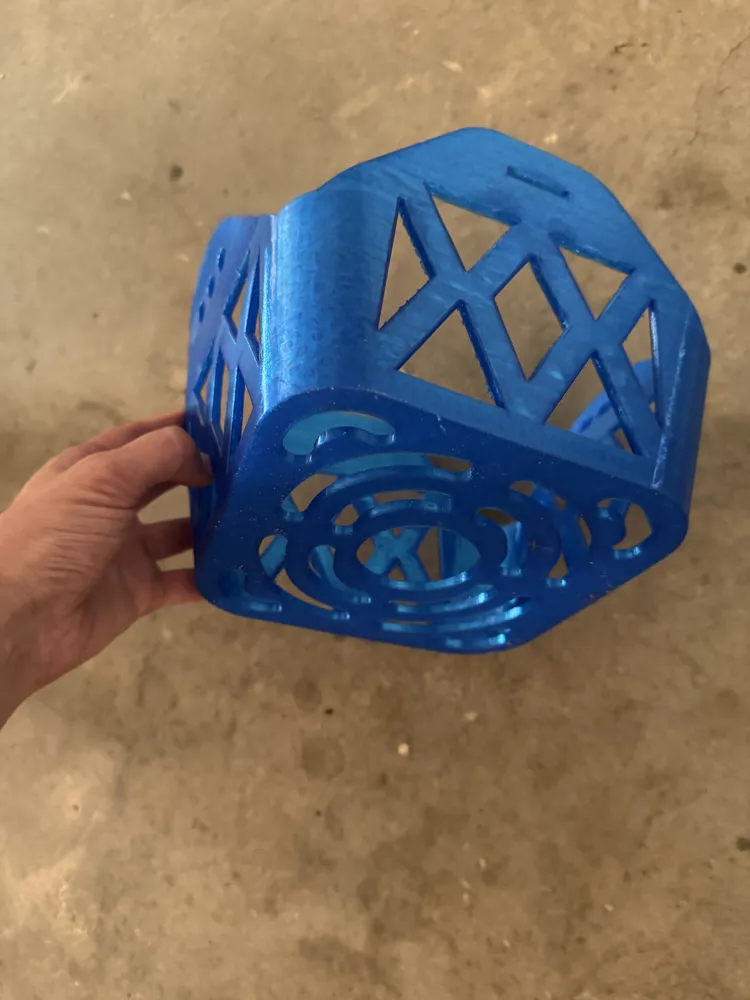

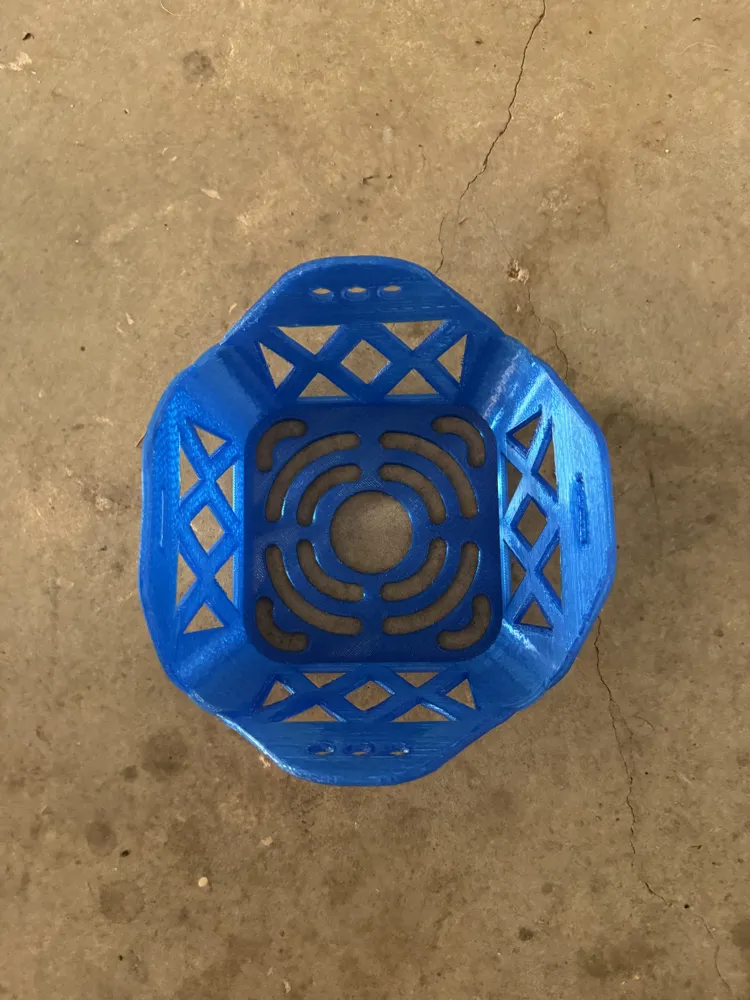

My horse lost his fancy grazing muzzle so I decided to design and print one that was similar. Printed in TPU 95A.

I'm cheap so my infill is low, but would probably be better at higher infill. Edited to add: more walls does increase the strength better w/w than more infill.

I do not use supports or a brim and it prints fine. Attaches to a breakaway halter using straps and zip ties.

PRINT AND USE AT YOUR OWN RISK

if your horse plays rough, it may not last long! Check your print nozzle temp is high enough to get good layer adhesion.

Comment & Rating (17)

@andrewsilk

Boosted

My sister wants me to print something like this for her pony, do you have any idea what percent size to scale it down to for a pony? I'm guessing maybe 75%

The designer has replied

@user_1797158635

Get a circumference measurement of her pony's nose and I can help you scale it appropriately. Or, scale it down and only print the first 1/8th (can use PLA) to have her check the fit.

@andrewsilk

Boosted

My sister finally got back to me, she said the circumference of her pony's nose / mouth is 16 inches. Would you mind scaling it it down.

@andrewsilk

Boosted

Replying to @user_1797158635 :

sorry for the huge long delay.. my sister said the circumference is 16 inches. if you can send me a file that would work with that, I would be greatly appreciated.

@user_441515013

Is there any way I could fit this on an A1 mini

The designer has replied

@user_1797158635

you could scale it down to bed size then stretch it with a heat gun. Or, if you are comfortable heat welding, I can upload a multiplate version of whichever version you are interested in and you can weld it together.

@user_441515013

I don't have the software needed for shrink it and I also don't have heat gun or any welding materials is there a way I could print it in two parts and make it so that they snap together?

@user_1797158635

Replying to @user_441515013 :

I wouldnt trust a TPU snap fit to stay together on a horse. Maybe with some glue, but that could cause sharp, rigid edges depending on the glue used. Either way, itd have to be split into 4 pieces across 2 plates to fit onto a mini.

@user_2947931022

Help I am unable to download this file do have any suggestions

The designer has replied

@user_1797158635

what happens when you try to download it? Does an error message appear?

@andrewsilk

Boosted

I'm also wondering how yours is holding up and if you would change anything. You had mentioned possibly increasing the fill to make it more sturdy, but I think that adding an extra layer or two would make it more sturdy if need be, not the fill percentage. now that you've used it for two weeks or so, what changes would you make?

The designer has replied

@user_1797158635

Yes, adding more walls/perimeters is a better way to improve strength than infill percent. Try 4 walls. You can also use a modifier in BambuStudio to increase the strength of the base/grazing face of the muzzle while keeping the rest light.
