Mechanical Structure 13-Elliptical Gear
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 15% infill
Designer
54 min
1 plate
Open in Bambu Studio
Boost
7
22
3
0
34
11
Released
Description
Content has been automatically translated.
Learning Mechanical Structures from Scratch
13. Elliptical Gear
The second non-circular gear, the elliptical gear is mainly used in flow meters.

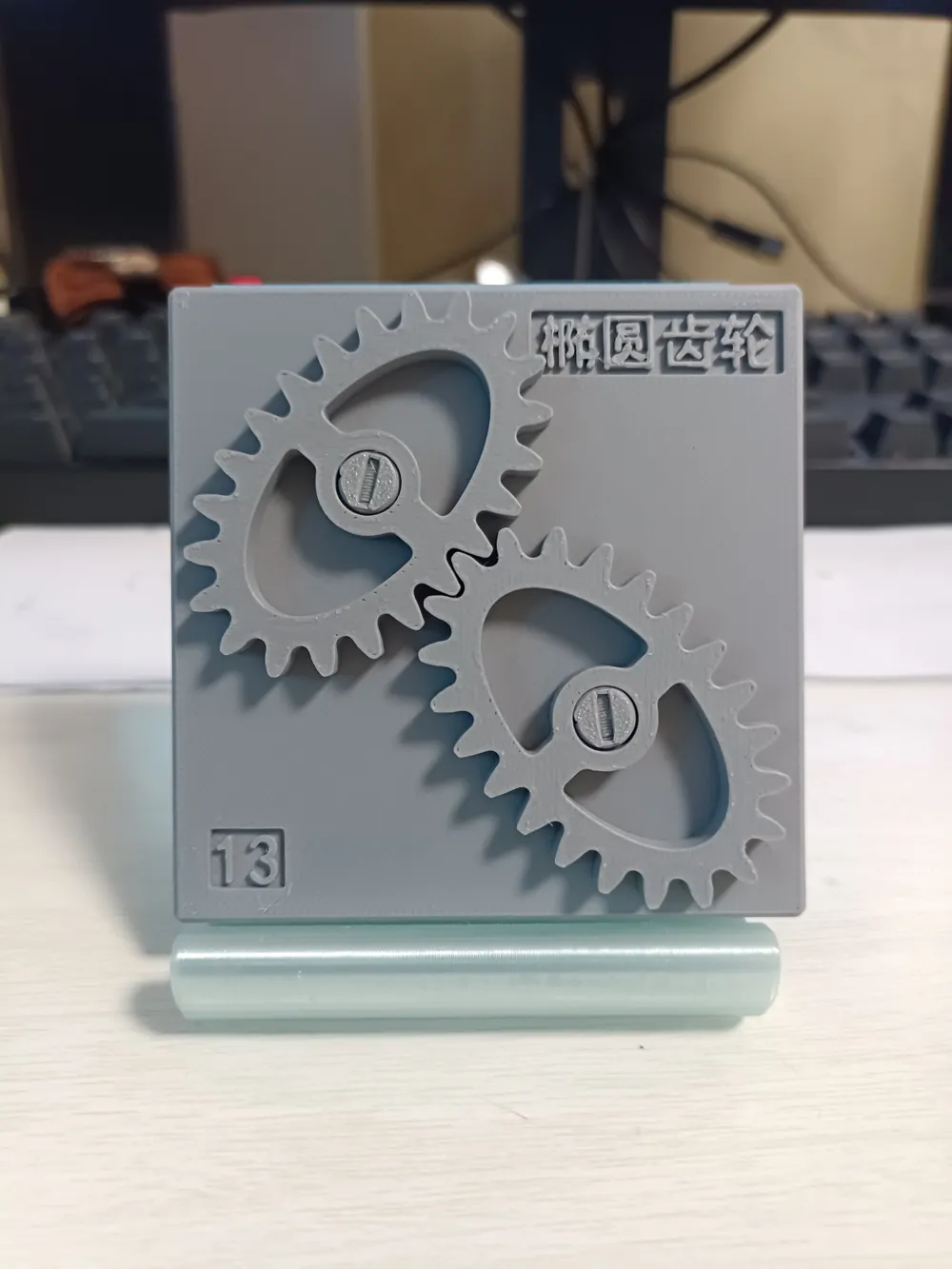

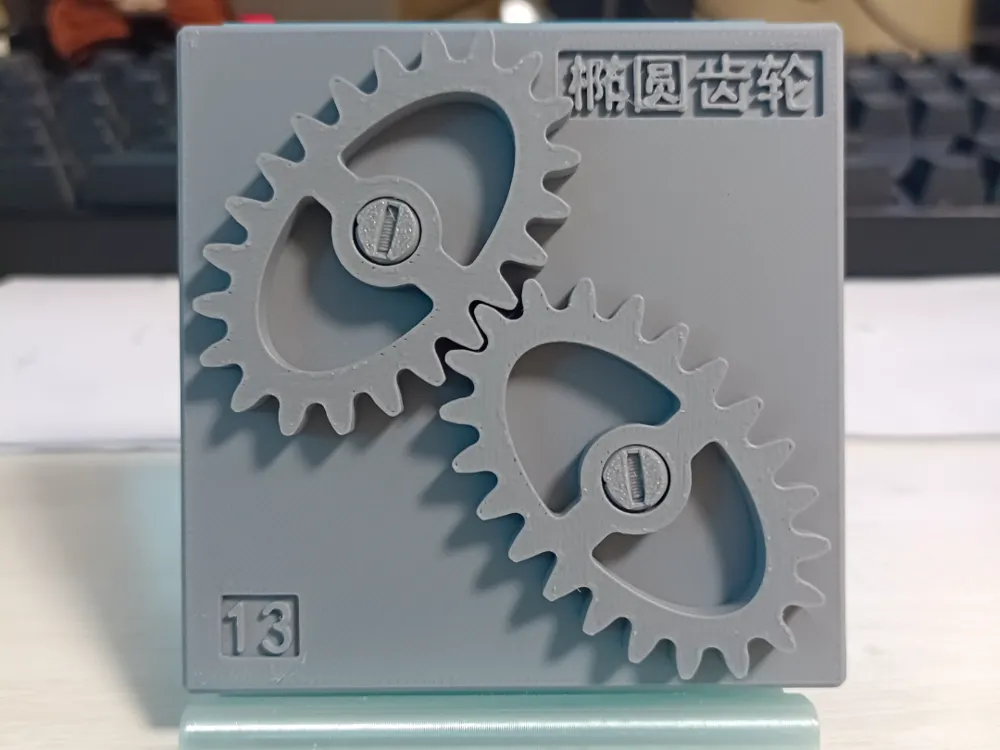

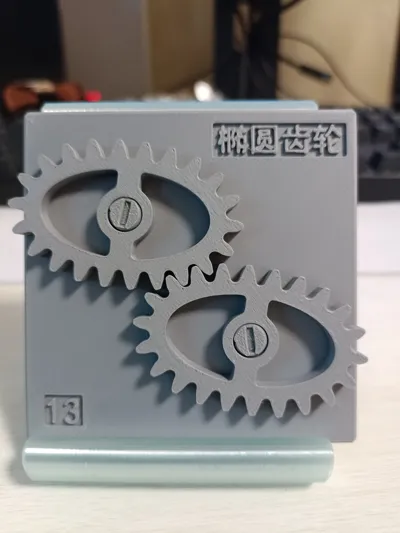

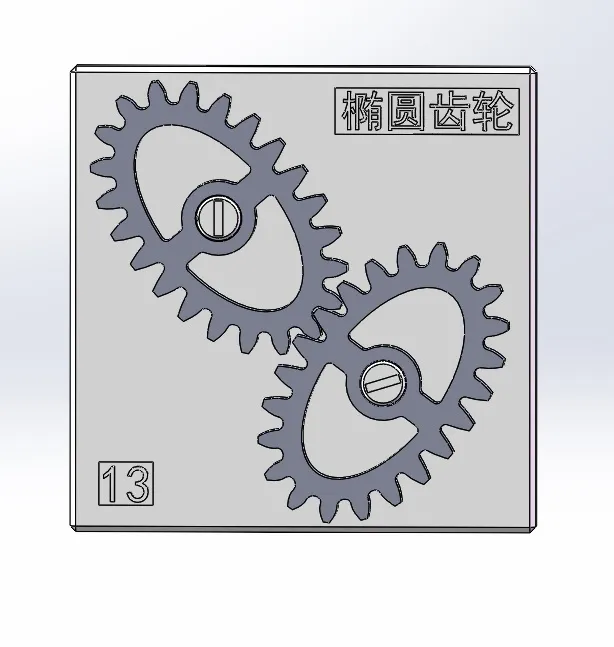

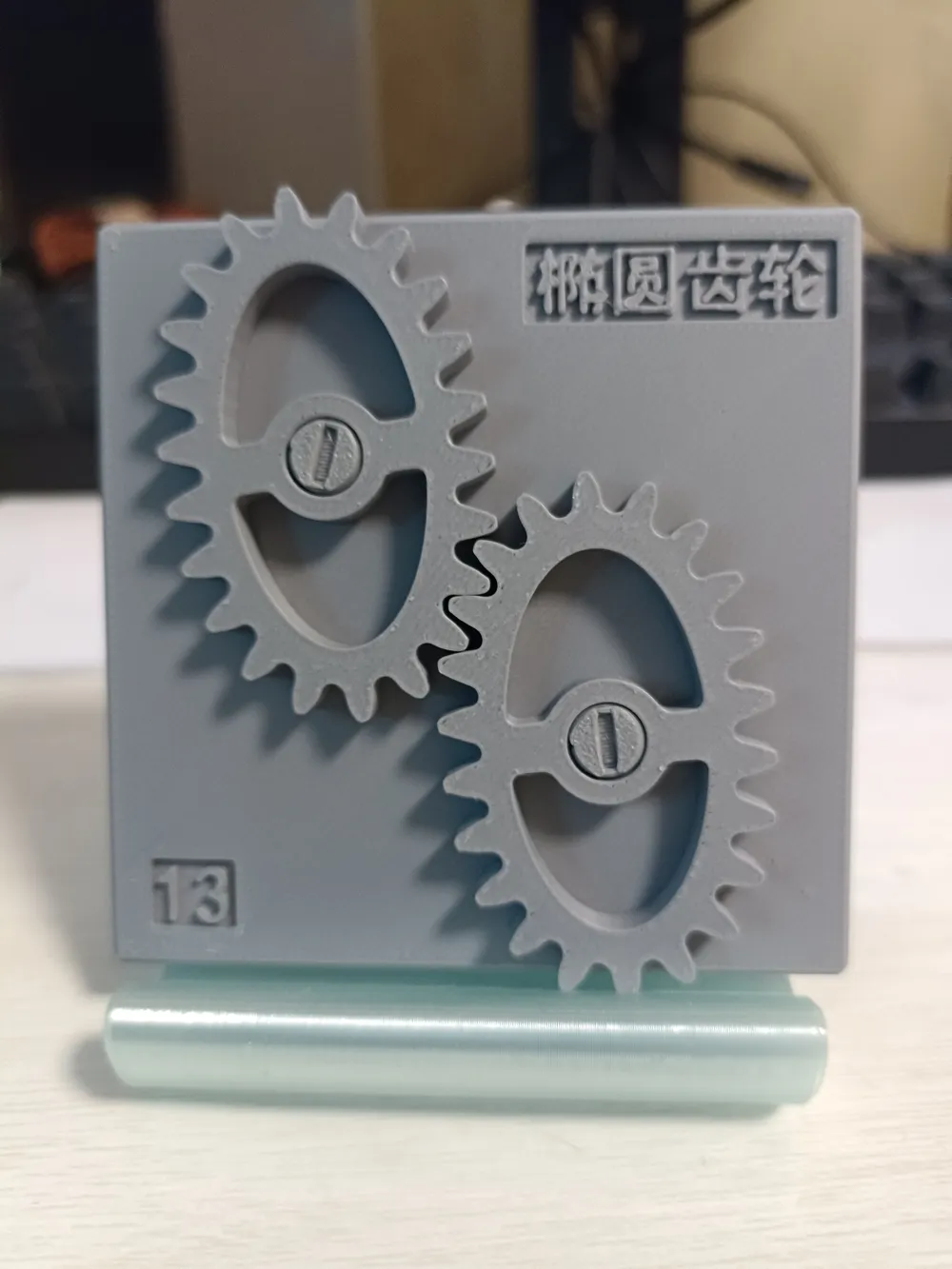

This is an elliptical gear with a module of 2, a major semi-axis of 25, and a minor semi-axis of 15.
