Multifunctional 3D-Printed Soldering Station Organizer

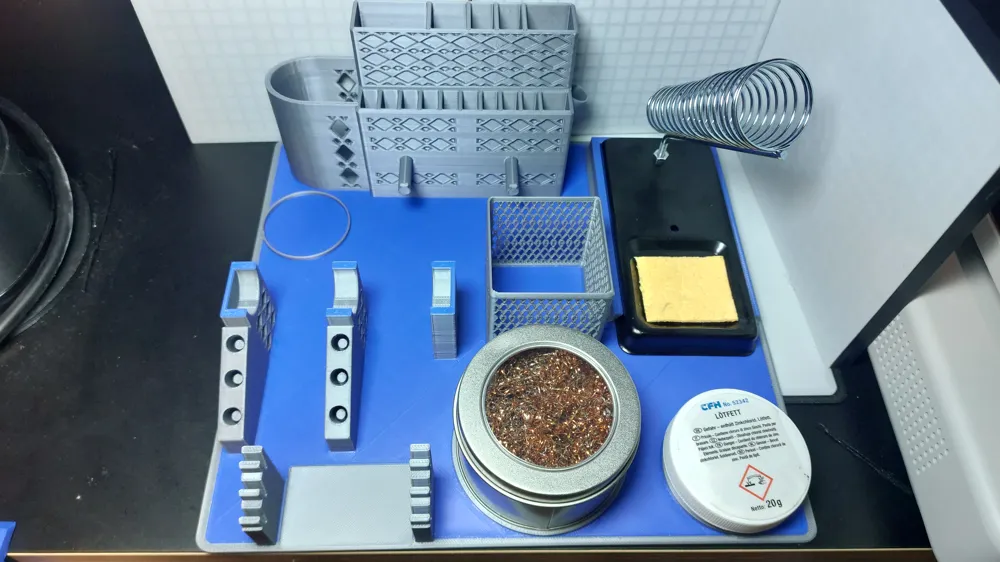

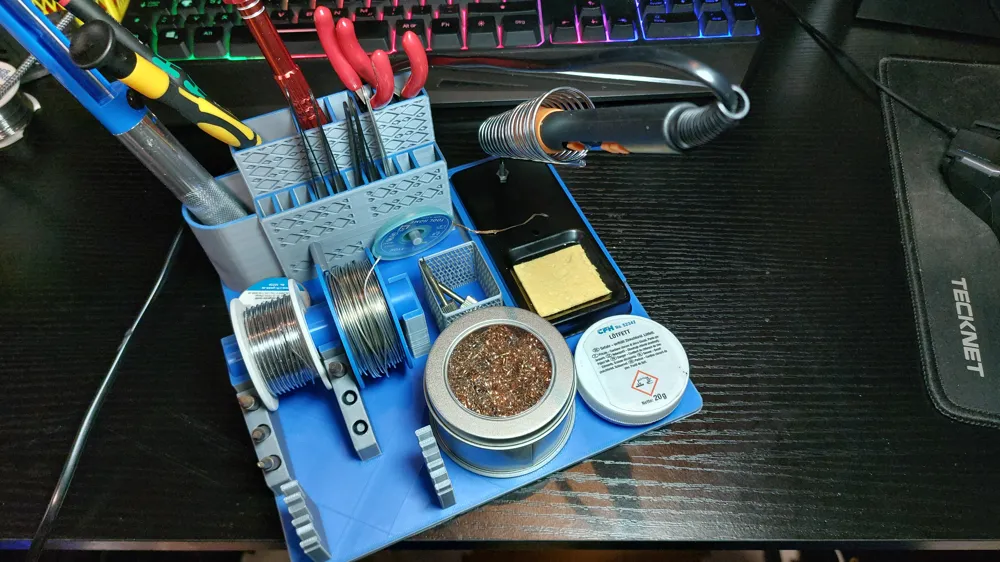

🔧 Multifunctional 3D-Printed Soldering Station & Organizer (with Magnet Insert)

🧰 Description:
This manually usable, 3D-printed soldering station is ideal for hobby and professional work. It is made of PLA or PETG and combines order, functionality, and stylish design. No electronic parts – purely mechanical!

🛠️ Functions & Highlights:

• ✅ Two large compartments for soldering oil, flux, sponges, or cleaning cables
• ✅ Six slots for soldering iron tips
• ✅ Large cleaning area for copper cleaning cables (with space for rolls)
• ✅ Two holders for used PCBs with copper roll (soldering tip cleaning)
• ✅ Cable channel for clamping solder wire – for hands-free work
• ✅ Side slot for standard soldering iron holder (round, black, metal)
• ✅ Organizer zones for screws, knobs, cables, and small parts
• ✅ Modern two-tone design (e.g., black/red or gray/blue)

🧲 Magnet function with print pause:
During printing, a pause is automatically inserted for magnets (2.5 × 5 mm):

• 1x under the soldering oil compartment
• 1x under the soldering tip cleaning compartment
  → The magnets hold metal parts, cleaning containers, or sponges securely in place.
  👉 If you do not want magnets, simply continue printing – the recesses do not interfere.

🌲 Supports:
Only two small tree supports required – for the PCB holders in the copper roll area. All other areas are support-free!

🖨️ Print profile:

• Material: PLA or PETG
• Nozzle: 0.4 mm
• Layer height: 0.2 mm
• Infill: 20–30 %
• Perimeter: 3 walls
• Supports: Only 2 small trees (copper roll holder)
• Magnet pause at approx. 5–8 mm height
• Print time: 10–18 hours (depending on the printer)

🎨 Tip: Two-color printing looks particularly elegant!
