Holder for micro servo SG90

Introduction

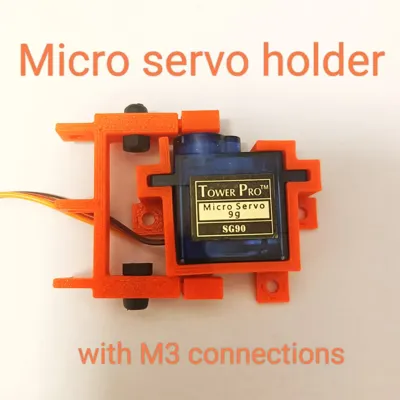

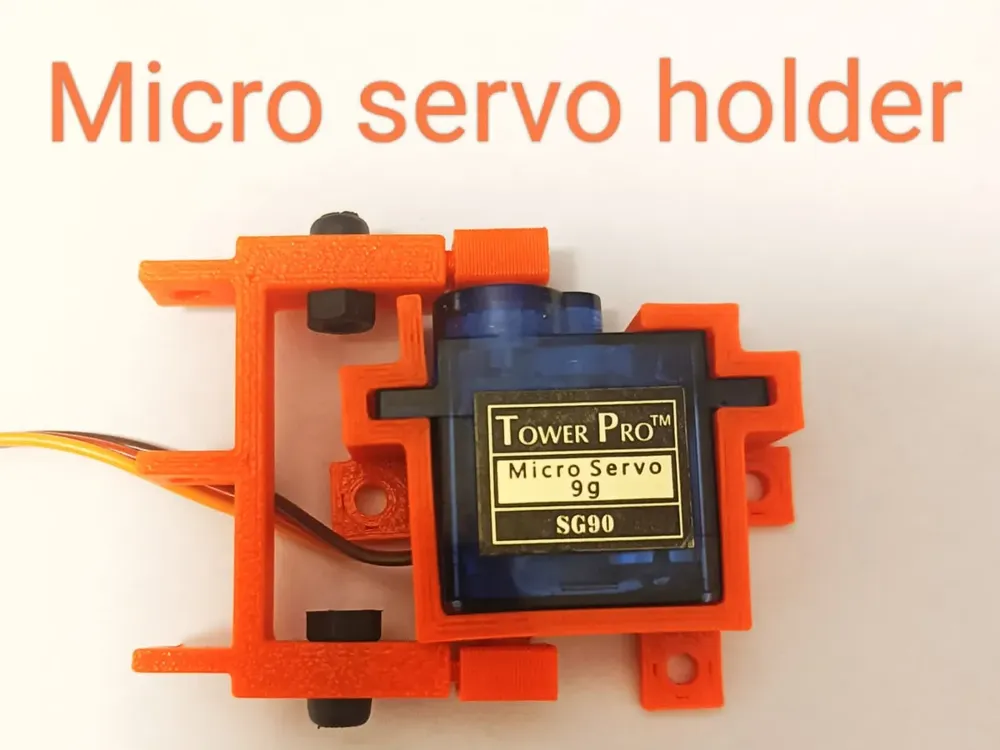

This is a good mechanical mount for the SG90 180 degree plastic micro servo. It is simple to assemble and print!! It can be useful for building your own robot or for some Arduino project!! I offer two model variants, one with screw holes and one without screw holes which you can customize as you like! The total print will take a few minutes and you have to divide it into parts. You cannot print everything at once.

When it all started

A few years ago I bought a printer to print some mechanical parts, later I discovered Arduino and learned with it. And suddenly I had the idea to combine the two and create my own robot. I searched the internet for models to connect servo motors to make my job easier but I couldn't find anything so I made my own and now I've uploaded them here for other users.

Print setings

You need to print multiple times. Cannot print at once. 15% fill for everything.

For one setup you need:
1x Main shoulder - 0.3mm
1x Main holder - 0.2mm, supports
2x Shoulder - 0.1mm
2x M3x6 screw - 0.05mm (I used purchased)
2x M3 nut - 0.05mm (I used purchased)

Thank you for using
