Window Handle Inset

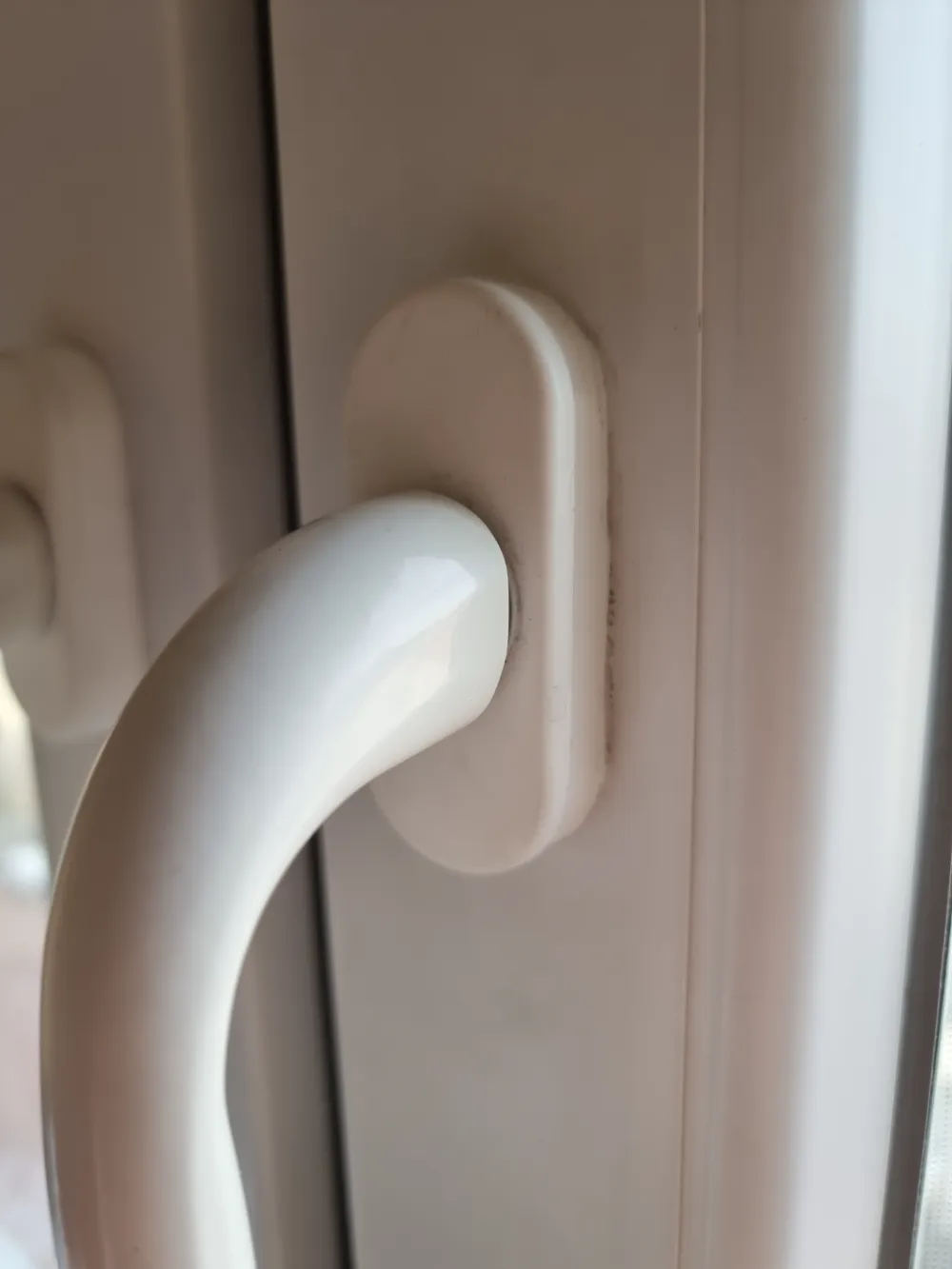

A simple inset for window handles, which can be found in most modern windows, that has a tilting mechanism.

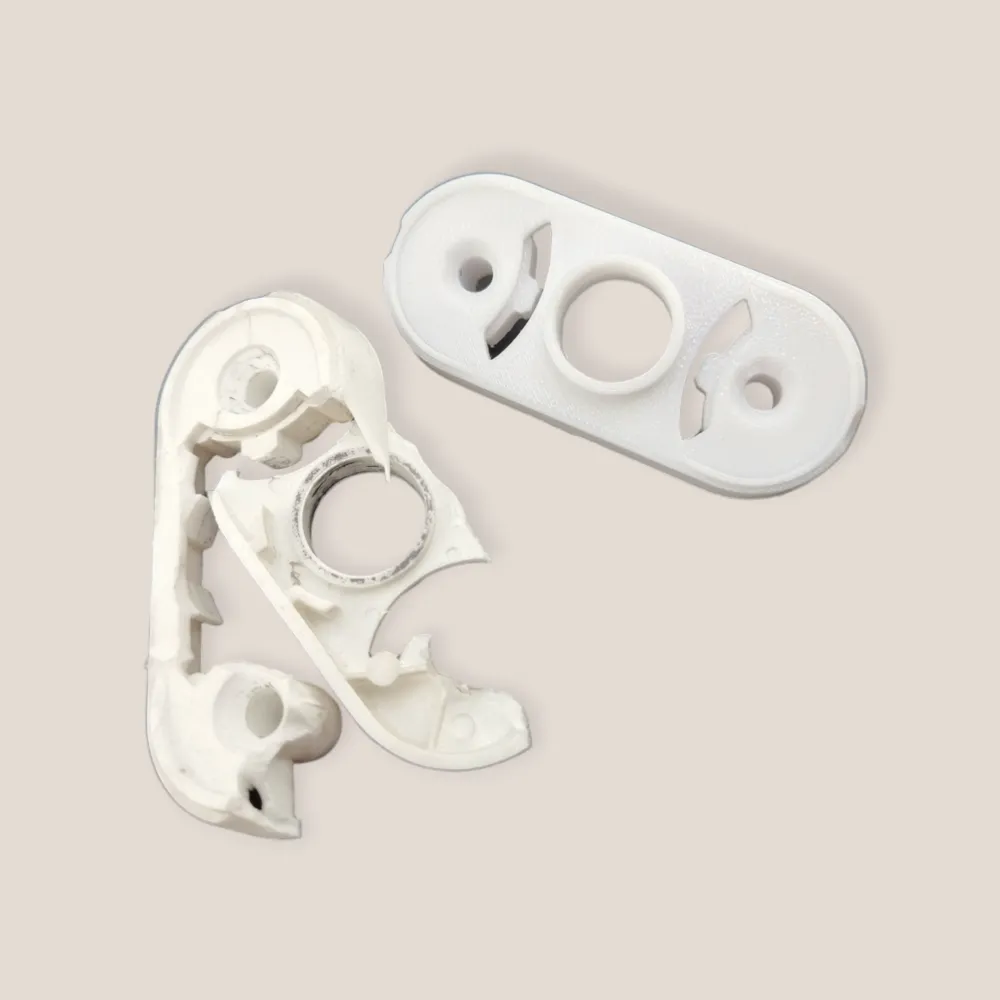

The original breaks quite easily, and if you can salvage the metal parts, it's a nice and easy way to fix a broken handle.
Changes to the original:

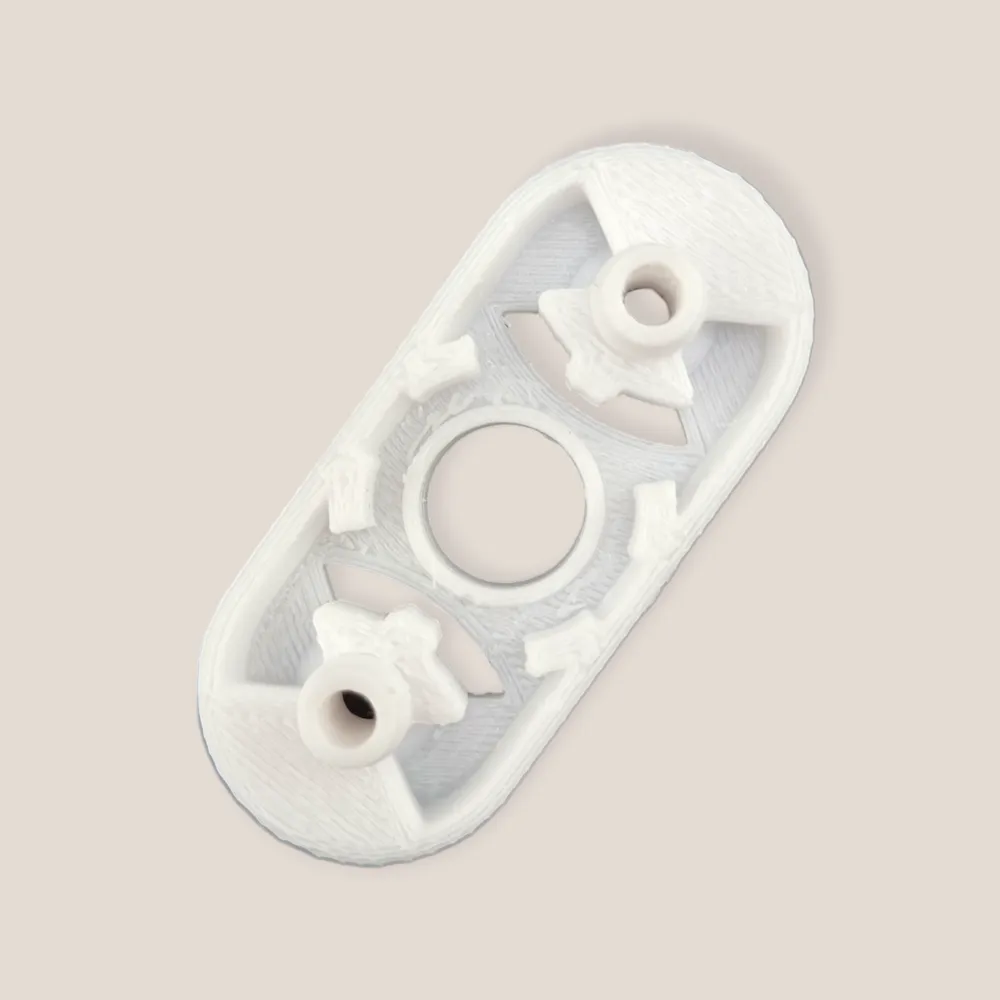

- Thicker walls

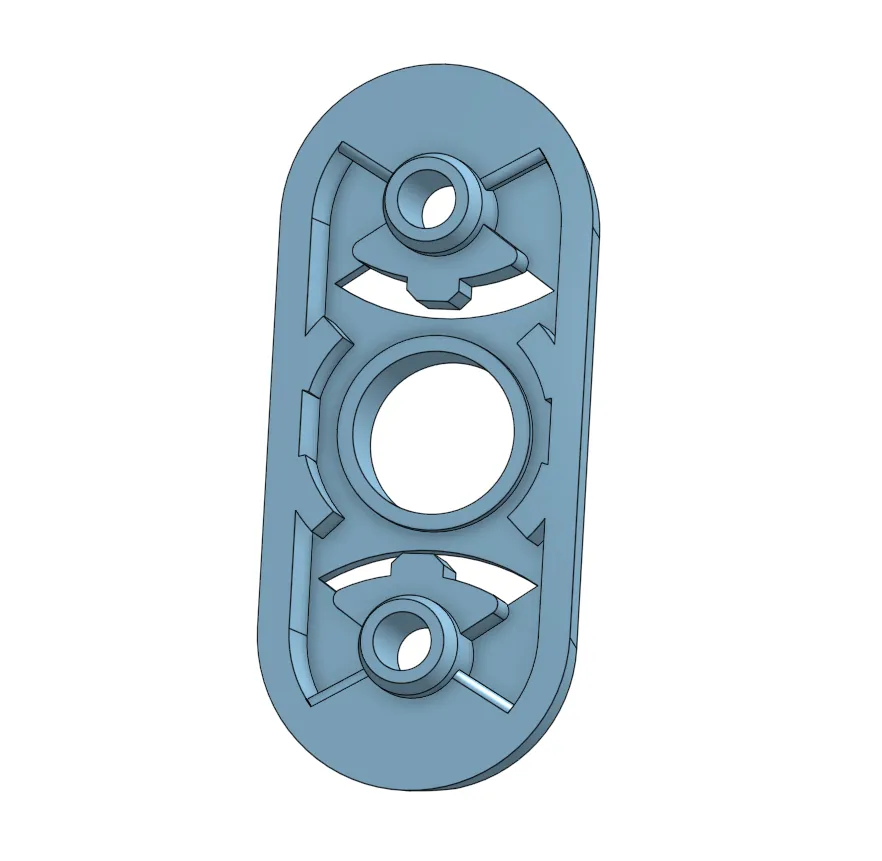

- More supports for the screw holes
Parameters:

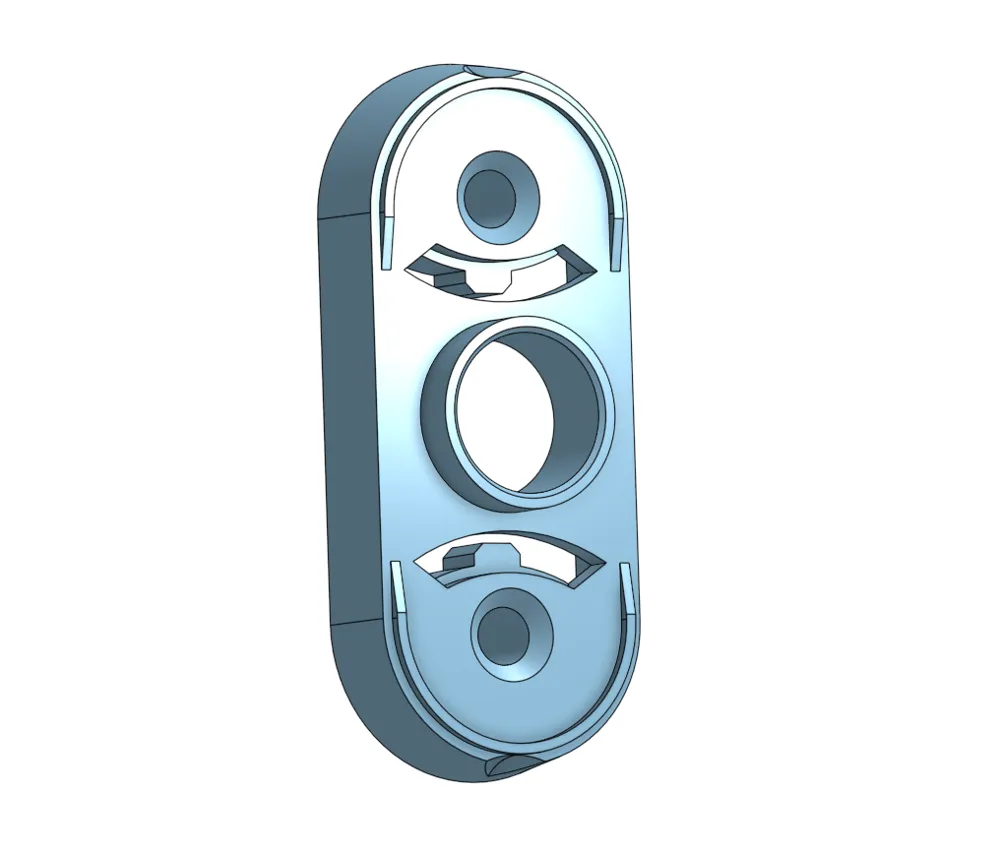

- Dimensions: 30mm x 69mm x 19.25mm
- Screw hole diameter: 5.5mm
- Handle hole diameter: 15.5mm
Printed one in ASA and one in PETG, not much of a difference in terms of ruggedness, as I recommend printing it in 100% infill.
