cover








右后侧挂全封闭蛋池


右后侧挂右开窗蛋池

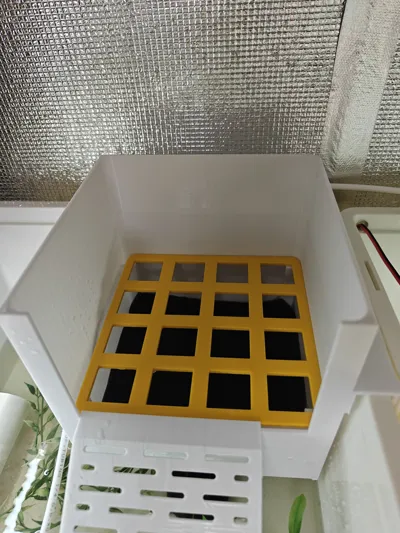

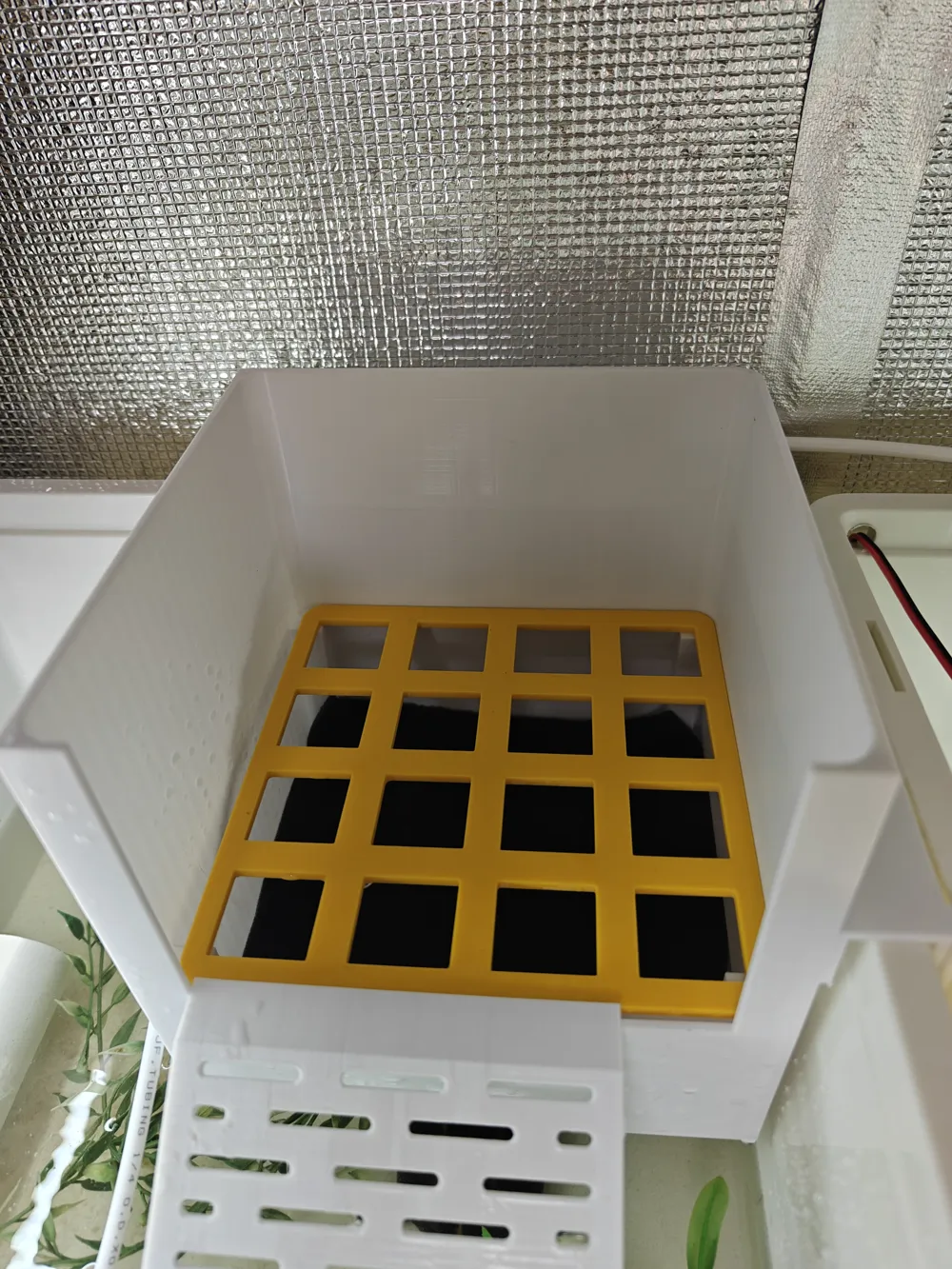

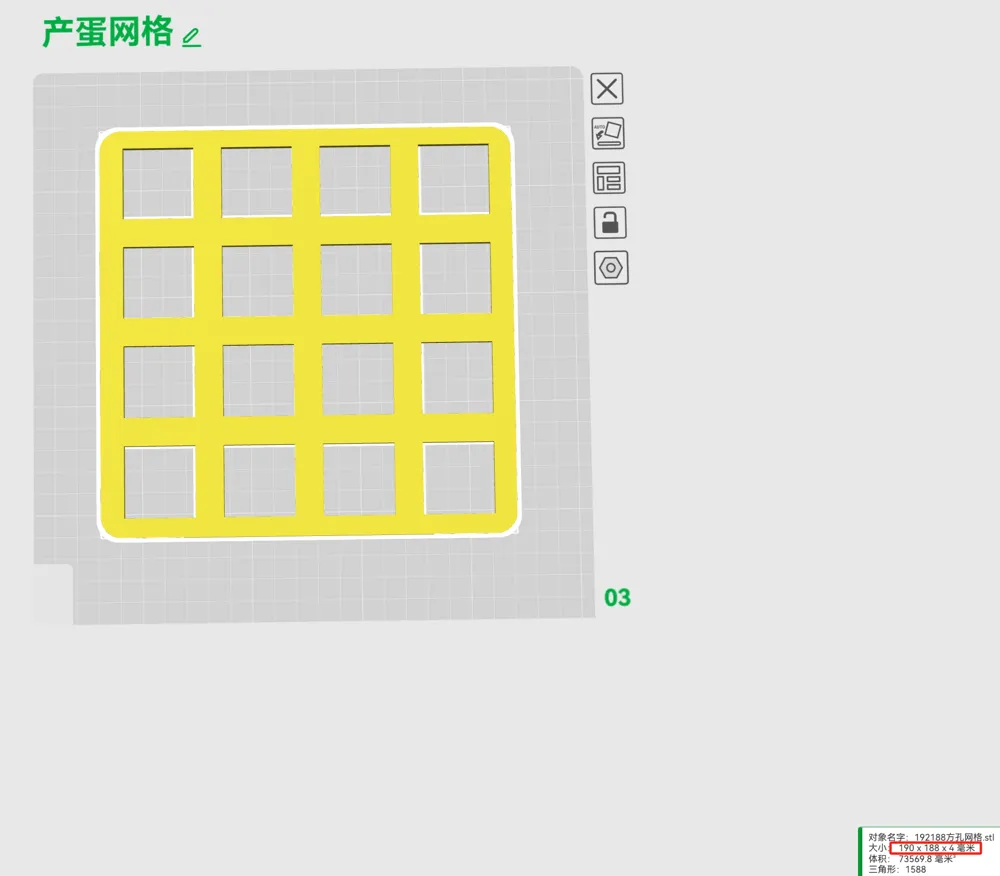

产蛋网格

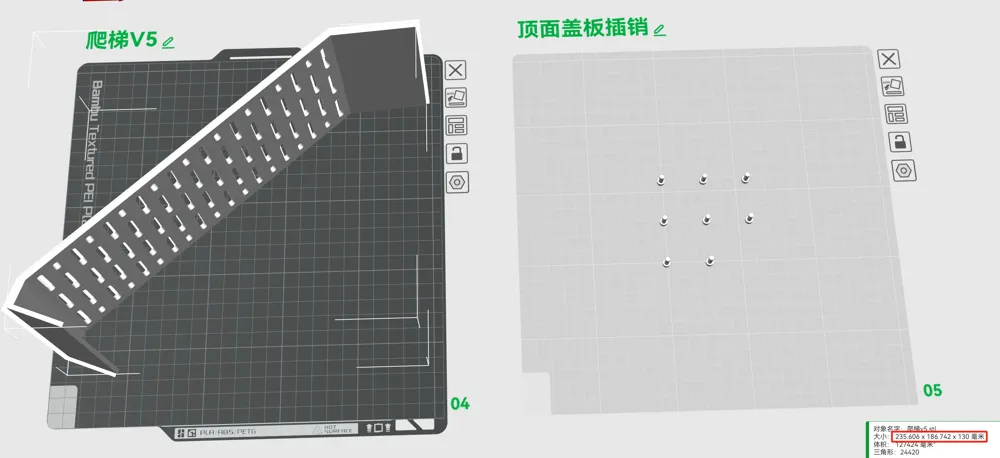

爬梯V5


顶面盖板插销

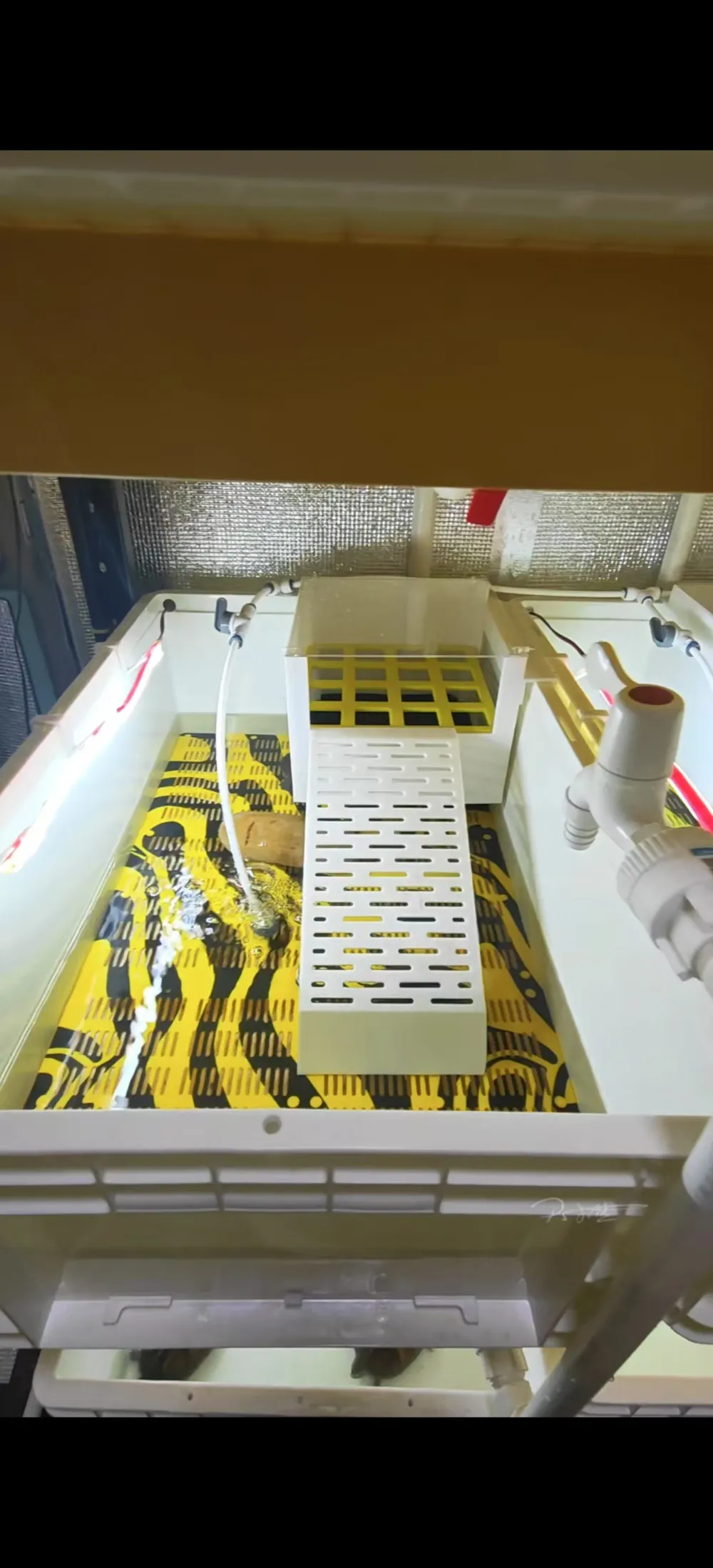

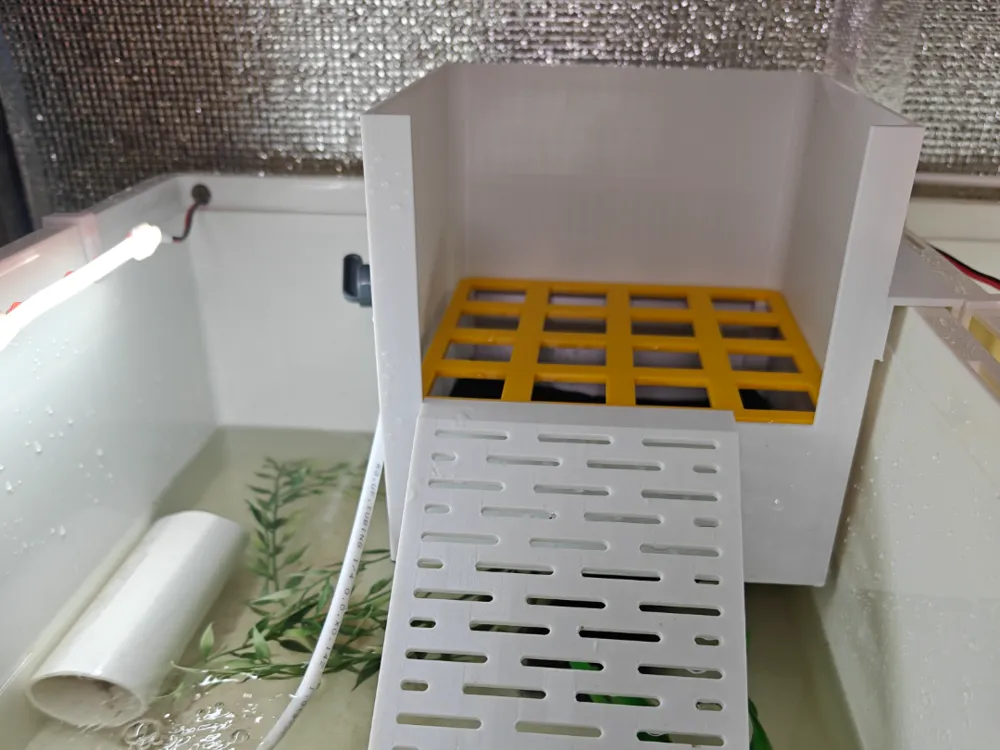

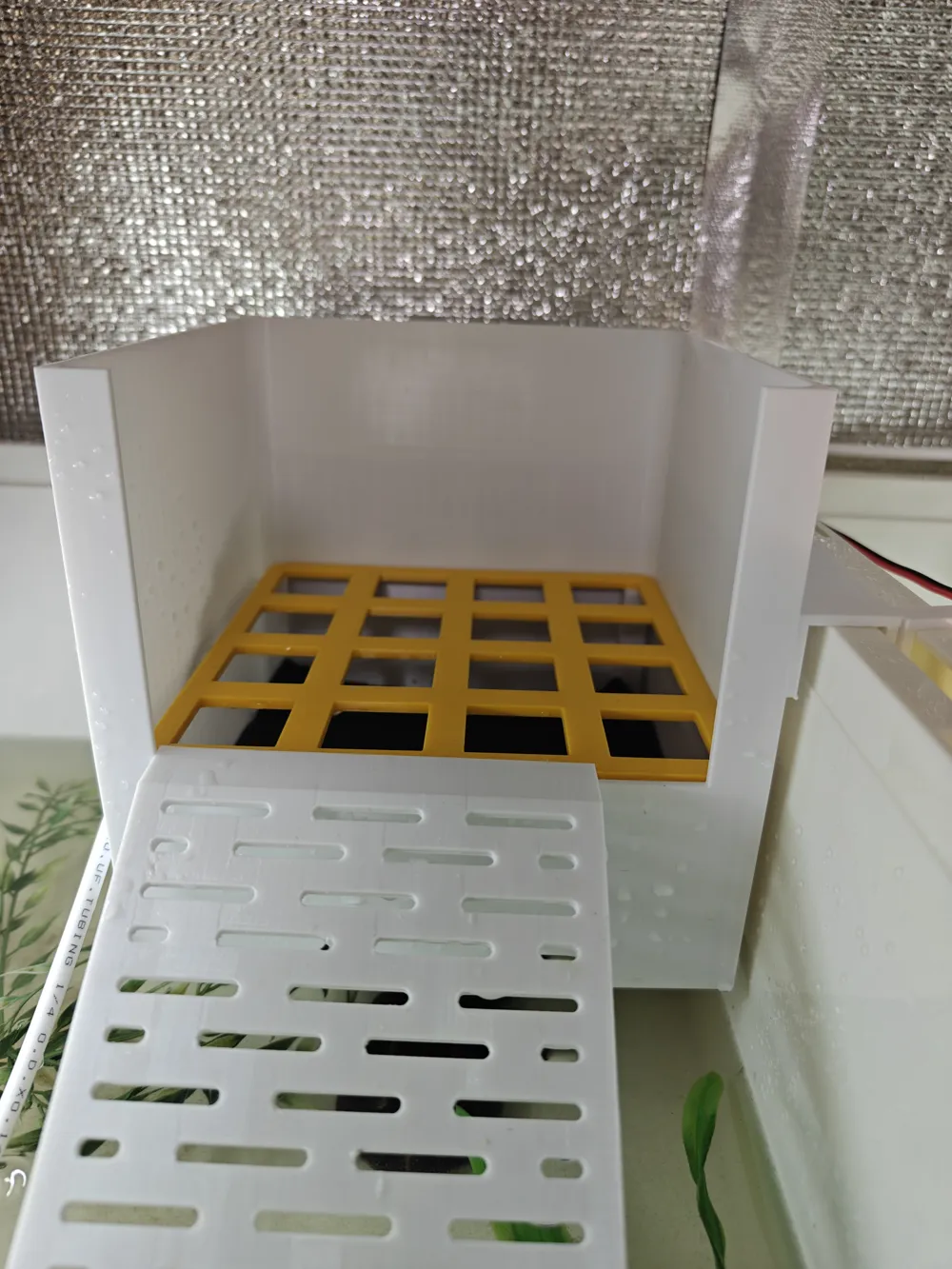

产蛋池有两种：全封闭产蛋池和右后侧挂蛋池（为亚克力改玻璃的龟友设计），15%填充，顶部预留了孔，防止龟龟越狱，可以加个200*200*2mm亚克力板作为盖子，用插销固定，但目前使用未发现有越狱的龟龟；需要用沙子产蛋的可自行增加填充密度。爬梯建议用低温冷打板打印。

There are two types of egg-laying boxes: fully enclosed egg-laying box and right rear-mounted egg-laying box (designed for turtle owners who replaced acrylic with glass), 15% infill, holes are reserved at the top to prevent turtles from escaping, a 200*200*2mm acrylic plate can be added as a lid and secured with pins, however, no escaped turtles have been found in current use; those who need sand for egg-laying can increase the infill density themselves.The ramp is recommended to be printed with a low-temperature cool plate.

Fully enclosed and right rear-mounted egg-laying box, 0.2mm layer, 2 walls, 15% infill, the ramp is recommended to be printed with a low-temperature cool plate.



更新防拉丝打印配置，减少拉丝的情况，爬梯宽度加宽到138mm，建议喷胶打印，或者低温冷打板，防止翘边！

Updated the print profile to mitigate stringing, increased the stair width to 138mm. Adhesive application or a low-temperature build plate is recommended to prevent warping!

Ladder width increased to 138mm, 0.2mm layer height, 2 walls, 100% infill

24.5cm

32.9cm



产蛋池爬坡卡位器，解决爬坡太靠近箱子造成龟龟容易越狱的问题。有两个尺寸，可根据自己打印的爬坡宽度自行选择，或者自己缩放调整。

Egg-laying pool ramp positioner, to prevent turtles from easily escaping due to the ramp being too close to the enclosure. It is available in two sizes; you can select based on the width of your printed ramp or scale it yourself

Egg-laying pond ramp stopper (prevents turtles from escaping), 0.2mm layer, 2 walls, 15% infill

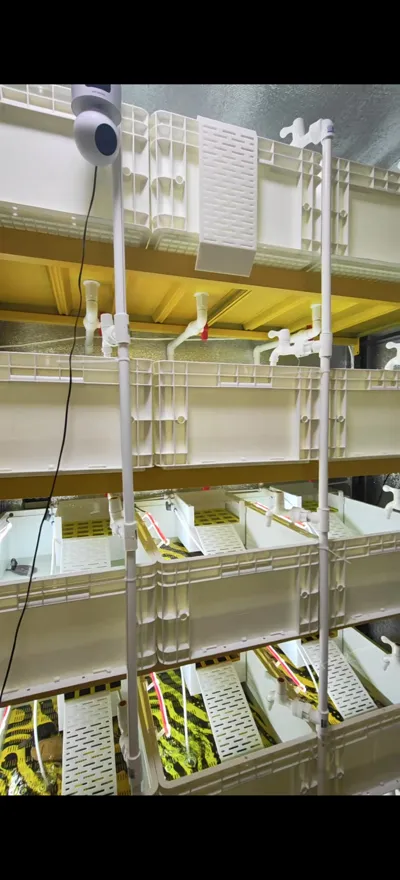

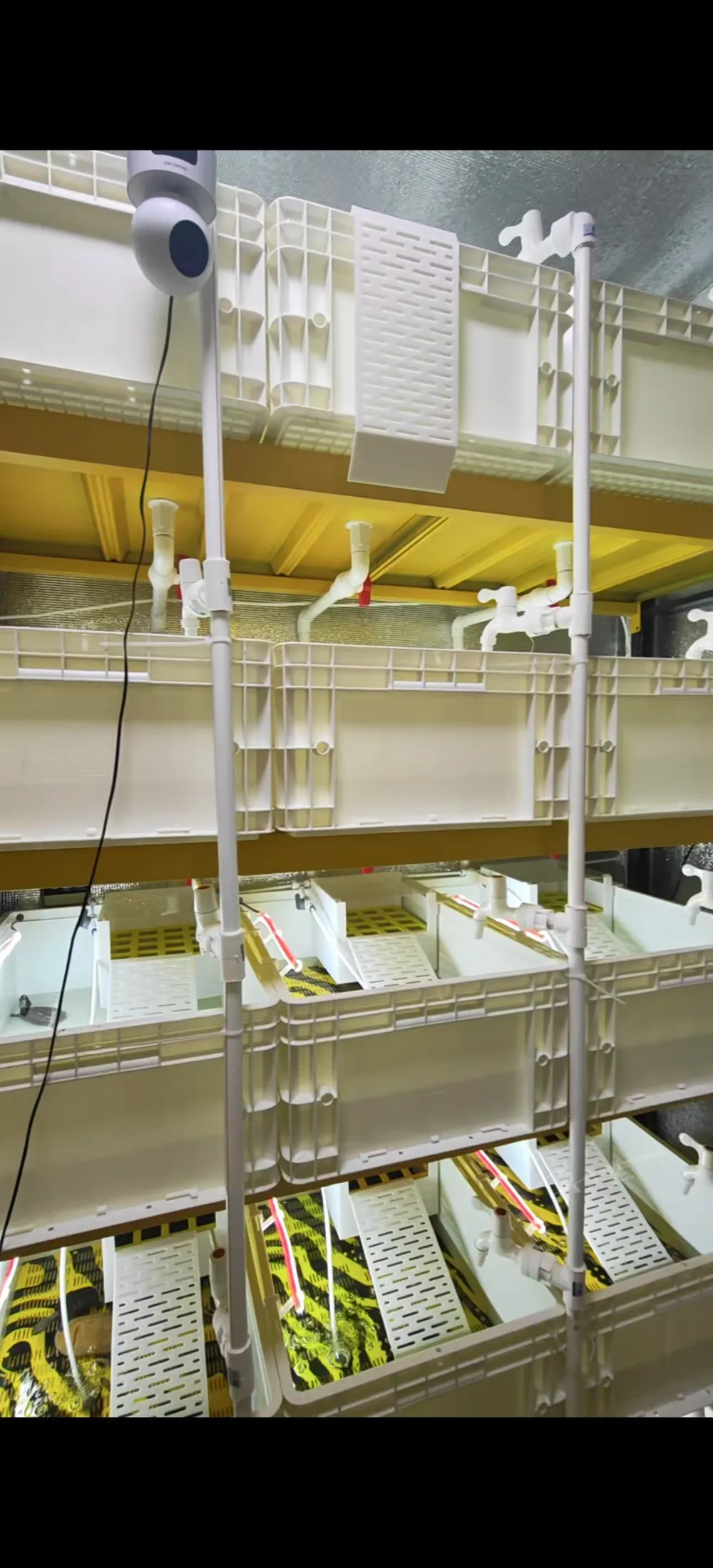

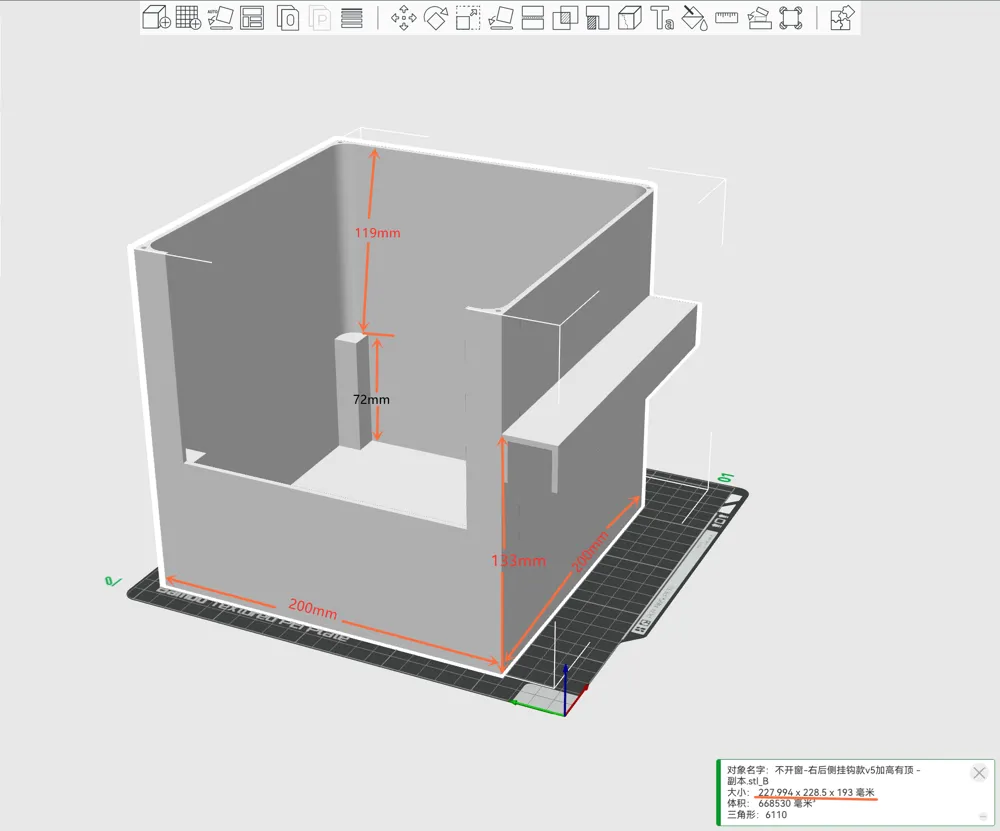

<boostme><boosttitle>为我助力</boosttitle><boostcontent>您的免费助力可以帮助我努力设计发布更多新的作品，因此我非常感谢您的支持！</boostcontent></boostme><h2>商用建议点个助力，发个消息告知店铺！后期版本需要您的支持！</h2><h2>简介：</h2>        一款适合周转箱养龟使用的产蛋池，配套网格和爬坡，另外还有双色底滤板，周转箱高度23CM最佳，我使用的是60*40*23cm的周转箱，理论23cm高的周转箱通用。因爬坡要卡进产蛋池固定住，所以爬坡专为23cm高的周转箱定制，豆爸爬坡通用。其他高度需要重新设计。爬梯建议用低温冷打板打印。<h2>版本：</h2>      以蛋池入口为基准，目前有盘1右后侧挂全封闭蛋池，盘2右后侧挂右开窗蛋池（方便一些周转箱改了玻璃面龟友，侧面可以插入2mm厚亚克力板，尺寸177*191*2mm）<h2>尺寸：</h2>       外尺寸（包含后侧和右侧挂钩）228*228.5*193mm       蛋池外尺寸200*200*193mm       蛋池网格上方119mm，下方72mm，详细见图。       网格和爬坡尺寸见图片。       60*40*23cm周转箱底滤板有两个版本：一个是换了5mm玻璃/亚克力板用，一个是未更换用，两者就是宽相差玻璃/亚克力板5mm的厚度，其他尺寸自行更改宽度。

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>Your free boost helps me strive to design and release more new works, so I greatly appreciate your support!</boostcontent></boostme><h2>For commercial use, please consider boosting and send a message to inform the store! Future versions will need your support!</h2><h2>Introduction:</h2>An egg-laying box suitable for turtle breeding in storage bins, with a matching grid and ramp, and also a dual-color bottom filter plate. A storage bin height of 23cm is optimal. I use a 60*40*23cm storage bin, and theoretically, 23cm high storage bins are universal. Since the ramp needs to be fixed into the egg-laying box, the ramp is custom-made for 23cm high storage bins, and Dad Bean's ramp is universal. Other heights require redesign. It is recommended to print the ramp using low-temperature cold build plate printing.<h2>Versions:</h2>Based on the egg-laying box entrance, there are currently plate 1 a fully enclosed egg-laying box hanging on the rear right side, and plate 2 an egg-laying box with a right-side opening window hanging on the rear right side (convenient for some turtle owners who modified their storage bins with a glass surface, a 2mm thick acrylic sheet can be inserted into the side, size 177*191*2mm)<h2>Dimensions:</h2>Outer dimensions (including rear and right hooks) 228*228.5*193mmEgg-laying box outer dimensions 200*200*193mmEgg-laying box grid upper part 119mm, lower part 72mm, see diagram for details.See pictures for grid and ramp dimensions.The 60*40*23cm storage bin bottom filter plate has two versions: one for use with a replaced 5mm glass/acrylic plate, and one for without replacement. The difference between the two is the width, differing by the 5mm thickness of the glass/acrylic plate. For other sizes, please adjust the width yourself

Wall-mounted turtle nesting box for turnover boxes

ASIA

Print Profile(3)

Description

For commercial use, please consider boosting and send a message to inform the store! Future versions will need your support!

Introduction:

Versions:

Dimensions:
