Hyperbolic Gearset
Print Profile(2)
Description

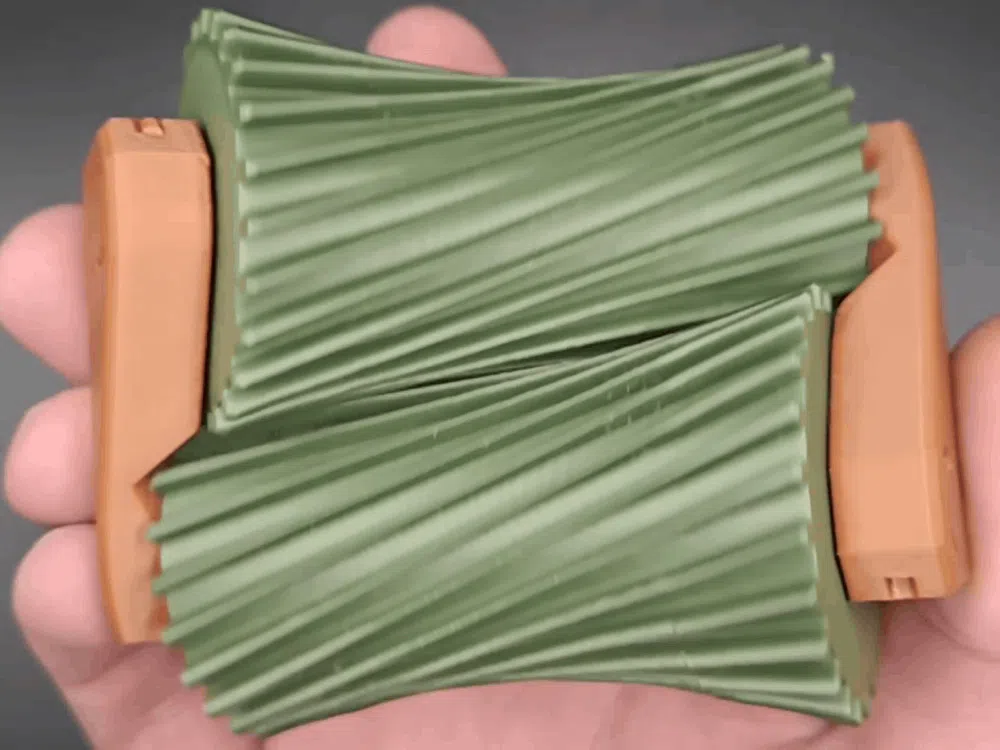

Hyperbolic Gearset – Compact Demonstration Model

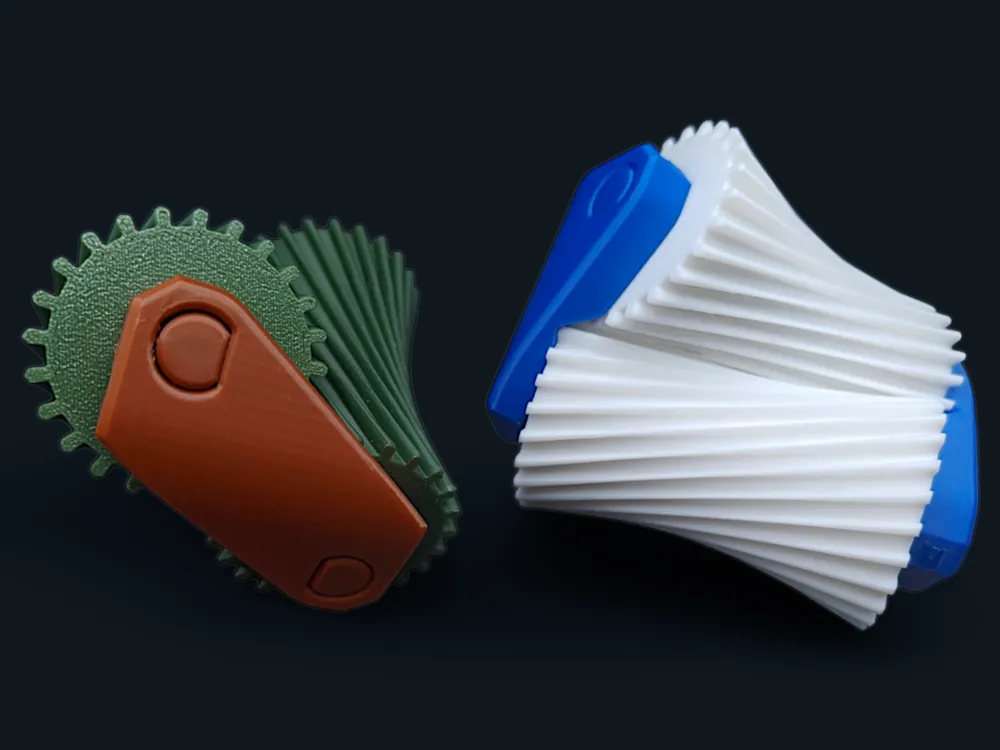

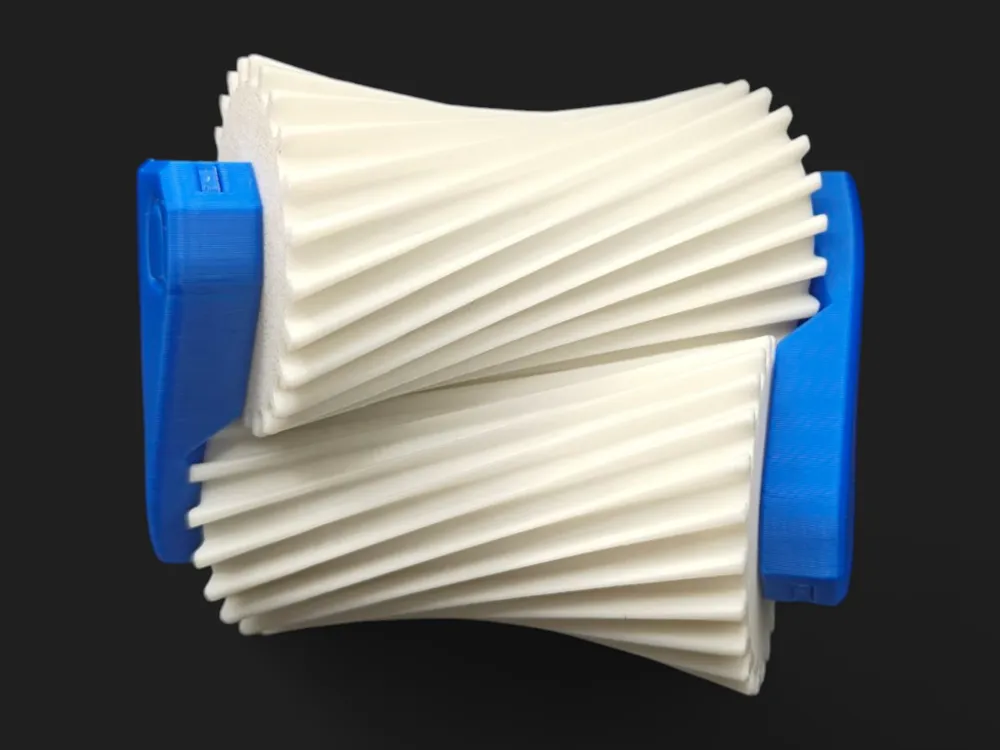

This Hyperbolic Gearset is a handheld mechanism designed to demonstrate hyperboloidal gear engagement in a compact form. This model highlights the smooth rotational interaction of uniquely contoured gears, making it an excellent educational tool or display piece.
Assembly Process:
- Gear Meshing: Align the hyperboloidal gears for optimal engagement.
- Frame Installation: Hold the outer structural frames against the gears to stabilize the assembly.
- Axle Insertion: Guide the axles through the aligned holes, ensuring that the assembly does not move.
- Pin Locking: Insert the 4 locking pins—pressing them in with a firm surface before using a small tool for final adjustment.
While not designed for high-load applications, this gearset provides a tangible look at hyperboloidal motion.
Enjoy!
Leave any questions and suggestions in the comments!
