FPV drone XT60 holder
Print Profile(1)
Description
suitable for TBS Source V5 7" DC
i have another model for diatone roma F5

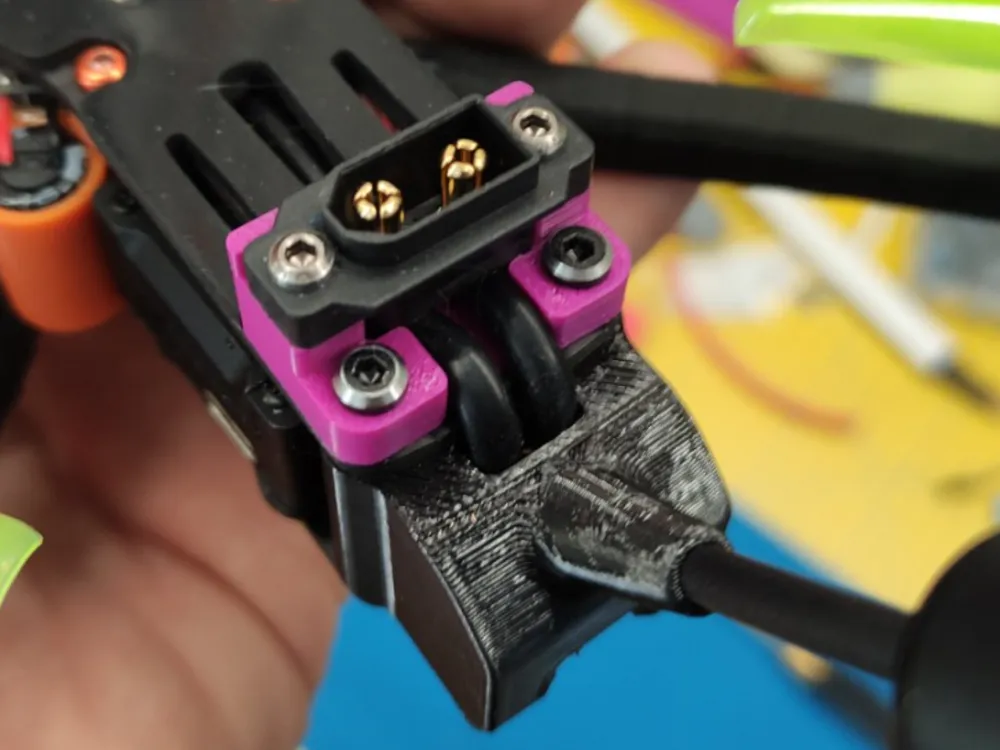

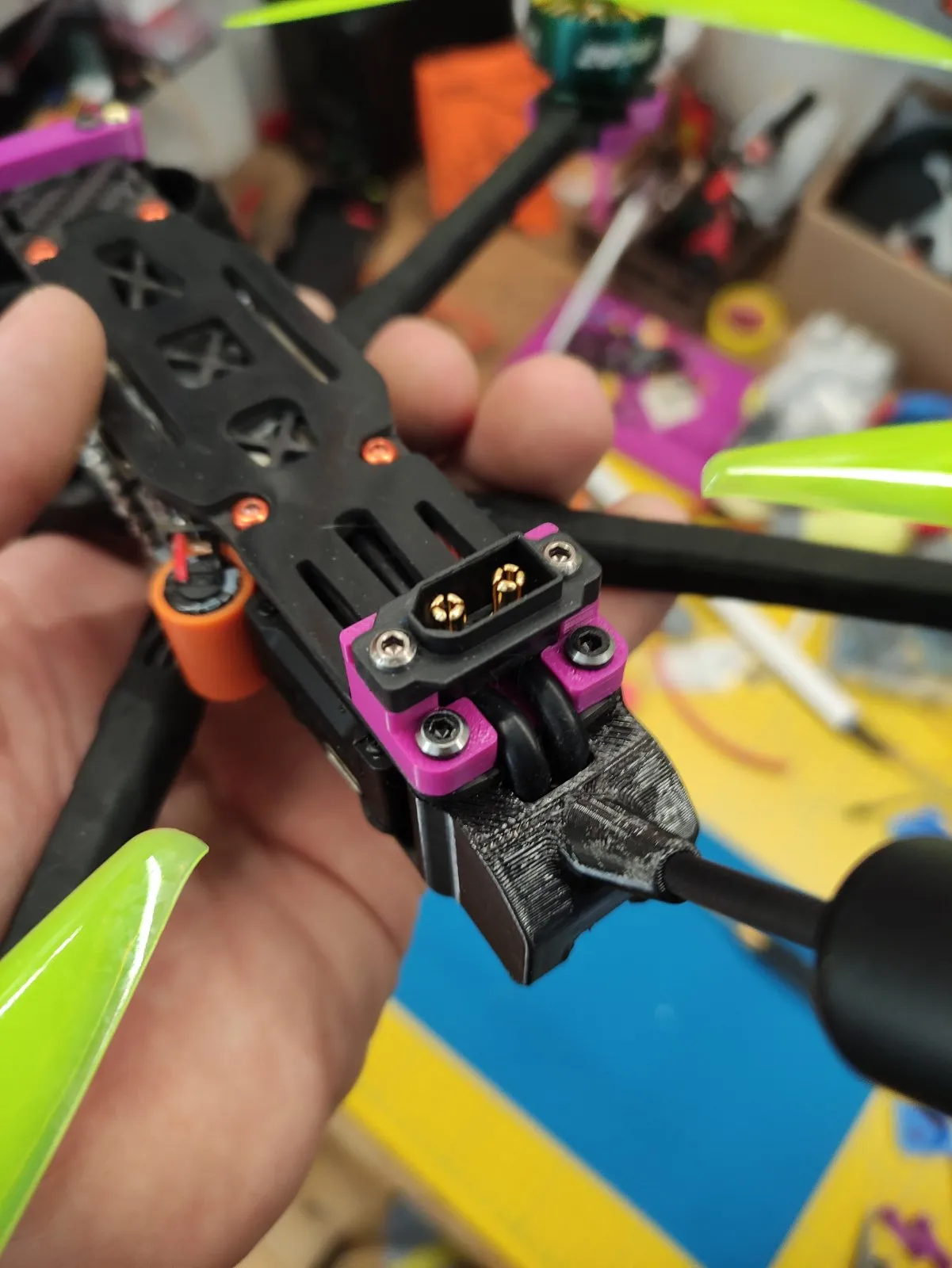

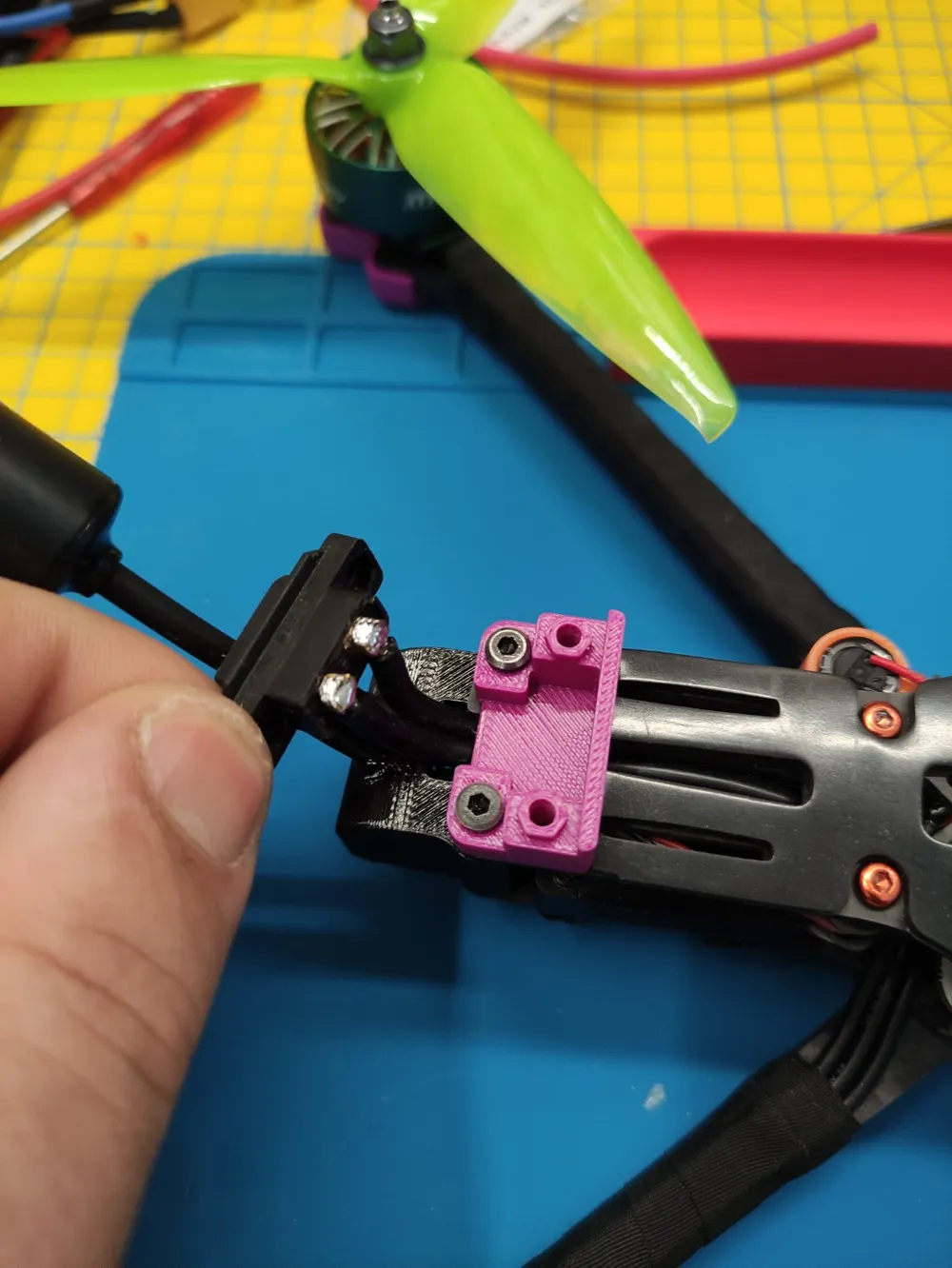

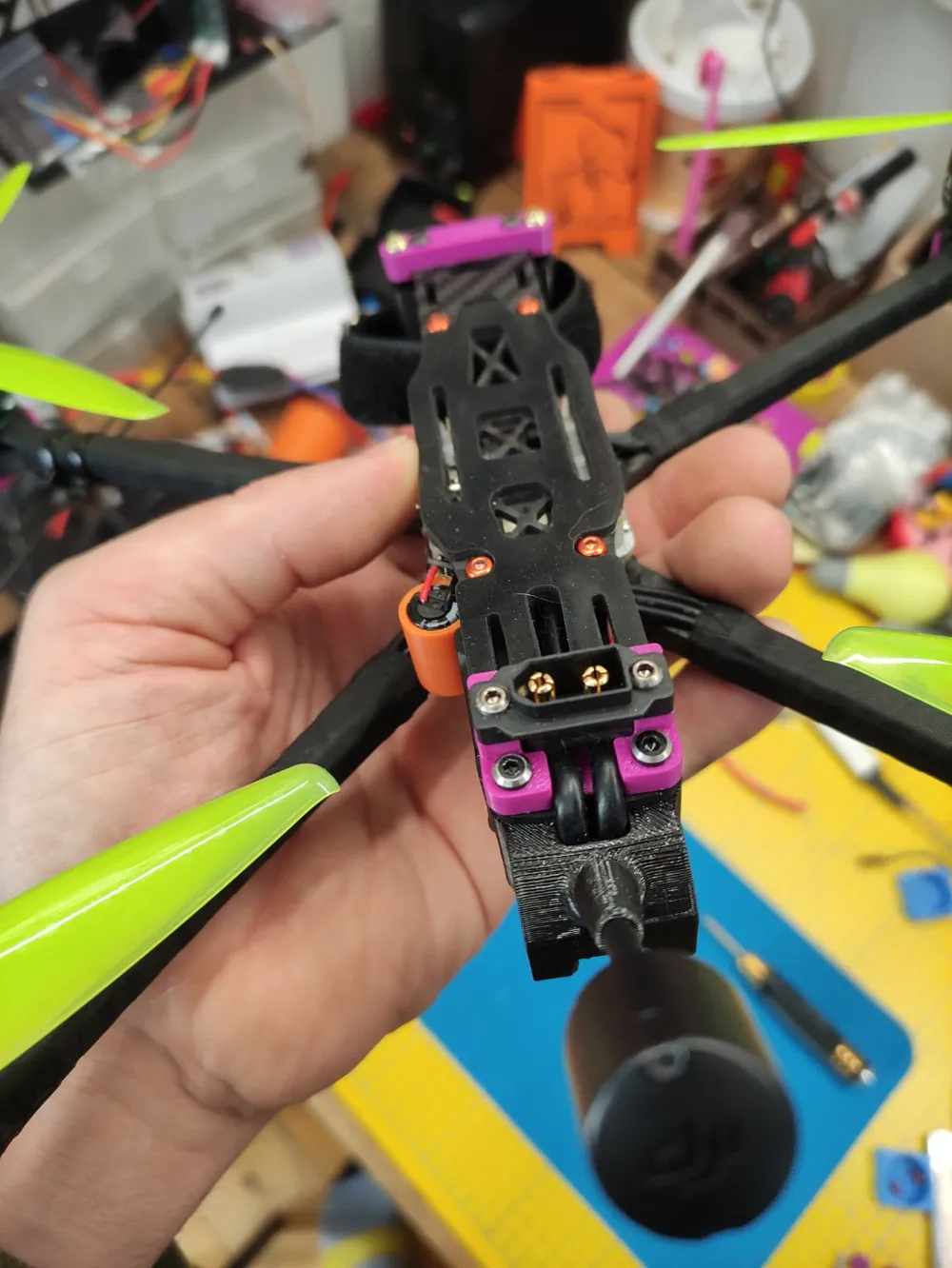

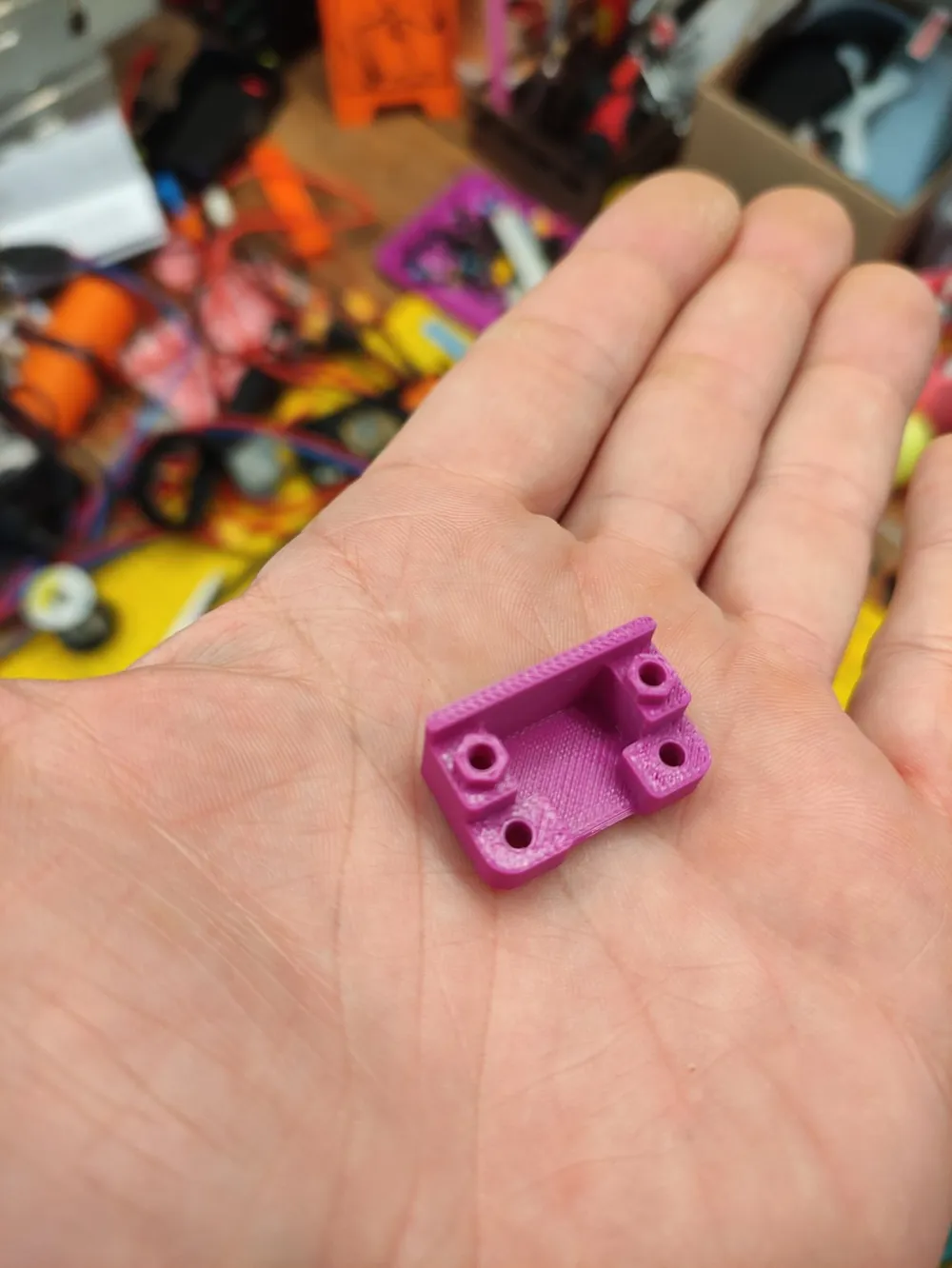

XT60 connector holder

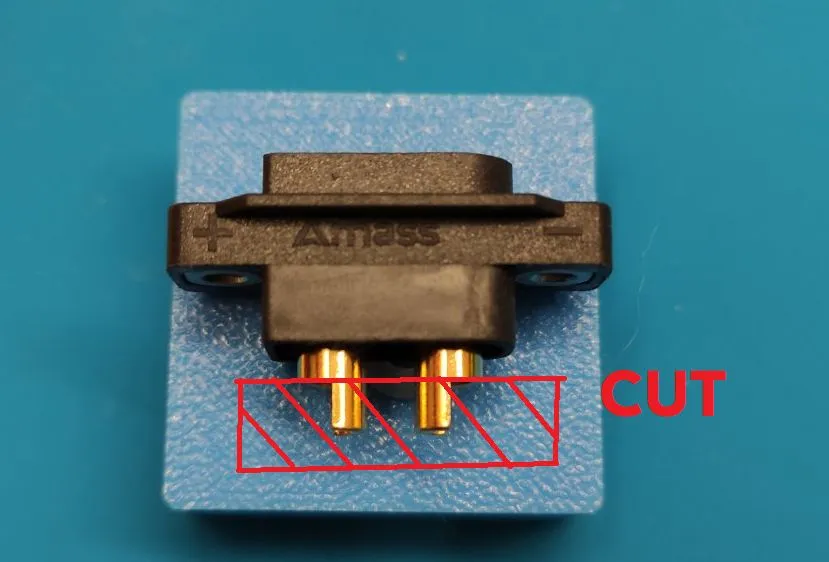

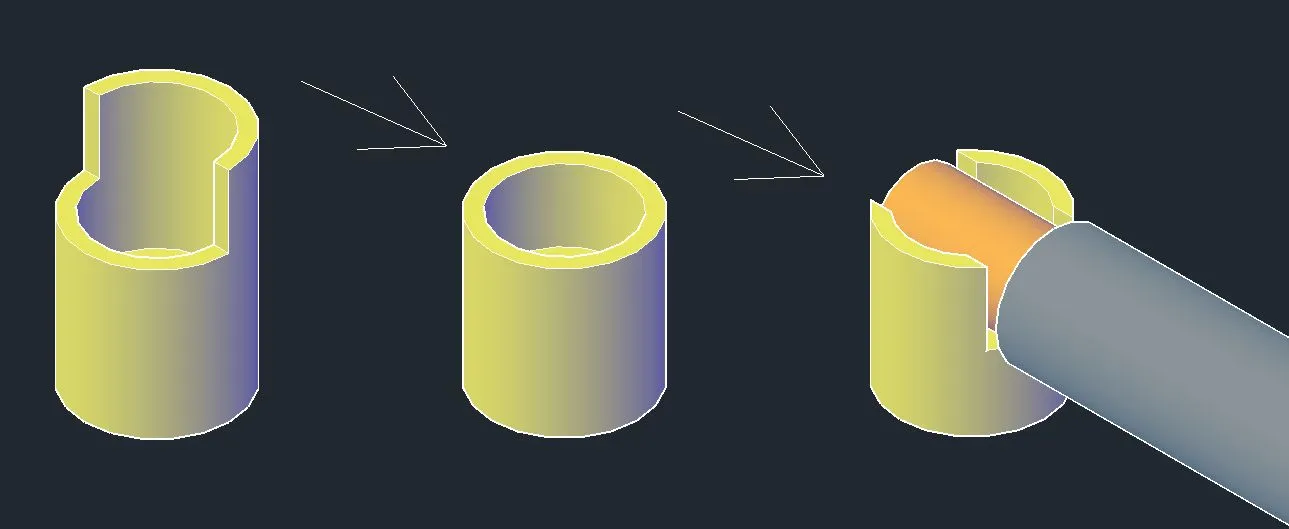

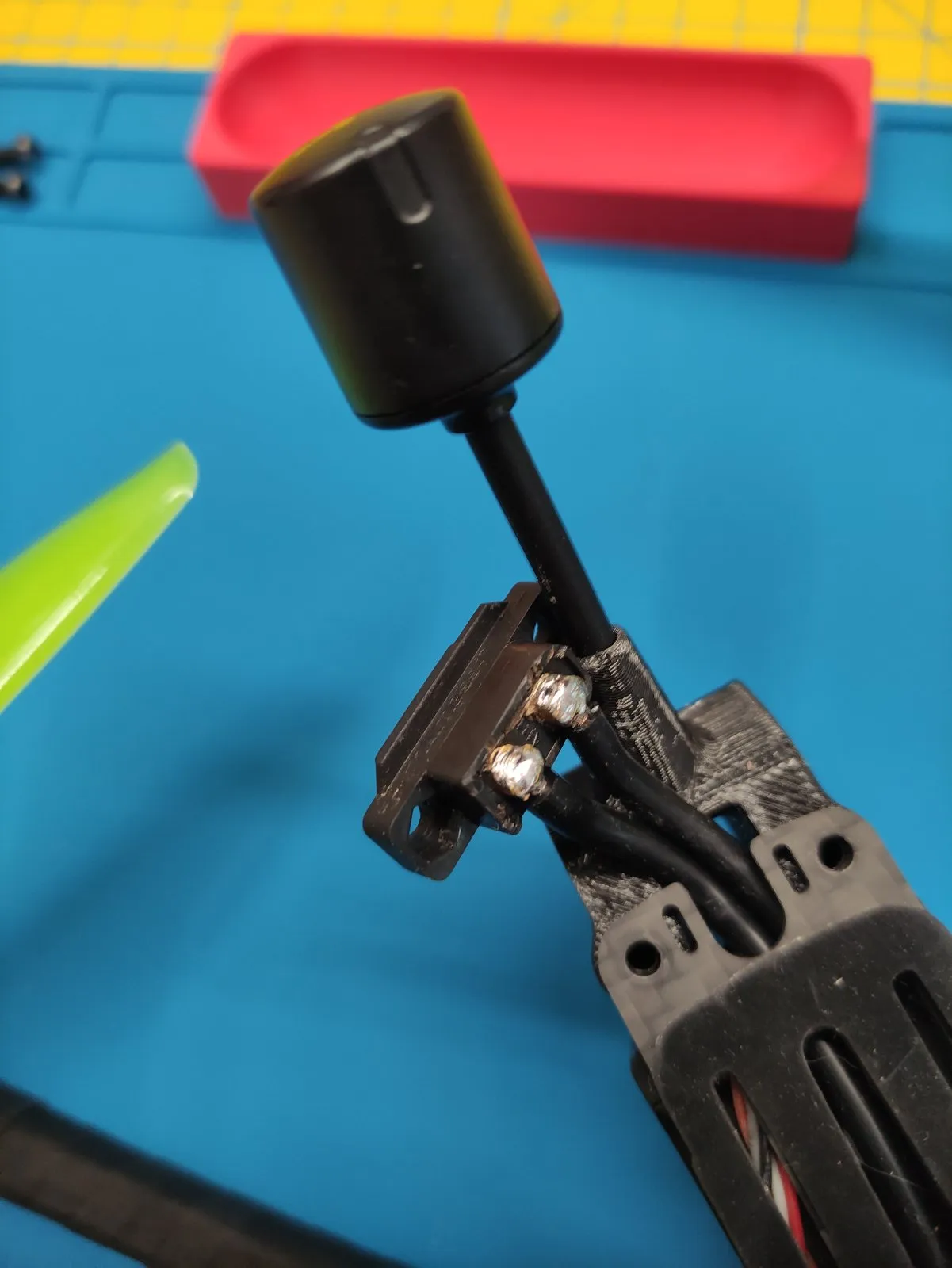

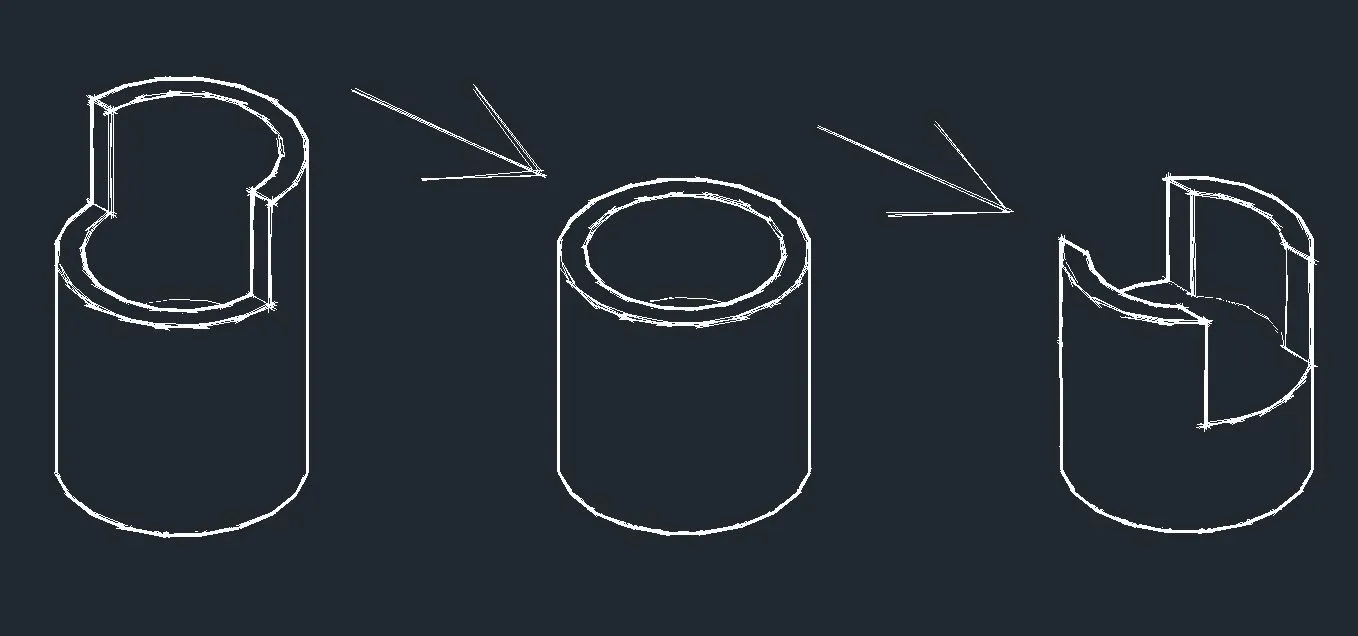

The first thing to do is to modify the connector itself, shorten the terminals and grind a groove for the wire so that the connector takes up as little space as possible.
The upper screws need to be grinded down to have a smaller head (clamp the M3 nut in the drill and use a file to reduce the head)
