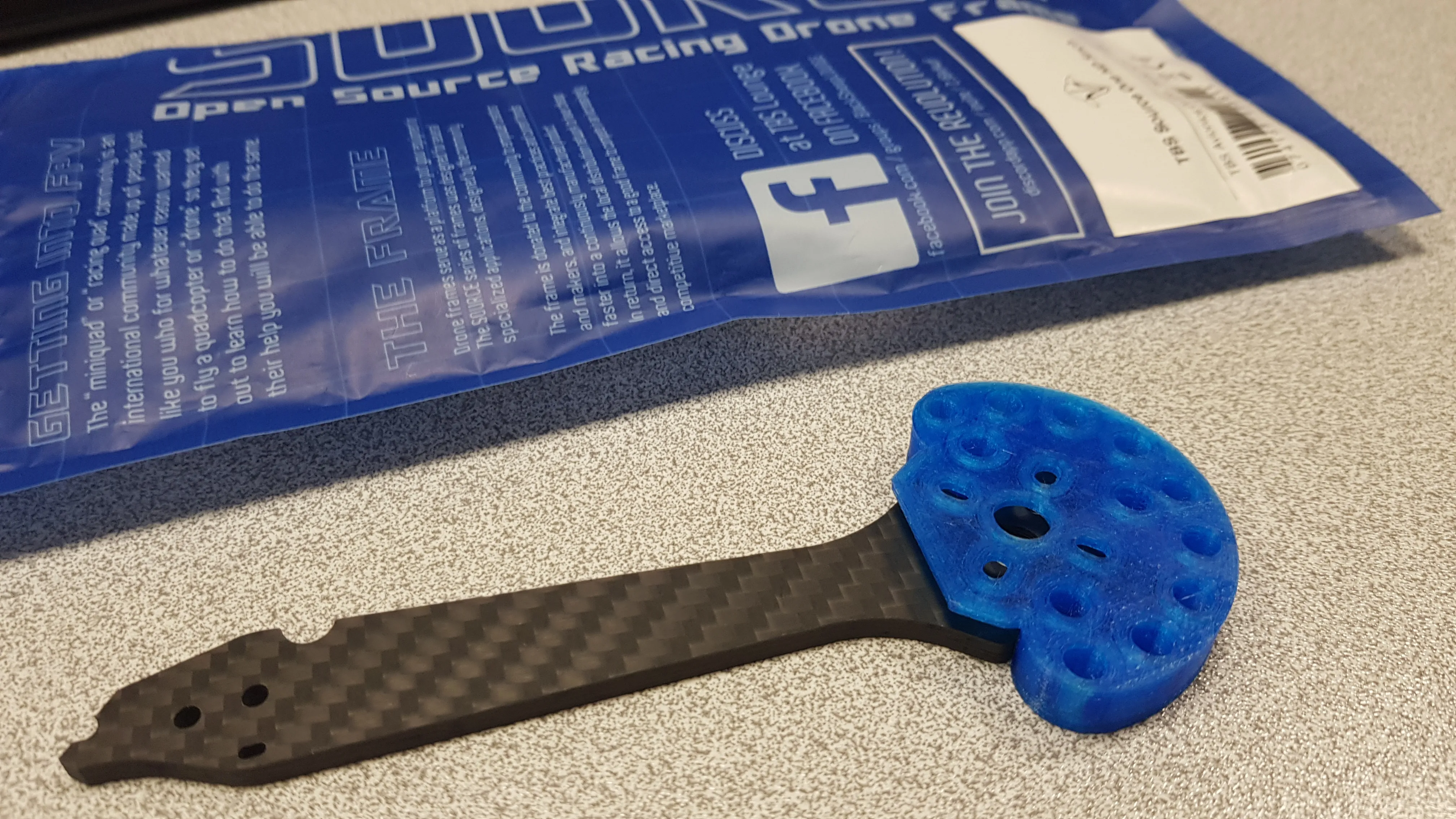

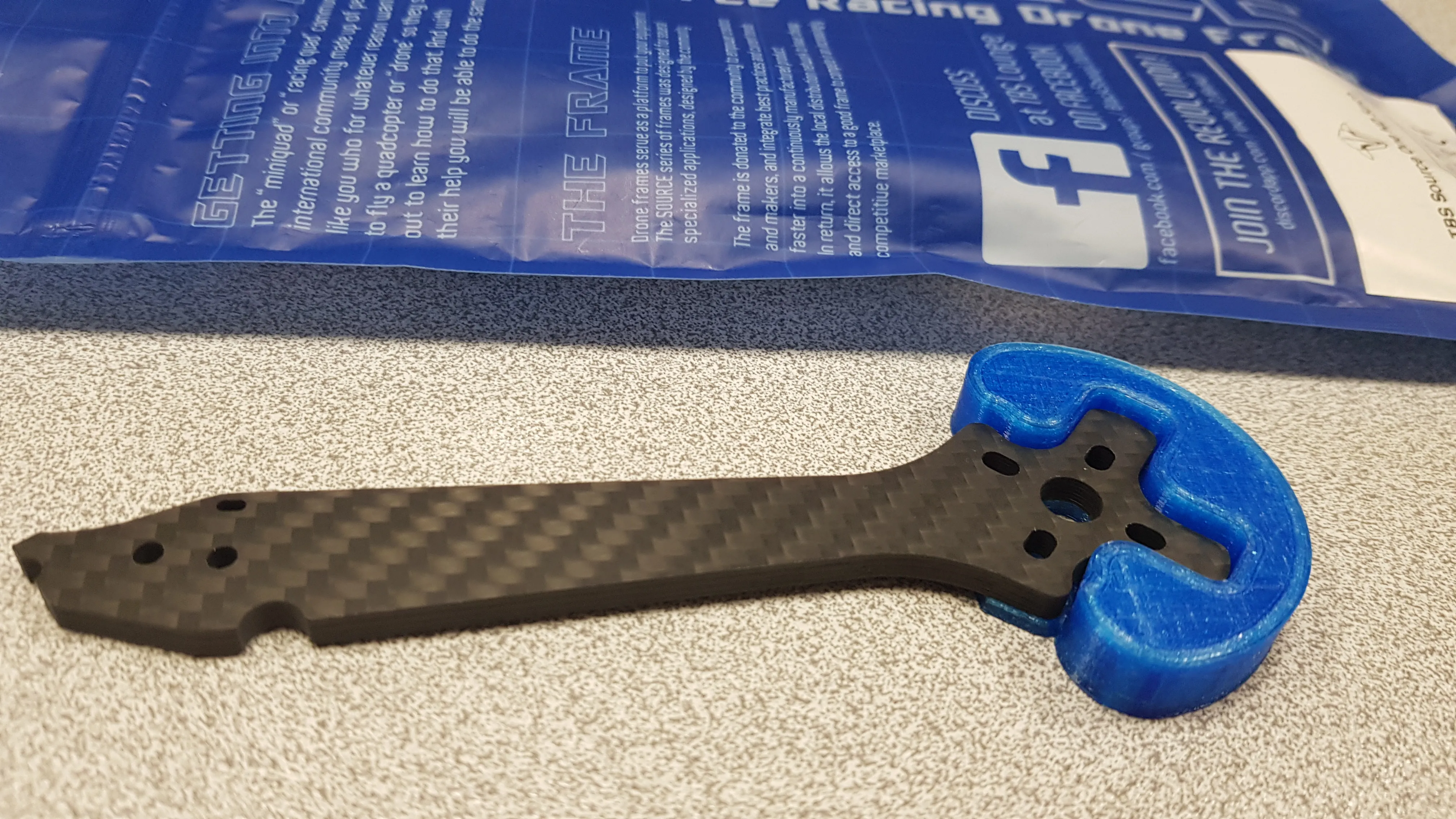

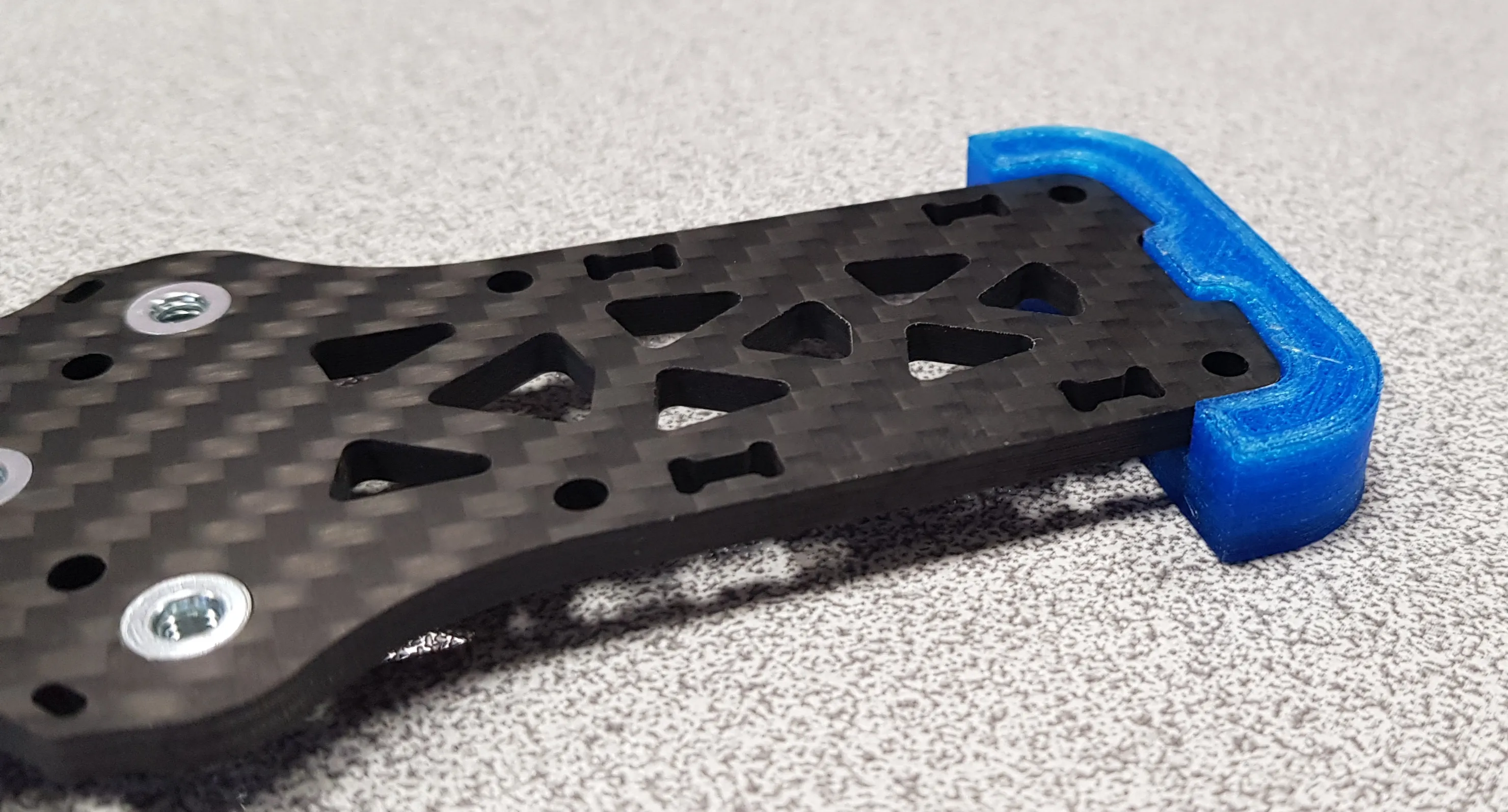

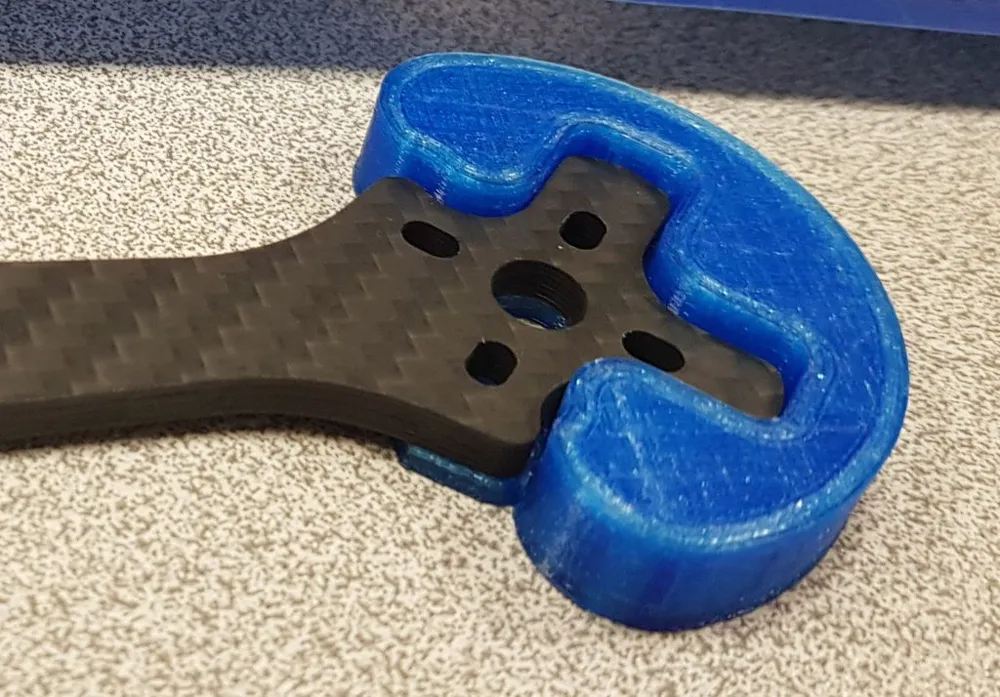

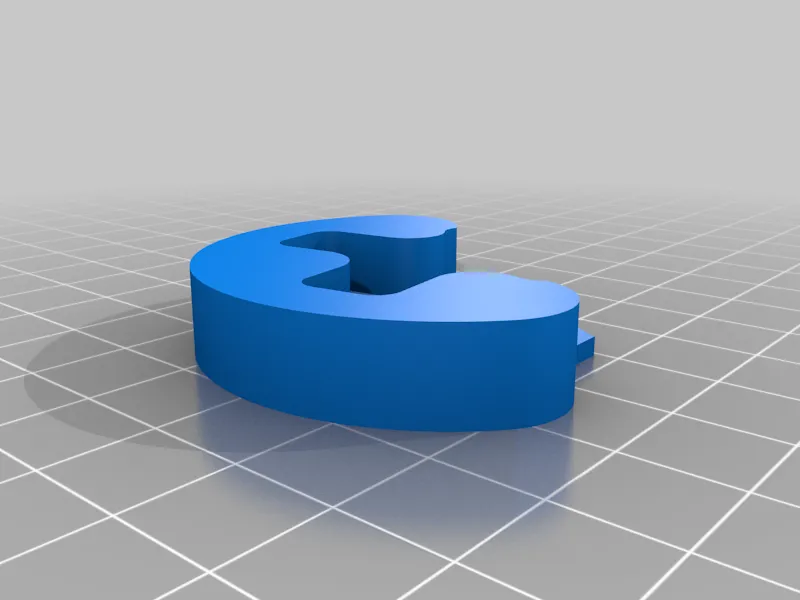

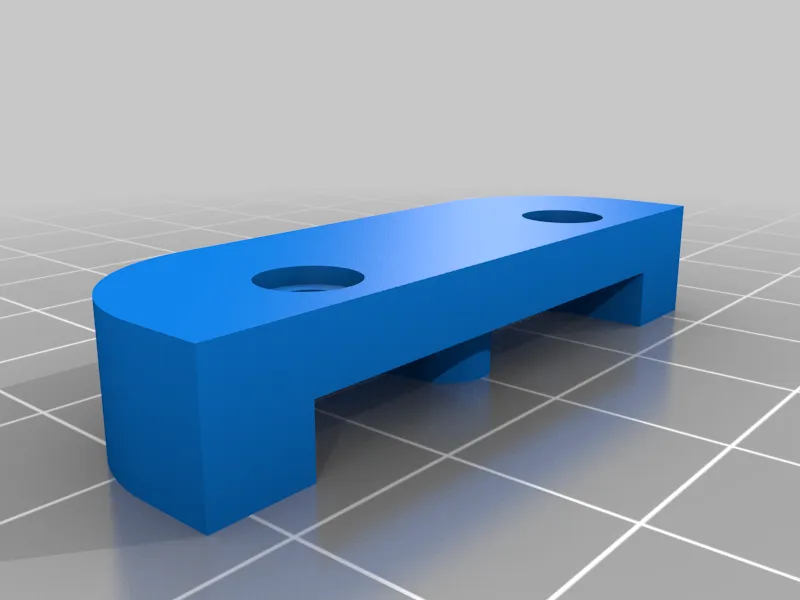

This is my version of bumpers for TBS Source One HD (and also V4).
The parts have tolerance so that should easily fit once printed.

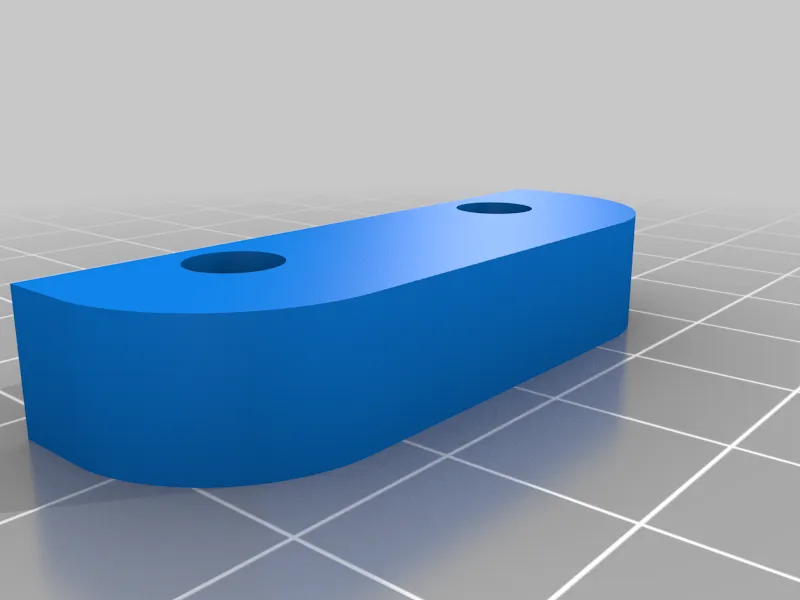

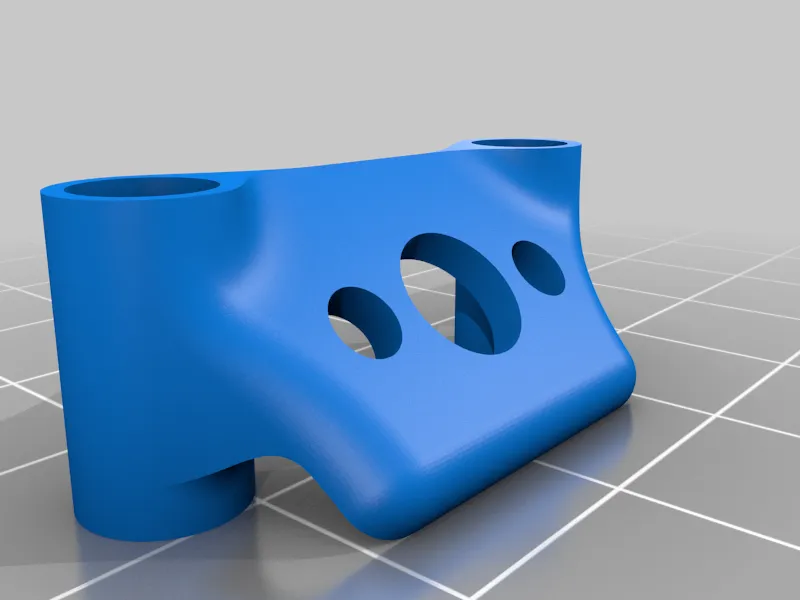

VTX mount is for V3 is larger than the on for HD version
Print Settings
Printer:
X1C
Rafts:
No
Supports:
No
Resolution:
Super Quality 0.12
Infill:
30% Gyroid
Filament: any TPU any
Notes:
Print one item at a time, unless you know that with your TPU you will not get too much stringing.
Printing Temp. 215°
Bed Temp initial layer 60° and then 50°
Speed 60mm/s
Skirt: yes
Post-Printing

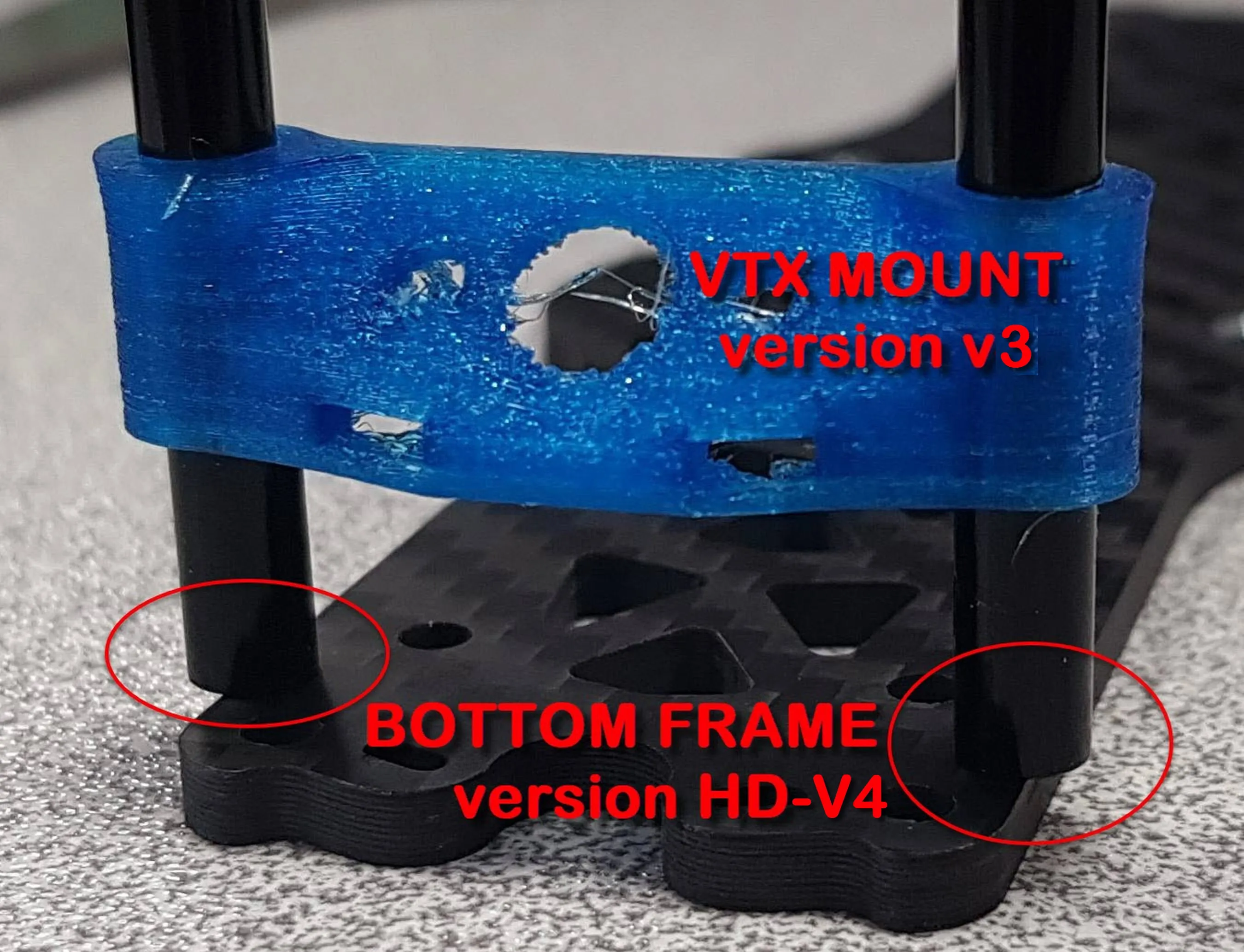

By mistake I downloaded and printed a VTX mount, realizing later that is was for V3... too bad

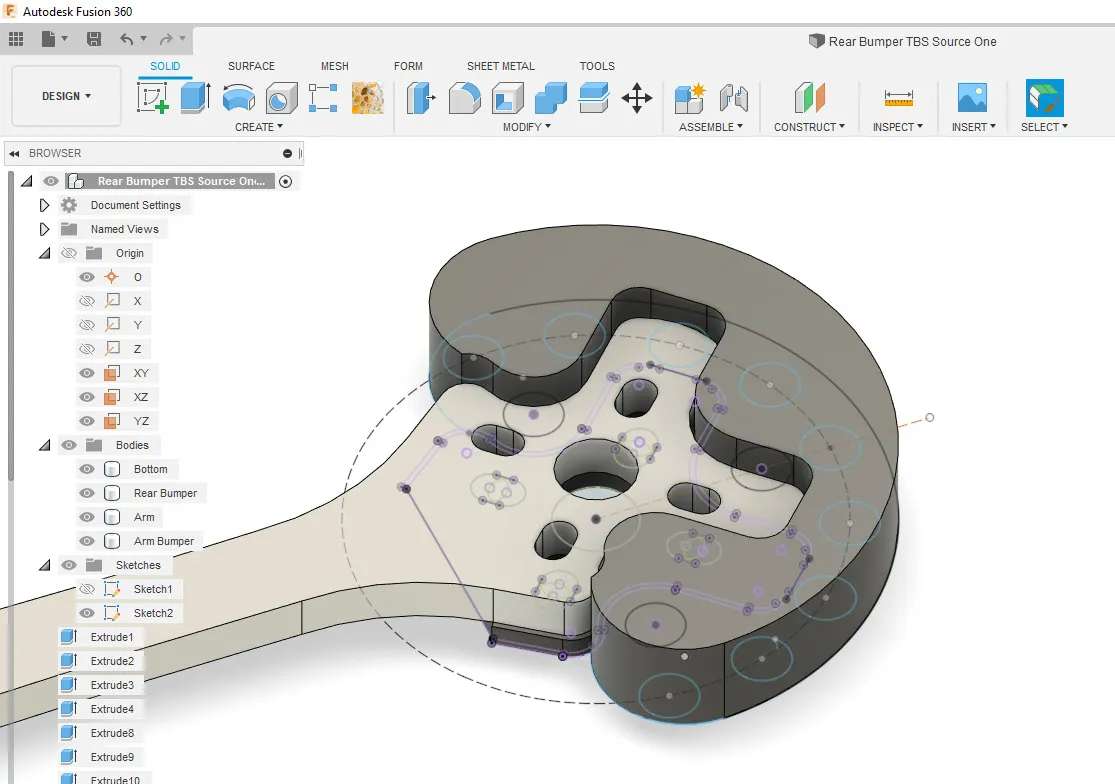

How I Designed This
