This case is inspired by Reefie's design. While their model works well, I found the board sat a little too loosely, and the case didn’t hold together firmly on its own. It still does the job and is a great design, but I wanted to refine it further.

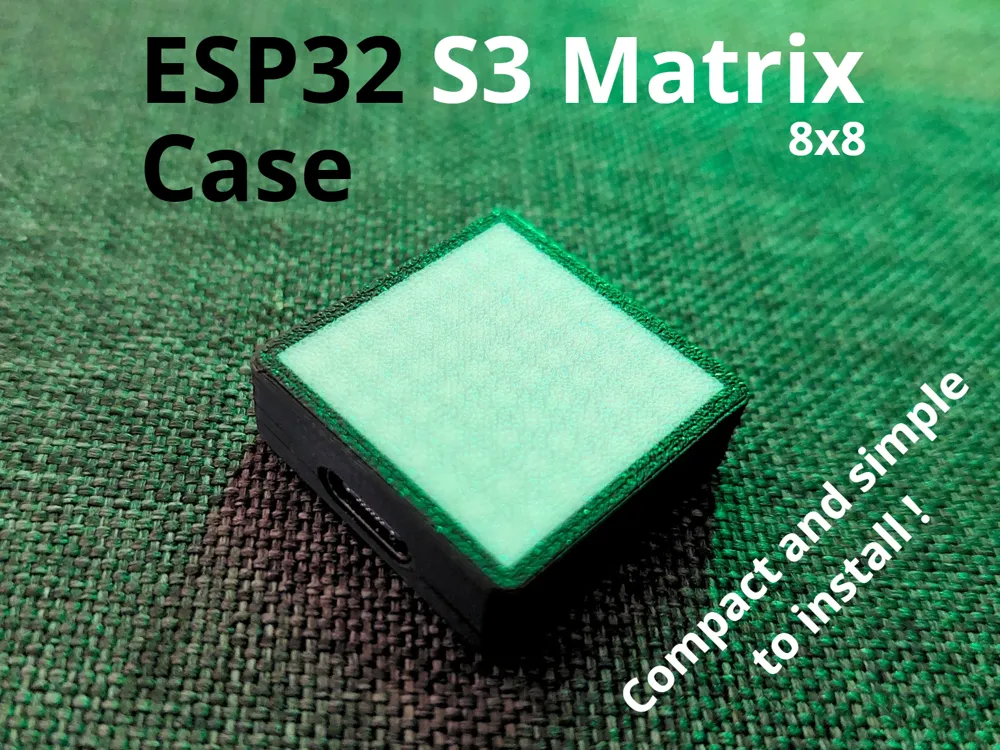

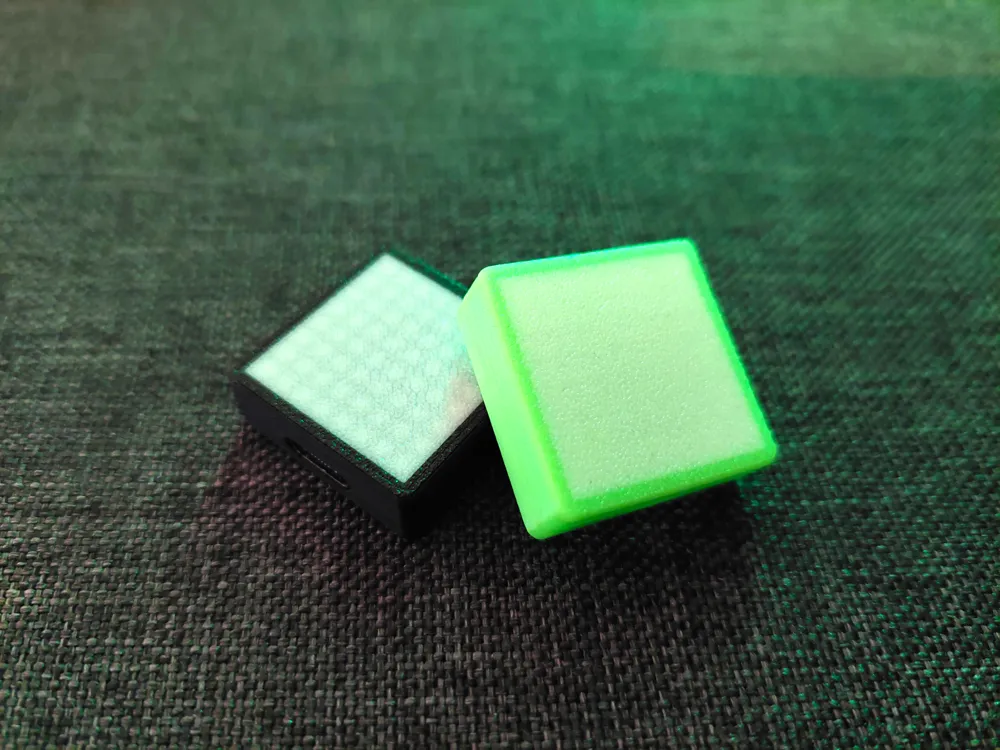

After multiple prototypes, I’m happy to share this compact, snap-fit case for the ESP32 S3 "X8 Matrix"!
Printing

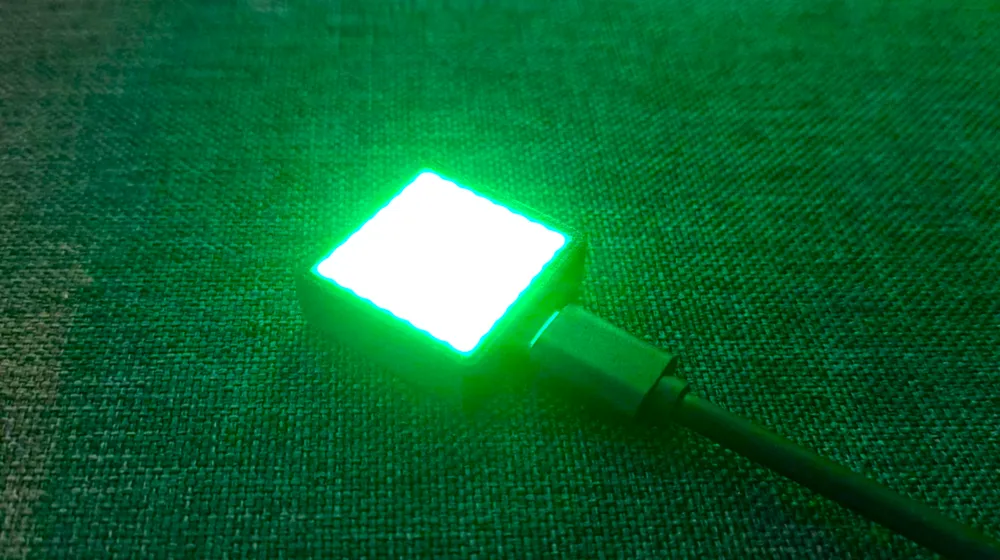

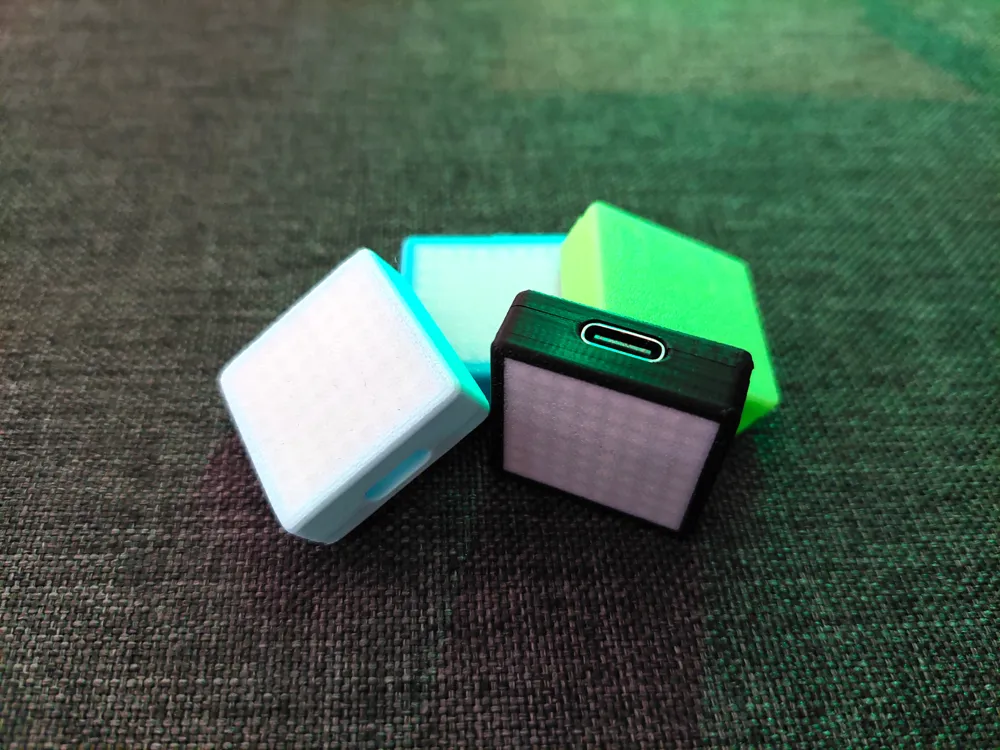

Use the provided 3MF file for the best results. While bright colors like neon green or light blue look great, I recommend dark colors for the best visual effect.

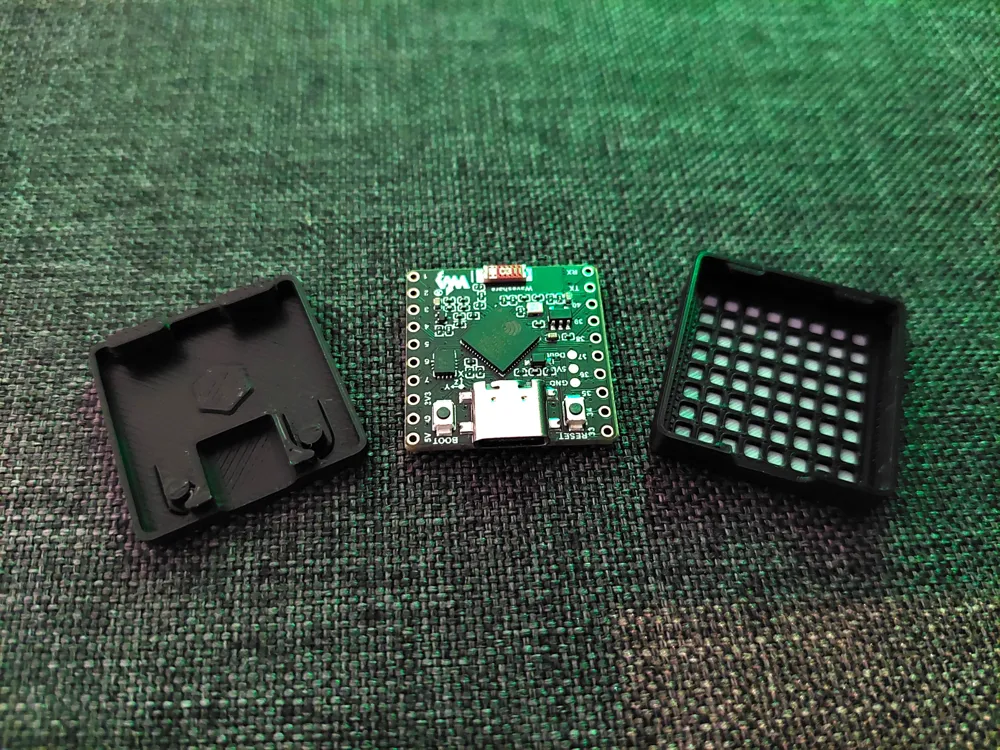

Assembly

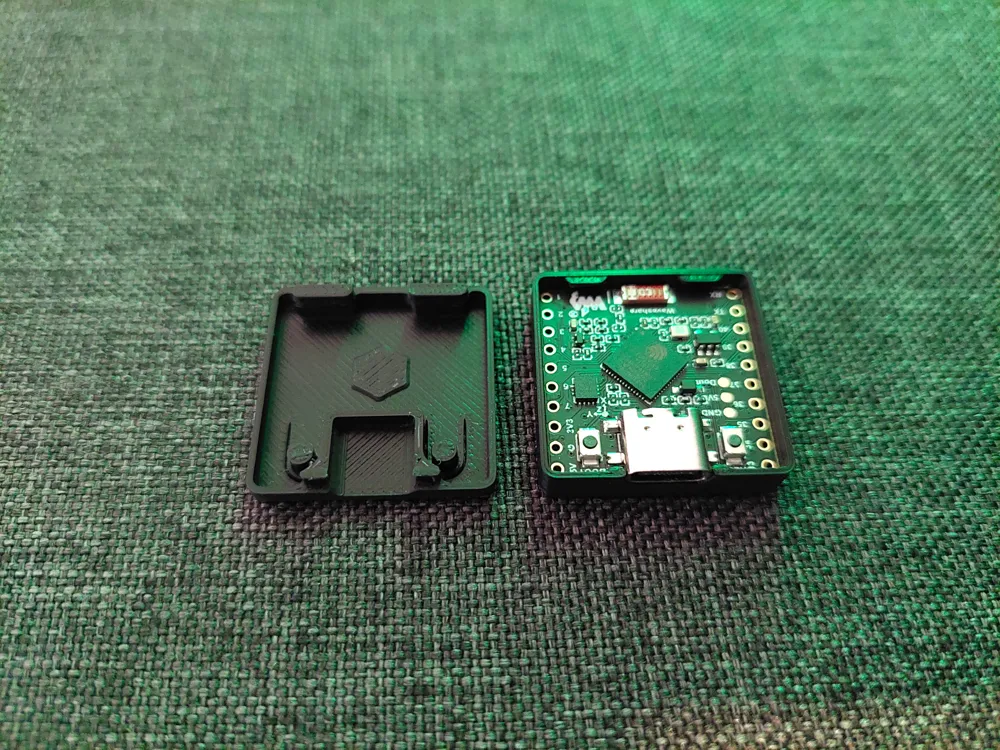

- Slide the board into the bottom section.
- Apply light pressure near the USB port until it snaps into place.
- Slide in the top part the same way, and you’re done!
