Vacuum Cleaner Nozzle/Adapter
Print Profile(1)
Description

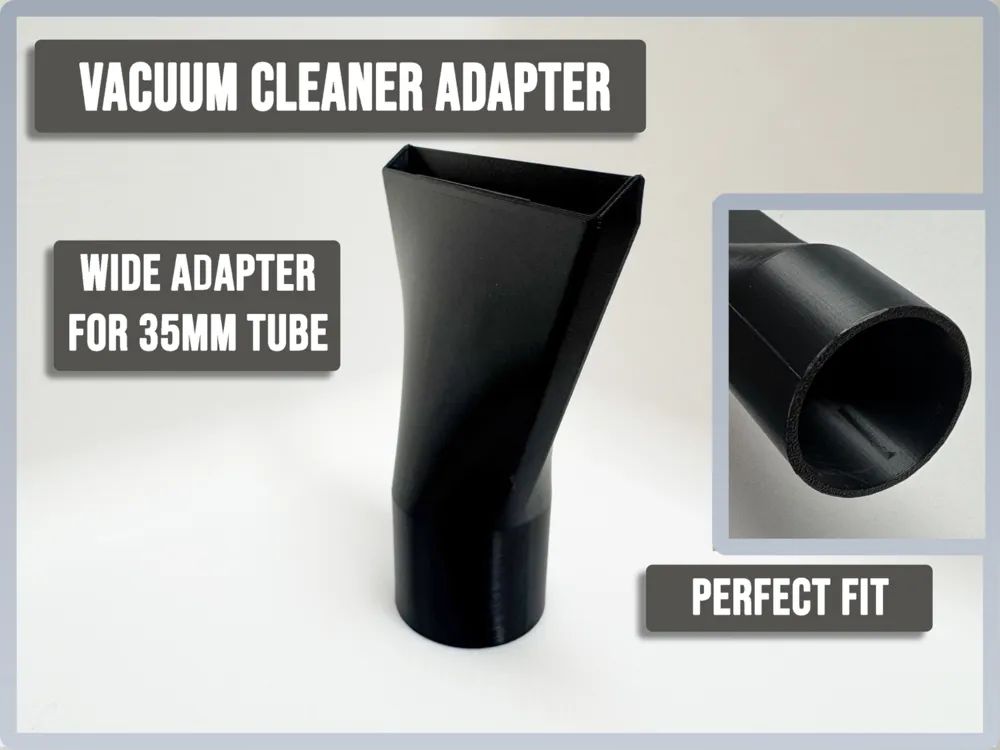

I have designed this wide adapter for vacuum cleaners.
The Adapter is beveled for best dust and dirt collection.
The nozzle fits most vacuum cleaners with a tube diameter of approx. 34 mm (e.g. Bosch or Siemens).
I have designed the same retaining ribs as the original nozzles, so the fit is very good and the nozzle can be fitted very easily onto the suction pipe.
Boost Me (for free)
You like this Model? Then please give it a Boost for free :) - This supports my Work! Thank you!
Print standing upright with Brim.
You can use different Materials, I printed mine in ASA - PETG and PLA should also work.
Print Settings:
Recommended Material: ASA/ ABS
Layer Height: 0,2mm
Wall Lines: 3
Upper shell Layer: 5
Under shell Layer: 4
Infill: 15% Gyroid
Brim: set to Automatic with 0,15mm spacing
