Lidded hexagon box

IP Report

Print Profile(1)

All
A1 mini
P1S
P1P
X1
X1 Carbon
X1E
A1
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
1.2 h
2 plates

Open in Bambu Studio
Boost
4
13
0
0
10
2
Released

Description

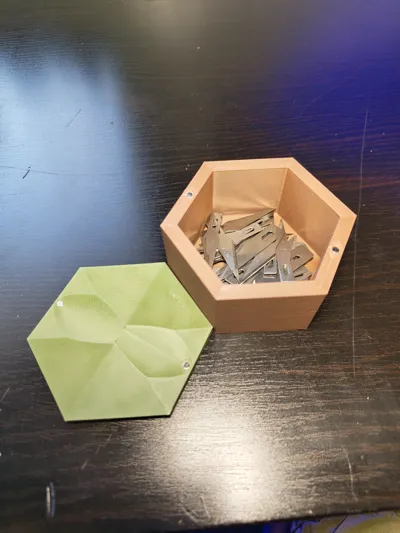

Little lidded hexagon box, I use it to store all of my Exacto knife blades! I use this in conjunction with my other box that holds my Exacto knives and pens

Uses 4x 3mm magnets (2 in the box, 2 in the lid). The tolerance is pretty tight, but I just pushed it down on a flat surface to really jam them in. I also used a drop of super glue in each hole just to make sure they never come out.



I used a generic matte PLA, which led to a little warping and shrinking.

To combat the warping, I try a couple of different things every time:

  • Brim of 5mm to increase bed adhesion on the edges
  • Covering the model with a big Tupperware once it's done printing, to allow a longer cooldown time
  • Placing the model upside down on the bed and heat it back up to correct the warp



Let me know what works best for you!
