Description

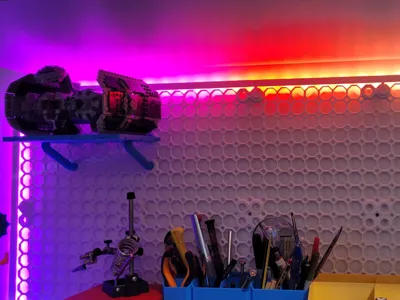

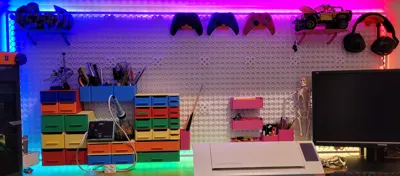

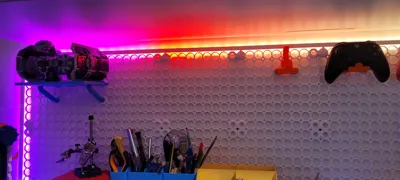

Perimeter LED frame for multiboard.

It was designed for 10mm aRGB strip and fits on 9x9 tiles and it attaches on the snaps used to secure your multiboard on the wall.

You will need to assemble the complete frame and attach the LED strip before securing it on your multiboard which is a bit tricky.

If you need it for a different size multiboard tile let me know and i can customize it for you.

*Update 1: Added frame for 8x8 Tiles

*Update 2: Added frame for 4x4 Tiles

*Update 3: Added frame for 6x6 Tiles

*Update 4: Added frame for 7x7 Tiles

*Update 5: Added frame for 10x10 Tiles

*Update 6: Added frame for 12x12 Tiles

MultiBoard

LED

Comment & Rating (52)

@Caphead

Boosted

thanks for this simple but very nice border! love it!

The designer has replied

@michaelidesmi

Great looking setup!

@filthesage

Are those hexagons printers? Do you have the file?

Show original

@Caphead

Boosted

Replying to @filthesage :

They were not printed, they are govee

@blacklagoon

Print Profile

0.2mm layer, 2 walls, 15% infill

I really love it and so far the best solution out there... the little plates that hold it together do not sit in there super strong but it does the job, you just have to be a bit careful when putting in the LED Strip

The profile uploader has replied

@michaelidesmi

Glad you liked it. Thank you. You are right its a bit sensitive but i could not come up with better solution to keep a slim profile. Maybe super glue on one side of the connectors will help. I installed mine and never touched it again :P

@blacklagoon

Replying to @michaelidesmi :

yeah same here I wont touch it again but its super nice, and yes super glue would have been a good idea but as you said... once installed you wont touch it again

@Darkpuch

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

A very nice print profile. I printed it with four wall lines, which makes it much more stable. The Govee LED strips fit perfectly. Thank you:)

(Edited)

Show original

@Designer3859

Boosted

This is super cool. I just wanted LEDs on the top of a long multiboard, so I remixed the 8x8 part to create an "end" piece that has 2 supports on it. Thanks man!

@cool_breeze

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

I have finished my Multiboard light. I need to create a 3x3 grid for 2 pieces to fit with my board. I also tried two options at the corner of the strip. I bought the connector, but it doesn’t fit, so I twisted it. 😅

(Edited)

@Appollyx

Man i hate to ask again, and i wish i was able to just do it myself but could you make it for the 6x6 files too? im inlove with multiboard and now im adding a 6th panel in my house xD

The designer has replied

@michaelidesmi

Done! Please download the updated print profile and if you can upload a photo of the final project.

@Appollyx

Replying to @michaelidesmi :

Thank you SO much i will make sure i get a picture when its all up and completed for you.

@Appollyx

Replying to @michaelidesmi :

Uh how do i know which file it is? they all seem to be named similarly. *edit I think i figured out which ones are the right size, but I'm unsure as to what the difference is between the several of that size.

(Edited)

@user_2694069672

Boosted

Quick question with my setup all the tiles are 10x10 except the last wow which is 9x10. Would there still be a way to use these?

The designer has replied

@michaelidesmi

Yes that should not be a problem. I guess my description is a bit misleading. Just print both the 10x10 and the 9x9 as many pieces as you need and use the appropriate size for each tile side

@user_2694069672

Boosted

Replying to @michaelidesmi :

Awesome I appreciate it

@user_2753118244

Looks great, does anyone have some close up photos of how the connectors work though? I am sure its easy but I can't figure it out

The designer has replied

@michaelidesmi

Here's what the corner piece should look like. For connecting the other long pieces just use the rectangular connector (shown in blue in the picture)

@user_2753118244

Replying to @michaelidesmi :

Awesome, thanks so much!

@cool_breeze

Boosted

This is exactly what I am looking for. Thank you! May I ask how you twist or bend the LED strip at the corner? Will it break?

The designer has replied

@michaelidesmi

Actually i didn't twist it. i cut is and soldered wires between the two pieces. With my LED strip at least there is not enough space between two LEDs to twist the ribbon.
