Description
Boost Me (for free)
If you like the model a boost would be appreciated!

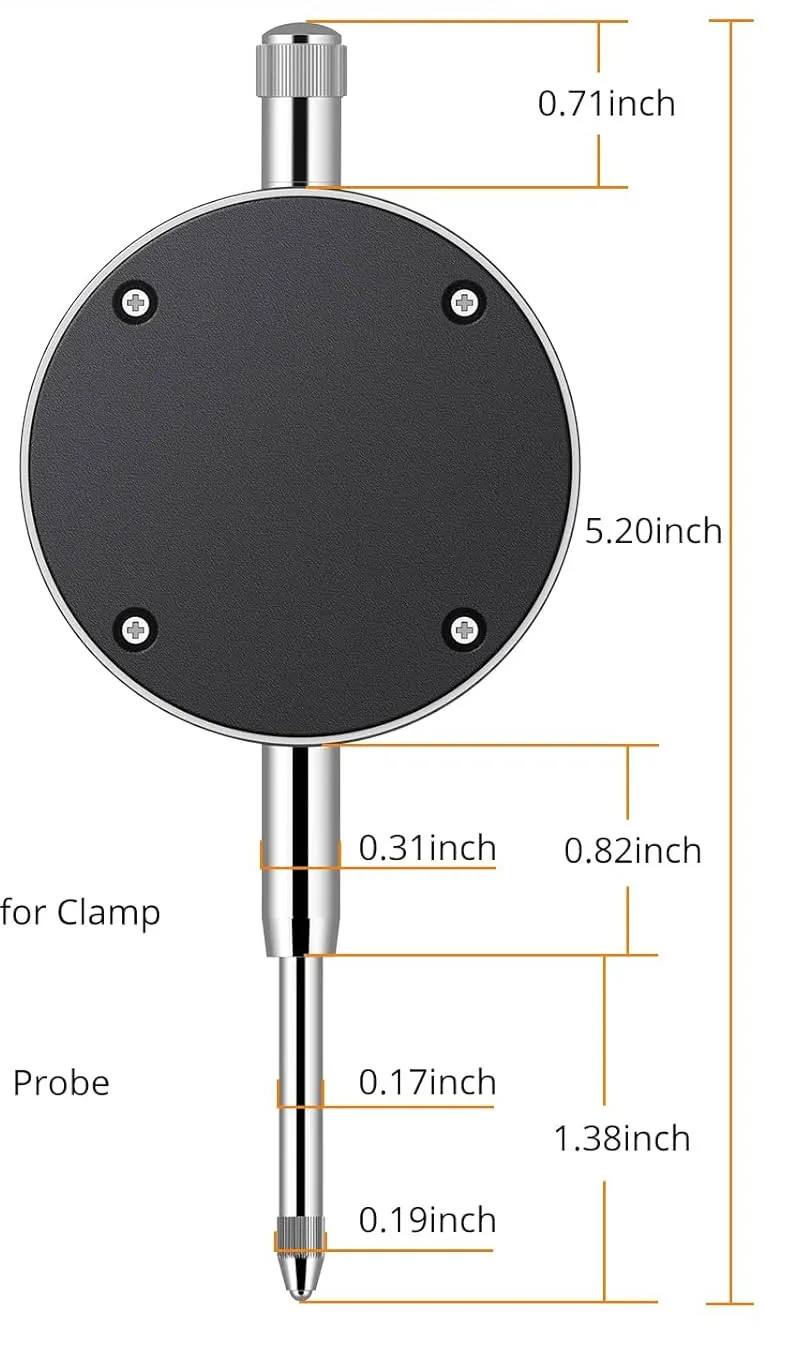

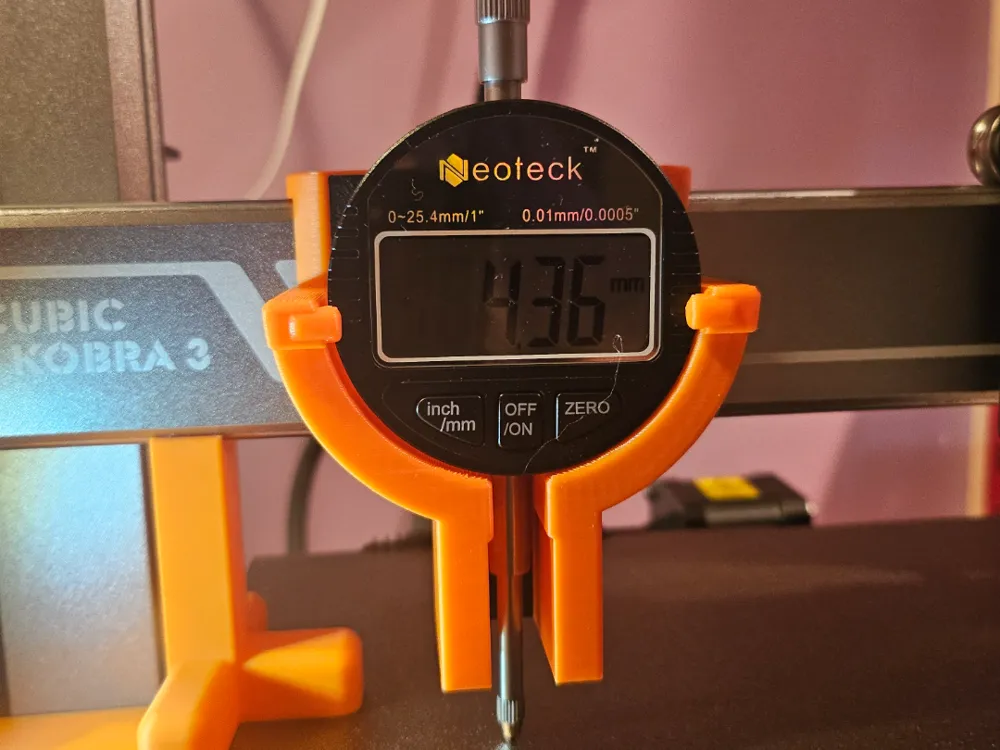

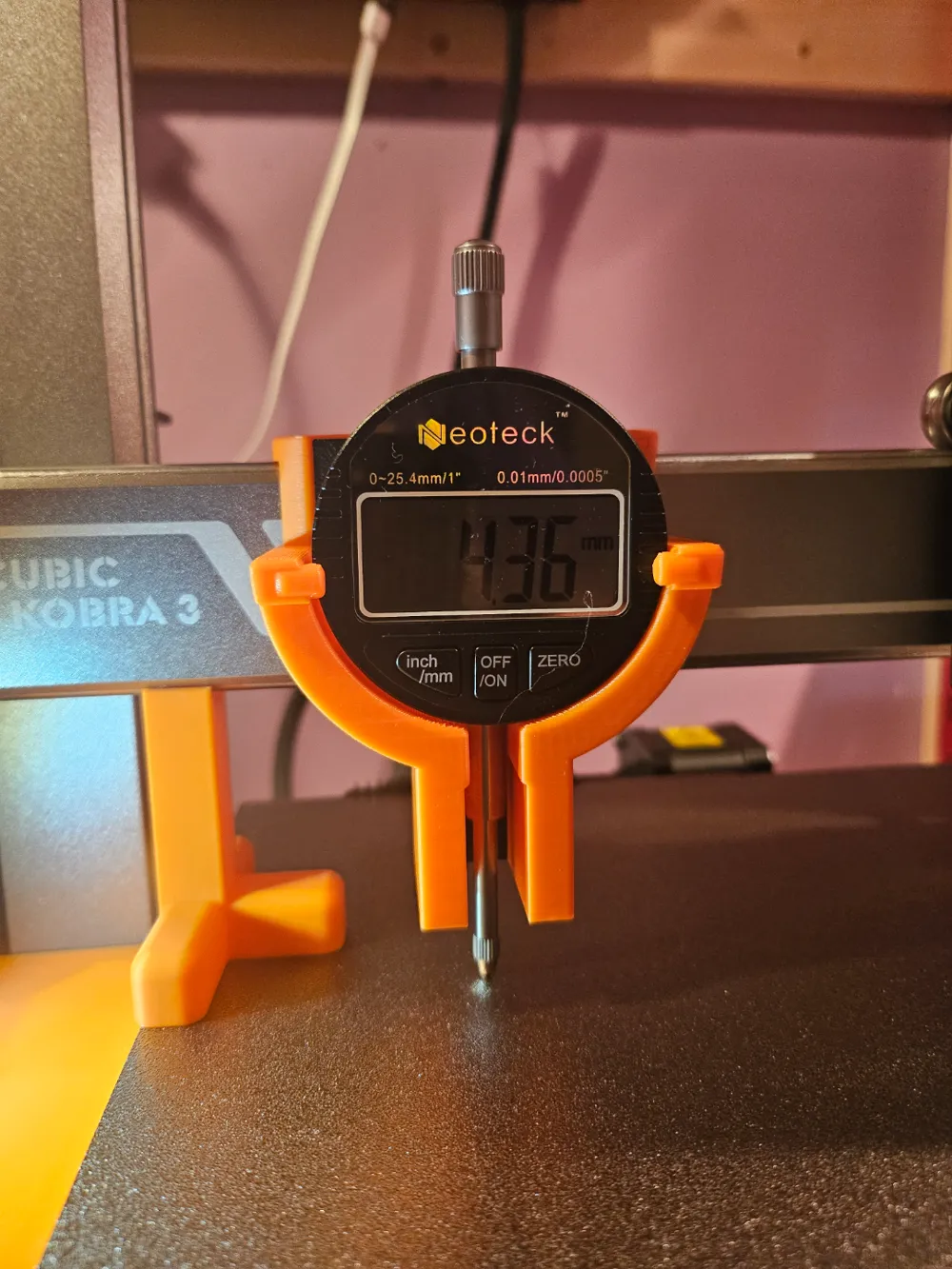

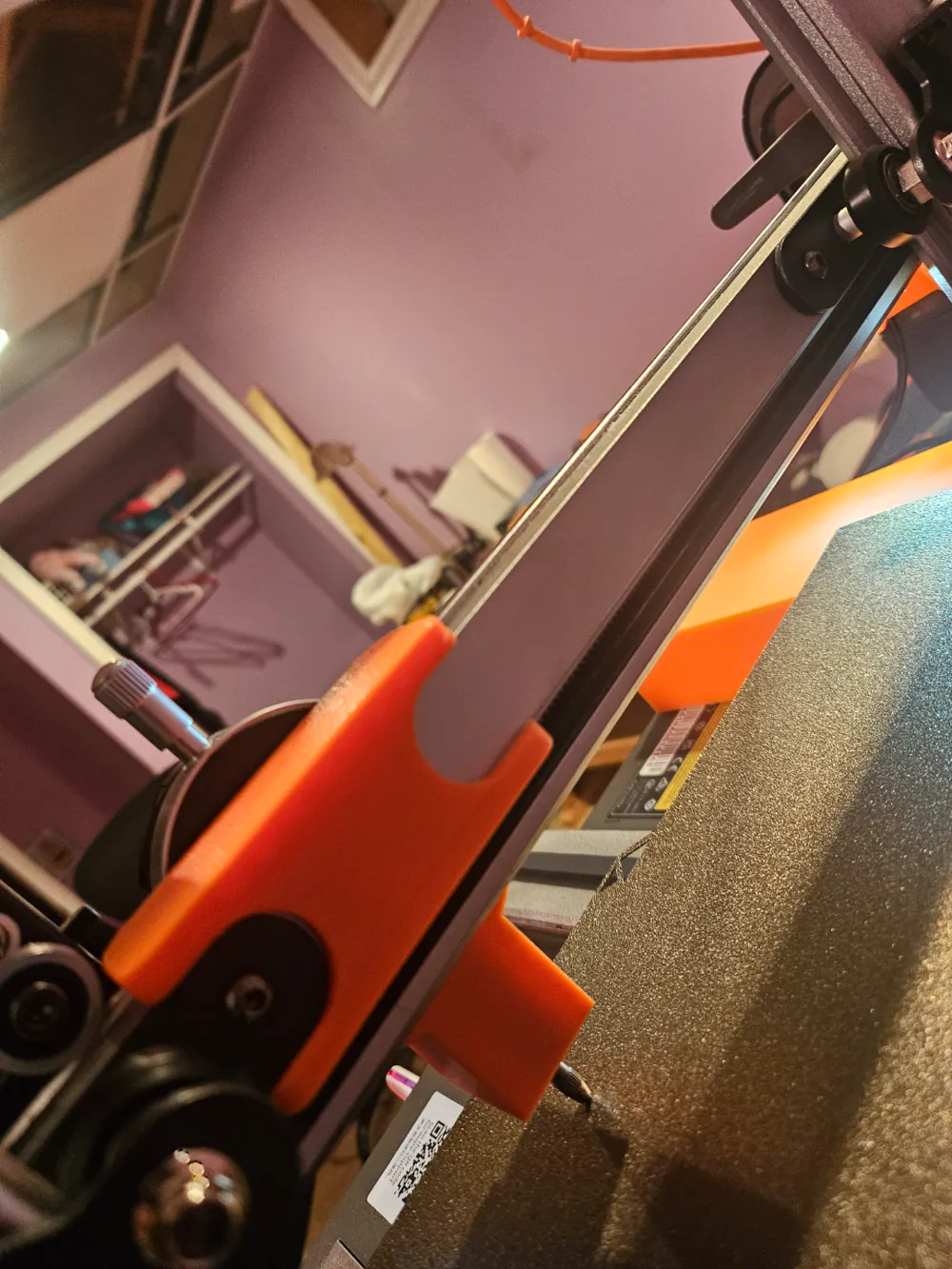

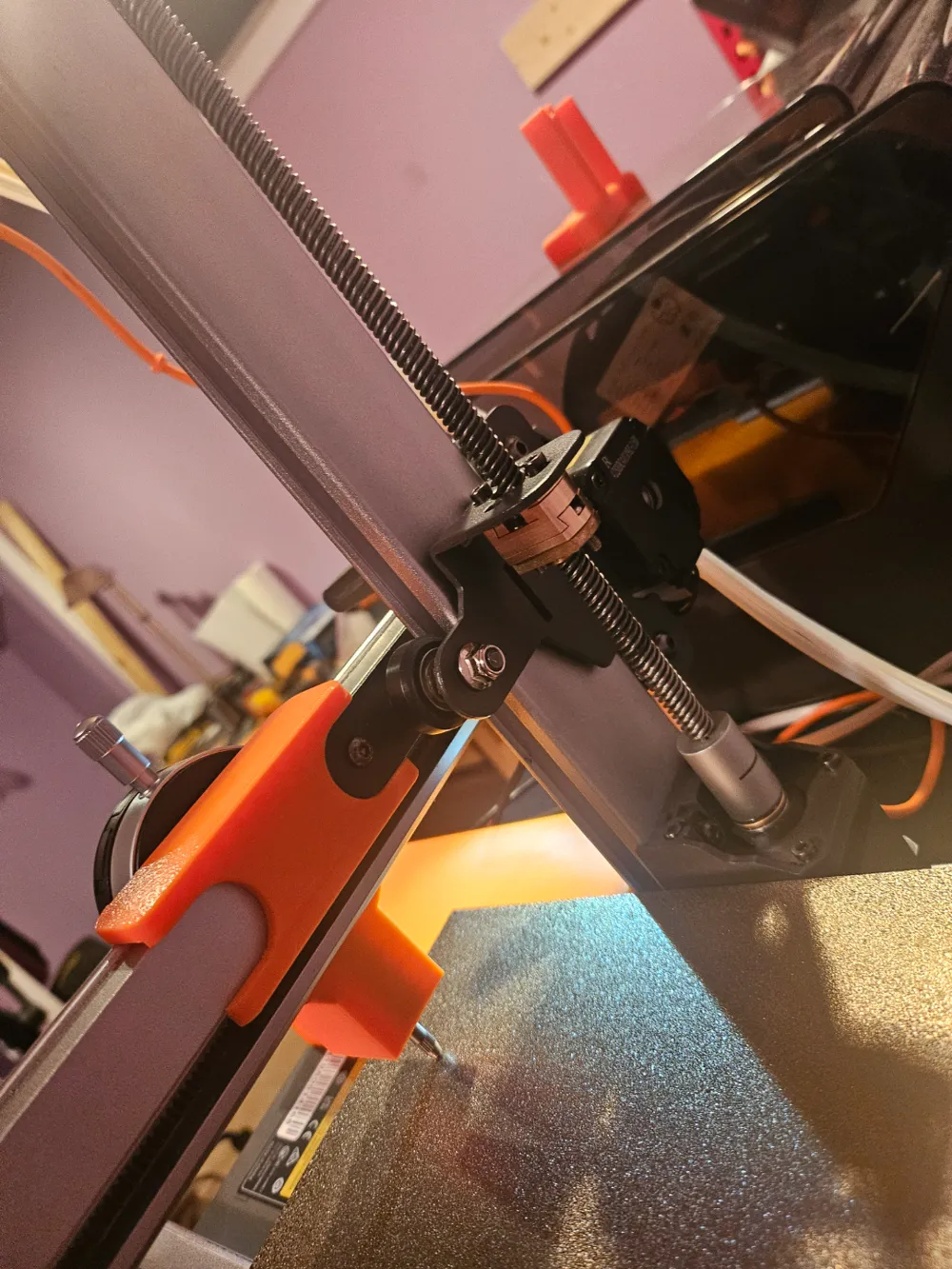

Printed this to hold my gauge so I can measure the gantry square to printer. My gauge is https://a.co/d/bd1vV5s but I would expect this will work with anything of similar size. I've included a picture of the measurements.
There is also a TPU gasket that I put on the mount so that the gauge fits snugly into the holder. The gasket is in a second profile.
Z-Banding Test Tower https://makerworld.com/en/models/1043771#profileId-1029108
Kobra 3 Gantry Stop Block https://makerworld.com/en/models/1043753#profileId-1029081
Stop block likely works for other printers.
