Released

Description

This is a remix of SnapLock 2.0 - Parametric [Beta] (which is a remix of SnapLock Storage Box (Parametric).



This box is made to hold 30 disposable contact lenses.

Internal dimensions of the box (bottom part, excl. lid) in mm: 140x50x30 (LxWxH)



In the bambulab project file you will find 2 lids, each with a letter corresponding to the eye side, and a number for the eye pwr which should be in that box.

You can edit these in the bambulab slicer, under the objects tab. Right click the “Eye pwr”  object, and edit the text.

Comment & Rating (4)

(0/5000)

Boosted
Print Profile
0.16mm layer, 2 walls, 15% infill
Works Great and Printed Great, made some additions of dividers so the lens cases stayed in place and is set up for a 7-Day week trip of two lens per day with (4) extra for spare. and a small area for a small tweezer and silicone lens insertion tool. Works great and love the SnapLock latch. Adjusted the latch width slightly for a tighter fit. hinge could use a tighter fit for more frictional tension and a mirror could get attached to inside lid so the case would really be all that is needed
0
Reply
Boosted

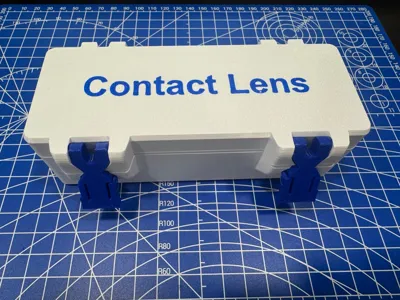

Great Design and Great Print and Great Fit & Function. Added dividers for 9-Days or a 7-Day cruise with spares and with a space to store lens grabber and insertion aid. Each section holds a (L) & (R) lens of several brands I tested. Printed with eSun PLA+ Cold White 228F/60F with 0.12 High Quality @BBL X1C profile. Latches Snap very tight and firm. Latches have A little wobble from side to side when open at pivot point but certainly snap firm in place when closed. Might try 0.25 or 0.5mm wider at top of snaplock but nothing at bottom as it fits perfect and tight. Lid hinge works very well but it is a little loose for my liking and I would like to see tighter tolerance for a slight amount of frictional tension giving you that solid feel vs a loose flimsy feel. I have thought about adding a mirror to the inside lid and then some friction on the hinges would be needed to hold the lid open to the angle needed while inserting/removing contact lens. Added filler in lid so the lens' would not move so much. Also made a half round cut to dividers to make removing a daily pair easier. Great Job, absolutely love it !
0
Reply
Print Profile
0.16mm layer, 2 walls, 15% infill
Nice print, looks great and printed with no issues. The clasps work but not great would be the only thing about this design.
0
Reply
Print Profile
0.16mm layer, 2 walls, 15% infill
