Switch Base (Gravitrax Compatible) For 1or2 Switch

Switch Base (Gravitrax Compatible) For 1or2 Switch

Boost
17
35
0

Print Profile(2)

All
X1 Carbon
P1S
P1P
X1
X1E
A1
A1 mini

Base 0.16mm layer, 2 walls, 15% infill
Base 0.16mm layer, 2 walls, 15% infill
Designer
1.2 h
1 plate

Switch 0.16mm layer, 2 walls, 15% infill
Switch 0.16mm layer, 2 walls, 15% infill
Designer
33 min
1 plate

Open in Bambu Studio
Boost
17
35
0
2
33
17
Released

Description

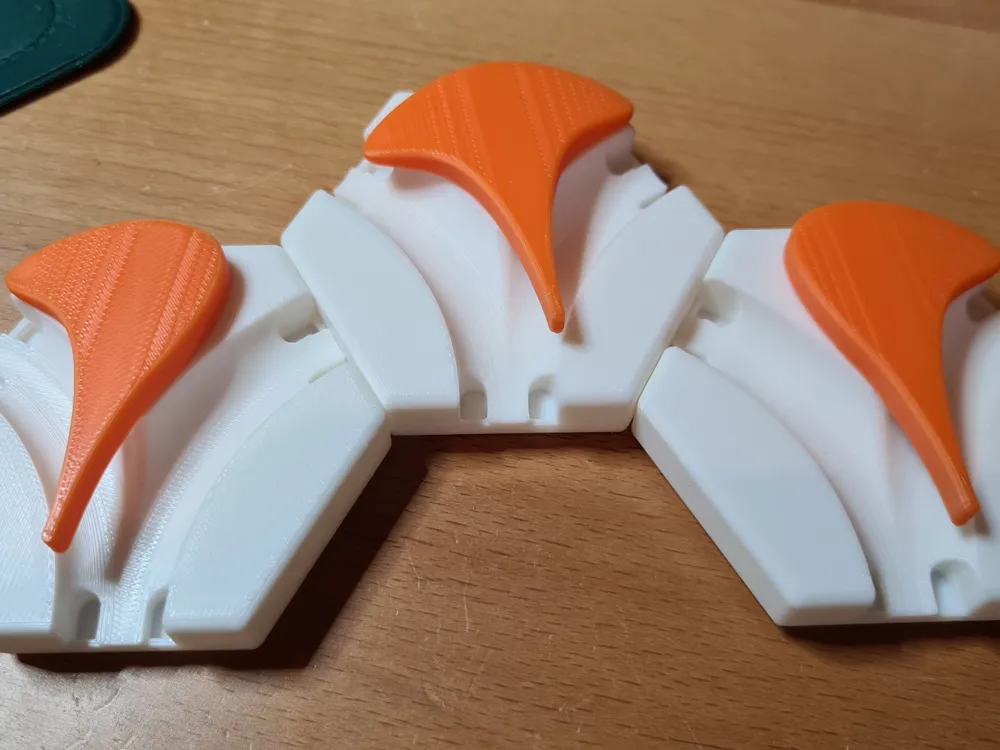

During a marble run build on a weekend, as many of you know, you are lacking of parts and the shops are already closed or don't have them in stock.
So did i with some switch tiles. The easiest way is to search for a 3D printable part, but nothing found.
Now it was time to reactivate my Fusion skills and i have build one my own from scratch based on the messurements from a 2-to-1 tile.

It works with the original switches from Gravitrax and the switches from below.







The only parts i have found were the one-turn left and right switches from the following project from Bingobricks:

https://www.printables.com/model/53475-gravitrax-one-turn-switch-einwegweiche
I have added them as a second print profile and additionally added a merged part so that there are the

following switch parts available to work with my design:

  • One turn left.
  • One turn right.
  • Left and right turn.

The axis on the bottom are very snug and press fit. (No glue needed)





Enjoy your next marble track build.
