Over Under Sawed Off Shotgun with Shells

Over Under Sawed Off Shotgun with Shells

Boost
58
102
7

Print Profile(1)

All
P1S
P1P
X1
X1 Carbon
X1E
A1

0.24mm layer, 3 walls, 15% infill
0.24mm layer, 3 walls, 15% infill
Designer
14.9 h
7 plates
5.0(1)

Open in Bambu Studio
Boost
58
102
7
5
59
6
Released

Description

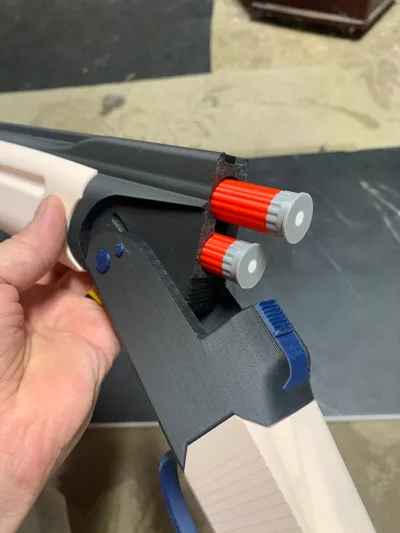

A break open over under sawed off shotgun. My first attempt over shot size-wise by about 20% too big. It looked like it was made for a giant. This is the second attempt which I am a lot happier with. This is a non-functioning prop gun mainly glued together with the aid of well toleranced alignment pins. I've printed this three times without any print issues at all. I try to not use non-printed parts but if the guide pins in the break action were steel, it would make it more durable of course. I realize this. If you would like to constructively criticize this or any of my projects, feel free to comment. For the adhesive, I always use Shoe Goo. I've also included two different methods of printing the stock. I prefer the split approach!

Comment & Rating (7)

(0/5000)

also, I don't know if you will see this but can you tell me how to assemble it? I'm trying to print certain parts in Different colors. thank you!
The designer has replied
0
Reply
It's pretty easy actually. The only important thing is to put the thumb lock in place before the rear sight. You can't really mess anything up. Let me know if you get stuck somewhere. Thanks for the boost!
1
Reply
I found the problem. the middle Section of the barrel is missing from plate 3, even though is shows that it's there in the 3d viewer. and it prints only the shorter two, so it might be a Height issue, although I have a P1S so I don't think that would be the problem. thank you for all your help so far!
1
Reply
same this here can’t find the long barrel piece
1
Reply
wow, this is probably the best break action shotgun I've seen so far! take my boost!!
2
Reply
Print Profile
0.24mm layer, 3 walls, 15% infill
absolutely amazing!!
0
Reply
No more
