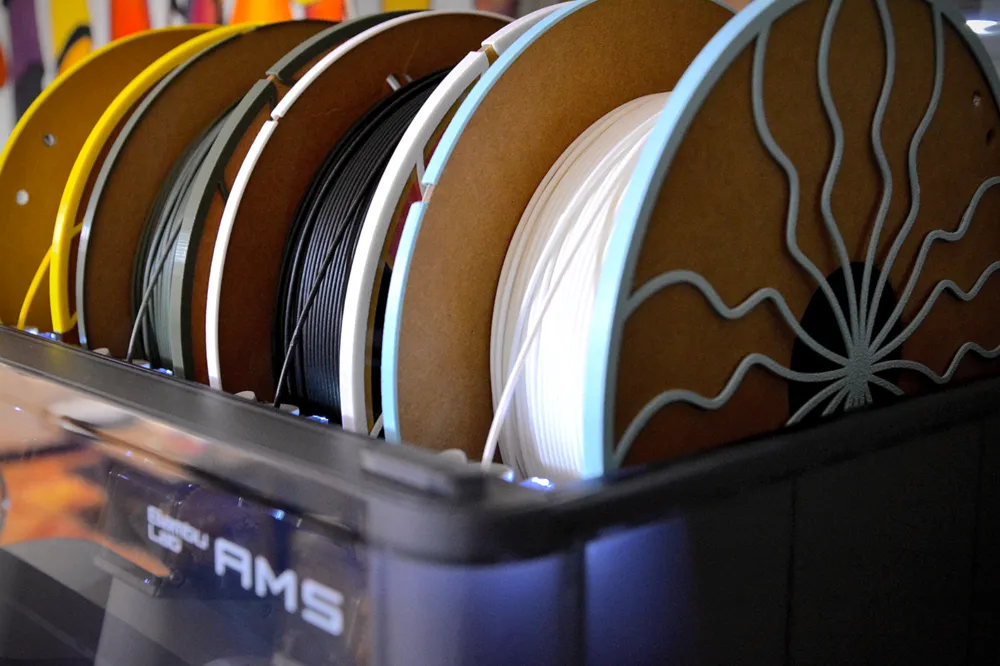

CARDBOARD SPOOL ADAPTER

Ensures a Secure and Stable Fit

Adaptive Mechanism to Accommodate 195 to 200 mm Spool Sizes

Handles Cardboard Expansion and Minor Deformations with Ease

Print Instructions & Recommendations

No support required.
Since the design has small dimensions to prevent jamming inside AMS, the following settings are highly recommended for clean and stable prints:
- Top Surface Pattern: Concentric
- Bottom Surface Pattern: Monotonic
- Internal Solid Infill Pattern: Rectilinear
- Wall Generator: Classic
- Detect Thin Wall: Disabled
Almost for all cardboard spools, printing the 3.5mm-thickness model would snap-on and lock. If it does not, try 3mm or 4mm models depending on the fitment.

Assembly Instructions

For easier installation, start by securing one edge first, then press down on it while installing the opposite side.
This adapter works with the majority of cardboard spools, and the following brands have been tested and confirmed by the community; if you have tried other spools, please share your feedback to help expand the list for everyone:
- Anycubic
- Creality
- ERYONE
- eSUN
- Inland (only with lid open)
- Overture
- Polymaker

Model Information

Dimensions (X-Y-Z): 195.5 x 195.5 x 4.6~5.6 mm
Special thanks to @Jack962, @dennishenry, and @branrollins for their quick testing and valuable feedback, especially to @branrollins for the ongoing support and detailed input.

ENJOY!
