Complete Rod Cleaner Z-Axis Version No.1 with Logo (simple and fast) Single Version

★ New ★ Update from 29.12.2023 Automatic Z-Axis Lube Helper ★ here is the link https://makerworld.com/de/models/112326#profileId-120249

★ New ★ Update from 21.12.2023 Rod Cleaner V2 Set + Lid + Toolcase Magnet Version ★ here is the link https://makerworld.com/de/models/102023#profileId-108654

★ New ★ Update ★ Rod Cleaner Set + Tool Case here is the link https://makerworld.com/de/models/99424#profileId-105992

★ Dont forget o clean your X-Axis ★ here is the link Carbon Rods Cleaner V2 X-Axis (simple and fast) https://makerworld.com/de/models/89719#profileId-96043

Based on the Carbon Rods Cleaner V2 X-Axis (simple and fast) , I have now designed a Rod Cleaner for the Z-Axis. Again, it's Simple and short time to print.

Of course, there is also a version that is a bit smoother but takes a little longer.

LET'S GET STARTED!

2. Take a sponge and cut 2 pieces to the size of 20mm x 30mm, just like with the Carbon Rods Cleaner V2 X-Axis (simple and fast) , and press them into the designated openings. Now soak them with ISO

3. Let's start the cleaning!

Place the small box around the Z-Axis, hold it with your fingers, and press the desired direction on the display... the cleaning begins :-) Pay attention to the final distance of the Z-Axis Top and Bottom . Do not drive too far, as you could otherwise damage your printer.

Cleaning the rear Z-Axis is also possible without disassembling the entire printer. For this, I recommend the Rod Cleaner Z-Axis Complete Version (what a name) here you dont need to hold it all the time, the tweezer makes it for you :-)

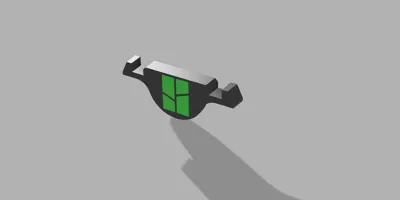

4. The tweezer for the box with the spacer is very convenient. If you use this combination, you have your fingers free and can easily clean your Z-Axis as shown in the pictures. Of course, it can also be used without a spacer.

4. After you're done, it should look like this :-)

5. After cleaning, you should grease the Z-AXIS again. The included grease in the accessories should be sufficient; if not, purchase new grease.

easy to use, easy to clean

Have fun building and cleaning!
