Ninjabox 2.0

After some feedback people was seeking for replacing the whole cardboard box.

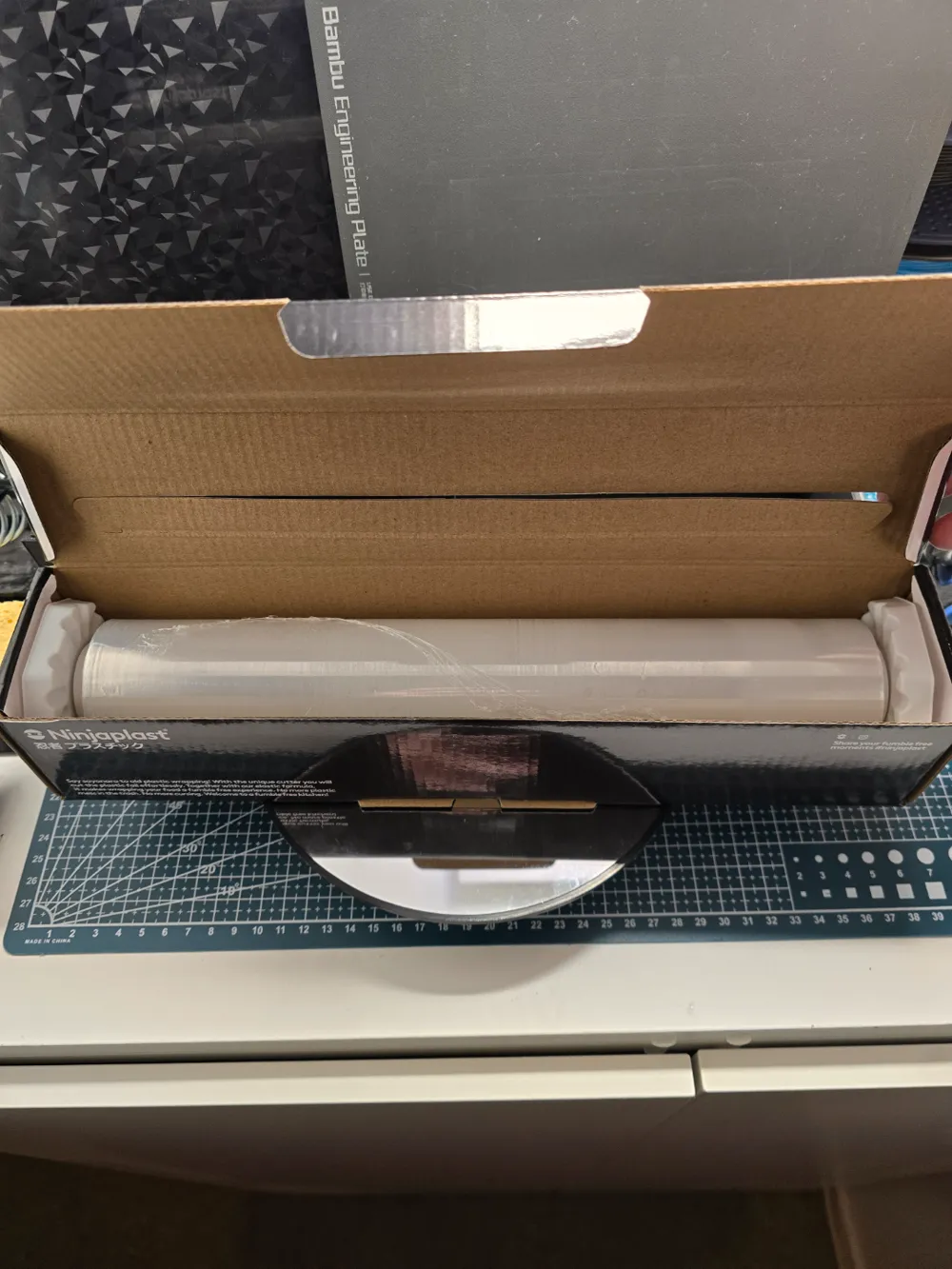

You still should buy the Ninjaplast box to begin with and then move the cutting rail and internals to the printed box.
After printing this box you could easy replace the roll with a “refill” it is also possible to change internals and use whatever plastic roll.

UPDATE 2025-01-09:
1. Better tolerances in all parts, snaps togheter nicely!

2. New and improved locking mechanism for under cabinet mount (Drop-in M2 NUT)
Requiered hardware:

2pcs M2x10mm or M2x12mm and
2pcs M2 Nut


3. Other joints for the housing  to align the model with 4pcs of 15mm filament before fix with CA glue.


4. Experimental plate:
I reccomend that you use Ninjaplast original cutter and rail + internal holder for the wrapping foil.
However i made an alternative if you would like to try with some generic foil.
Requiered hardware:
9mm razor blades for knives with “snap-off” blades.


5. Integrated wall mount in housing, then you can get rid of the side parts.


Choose what plate fits your needs the best and enjoy!
