Bambu Lab X1C/P1S LED Light Frame & Glass Riser V2 by Daniele

Daniele

3D Printer>3D Printer Accessories

IP Report

Print Profile(4)

All

X1 Carbon

P1S

P1P

X1E

H2D

LED Light Frame + Glass Riser + TPU

Designer

17.5 h

6 plates

5.0(39)

LED Light Frame + Glass Riser

Designer

16.4 h

5 plates

4.9(14)

LED Light Frame

Designer

16.2 h

5 plates

5.0(7)

LED Light Frame + TPU

Designer

17.3 h

6 plates

5.0(2)

Open in Bambu Studio

Boost

151

303

135

111

425

220

Released

Description

A huge thanks to everyone who appreciated and supported my work! Your support inspired me to create and release an improved version of the LED Light Frame for my X1C printer, which I first released last year.

Key features:

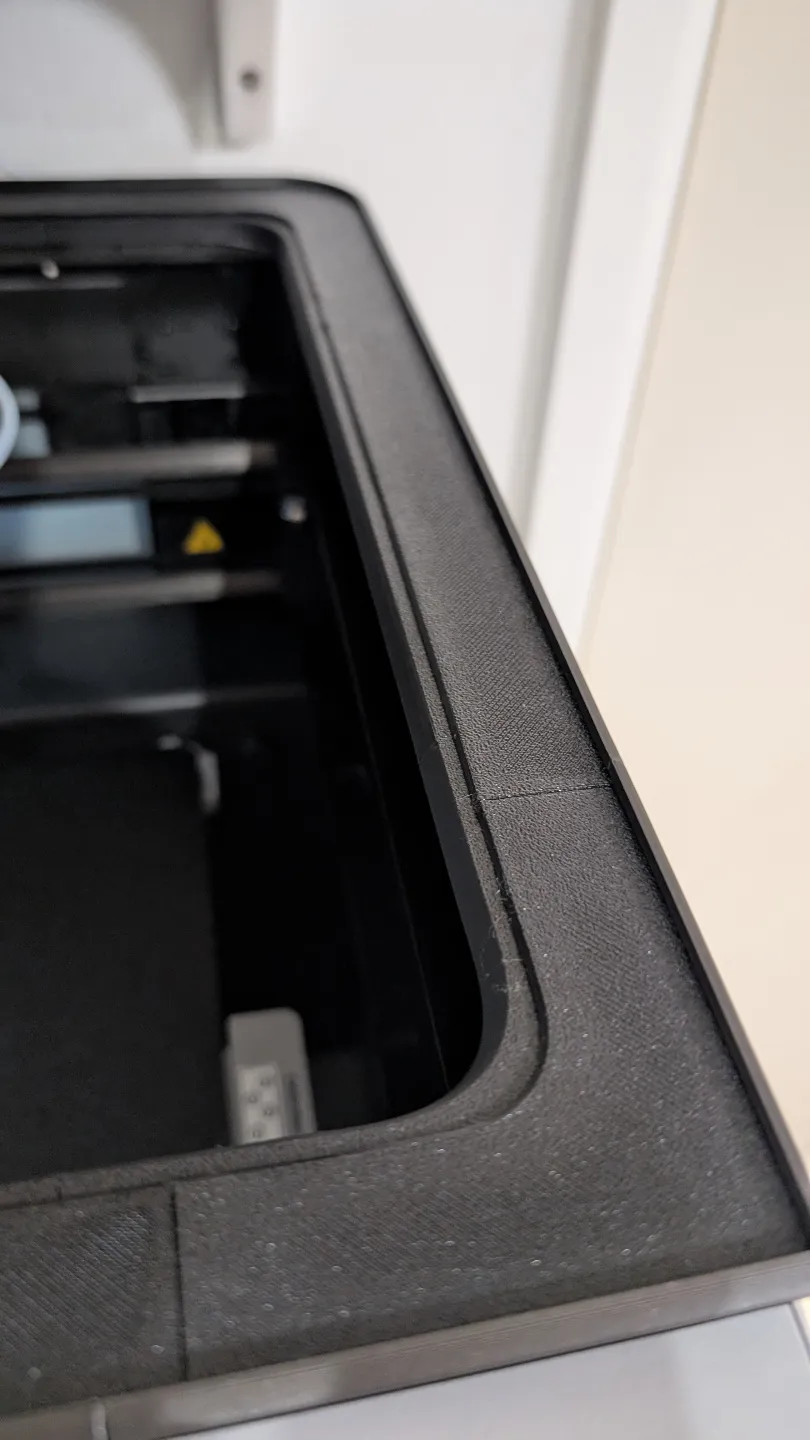

Smooth corners: No need to cut or solder the strip light.
Glass riser: Raises the glass to help dissipate heat, with 2 height options available.
No glares from the top.

Improvements made:

No glue or adhesive needed to secure the strip light!
TPU and Frame locking system: Easily assemble and disassemble for future add-ons.
Once assembled, the frame is now a solid, properly locked piece.

The model has 4 options (4 Print Profiles are available):

Frame & Glass Riser & TPU gasket.
Frame & Glass Riser, without TPU.
Frame & TPU gasket, without Glass Riser.
Just the Frame, without Glass Riser and TPU.

About the strip light:

This model is designed for strip lights with a max width of 10mm. However, I recommend using an 8mm strip light, as shown in my pictures and video.

Feedback is very welcome if you try a 10mm wide strip light or one from the Bambu Lab Store!

I've tested two types of strips, both 8mm wide:

They both fit well, but I recommend the one on the right, which you can also find here:

https://www.amazon.co.uk/dp/B0B7BBYCZ4

https://www.amazon.de/dp/B0B1J69YMH

Printing instructions:

1) Print the base: Choose the plate you need; the cable hole can be on the back left or right side (from your perspective).

2) Print the top: Use dual or single colour. The model is the same, but I painted the dual-colour version to add a bit of reflected light from the frame.

3) Print the TPU. This plate is only included with the TPU gasket option.

4) Print the Levers & Clips plate. This plate contains the Levers only with the Glass Riser option.

Suggestion:

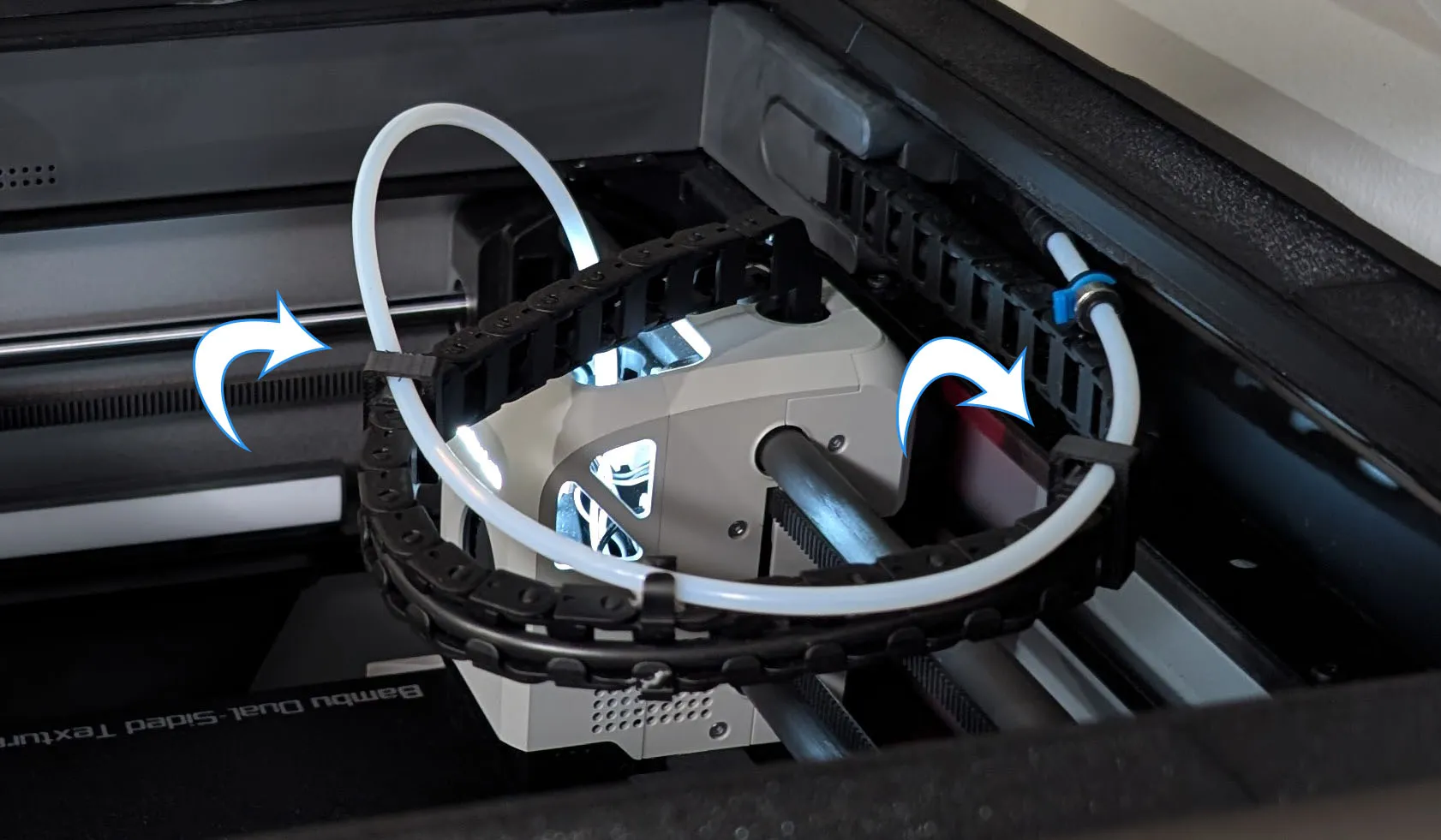

I recommend printing a couple of Clips PTFE Chain from Ariox3D to keep the tube from bumping into the strip light rail.

Assembly instruction:

If you also need a Spool Holder, check out my add-on here:

https://makerworld.com/en/models/1107529#profileId-1103520

Boost Me (for free)

If you love my models and want to support the creation of new, exciting pieces, or if you simply have a Boost to spare, I would greatly appreciate it! Thank you so much for checking out my model!
