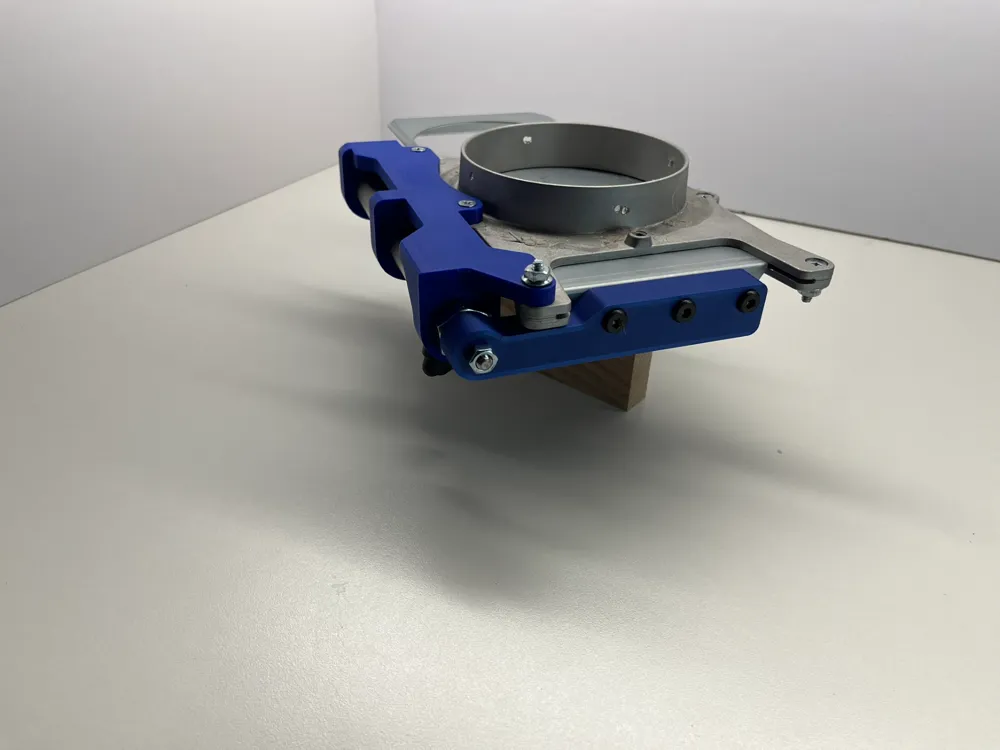

I'm building a dust collection system with an Arduino and Air Cylinders. This mount is for a 20mm x 5" Throw air cylinder on a 5" blast gate.



Air Cylinder: https://a.co/d/59okABm

Blast Gate: https://a.co/d/5fEGzwZ



Mounting Screws: M3x20



Learn more about how I'm building the dust collection system at https://tbadger.com/dust-collection-system



mount adapter
pneumatic

Comment & Rating (2)

(0/5000)
@BullBurl
can this be scaled for 2.5 and 4 inch blast gates?
(Edited)
The designer has replied
0
Reply
@retired_badger
I don't know, but my guess is no. The spacing of the bolt holes, plus the throw of the cylinders would have to be carefully calculated. I do have a 4" blast gate somewhere I'll take a look at. Thanks for asking!
