Samyang 135 Ring System for Astrophotography
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
71
162
13
20
194
55
Released
Description

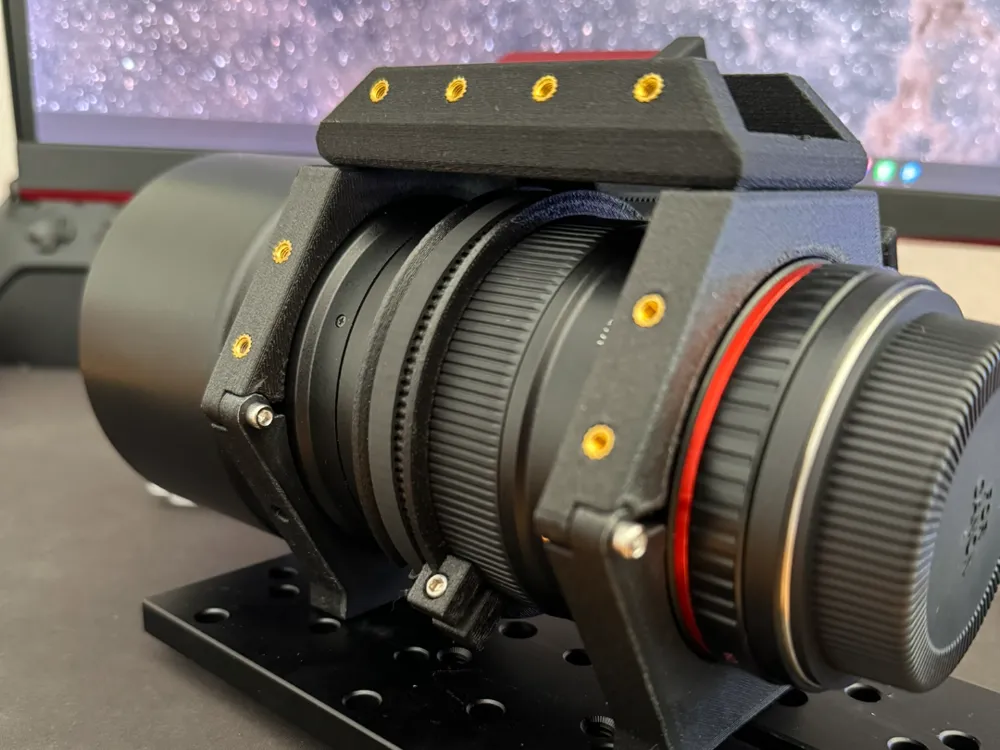

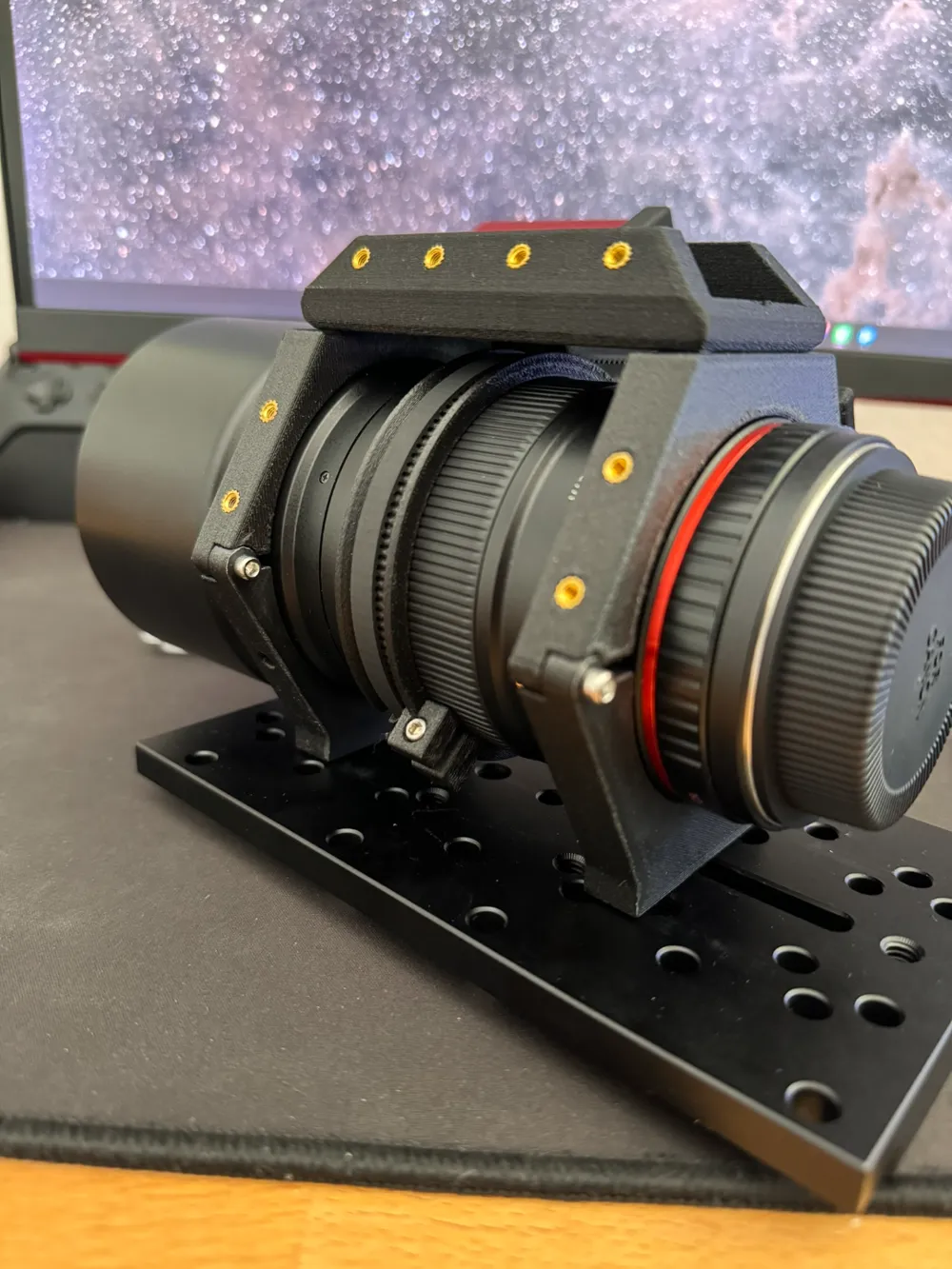

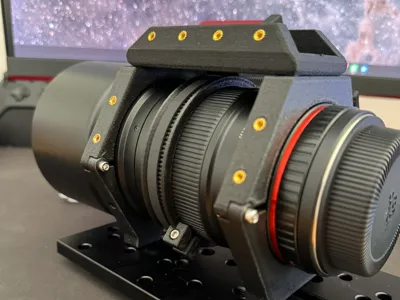

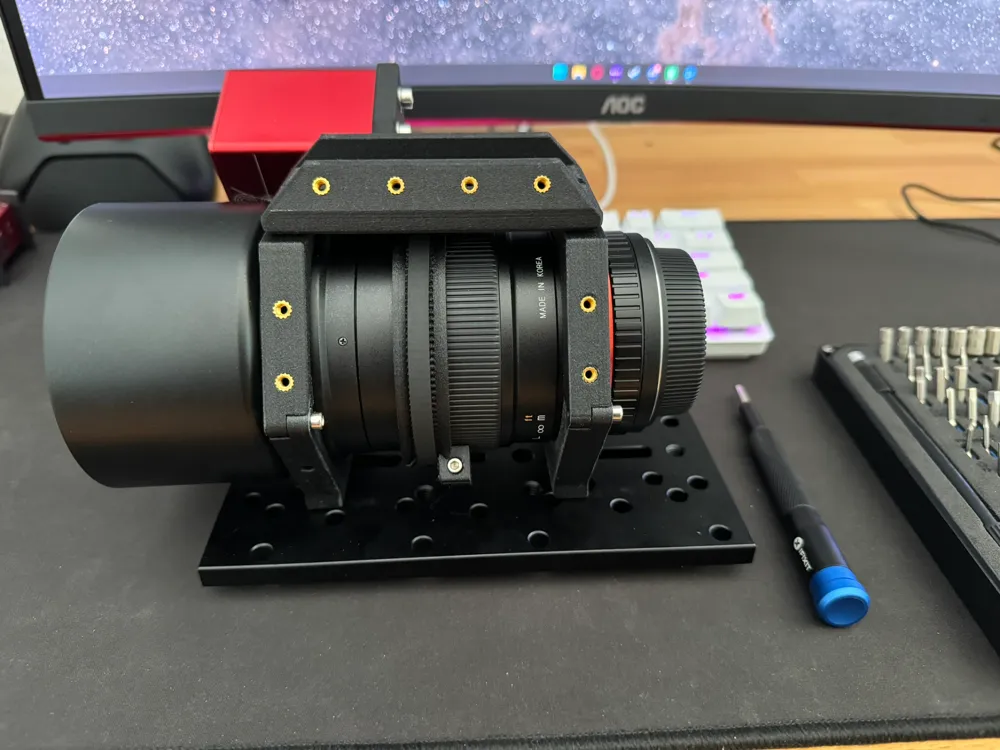

A Ring System for the 135mm Samyang, i tested it now for more than a Year and i am pretty happy with it.
There is a BOM below, if u have any questions feel free to contact me.
| Item to be created: | Samyang 135mm Rings | ||
| Qty to create: | 1 | ||
| COMPONENT | DESCRIPTION | BASE QTY | COST PER UNIT |
| Heat Inserts M6 L=10mm W=8mm | Insert into the Bottom of the Rings | 2 | €0,33 |
| Heat Inserts M3 L=4mm W=5mm | Insert into the left holes | 16 | €0,16 |
| M3x12mm Cylinder Head Screw | To Connect and Clamp the Rings | 4 | €0,07 |

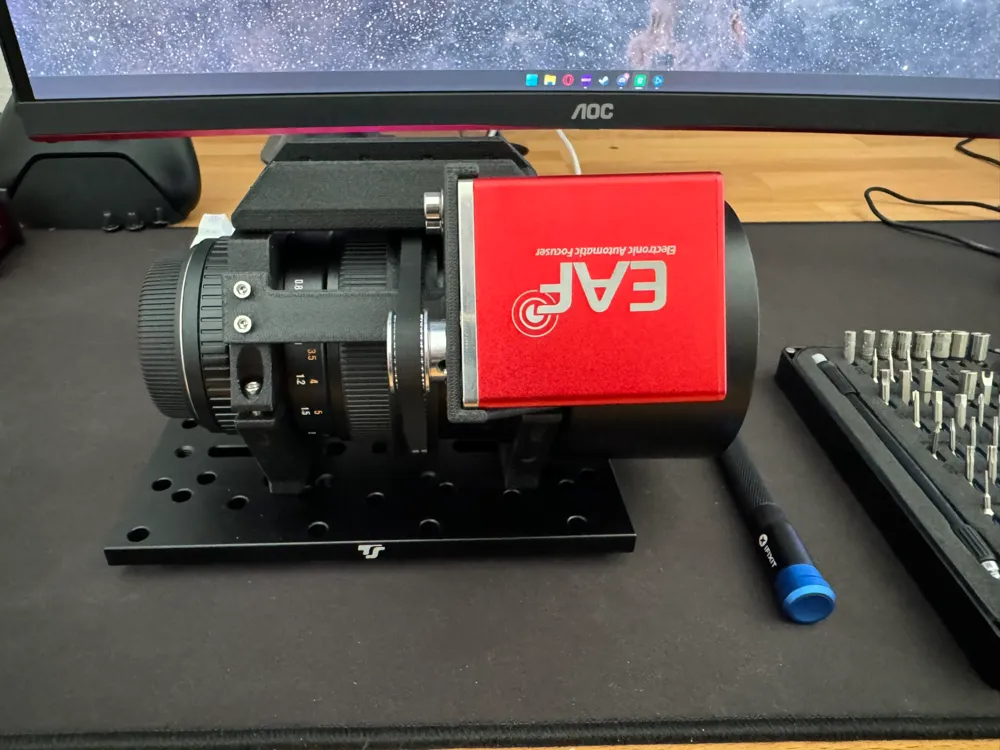

| M3x8mm Cylinder Head Screw | Vixen and EAF Plate opposite side | 4 | €0,07 |
| M3x16mm Cylinder Head Screw | Focus Ring | 1 | €0,12 |
| M3x6mm Cylinder Head Screw | EAF Plate | 2 | €0,07 |

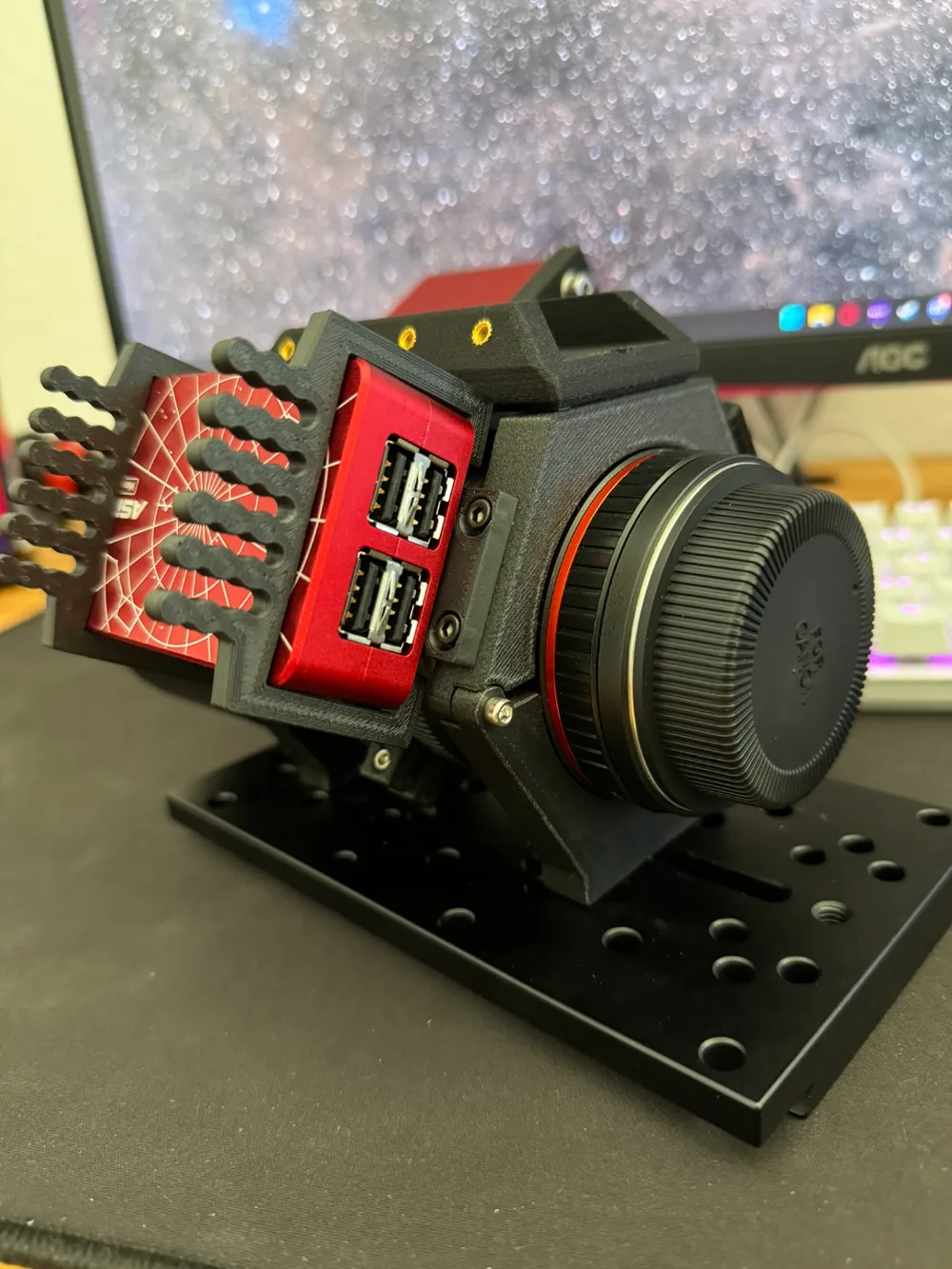

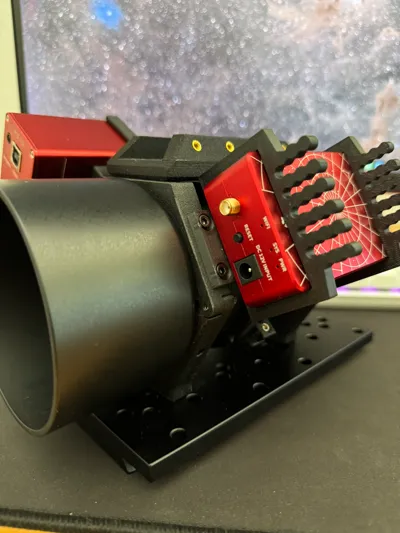

| M3x4mm Cylinder Head Screw | ASI AIR Holding Plate | 4 | €0,18 |
| M4x8mm Cylinder Head Screw | EAF Plate | 2 | €0,12 |
| M3 Nut | Focus Ring | 1 | €0,03 |
| M4 Washer | For the EAF | 2 | €0,07 |

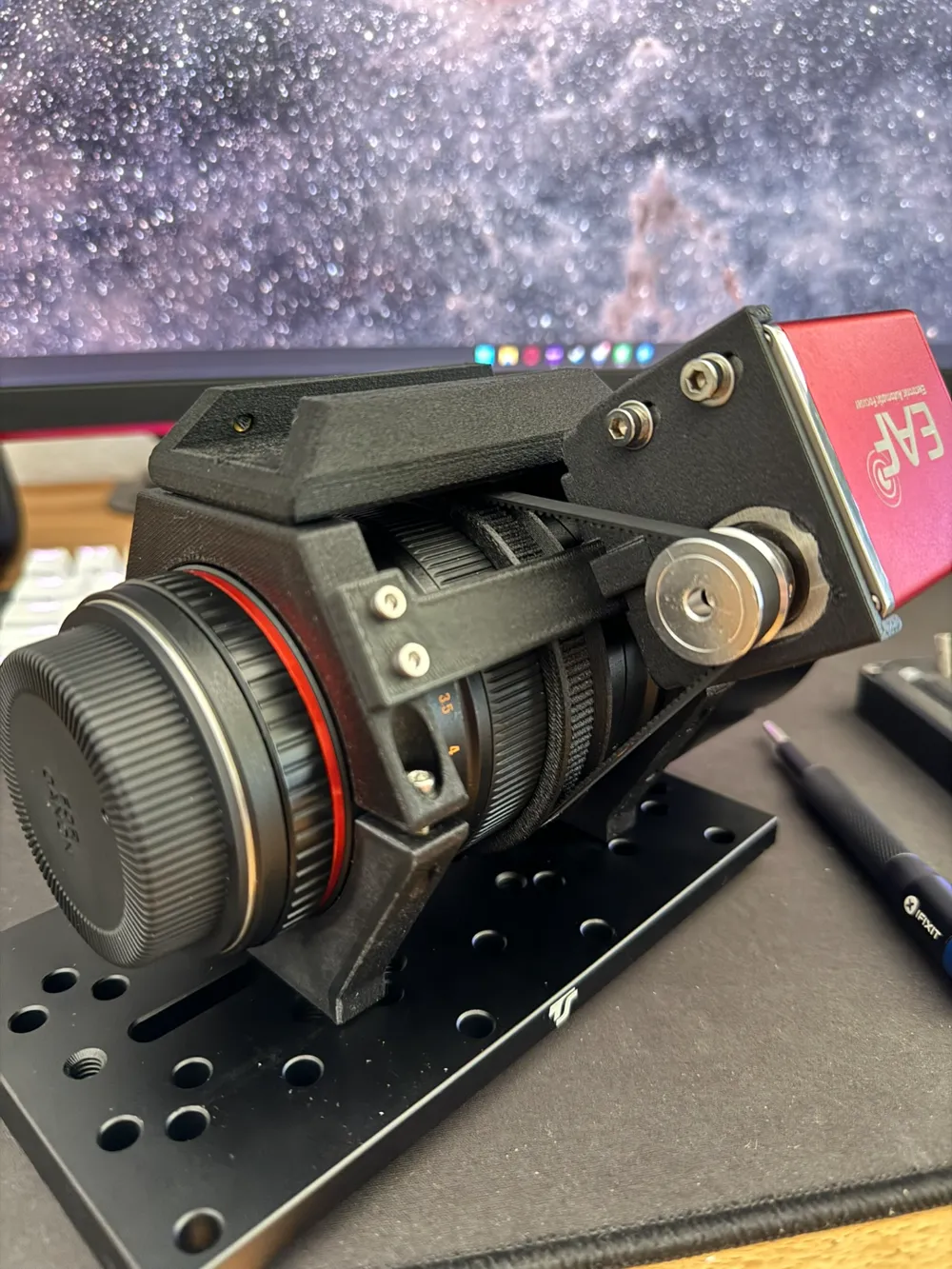

| 328mm GT2 Belt | 1 | €4,50 | |
| 30t-5mm Pulley | 1 | €3,75 | |
| M6x? | Vixen/Losmandy | 2 | ? |
| TOTAL COST: | €13,43 | ||
