All standard sized Metric Bolt bins, 1x1x5, With Multi-Color raised labels.

Uses Gridfinity Refined Slot-In style 6x2 Magnets, no glue necessary, can be reversed if needed.

Has Finger Scoop to make getting the bolts and nuts out easier.



I needed more sizes than other files on here provided so I made my own set, all letters are 1mm or 5 layers, assuming .20mm layer height.



All Labels are done in Bambu Studio, So you can select the text in object selection and edit it as necessary.



I have Created M3,4,&5 bins to start will upload more profiles as I get  them made/requested.

Boost Me (for free)



Looking to get started? Bolt Depot Has the best selection and very competitive prices, best part they do individual bolts so you can buy exactly what you need and nothing you don't.

Here is a great beginner set of metric bolts, doesn't cover every size available but in my experience covers alot of projects on here. Amazon  (Affiliate links, I may earn commission from purchases made through links on my models, which help support my work.)



Comment & Rating (39)

(0/5000)

Print Profile
M3 Complete Set

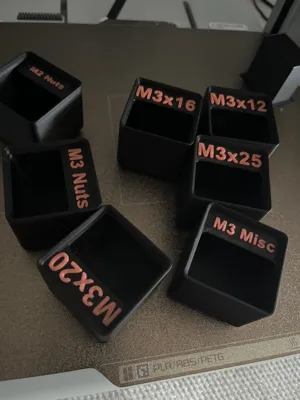

It printed beautifully, but I did not know it needed the square magnets, so I could not test the fit of the magnet.
1
Reply
It takes round 6x2 magnets, the holes just look square to allow you to push them out if needed.
2
Reply
also what filament is that, looks awesome!
2
Reply
Replying to @Pedro48 :
The red lettering is Bambu basic red the body started out as Jessies elixir at https://www.printedsolid.com/collections/jessie-premium-elixir the best silk I have used and made in the US. I was just looking what had as end of the roll I was using up some that I had as part of their 250 gram import sets andn i used the auto runout feature of the AMS I think they were part of this SKU https://www.printedsolid.com/collections/ps-imports/products/ps-imports-pla-1-75mm-x-sample-packs-dual-color
1
Reply
Print Profile
M5 Complete Set
Love this I have made many of these. Some with the current labels and a bunch with my own custom label. I have been printing bins for days now lol
1
Reply
It's the grid addiction, glad I could help, those look amazing!
1
Reply
Boosted
This print perfectly. Being able to easily customize for my Rugged Gridfinty cases is perfect and really helps me to organize at a higher level. Thank you!!!
The designer has replied
1
Reply
Those look great!
1
Reply
Great little print. Thanks for the upload. Would it be possible to change the lettering for the Bambu hardware, I have a lot of the screws and bolts that are BT rather than M
The designer has replied
1
Reply
You can edit the text In Bambu Studio >Objects>Edit Text>Input Text
(Edited)
1
Reply
Boosted
Print Profile
M3 Complete Set
everything fine!
1
Reply
The quality was excellent and I really like the bins. However, mine printed the colors differently from the photos. Not sure why as I sent the file directly to my P1S from Bambu Handy???
0
Reply
Print Profile
M4 Complete Set
printed perfectly and did the exact job I needed them to.
0
Reply
Boosted
Print Profile
M5 Complete Set
1
Reply
Print Profile
M3 Complete Set
0
Reply
Print Profile
M3 Complete Set

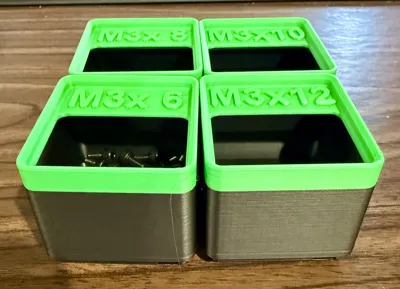

Awesome to sort all my different M3! :)
1
Reply
