Govee Floor Light Wall Mount

Copyright Claim

Govee Floor Light Wall Mount

Boost
4
14
1

Print Profile(1)

All
A1 mini
P1S
P1P
X1
X1 Carbon
X1E
A1

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
1.4 h
1 plate

Open in Bambu Studio
Boost
4
14
1
0
4
3
Released

Description

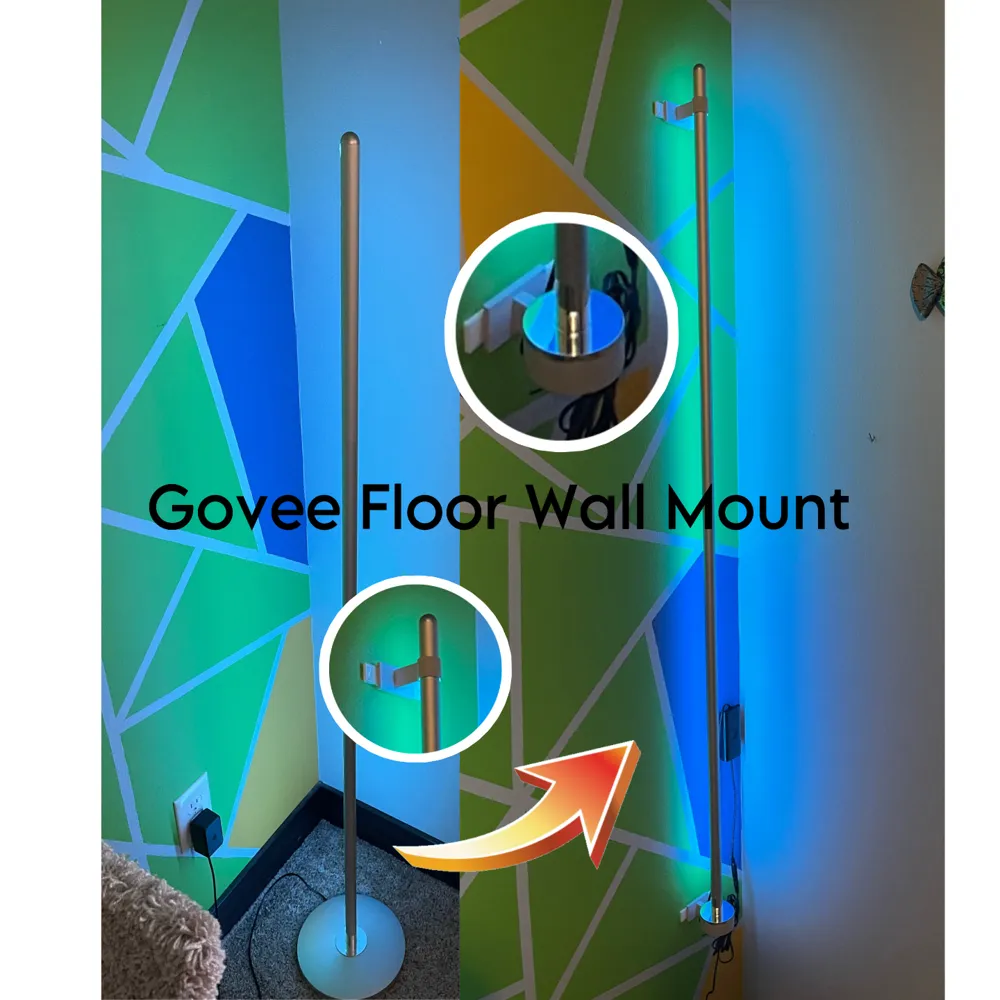

This is a Govee Floor Light Wall mount so you can hang it up on your wall. This took me some time to make, so I hope you like it.



WARNING

If you print this for your lights, your lights cannot go back to original form.



Directions;



First you want to feel at the bottom of your light for 6 screw holes, 3 one each side, and mark it in some way for you to know where they are

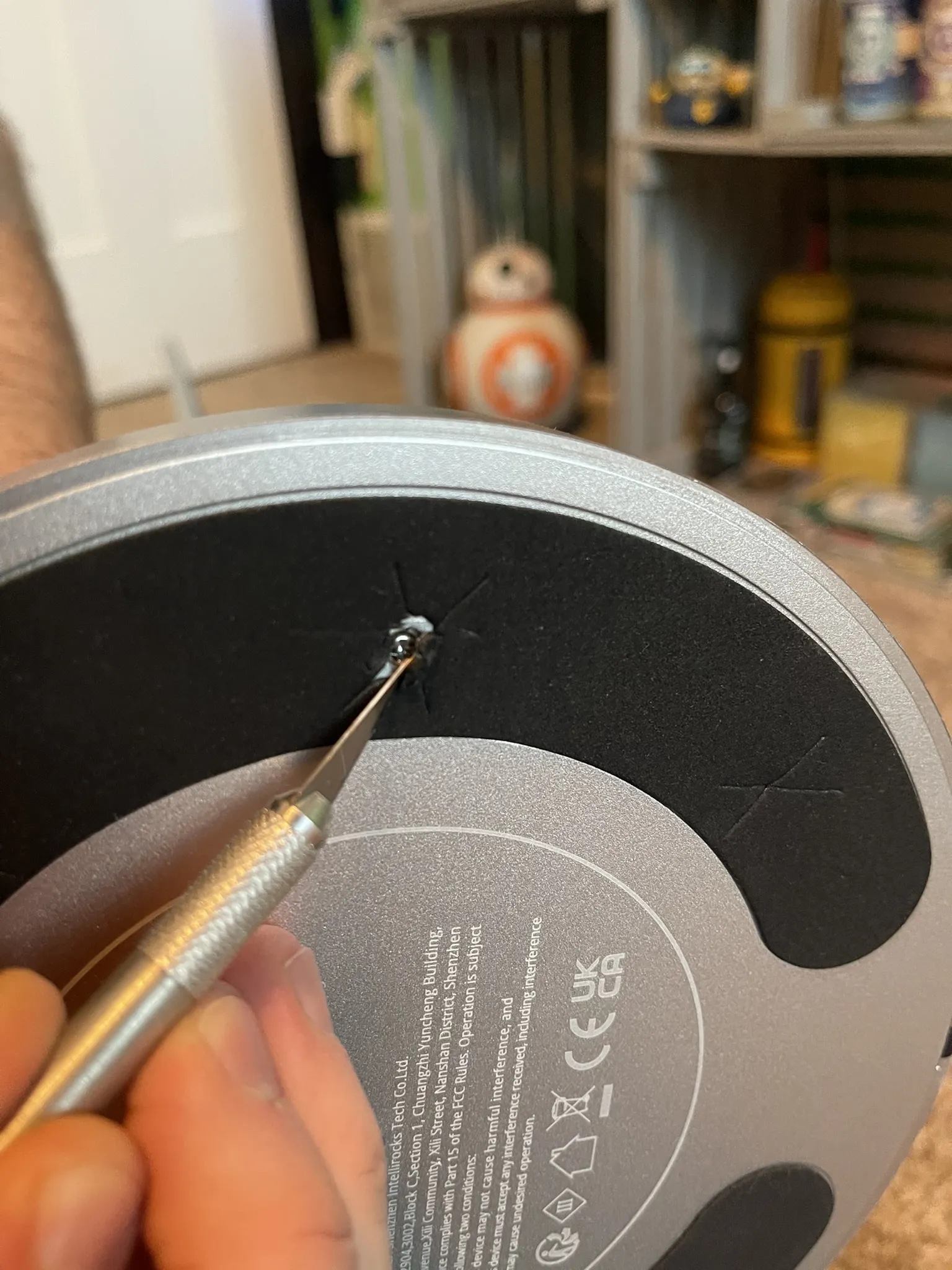

Next, you want to carefully use scissors to dig up the foam so you can see the full screws

When you unscrew all the screws, and take the bottom plate off

Then take off the next plate

then you want to unscrew the nut and slide both the nut and the washer down the cord, don't take it off though

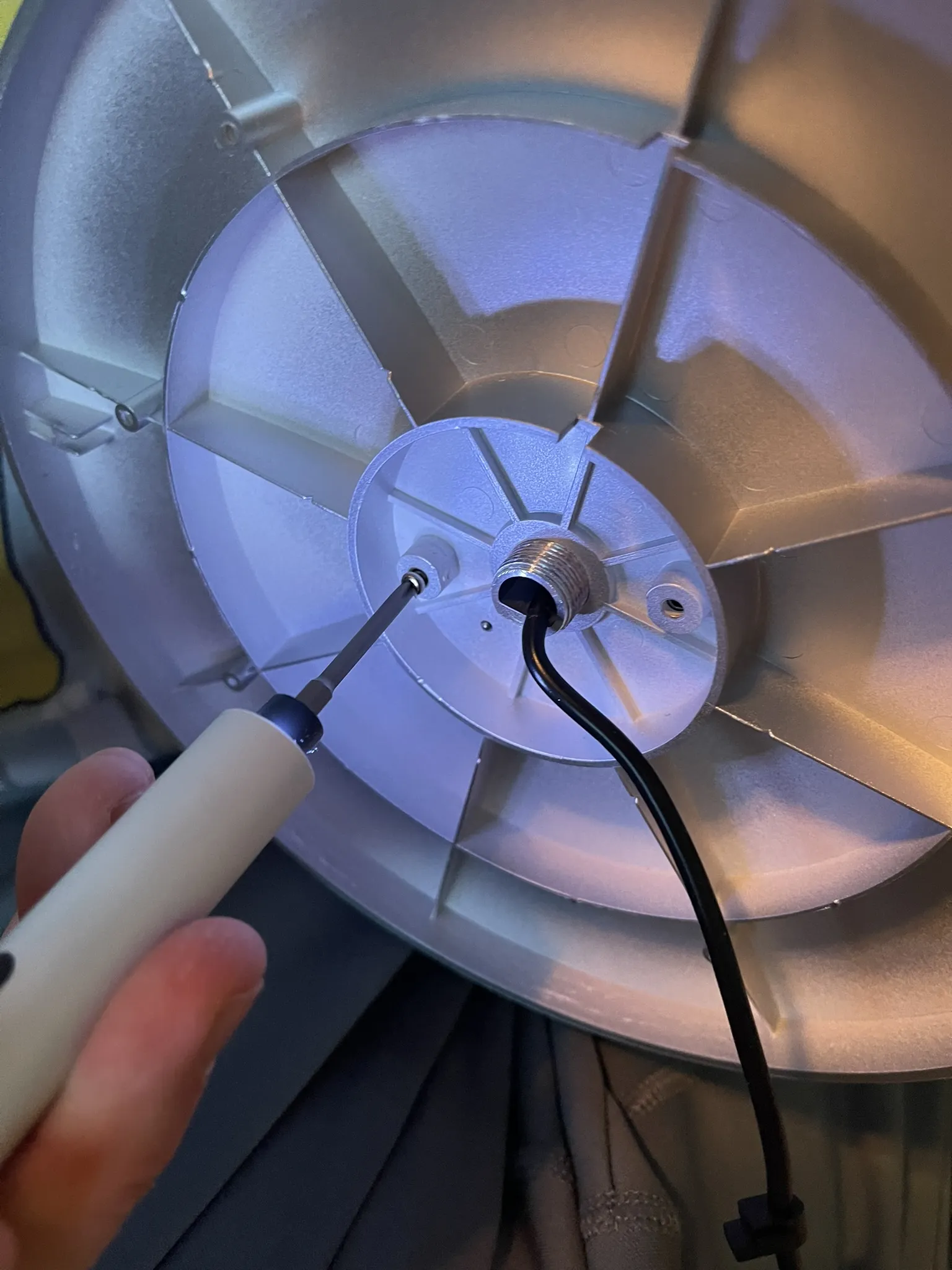

then you want to unscrew these two screws and take the final plate off

then you want to slide the silver part down a little on the cord, and carefully take apart the two cords on the connector

these are the parts you need to keep, washer, nut, cord, and silver base thing, the other plates you can get rid of

then put the washer in the silver base, the put the 3D printed base on top

Next, fish the cord with the washer and nut through the piece you made above

Then connect the cord with the light cord and put the piece you made at the bottom of the light

Then screw the nut back on the light with the washer in-between the nut and the 3D printed base

the rap the cord a little inside the circle

and tape it shut

next slide the other 3D printed piece down the light and either tape, put Velcro, or screw holes and put it on the wall

Then you're done! hope this isn't confusing at all and hope everything works out well!

Boost Me (for free)

I would like a boost, helps me out, don't have to though.

Comment & Rating (1)

(0/5000)

printed but just saw your comment about it not being able to go back to original form, can you clarify why it cannot? seems the only thing not able to reverse is the foam feet
