This is an official component set by Bambu Lab for the A1 printer. The AMS lite Top Mount setup is a tested solution for mounting the AMS lite on top of the A1 printer.

The component set consists of two main modules:

Top Mount Bracket
Z-Axis Stiffener

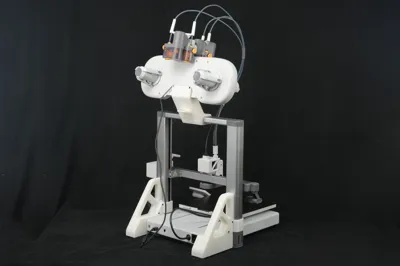

The Top Mount Bracket is meticulously designed to be tilted to the front for better balance. Additionally, the upper half of the bracket can spin left and right, providing easier access to the back spools.

The Z-axis Stiffener is designed to dampen back-and-forth printer movements. Thanks to the special elastic damper design at the bottom, there is minimum wobble even when printing in ludicrous speed with AMS lite fully loaded.

Assembly

Here is a tutorial video for the installation:

You can also buy the required hardware as a kit from here:

http://store.bambulab.com/products/ams-lite-top-mount-screws-kit

AMS Lite Top-Tier Solution

Documentation (1)

Assembly Guide (1)

AMS Top Mount Parts list & diagram_ee573813-d125-4bbd-9e70-03142a28c5ab.pdf

Comment & Rating (10409)

@Bman__

I didn't quite trust that the latch wouldn't just give way at some point so I put Heat Insets into the latch as back up. See attached.

@Eifelfarmer

yeah I have the same concern at will likely do the same, thanks for the tip.

@Bradcooper122

Replying to @Eifelfarmer :

I have been running the hell out of it and the latch has held up perfectly.

@Jpson67

What size on the insert's

@3DERRE

The print profile is no longer public
