DeWalt 20v Battery to Wires Adapter by Griffin

Griffin

Tools>Gadgets

IP Report

Print Profile(2)

All

X1 Carbon

P1S

P1P

X1E

A1 mini

H2D

0.2mm layer, 4 walls, 25% infill

Designer

1.4 h

1 plate

5.0(5)

0.2mm layer, 4 walls, 25% infill

Designer

1.4 h

1 plate

Open in Bambu Studio

Boost

126

143

102

Released

Description

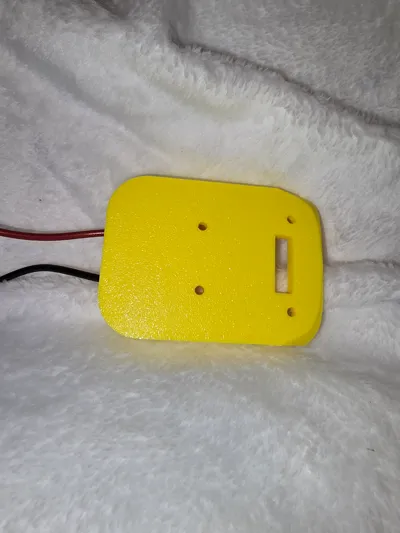

This model makes you have wire pigtails for DeWalt 20v Battery.

You will need:

2pcs 16-14 Gauge Male Disconnect crimp

5pcs #4 x ½" Metal Screw (M3x12 Screws)

Wire

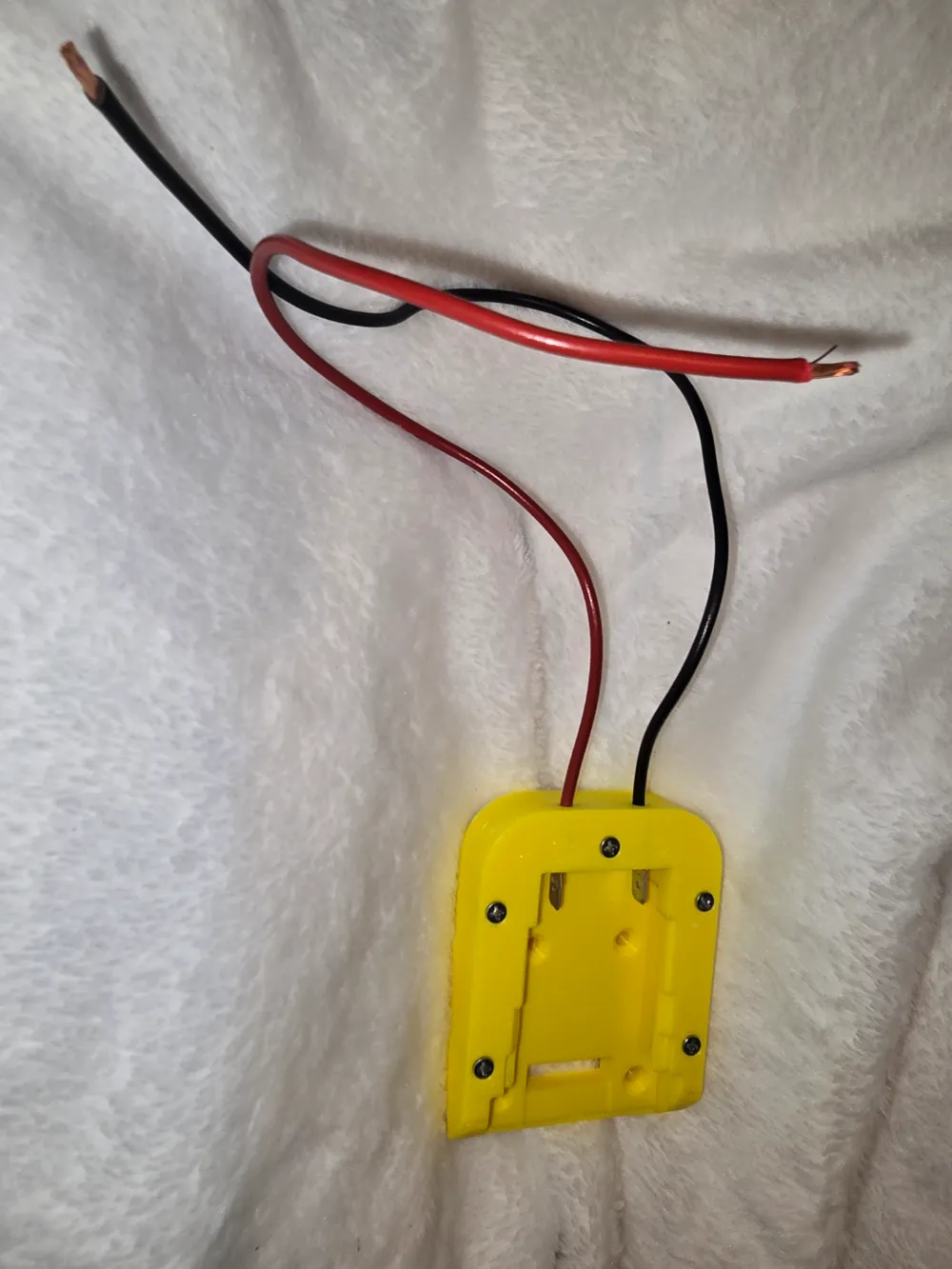

To assemble:

Apply Male Disconnects to wires
place male disconnect/wire in the groove in the pint (I used yellow male disconnects and removed the yellow plastic)
sandwich the top and bottom to hold wires
Secure top and bottom with 5 #4x1\2" screws

dewalt

dewalt 20v

Adapter
