Description

Have a mount for my AMS that caused the PFTE tubes to slack into spots where it could get stuck while it was printing

Have seen circular similar guides but created this wider angled one to allow the PFTE tubes to slide and move around freely without causing strain on any of them and to keep them secure from getting stuck anywhere else

UPDATE 2.8.25

NEW Straight Orientation Loop Versions (All 3 Sizes)

UPDATE 1.9.24

Removed issue with small cube that was floating in original design

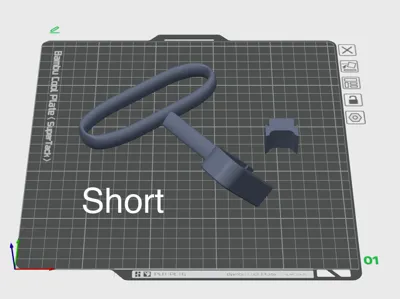

3 Sizes now, Big (Original Size), Medium (Shorter Stem), Small (Shortest Stem)

A1 PTFE Tube Support/Guide - AMS Lite

ams

ams lite

polytetrafluoroethylene
