X1/P1 Heavy Duty Swivel Link Printable Cable Chain by BMP_LLC

BMP_LLC

3D Printer>3D Printer Parts

Print Profile(1)

All

X1 Carbon

P1S

P1P

X1E

A1 mini

0.16mm layer, 5 walls, 100% infill

Designer

1.1 h

1 plate

Open in Bambu Studio

Boost

Released

Description

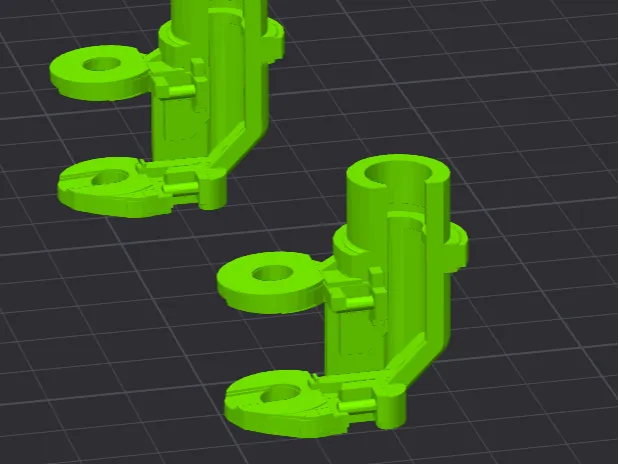

Here is the Heavy Duty swivel link I created for the X1/P1 printable drag chains! This is an upgrade from the other swivel link model in my cable drag chain assembly files for those that need a more permanent chain/link/connector to the toolhead. This is heavily reinforced, angled up 1 degree, with a flange that sits against the top of the print head when snapped in place to prevent rocking/tilting that wears out the other swivel links after a while of printing a lot of high temp filaments. This was the weakest link in the drag chain assemblies but here's the solution! Printed these in standard PETG, PETG-CF, & PETG-HF but will work with other filaments, but definitely do not use PLA.

*LINK TO HEAVY DUTY PRINTABLE CABLE DRAG CHAIN -

https://makerworld.com/en/models/852277#profileId-800682

Thank You!

bambu lab x1 cable chain toolhead swivel link heavy duty

strong swivel connector for printable cable drag chain

heavy duty printable cable chain parts

x1c

P1P

P1S

bambu lab printer canle chain toolhead link

cable chain to toolhead

x1c upgrade

Comment & Rating (5)

@ATC_OFFROAD_BMP

Link to chain links with integrated swiveling PTFE clips 😁👍 Two versions, one with a lighter clip and one with a heavy duty clip for you to choose from https://makerworld.com/en/models/1066409

(Edited)

@ATC_OFFROAD_BMP

PRINTABLE CABLE DRAG CHAIN ASSEMBLY FOR THIS SWIVEL LINK AND MOUNTING SYSTEM https://makerworld.com/en/models/852277#profileId-800682

(Edited)

@ATC_OFFROAD_BMP

Better pics of the swivel link and heavy duty printable drag chain assembly, I am using 26 links total in the drag chain plus I marked where I keep the PTFE clips on the chain. Very easy to install as long as your careful when assembling the links to not break them. This chain/link/etc has about 300 hours on it still tracking perfectly so I am going to keep using it when I put my X1C back together with the replacement x-axis carbon rods, belts, etc that are due to be replaced at the moment. *LINK TO HD PRINTABLE CABLE DRAG CHAIN - https://makerworld.com/en/models/852277#profileId-800682

(Edited)

@ATC_OFFROAD_BMP

250 hours on the chain assembly, link, PTFE guide, etc. and zero sagging

@ATC_OFFROAD_BMP

Here’s some better pics of what this is compared to the other swivel connector included in my cable drag chain assembly, this swivel is much stronger and lasts a VERY long time. Thanks for looking and please rate!
